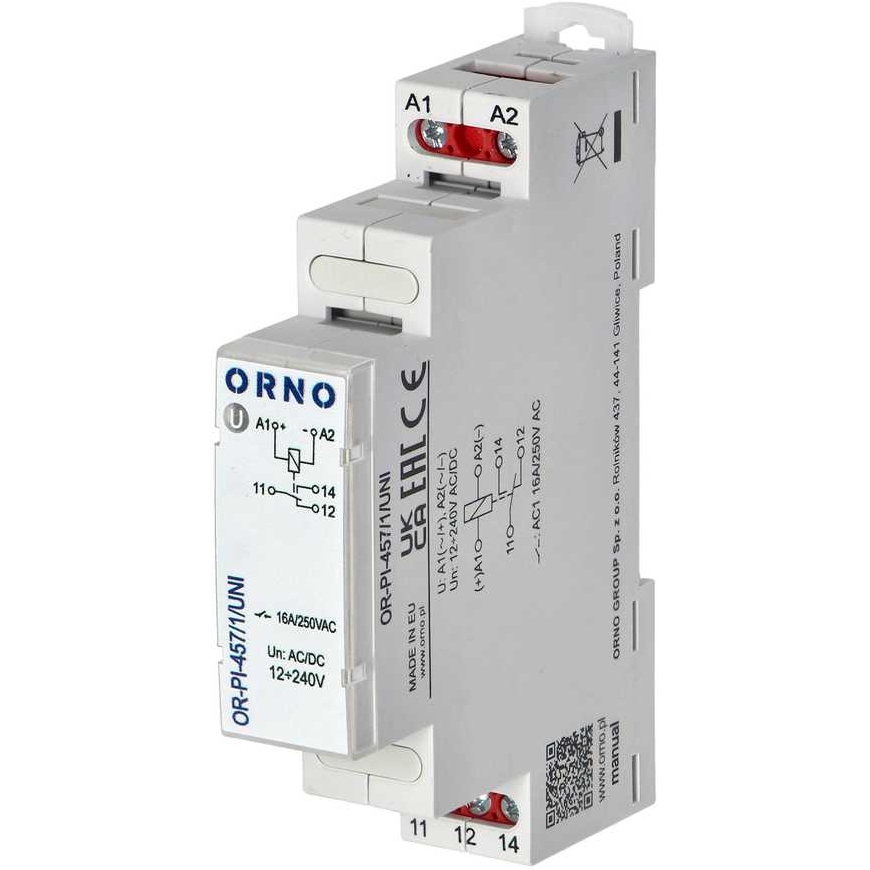

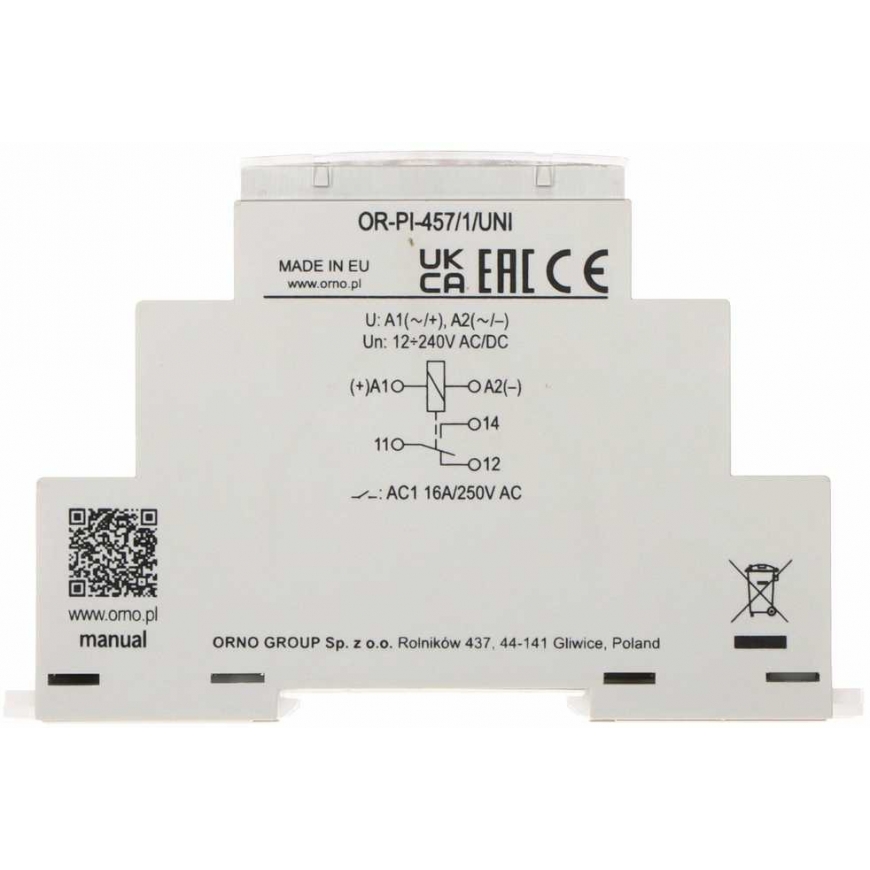

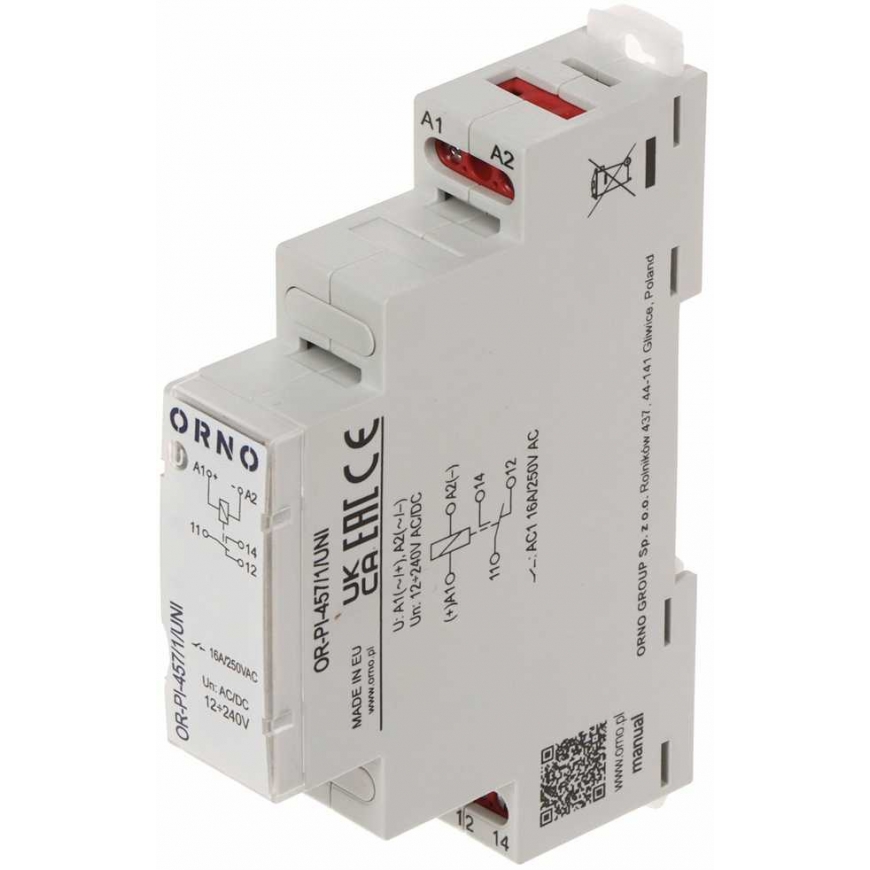

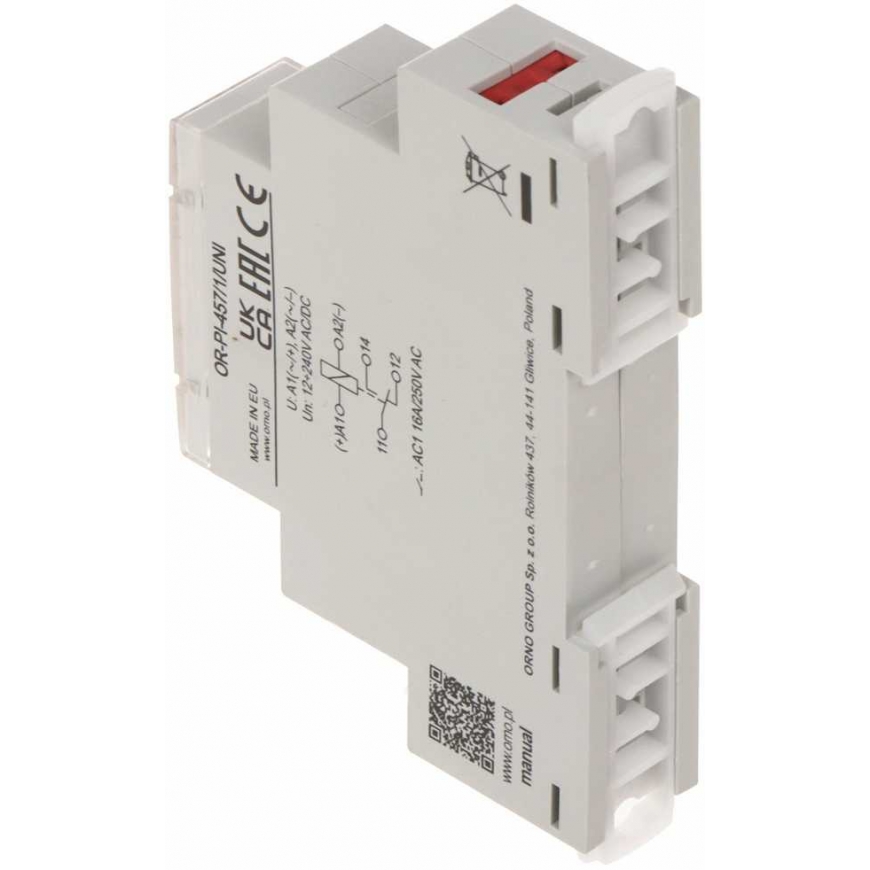

TRANSMITTER OR-PI-457/1/UNI ORNO
49,00 €
Monthly payment from 2.16 €
2578856 OR-PI-457/1/UNI
5904988905010
Shipping 1-14 b.d.
You are interested in this product?
Allows to increase the maximum load capacity of transistor outputs and provides galvanic isolation between the output line and the load.
| Number of relay outputs : | 1 |
| Feed : | 12 V ... 230 V AC / DC |
| Rated power consumption : | ≤ 1.5 W |
| Maximum contact load : | 16 A / 250 V AC (max) 16 A / 24 V DC (max) |
| Output : | 1 x NO/NC |
| Main features : | mounting on DIN, TS-35 rail LED indication |
| Working temperature : | -20 °C ... 50 °C |
| Weight : | 0.065 kg |
| Dimensions : | 97 x 17 x 65 mm |
| Manufacturer / Brand : | ORN |
| Warranty : | 2 years |
