ELECTROMAGNETIC LOCK ZE-280-5T
2339334 ZE-280-5T
5902887050718
Shipping 1-14 b.d.
Electromagnetic lock, surface, single.
The simple design and modern production technologies make it a reliable device for locking doors and gates.
Forcing a barrier locked with a blocker requires > 280 kg of force.
Reverse operation - open in the absence of supply voltage.

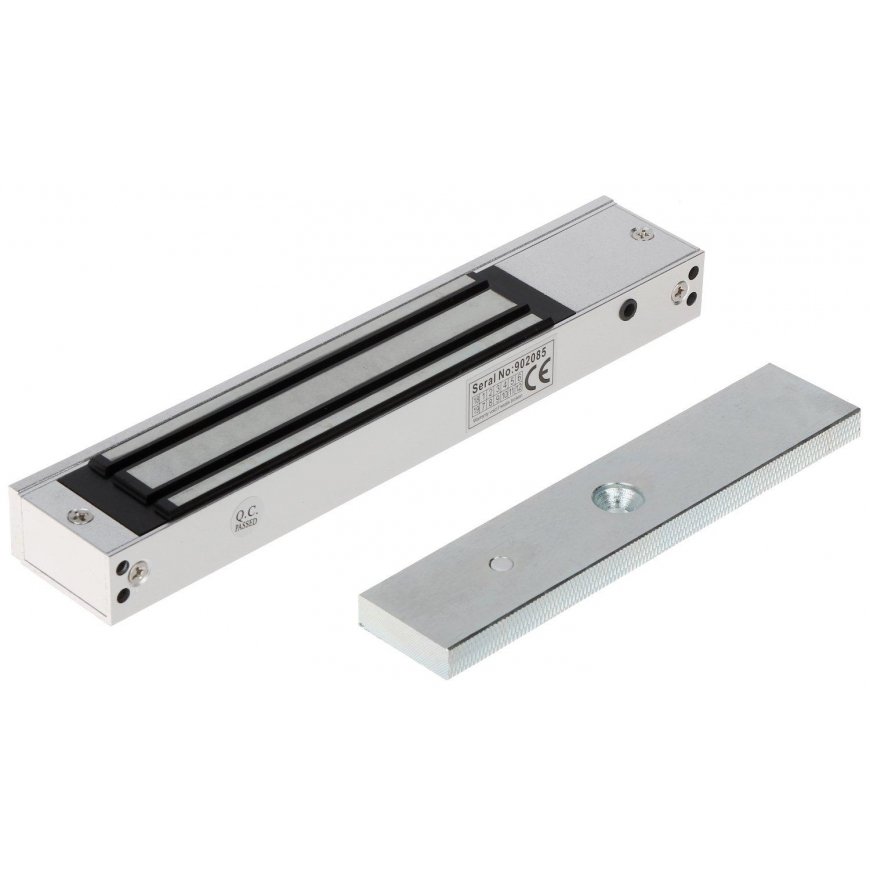

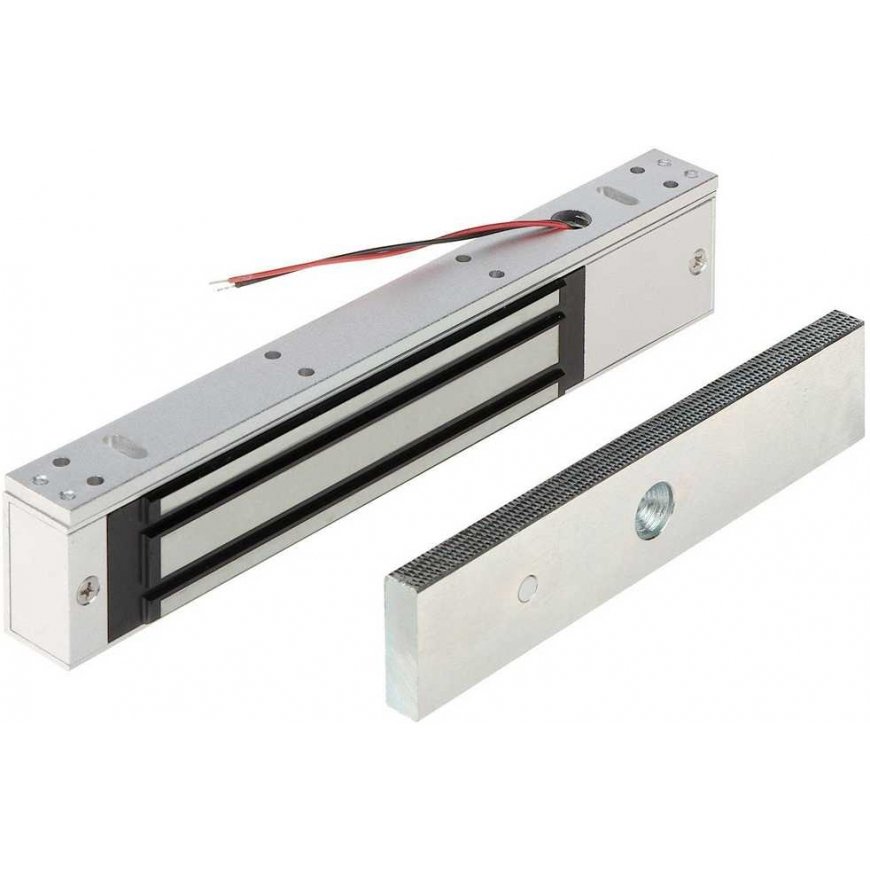

A lock consists of two elements: an electromagnet (usually attached to the frame) and a lock plate (usually attached to the door).
Emergency-free operation of the blocker is ensured by the absence of mechanical parts that wear out after a certain period of time.
The device is intended for outdoor use.
| Holding power : | 280 kg |
| Nominal voltage : | 12 V DC / 24 V DC |
| Current consumption : | 500 mA / 250 mA |

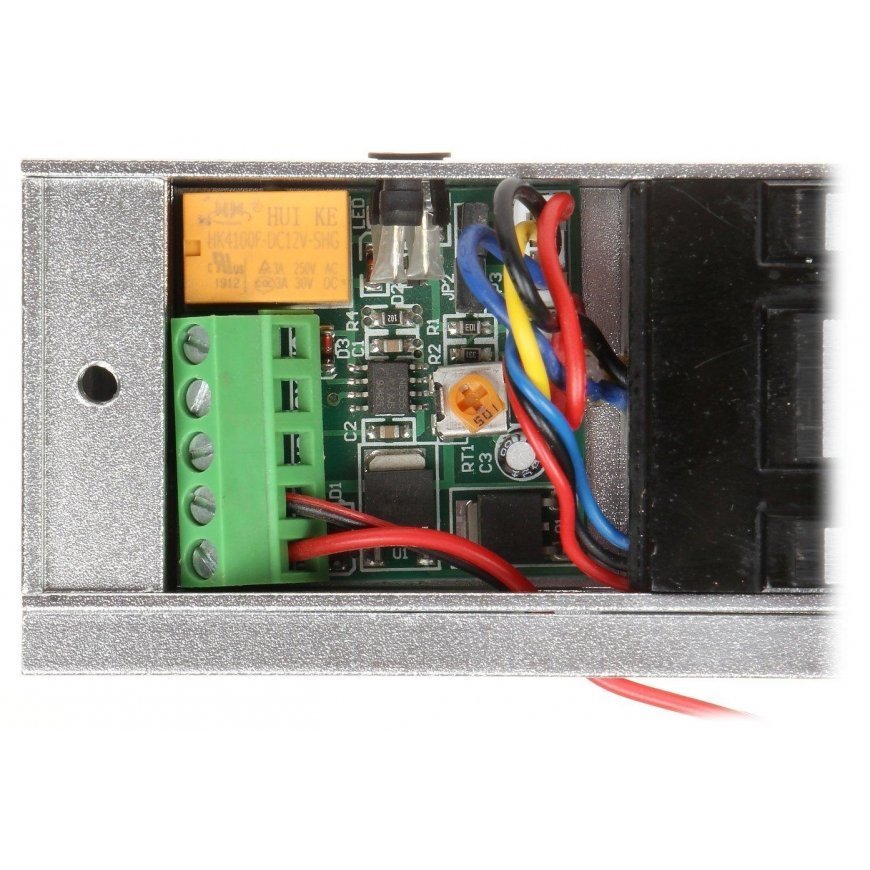

| Main features : | LED indication, NO/NC output, signaling door opening, Adjustable delay closing valve: 0 s ... 32 s - Adjustment with precise potentiometer |
| Weight : | 1.73 kg (gross) |

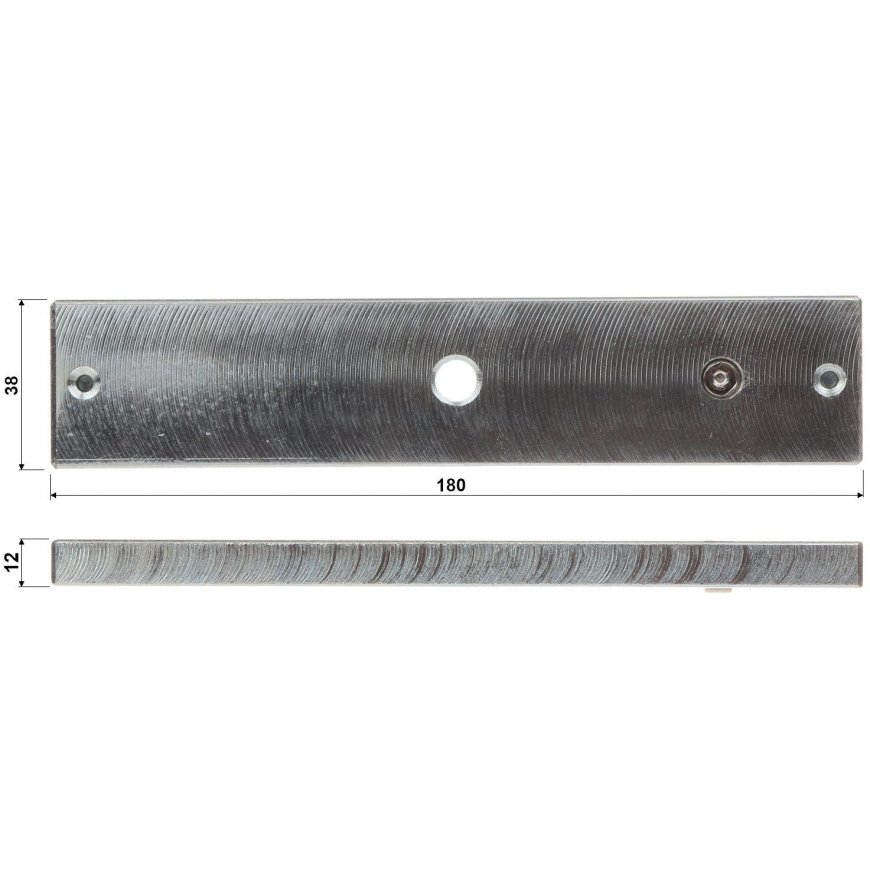

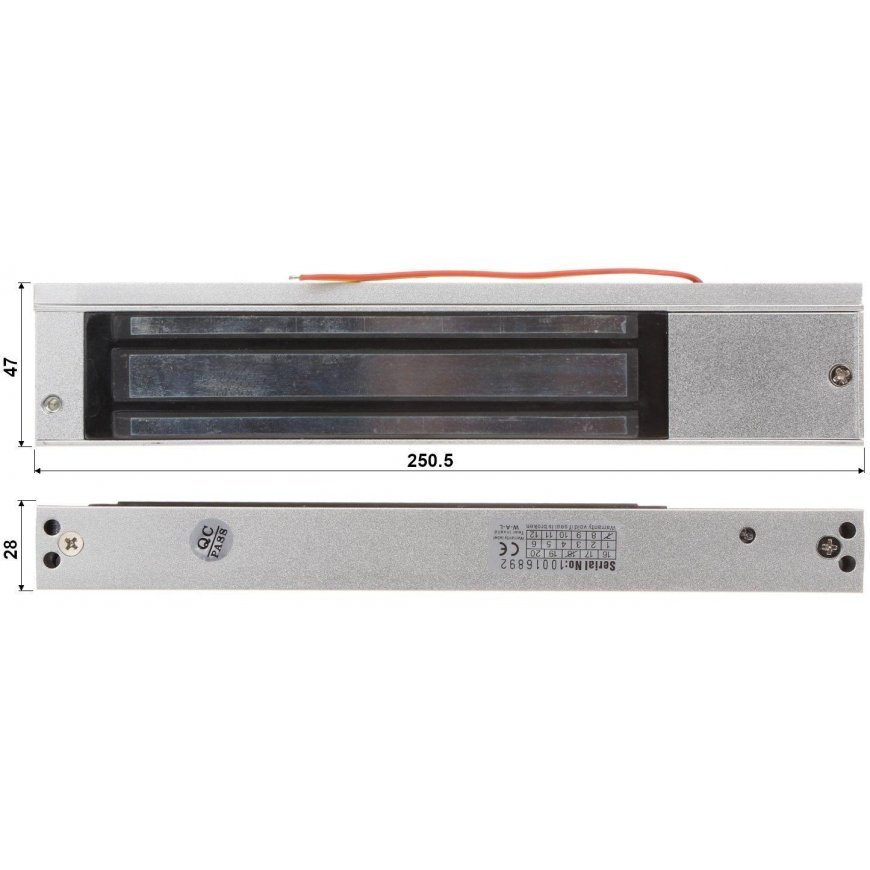

| Dimensions : | 250 x 47 x 28 mm (ELECTROMAGNETIC LOCK) 180 x 38 x 12 mm (Metal plate) |
| Warranty : | 2 years |
