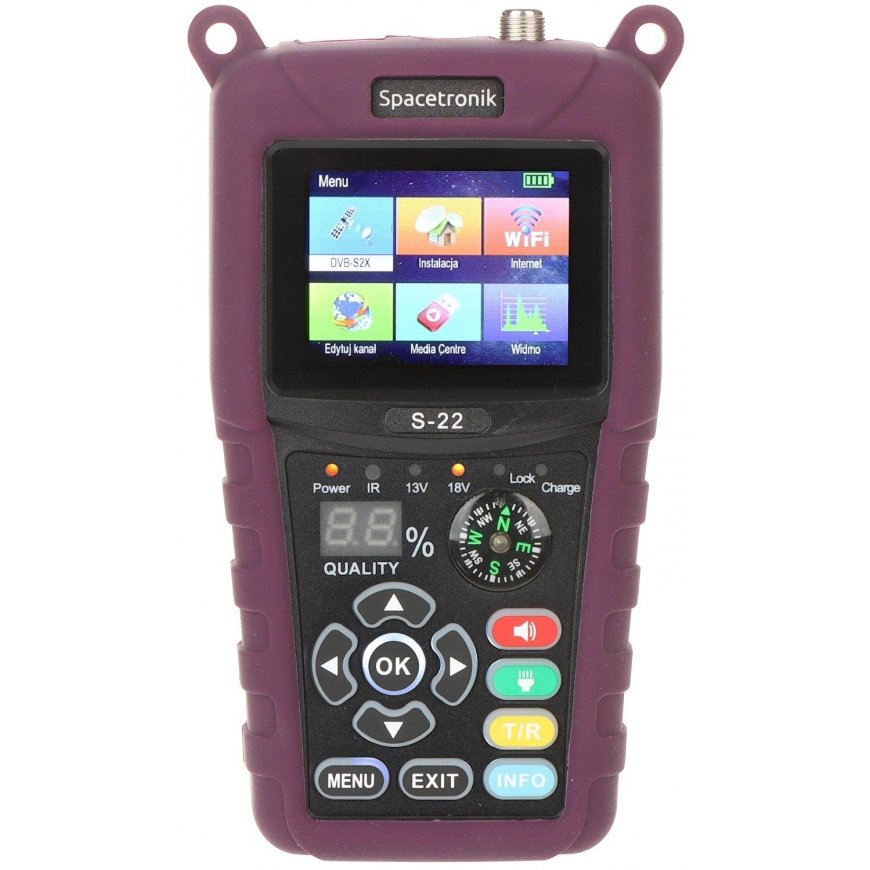

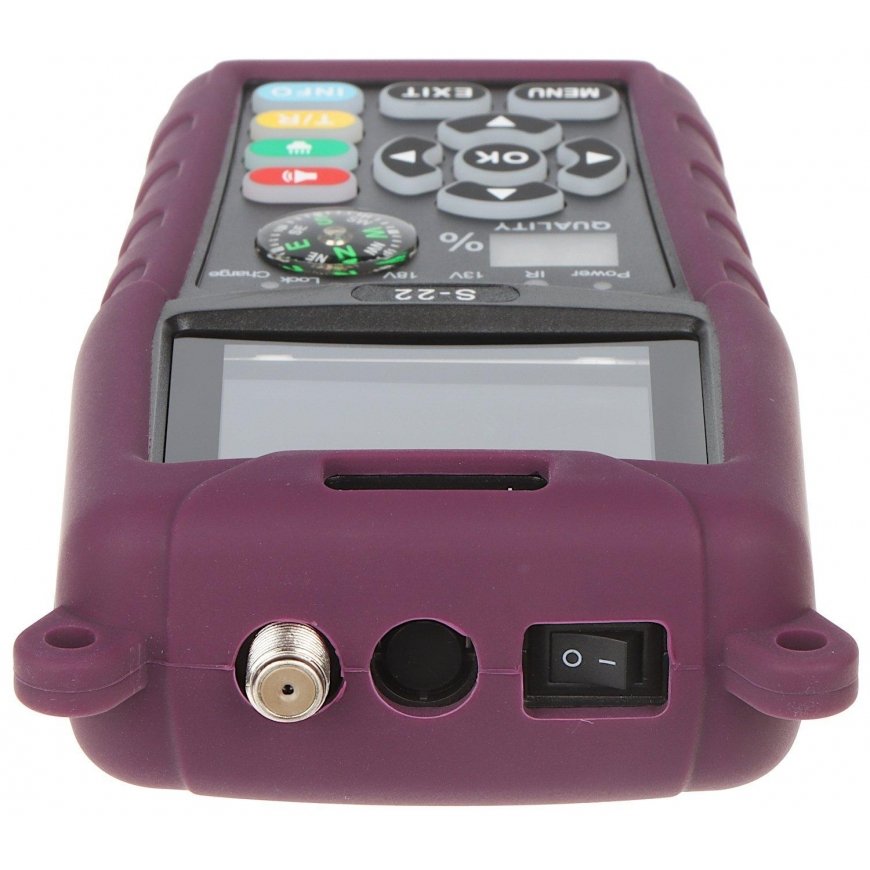

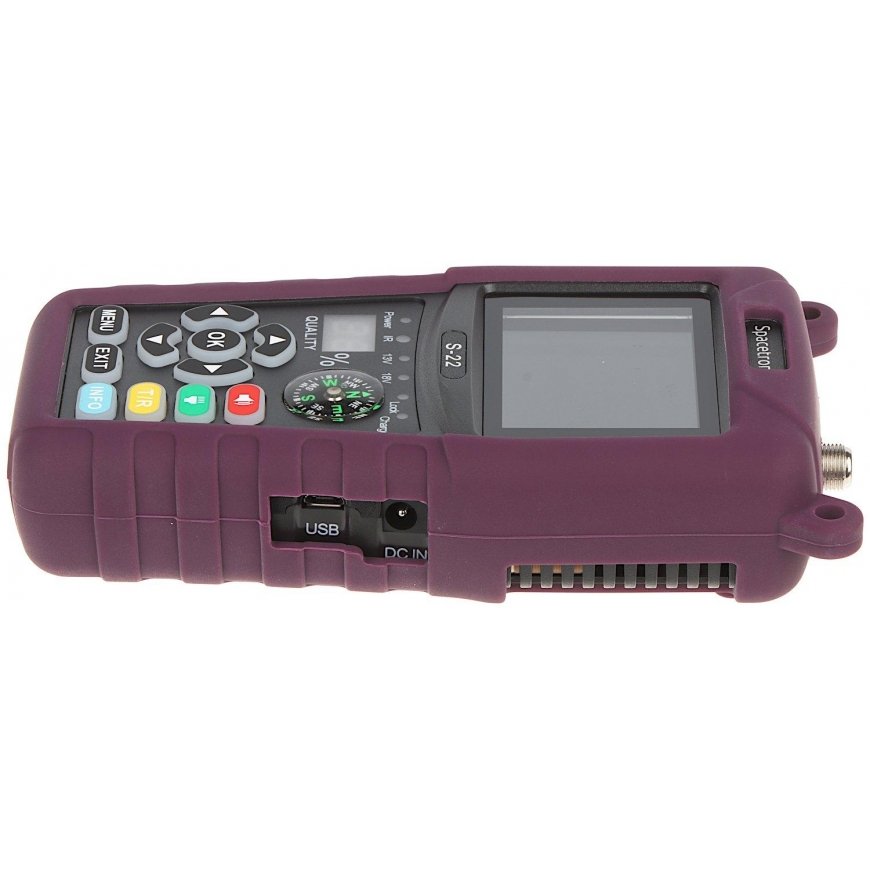

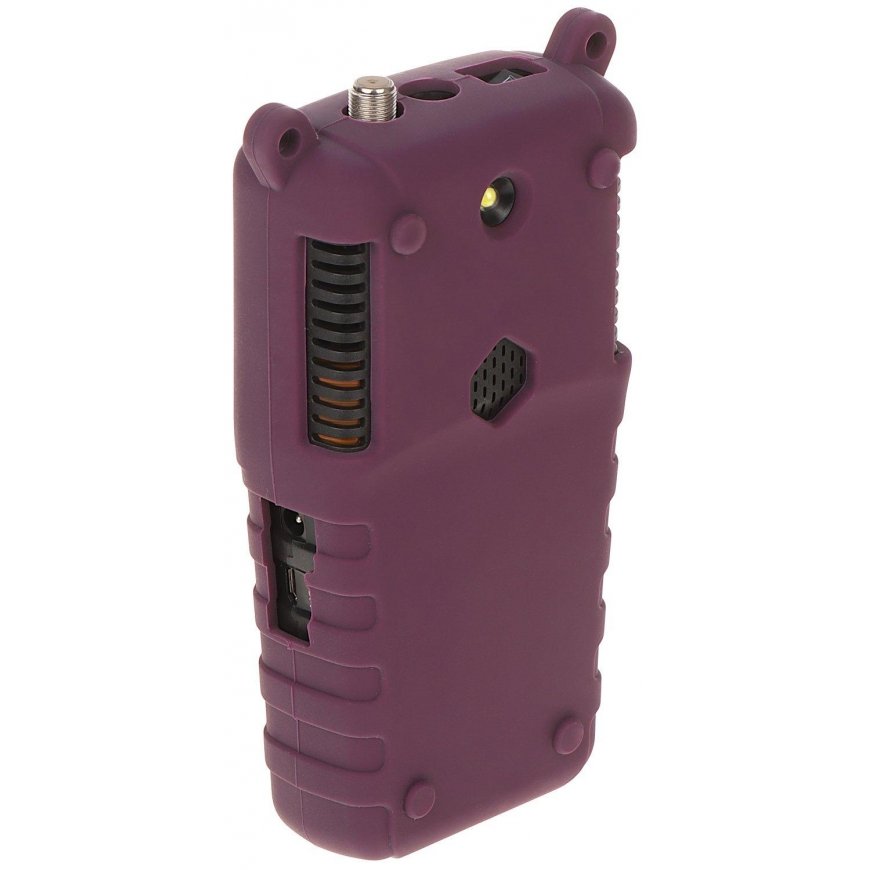

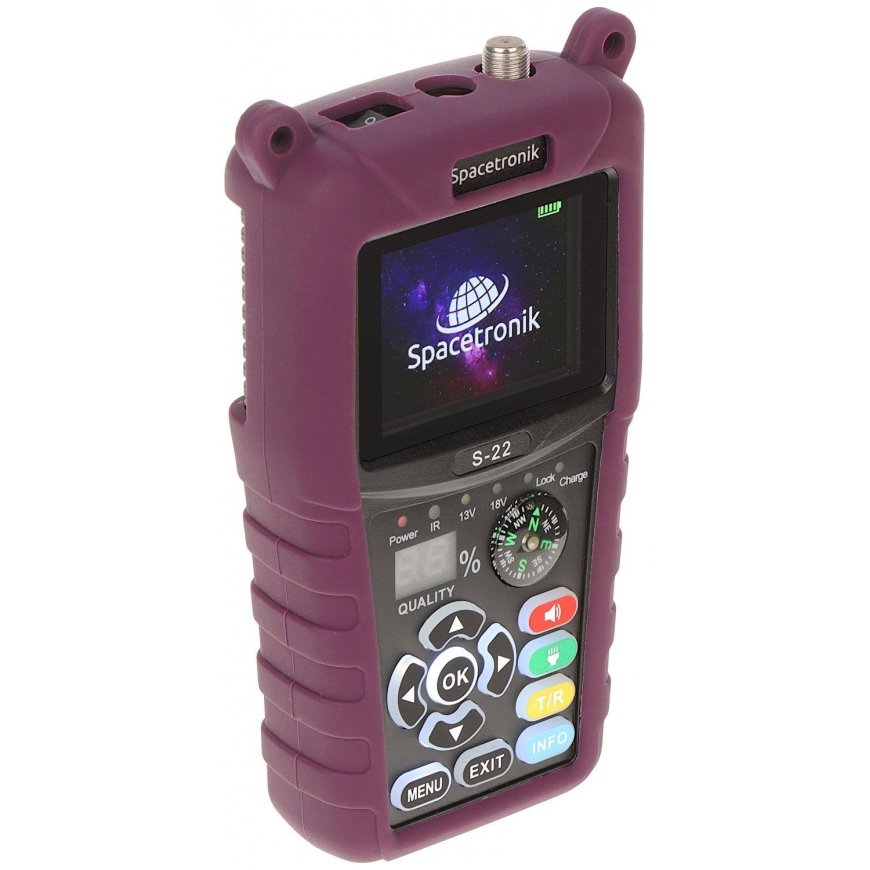

SATELLITE METER S-22 DVB-S/S2/S2X Spacetronik
139,00 €
Monthly payment from 4.48 €
2316636 5903031029307
Shipping 1-14 b.d.
You are interested in this product?
S-22 allows you to measure TV signals in DVB-S/S2/S2X networks.
A clear menu that makes work easier for any installer.
| Output and Input : | 1 pc. F socket, 1 pc. micro USB , 1 pc. 2.1/5.5 mm jack |
| Display : | 2.4" TFT LCD |
| Frequency range : | 950 MHz ... 2150 MHz - DVB-S / DVB-S2 / DVB-S2X |
| Signal level : | -20 ... -80 dBm |
| Converter power supply : | 13 / 18 V |
| Switching between bands : | 0 / 22 kHz |
| DiSEqC : | Support for DiSEqC 1.0, 1.1, 1.2, USALS systems |
| Antenna power : | 5 / 12 V |
| Video signal test : | - |
| Programming and software update : | via micro USB interface |
| Battery power : | Li-Ion battery 7.4 V / 2000 mAh 12 V / 1 A (power supply included) |
| Main features : | Signal quality and strength measurement Signal indicator : LED display / Audible signal Measurement BER, MER Spectrum measurement mode Converter overvoltage protection Indicator and converter short-circuit protection Satellite antenna rotary wheel support UNICABLE technology service Audible notification with signal blocking Legible and clear graphic interface All on-screen menu in Polish Included - car charger Long standby time Low energy consumption Compass Built-in flashlight Illuminated buttons Silicone shockproof case |
| Weight : | 0.3 kg |
| Dimensions : | 170 x 93 x 42 mm |
| Languages served : | Polish, English, Spanish, Portuguese, Russian, French |
| Manufacturer / Brand : | Spacetronik |
| Warranty : | 2 years |
