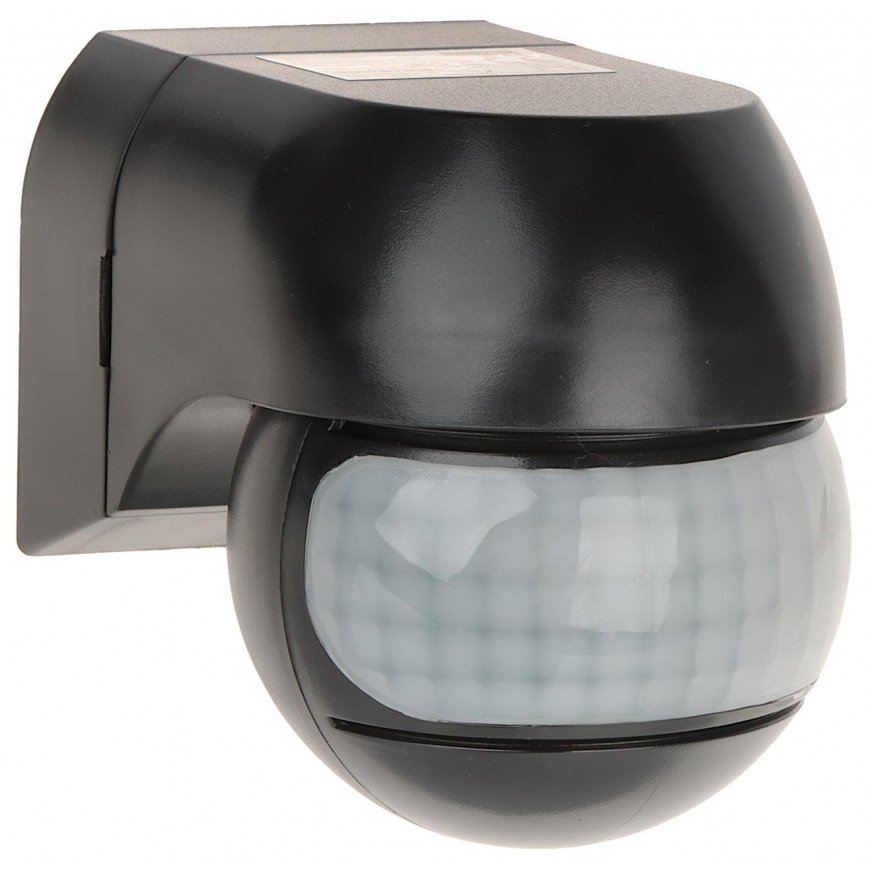

PIR SENSOR MD-16B7 AC 230V FOR LIGHTING CONTROL EL HOME
2285760 MD-16B7
5905548277110
Shipping 1-14 b.d.
The MD-16B7 motion detector is designed to control lighting or other electrical devices supplied with 230V AC inside and outside buildings.
When motion is detected in the detector's field of view, power is supplied to the receiver for the time specified by the built-in time delay setting.
In addition, the device is equipped with a light intensity sensor and a regulator of the highest light intensity, at which the detector will work.
The maximum load of the relay used in the detector is 1200W for a resistive load or 500W for an inductive load.
| Sensor type : | Passive IR (PIR) |
| Detection angle : | 220 ° |
| Distance : | 12 years old |
| Usage : | For outdoor conditions |

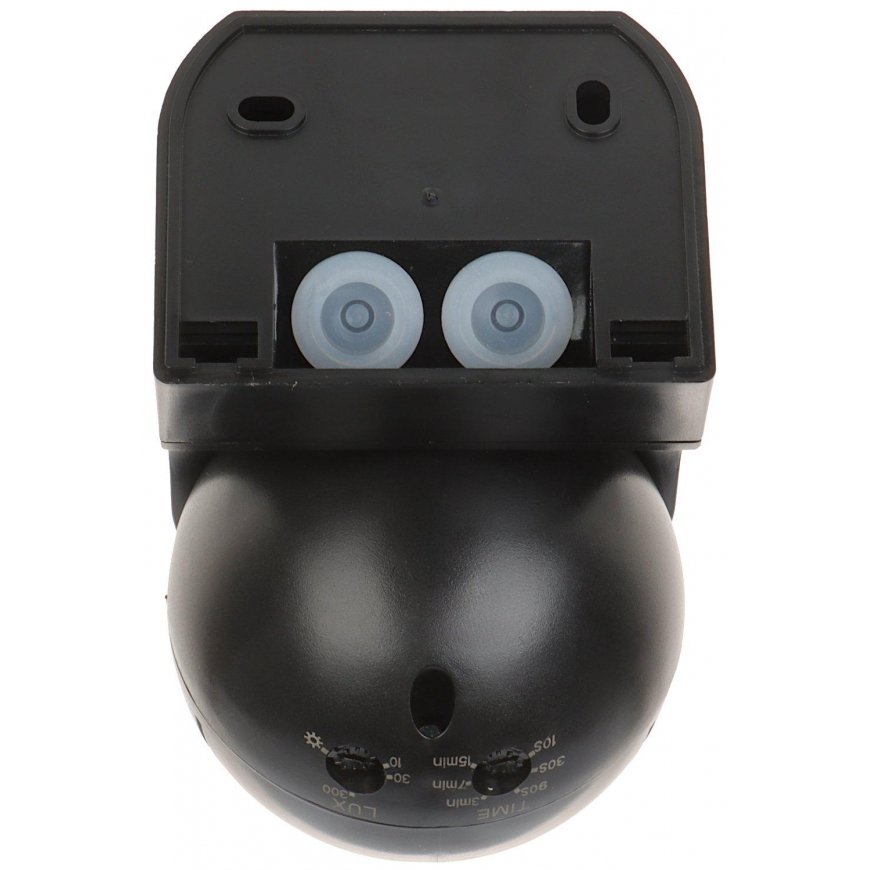

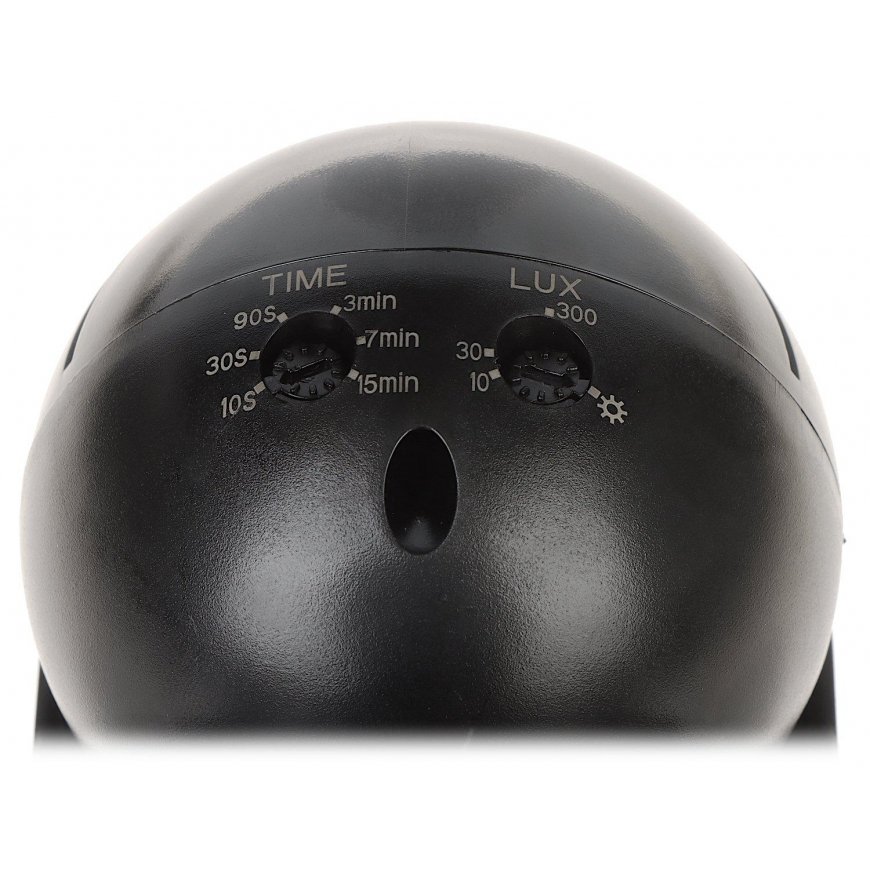

| Sensitivity adjustment : | 3 ... 2000 Lux (manual adjustment) |
| Recommended installation height : | 1.8 ... 2.5 m above the floor (fixing to the wall) |
| Violation alarm time : | 10 s ... 15 minutes |
| Maximum output load : | 1200 W (resistive load) 500 W (inductive load) |
| Resistance to animals : | - |
| Meals : | 220V ... 240V AC @ 50Hz |
| Sealing class : | IP44 |
| Color : | Black |
| Weight : | 0.16 kg |
| Dimensions : | 115 x 80 x 66 mm |
| Working temperature : | -20 °C ... 40 °C |
| Manufacturer / Brand : | EL HOME |
| Warranty : | 2 years |
