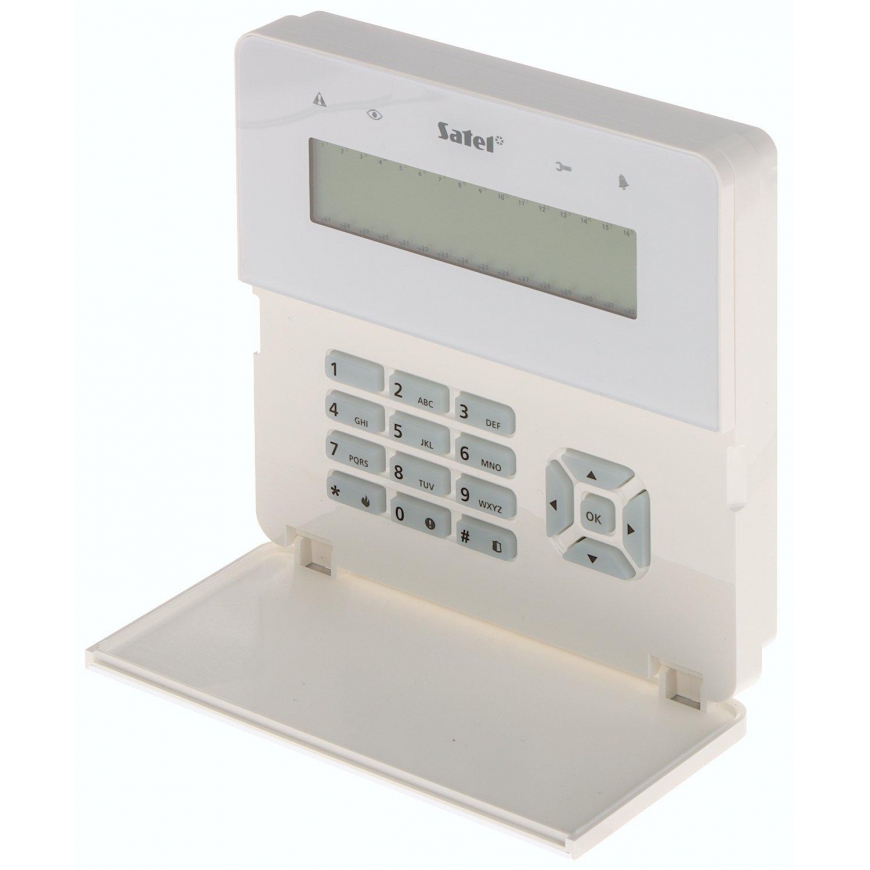

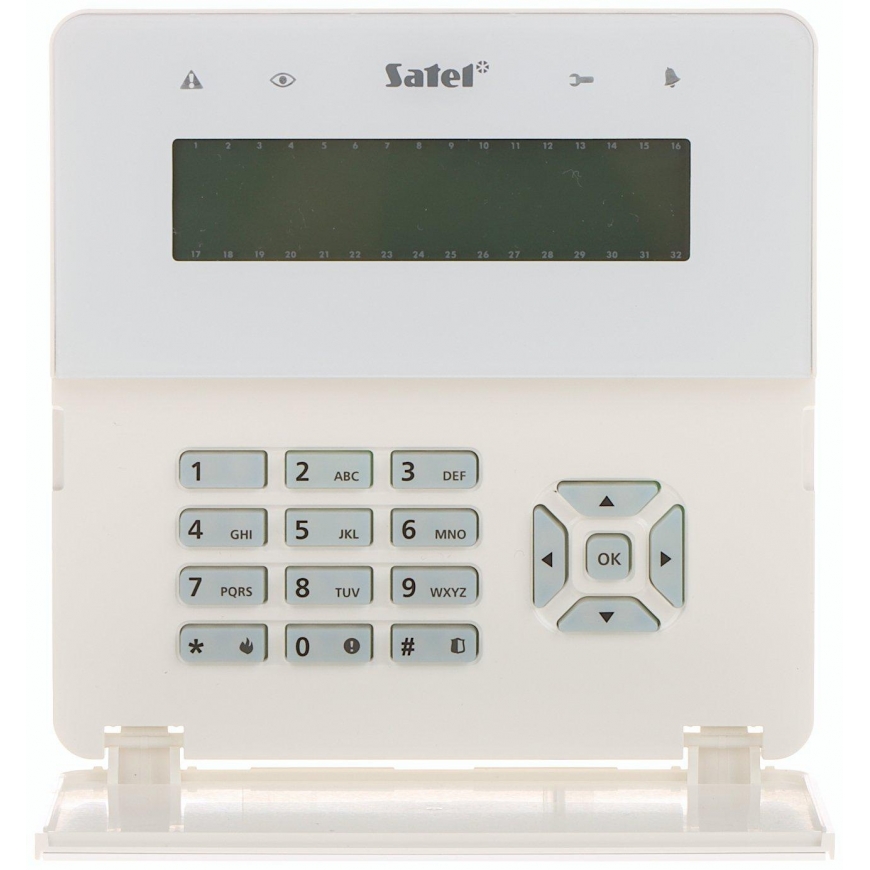

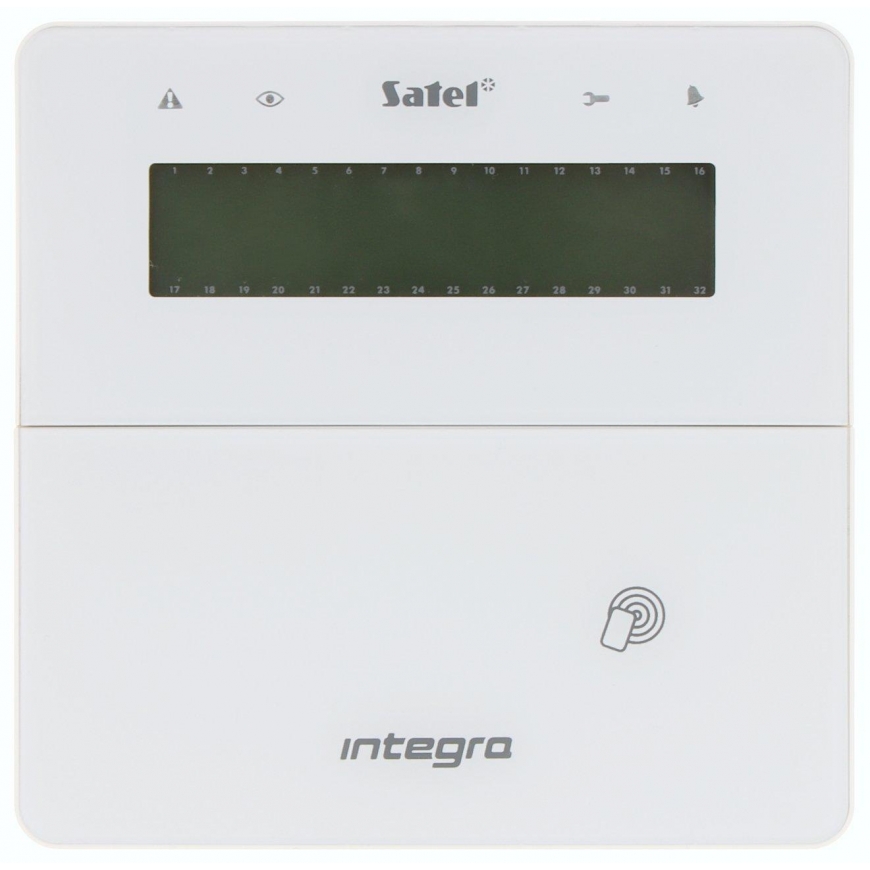

WIRELESS KEYBOARD RFID INT-KWRL2-W ABAX/ABAX2 SATEL
2139128 INT-KWRL2-W
5905033337527
2026-07-27
The device is designed to work with the operation of a two-way ABAX/ABAX2 wireless system.
The INT-KWRL2-W keypad is designed to service and program the Integra series alarm control panels.
Thanks to the LCD display, which shows text messages, the use of even the most advanced functions of the alarm control panel is easy and convenient.
The built-in remote card counter allows you to service the system without having to remember the password.
The manipulator is powered by a battery (included in the set) and communicates with the alarm center using a special radio transmission (two-way communication) protocol.
| Support : | ABAX/ABAX2 |
| Frequency band : | 868 MHz ... 868.6 MHz |
| Radio range (in open area) : | ≤ 800 m - ABAX2 @ ACU-220, ≤ 800 m - ABAX2 @ ACU-280, ≤ 800 m - ABAX @ ACU-120, ≤ 400 m - ABAX @ ACU-270 |
| Selected features : | Built-in non-contact reader Large and clear backlit LCD display showing detailed information about the system status LED indicator showing working status warning signals: ATTACK, FIRE, HELP, called by keyboard Sound alarm of selected system events Microswitch to detect keyboard tampering |
| Meals : | 2 x CR123A (included) |
| Color : | White |
| Working temperature : | -10 °C ... 55 °C |
| Weight : | 0.34 kg |
| Dimensions : | 145 x 143 x 25 mm |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
