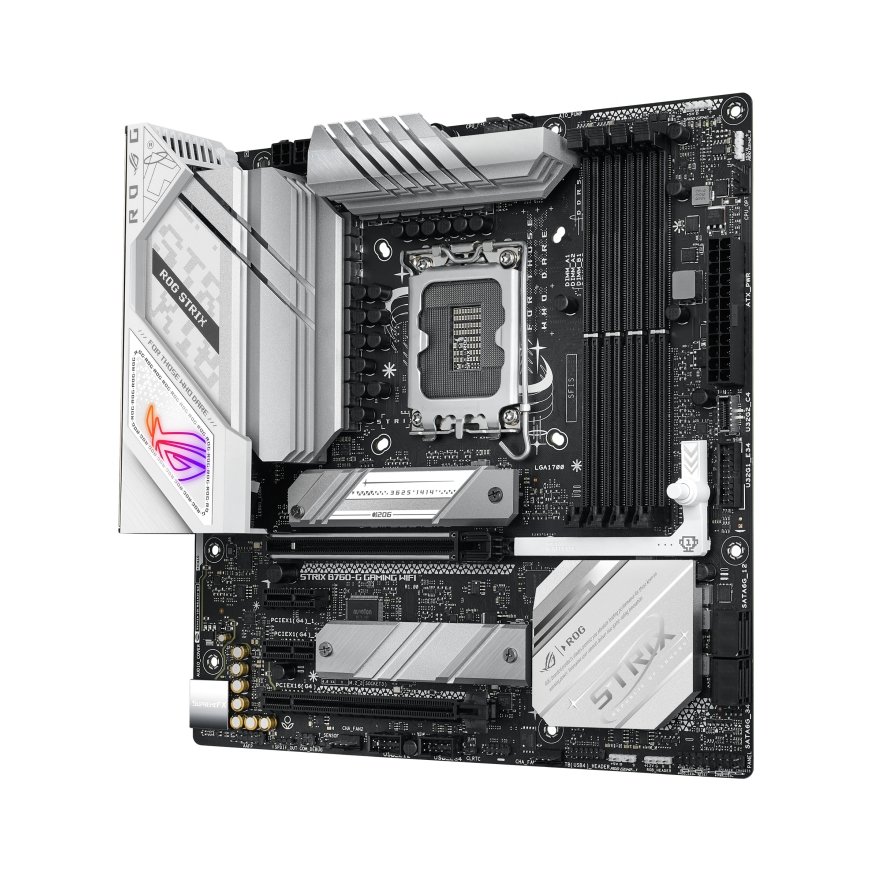

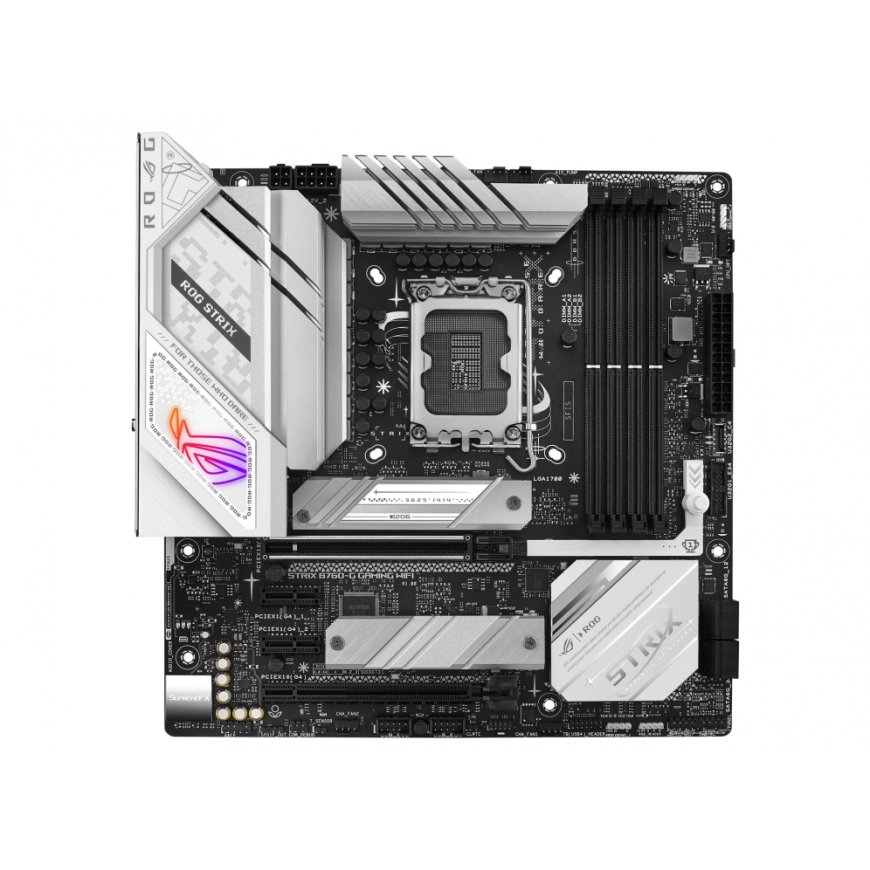

ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX
269,01 €
Monthly payment from 7.83 €
1932358 90MB1EQ0-M0EAY0
4711387120002
This product is no longer in stock
You are interested in this product?
Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.
TEAMED POWER ARCHITECTURE
12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
8+4 PIN PROCOOL POWER CONNECTORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
The Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
PLAY IN STYLE
The Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.
Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7800 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| RAID support | Yes |
Graphics | |
| Parallel processing technology support | Not supported |
Internal I/O | |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| WiFi-AP antenna jack | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Audio chip | SupremeFX S1220A |
Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Packaging content | |
| Cables included | SATA |
