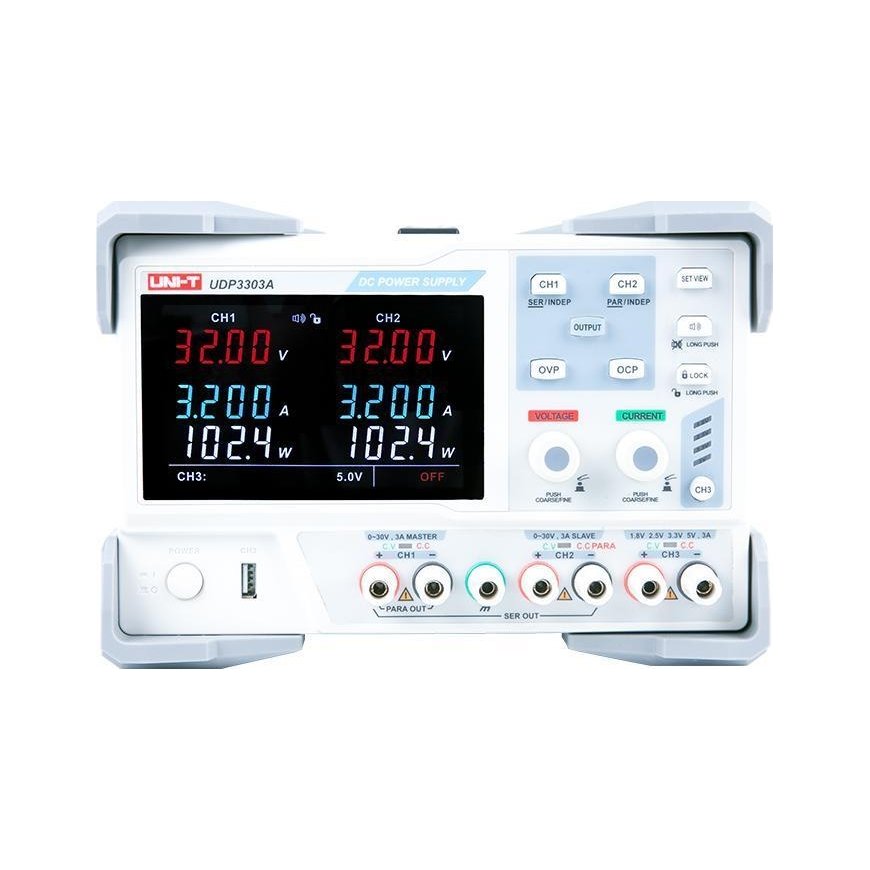

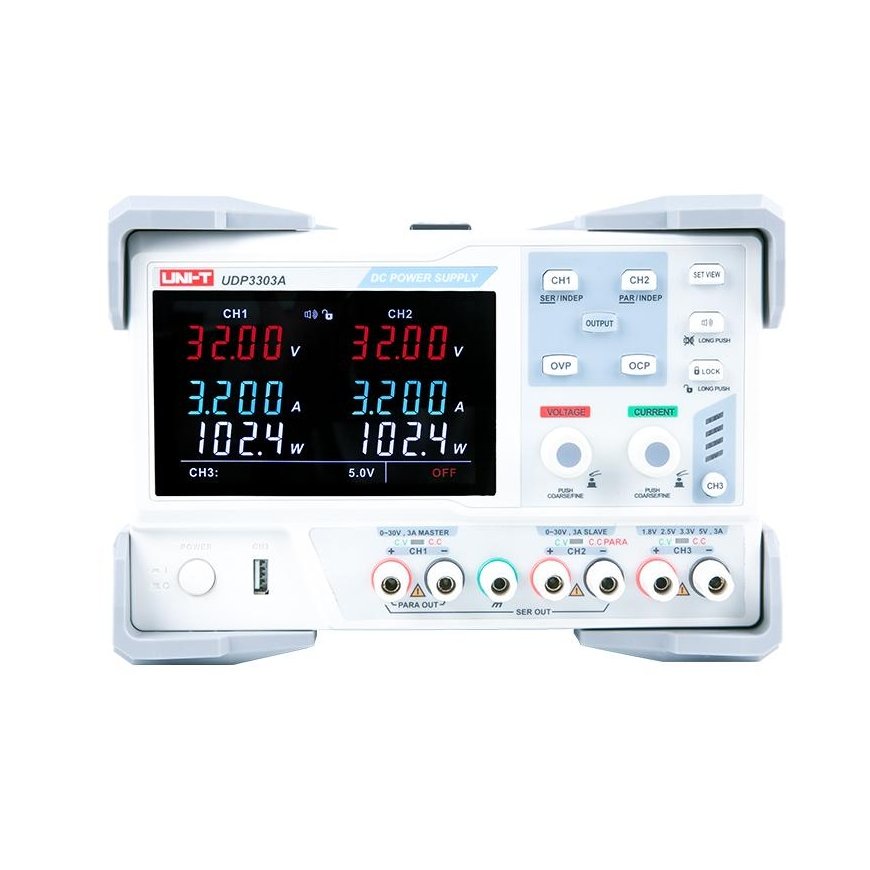

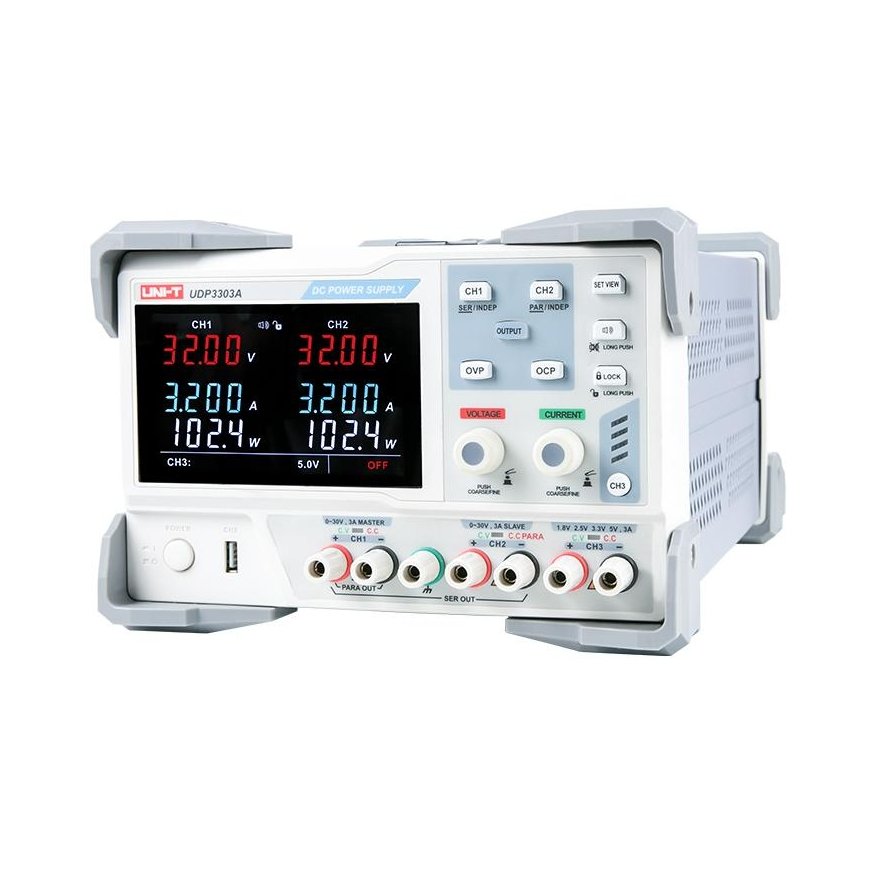

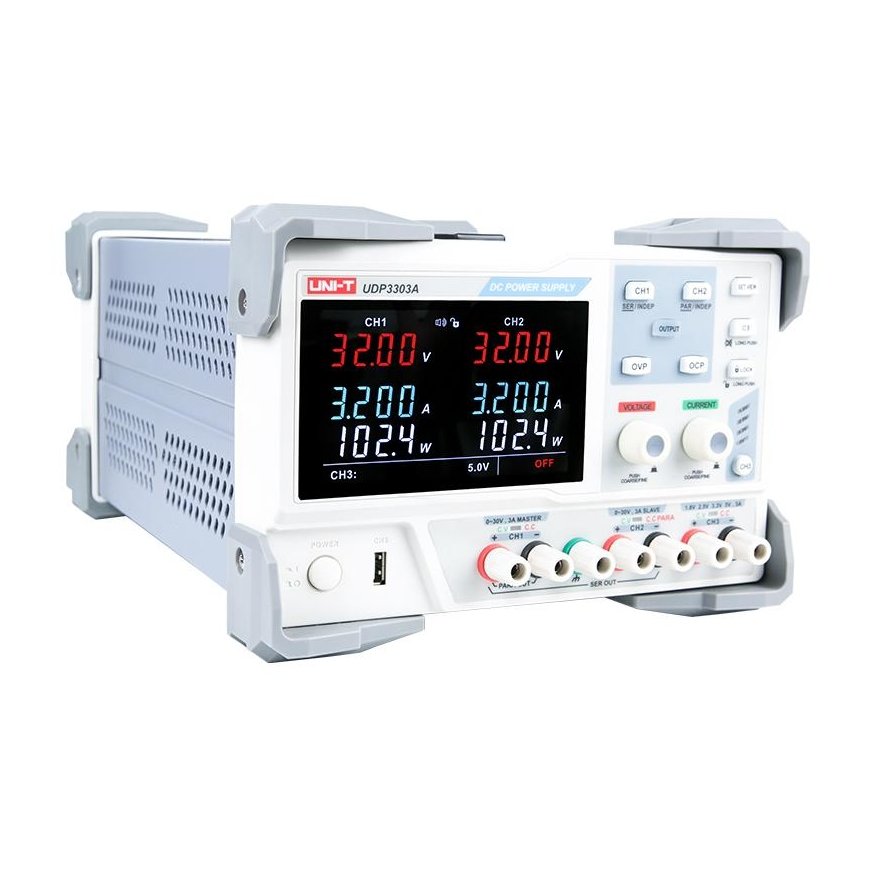

LABORATORY POWER SUPPLY UD-P3303A UNI-T
349,00 €
Monthly payment from 9.89 €
1917570 LEC-MIE0372
5901890044356
2026-07-27
You are interested in this product?
The laboratory power supply UD-P3303A provides the ability to generate constant voltage or electric current with precisely defined parameters.
The device can work in one of two modes: as a source of constant voltage, or as a source of constant electric current.
The power supply can be additionally connected internally to the serial or parallel connection of the outputs.
| Power adapter output voltage range : | 0 ... 30 V |
| Initial current of the power supply : | 0 ... 3 A |
| Output power : | 195 W |
| Determination of resolution : | Voltage : 10 mV Current : 1 mA |
| Setting accuracy : | Voltage ≤ ± (0.1% + 30mV) Current ≤ ± (0.3% + 5mA) |
| Pulsations and noises : | Voltage : ≤ 1 mV RMS Current : ≤ 3 mA RMS |
| Number of outputs : | 3 : 2x : 0 ... 30 V DC / 0 ... 3 A, 1x : 1.8 / 2.5 / 3.3 / 5 V DC / 3 A |
| Display : | EBTN display |
| Main features : | Possibility of serial or parallel connection of outputs In parallel mode, the maximum current is about 6A In serial mode, the maximum voltage is 60V Symmetrical mode - in this mode, common grounding can be obtained for two power sources, respectively with a maximum voltage of -30V and +30V Input for charging / powering USB devices : 5 V / 2 A |
| Meals : | 100 / 120 / 220 / 230 V AC - selectable by switch |
| Operating temperature / relative humidity : | 0 °C ... 40 °C / ≤ 80 % |
| Weight : | 8.6 kg |
| Dimensions : | 241 x 170 x 347 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
