LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C
LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C

269,01 €
Monthly payment from 7.83 €
1876283

IEC-4301

4015867188163

2026-07-31

Quantity

You are interested in this product?
(Read terms of service)

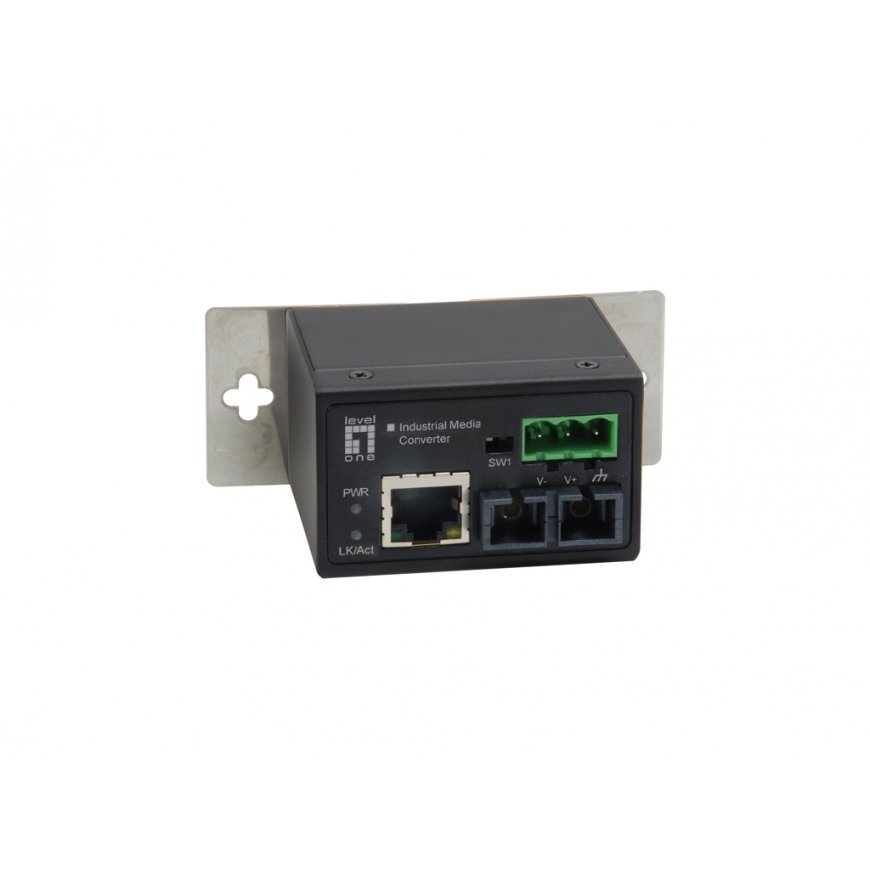

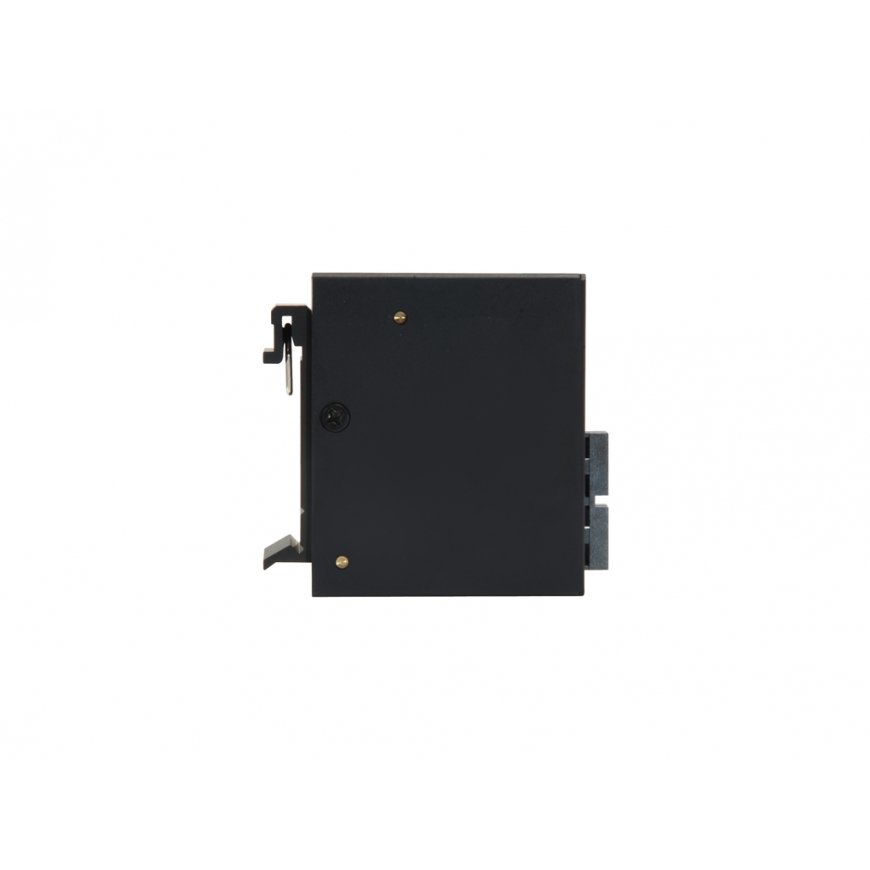

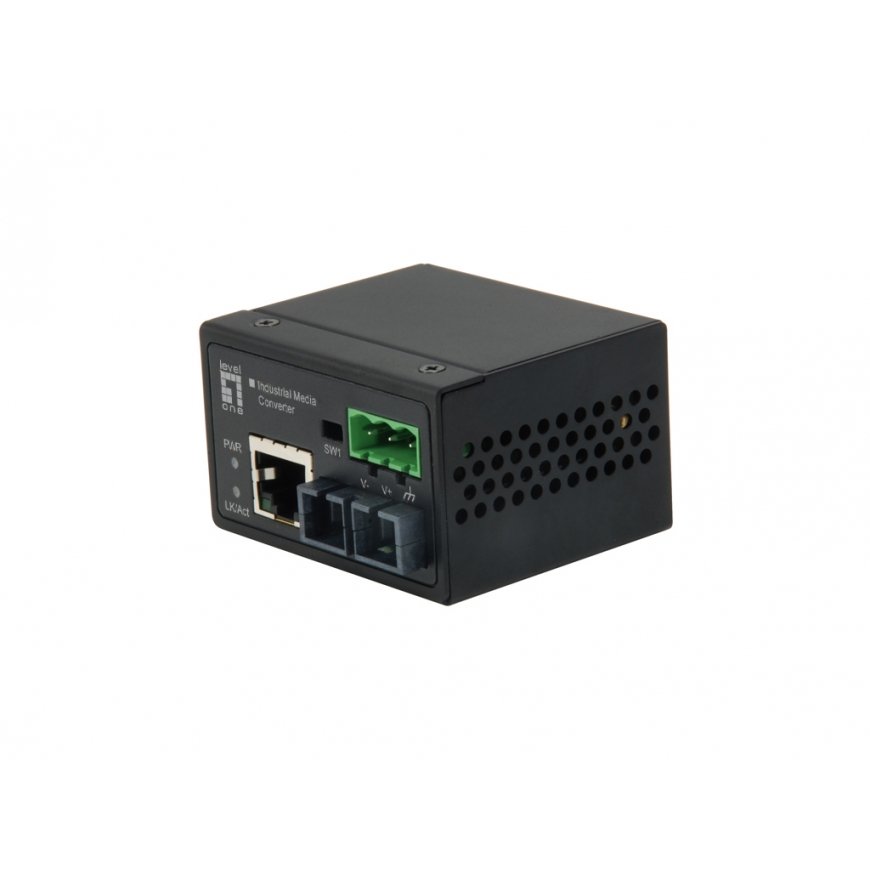

LevelOne IEC-4301 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.

- 10/100BaseT to 100Base-FX
- Rugged aluminium case design in a mini size form factor
- 18V-36VAC & 12V-60VDC with polarity protection
- Link Fault Pass through (LFP) function
- Supports switch and pure converter mode
- Surge & ESD protection
- Maximum noise & interference immunity
- 40°C to 75°C (-40°F to 167°F) operating temperature range
- DIN-Rail or panel mount installation
Design
LED indicators Power, Activity, Link
Product colour Black
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 75 °C
Weight & dimensions
Weight 90 g
Width 59 mm
Depth 49 mm
Height 36 mm
Packaging data
Package weight 260 g
Package type Box
Package height 65 mm
Package width 160 mm
Package depth 105 mm
Logistics data
Country of origin Taiwan
Harmonized System (HS) code 85176990
Certificates
Certification IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 Subpart B Class A, CE EN 55022 Class A, FCC Part 15 Subpart B Class A,, EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 2, EN61000-4-4 (EFT) Level 2, EN61000-4-5 (Surge) Level 2, EN61000-4-6 (CS) Level 2, EN 61000-4-8 (PFMF) Level 1, UL508 (Pending), EN 50121-4 (Pending)
Compliance certificates RoHS
