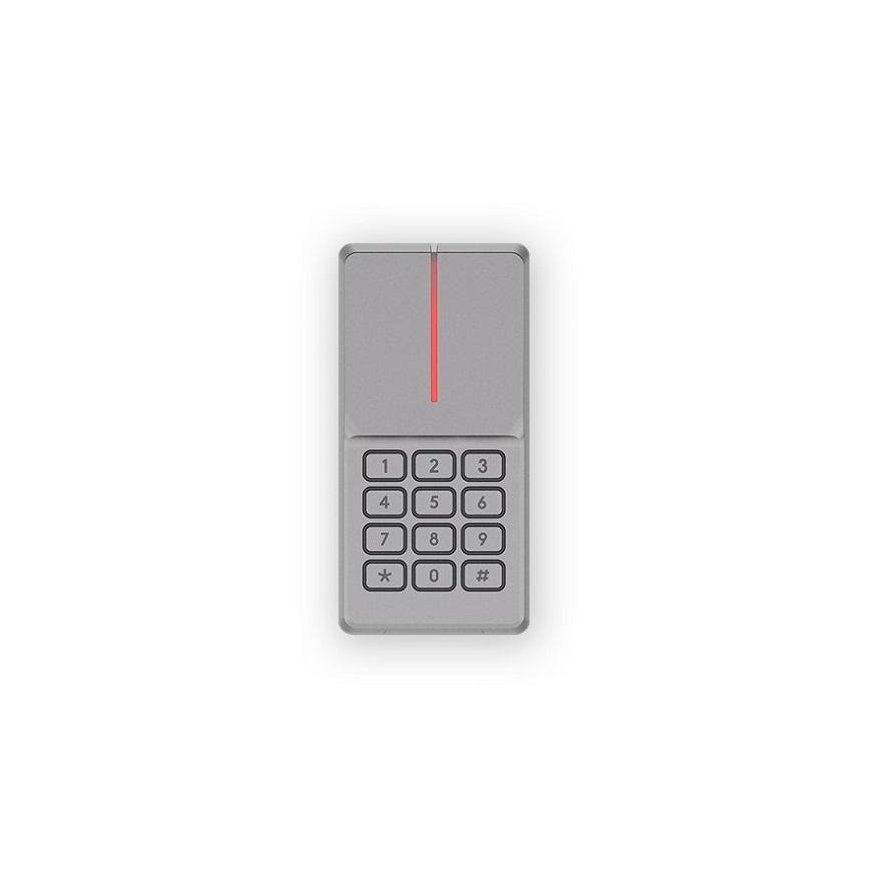

Hismart Multifunctional keyboard with EM/HID/MF/NFC/CPU card reader and built-in controller
59,00 €
Monthly payment from 2.42 €
1822443 TV990399
9990000990399
Shipping 2-4 days
You are interested in this product?
Features:
It is an autonomous access control with a keypad and remote card reader.
The access control controller is suitable for outdoor conditions (-20°C~+60°C temperature), has IP65 water and dust resistance, suitable for outdoor or indoor use.
Optional 125KHz EM/HID or 13.56MHz Mifare/NFC/CPU cards are supported.
Access control in 3 ways: by card, PIN code or card+PIN.
Technical data:
Number of users (cards/PIN codes): 2000.
PIN code length: 4-6 digits.
Frequency of supported cards: 125KHz (EM / HID cards) / 13.56MHz (Mifare / NFC / CPU cards; ISO14443A).
Supply voltage: DC 12~24V.
Standby power consumption: <50mA.
Card scanning distance: 2~5 cm.
Number of supported doors: 1.
Output protocol: 26/37bit Wiegand.
Wire connections: for lock, exit button, door sensor, doorbell, alarm.
Relay: 1 (for lock, No, Nc, Com contacts).
Adjustable relay activation time: 0-99 seconds.
Safety class: IP65.
Mounting: on the wall.
Material: Zinc Alloy.
Operating temperature: -20°C~+60°C.
Relative humidity: 0%~95%RH.
Dimensions: 170 x 83 x 26 mm.
Warranty: 24 months
