The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

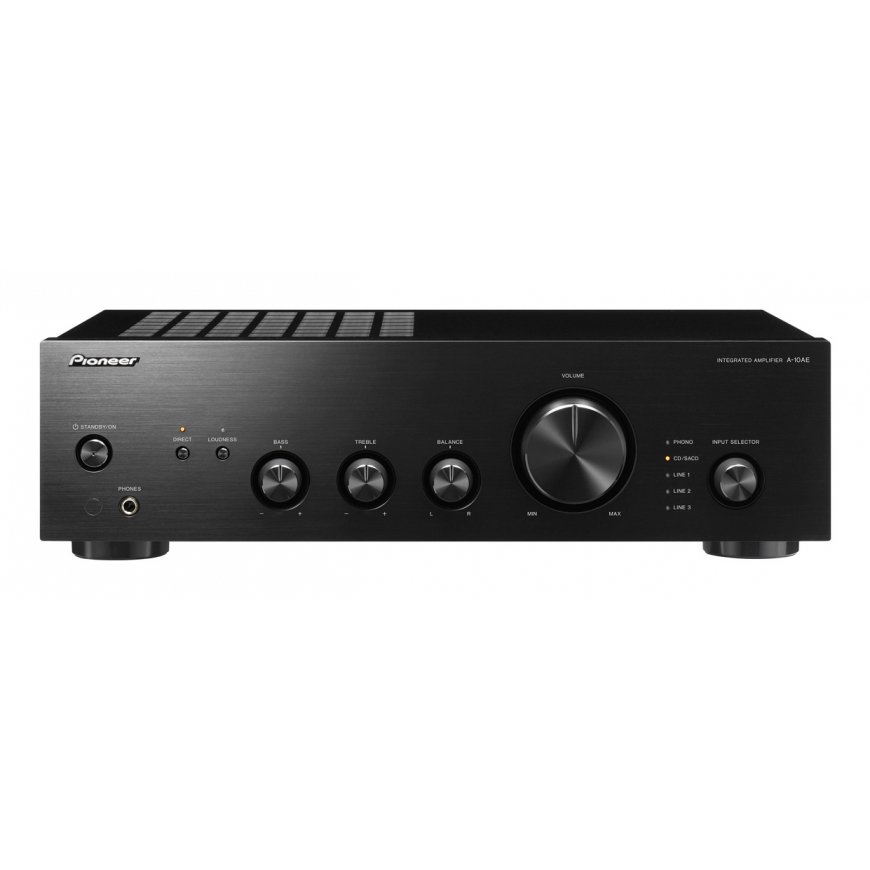

Pioneer A-10AE Black
1533336 A-10AE-B
4573211153965
This product is no longer in stock
Isolated Power Supply
The windings for the power amplifier, pre-amplifier, and controls are each separated inside the power transformer to prevent mutual noise interference.
Direct Function
The A-10AE features Direct Function, which bypasses other circuits except for the volume to offer a pure listening experience suitable for musical content. The function is not just a simple switching, but is finely tuned to enhance the musicality.
Anti-Standing Wave Insulators
The Anti-Standing Wave Insulator features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localisation, tone, and scale clearer, while also contributing to seamless connection between the channels and improved response to quick sound.
Non-Magnetic Material Speaker Terminals
The speaker terminals use non-magnetic material, which is less susceptible to external noise, and transmits signals to the speakers at high purity.
Phono (MM) Input
The A-10AE is equipped with a phono input (MM) terminal, letting you connect a turntable for enjoying quality audio performance from vinyl records.
Direct Energy Design
Pioneer’s Direct Energy Design is based on the Direct Energy Concept—lossless transfer of energy from the amplifier to the speakers. Inheriting this philosophy, the latest integrated amplifiers feature optimised power supply/output circuit blocks, as well as parts layout. The unit reproduces clearer sound with reduced distortion. The result is excellent signal transfer and high S/N ratio, with the performance to bring out the best musical reproduction from the integrated amplifier.
Technical details | |
| Signal-to-Noise Ratio (SNR) | 103 dB |
| Product colour | Black |
| Volume control | Rotary |
| Connectivity technology | Wired |
| Material | Steel |
| Source Direct function | Yes |
Audio | |
| Peak power per channel | 50 W |
| Bridge-mode power output per channel (4 Ohm) | 50 W |
| Bridge-mode power output per channel (8 Ohm) | 30 W |
Features | |
| Frequency range | 10 - 100000 Hz |
| On/off switch | Yes |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| Built-in display | No |
Ports & interfaces | |
| Line outputs (RCA) | 1 |
| Phono audio in (L,R) | Yes |
Weight & dimensions | |
| Width | 435 mm |
| Depth | 323 mm |
| Height | 129 mm |
| Weight | 6.8 kg |
Power | |
| Power consumption (typical) | 130 W |
| Power consumption (standby) | 0.2 W |
| AC input voltage | 220 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power source type | AC |
