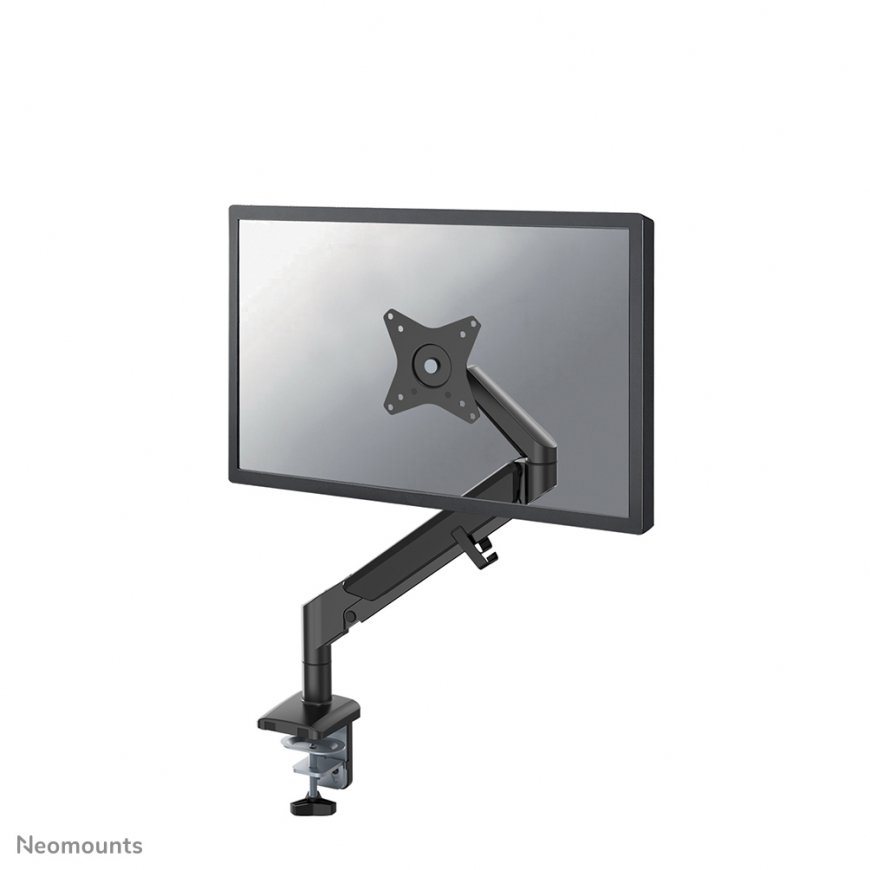

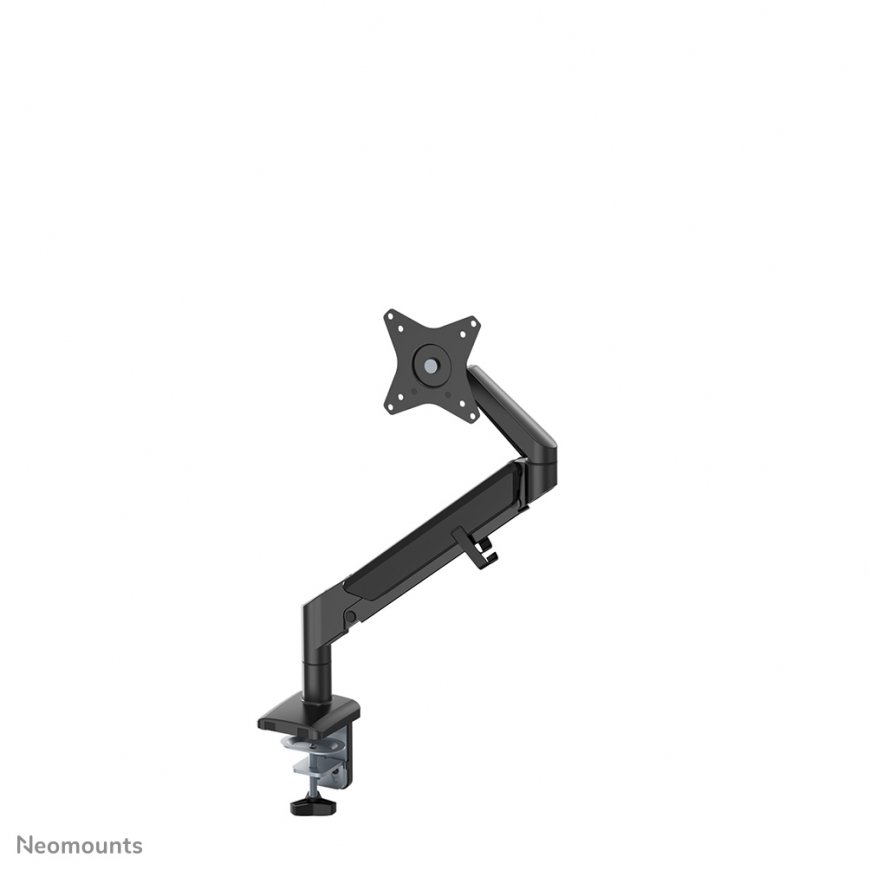

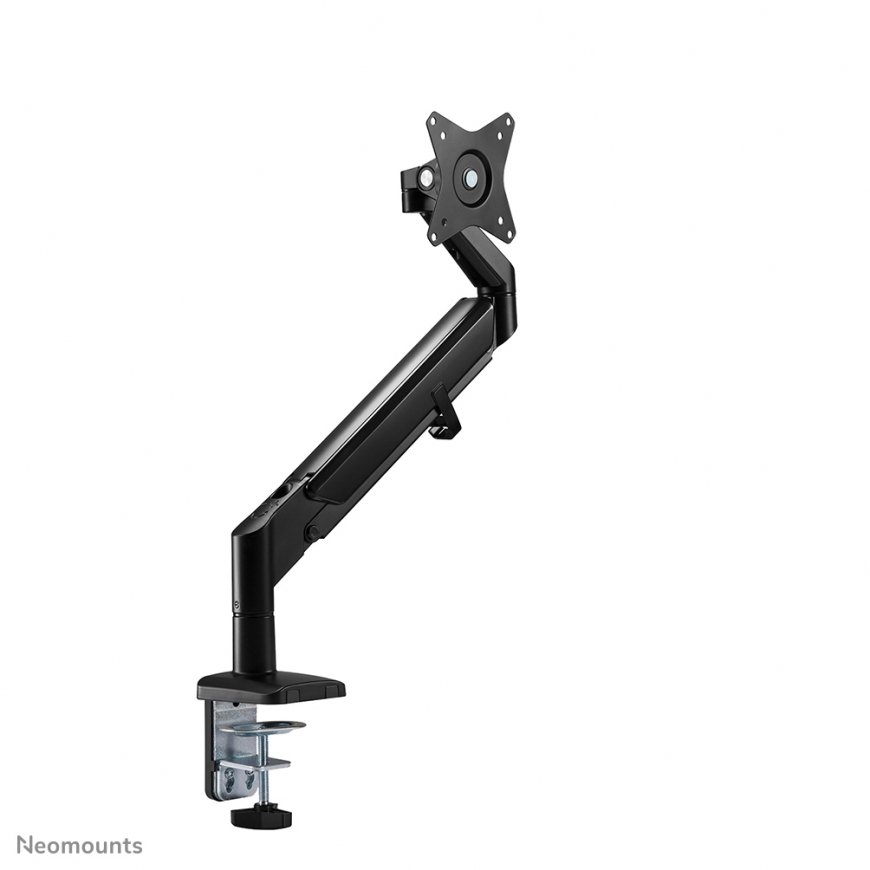

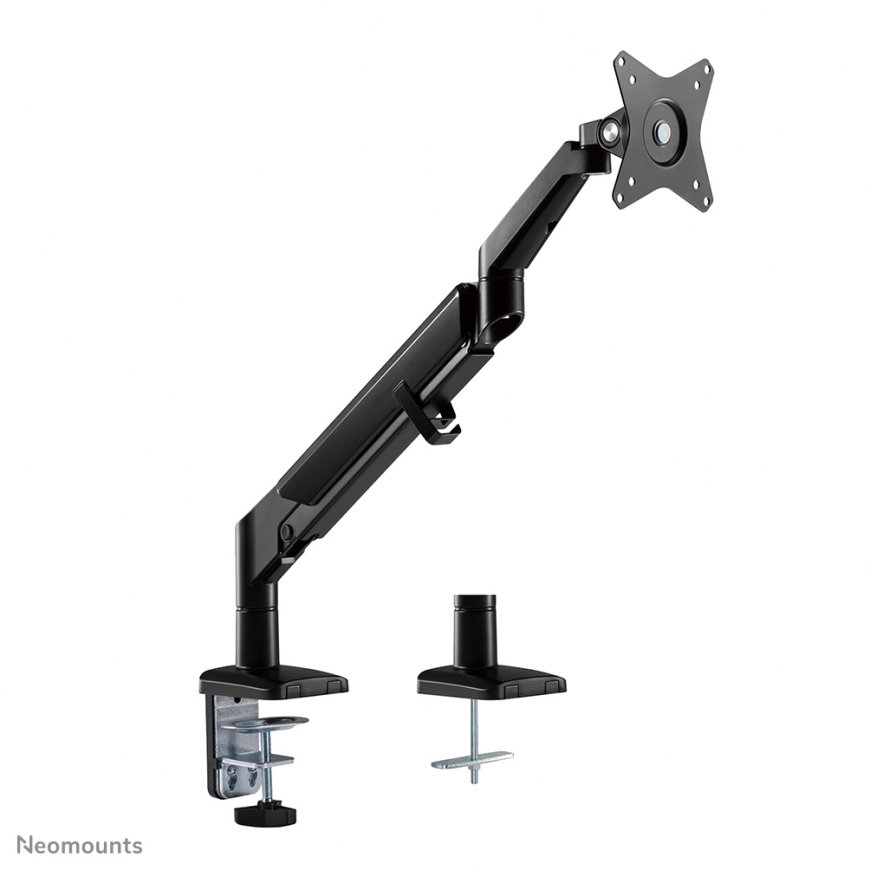

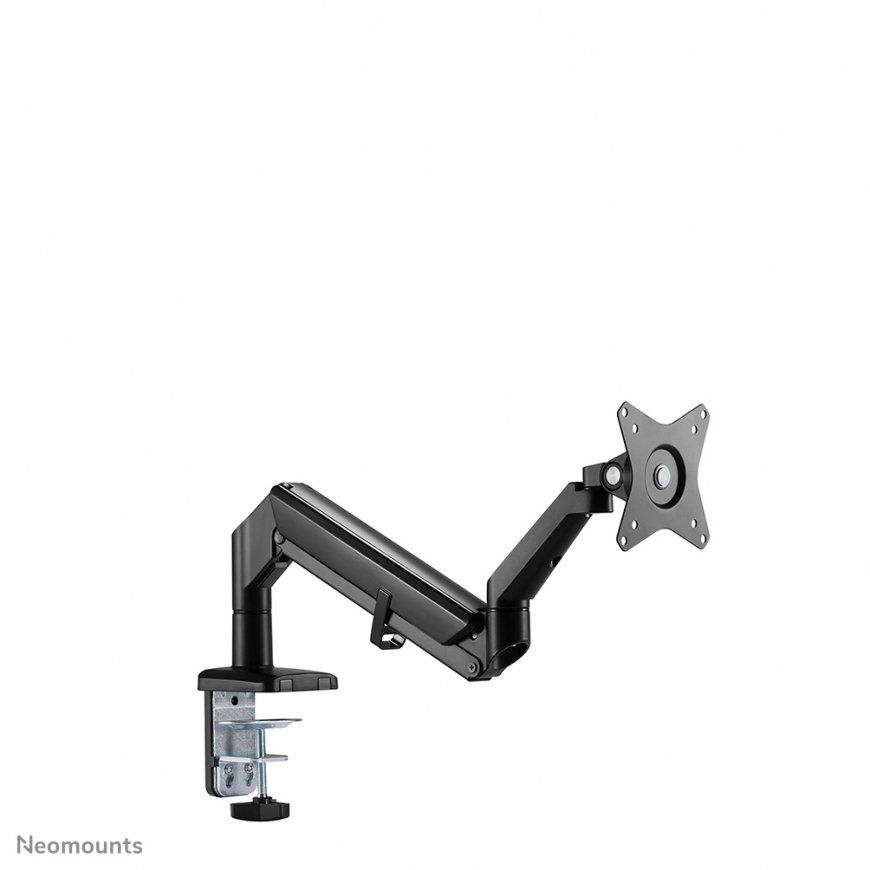

Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop
143,00 €
Monthly payment from 4.58 €
1136680 DS70-810BL1
8717371449216
Shipping 2-3 b.d.
You are interested in this product?
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
| Product colour | Black |
| Panel mounting interface | 75 x 75; 100 x 100 |
| Weight | 3 kg |
| Width | 117 mm |
| Depth | 555 mm |
| Height | 615 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 222 mm |
| Package depth | 117 mm |
| Package height | 400 mm |
| Package weight | 3.6 kg |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 370 mm |
| Master (outer) case gross weight | 22.3 kg |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Housing material | Steel |
| Maximum screen size | 81.3 cm (32") |
| Maximum weight capacity | 9 kg |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Orientation | Landscape/Portrait |
| Angle of rotation | 360° |
| Master (outer) case net weight | 18 kg |
| Tilt angle range | -45 - 45° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 265 - 550 mm |
| Swivel angle range | -90 - 90° |
| Harmonized System (HS) code | 7326909890 |
| Mounting | Clamp/Grommet |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.5 cm |
| Swivelling | Yes |
| Adjustable depth | Yes |
| Rotating | Yes |
| Package net weight | 3.6 kg |
| Products per pallet (EU) | 72 pc(s) |
| Depth adjustment range | 0 - 490 mm |
| Tilt adjustment | Yes |
| Minimum weight | 1 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 9 kg |
