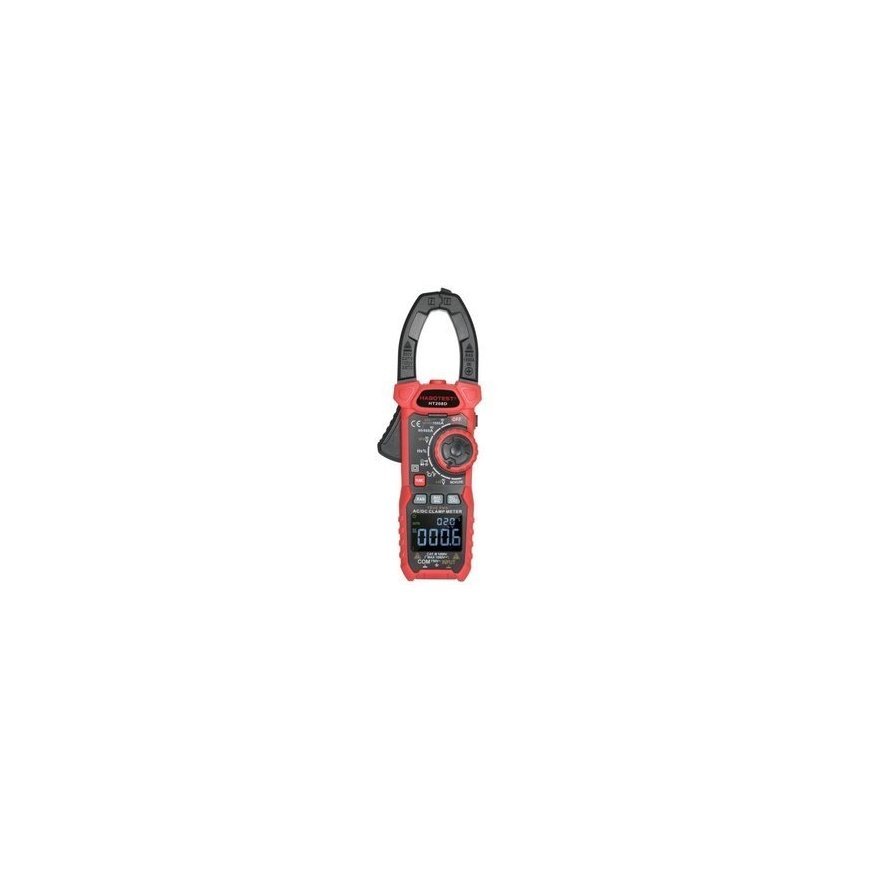

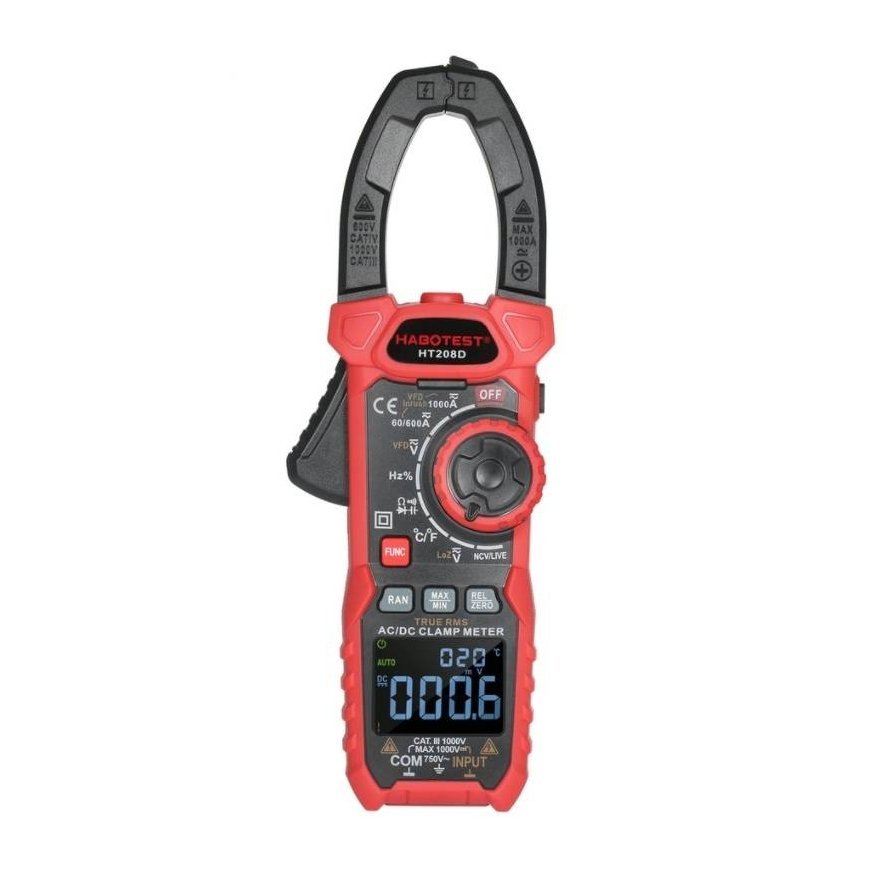

Habotest HT208D Digital Clamp Meter
Habotest HT208D Digital Clamp Meter – 2
-1%
Habotest HT208D Digital Clamp Meter
Habotest HT208D Digital Clamp Meter

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Habotest HT208D Digital Clamp Meter

50,83 €
50.40
Monthly payment from 2,20 €
1130333

HT208D

5907489607711

Shipping 3-5 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Habotest HT208D digital clamp meter

HT208D is a practical device with which you can check the value of various parameters, for example, AC and DC voltage and current, resistance, temperature, inrush current and many others. The product provides accurate measurements, and the results are displayed on the LCD screen. The HT208D also features a flashlight for convenient operation in dark rooms.



Multifunctional device

You will use the HT208D in many situations. You can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. Furthermore, you can also check continuity and true RMS value.



Safe use

The device is completely safe to use. You can, for example, detect voltage without touching, thanks to the NCV sensors. The meter's jaws, thanks to their maximum width of 40 mm, allow you to make measurements comfortably without damaging the circuit. The flashlight function ensures comfortable and safe work in dark rooms.



Additional features

When it receives an electromagnetic signal, the NCV sensor will send an audible alarm, and if the voltage or current is high, the LCD screen color will turn orange. What's more, the device will automatically turn off to save power if no action is performed within 15 min.



Specification

FunctionHT208AHT208D
DC voltage

6V / 60V / 600V / 1000V


± (1% + 3)


6V / 60V / 600V / 1000V


± (1% + 3)

AC voltage

6V / 60V / 600V / 750V


± (1.2% + 3)


6V / 60V / 600V / 750V


± (1.2% + 3)

DC currenton

60A / 600A / 1000A ± (2.5% + 5)

AC current

60A / 600A / 1000A


± (3.0% + 5)


60A / 600A / 1000A


± (3.0% + 5)

Resistance

600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ


± (1.0% + 3)


600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ


± (1.0% + 3)

Capacity

10nF / 100nF / 1μF / 10μF / 100μF / 1mF / 10mF ± (4.0% + 3),


100mF ± (5.0% + 5)



10nF / 100nF / 1μF / 10μF / 100μF / 1mF / 10mF ± (4.0% + 3),


100mF ± (5.0% + 5)

Frequency

10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz


± (1.0% + 3)


10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz


± (1.0% + 3)

Duty

1% ~ 99%


± (1.0% + 2)


1% ~ 99%


± (1.0% + 2)

Temperature

-40 ° C ~ 1000 ° C


± (1.0% + 3)


-40 ° C ~ 1000 ° C


± (1.0% + 3)

Counts60006000

Auto / manual range

YesYes
ContinuityYes, LED and buzzYes, LED and buzz
DiodeYesYes
Data holdYesYes
NCVYes, LED and buzzYes, LED and buzz
Double color backlightYesYes
FlashlightYesYes

Low battery indicator

YesYes
Auto power offYesYes
True RMSYesYes
LPFYesYes
MAX / MINYesYes
V-LoZYeahYes
Power2x AA batteries (in the box)2x AA batteries (in the box)
Weightabout 380 gabout 380 g
Size240 x 85 x 40 mm240 x 85 x 40 mm
Size of jaws44 mm44 mm
Safety

EN61010-1, -2-030 EN61010-2-033,


EN61326-1 CAT III 1000V, CATIV 600V


EN61010-1, -2-030 EN61010-2-033,


EN61326-1 CAT III 1000V, CATIV 600V
