Home page > Tools & DIY>Hand tools and accessories>Pliers, tongs>AC/DC current measuring clamp Habotest HT206D
Habotest HT206D True RMS Digital Clamp Meter, NCV, LPF
Habotest HT206D True RMS Digital Clamp Meter, NCV, LPF
Habotest HT206D True RMS Digital Clamp Meter, NCV, LPF
Habotest HT206D True RMS Digital Clamp Meter, NCV, LPF
Habotest HT206D True RMS Digital Clamp Meter, NCV, LPF
Habotest HT206D True RMS Digital Clamp Meter, NCV, LPF

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

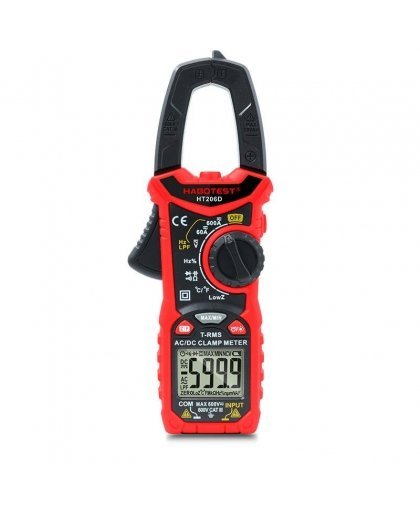

AC/DC current measuring clamp Habotest HT206D

40,34 €
Monthly payment from 1.94 €
1103352

HT206D

Shipping 3-5 b.d.

Quantity

You are interested in this product?
(Read terms of service)

Habotest HT206D current clamp is designed to test AC voltage, AC current and resistance. You can also easily check continuity and true RMS value. Equipped with an LCD screen with 2-color lighting, you will find not only the measurement results, but also a low battery indicator. So you can use HT206D comfortably. In addition, the backlight will turn orange when the measured voltage value exceeds 80 V and the current exceeds 3 A. The built-in flashlight provides bright illumination, which means that you can work in dark places without problems. The operation of the device is also facilitated by intuitive buttons that allow you to quickly and conveniently select a function, use the MAX / MIN measurement option and turn the light on or off. An additional advantage is the possibility of data storage.

Specification

  • Brand name Habotest
  • Model HT206D
  • DC voltage measurement range 600mV / 6V / 60V / 600V ± (0.5% + 5)
  • AC voltage measurement range 6V / 60V / 600V ± (0.8% + 5)
  • DC current measurement range 60A / 600A ± (2.5% + 5)
  • AC current measurement range 60A / 600A ± (2.5% + 5)
  • Resistance measurement range 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ ± (1.0% + 5)
  • Capacitance measurement range 10nF / 100nF / 1μF / 10μF / 100μF / 1mF / 10mF / 100mF ± (4.0% + 3)
  • Frequency measurement range 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz ± (1.0% + 3)
  • Working measurement range 1% -99% ± (3.0% + 3)
  • Temperature measurement range -40 ° C - 1000 ° C ± (1.0% + 2);
  • -40°F-1832°C ± (1.0% + 2)
  • There are 6,000
  • manual range
  • Continuity Yes, sound and light signal
  • Diode test Yes
  • Data stored Yes
  • NCV Yes, sound and light signal
  • Backlight Yes
  • Flashlight Yes
  • DCA zero Yes
  • Low battery indicator Yes
  • Auto Power Off Yes
  • True RMS Yes
  • LPF Yes
  • MAX / MIN Yes
  • LowZ Yes
  • Power source 2x AAA 1.5V batteries (included)
  • Weight about 260g
  • Dimensions 93x73x34mm
  • Safety 600V EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V
  • Complete set: multimeter, cables and instructions
