Produkta tonis un faktiskā krāsa var atšķirties no attēlā redzamā, jo attēli ir ilustratīvi. Produkta apraksts ir vispārīgs un, iespējams, tajā nav iekļautas visas produkta īpašības.

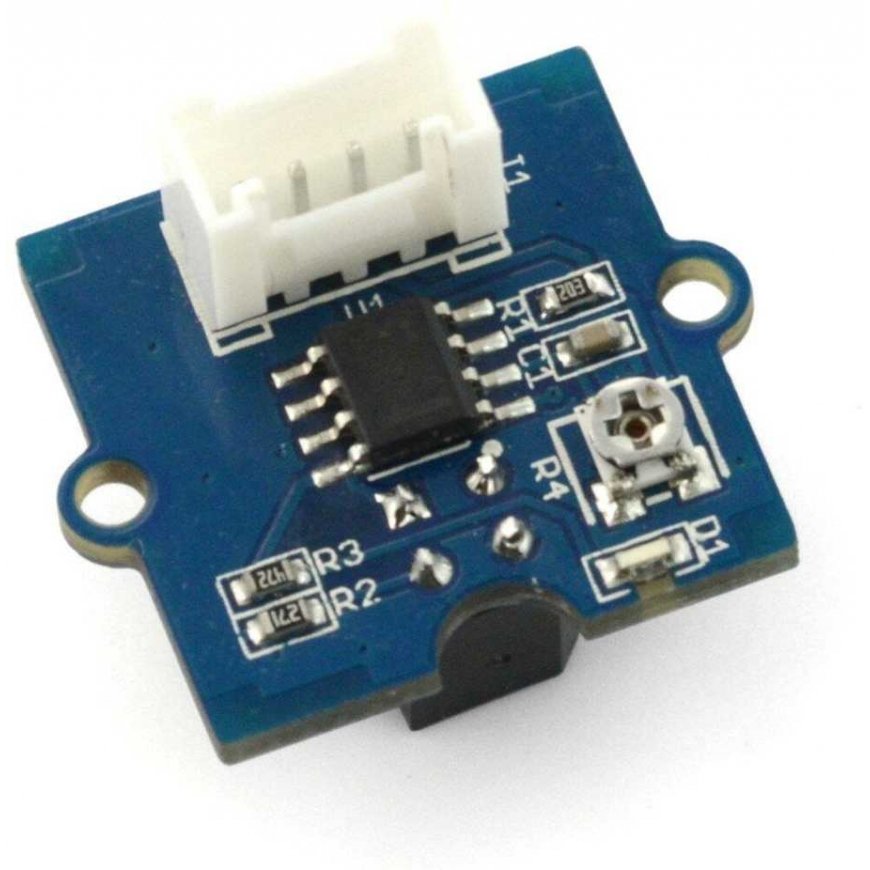

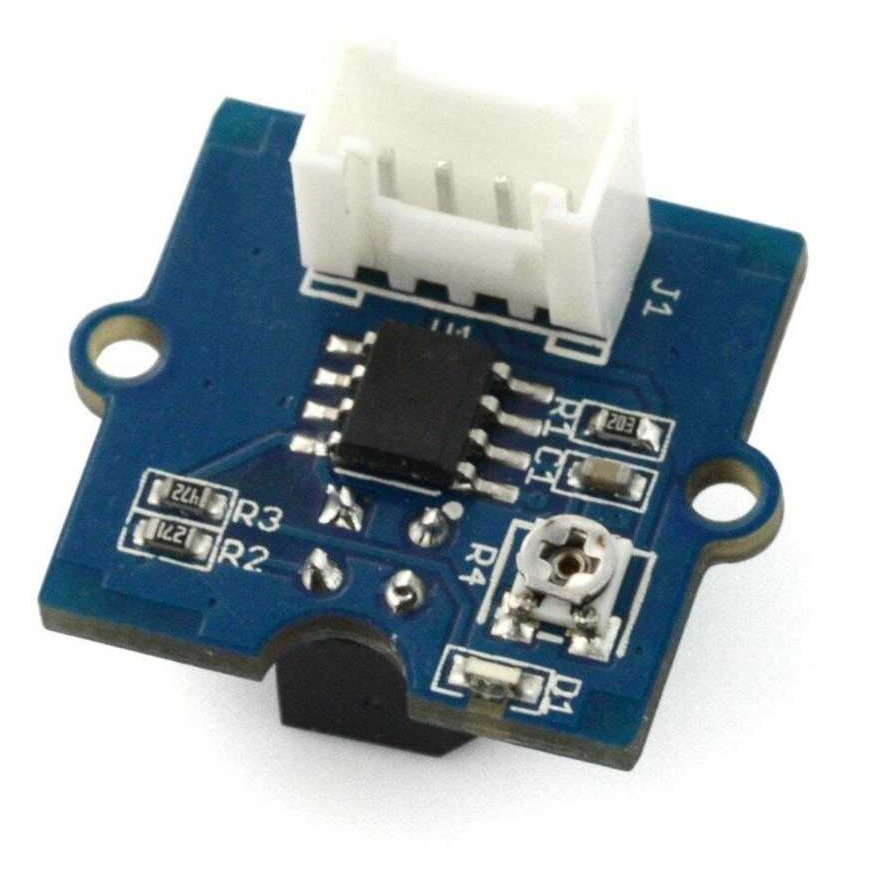

Seeed Studio Grove, RPR-220 Reflective Sensor v1.2
3693563 AN-11323
5904422317485
Piegāde 11-18 d.d.
Viss par produktu
The Grove series module is based on the reflective sensor RPR-220. It consists of an infrared light-emitting diode and a high-sensitivity phototransistor. Bright objects in front of the sensor will reflect more infrared light and generate more energy in the phototransistors than objects with dark surfaces. It operates with a voltage range from 3.3 V to 5 V. The detection range is from 4 to 15 mm. It has a digital output, making it compatible with many development boards, including Raspberry Pi and Arduino.
Specifications:
- Power supply voltage: from 3.3 V to 5 V
- Reflective sensor: RPR-220
- Effective distance: from 4 to 15 mm
- Response time: 10 µs
- Dimensions: 20 x 20 mm
- Weight: 4 g
References:
Manufacturer's page
Manual
