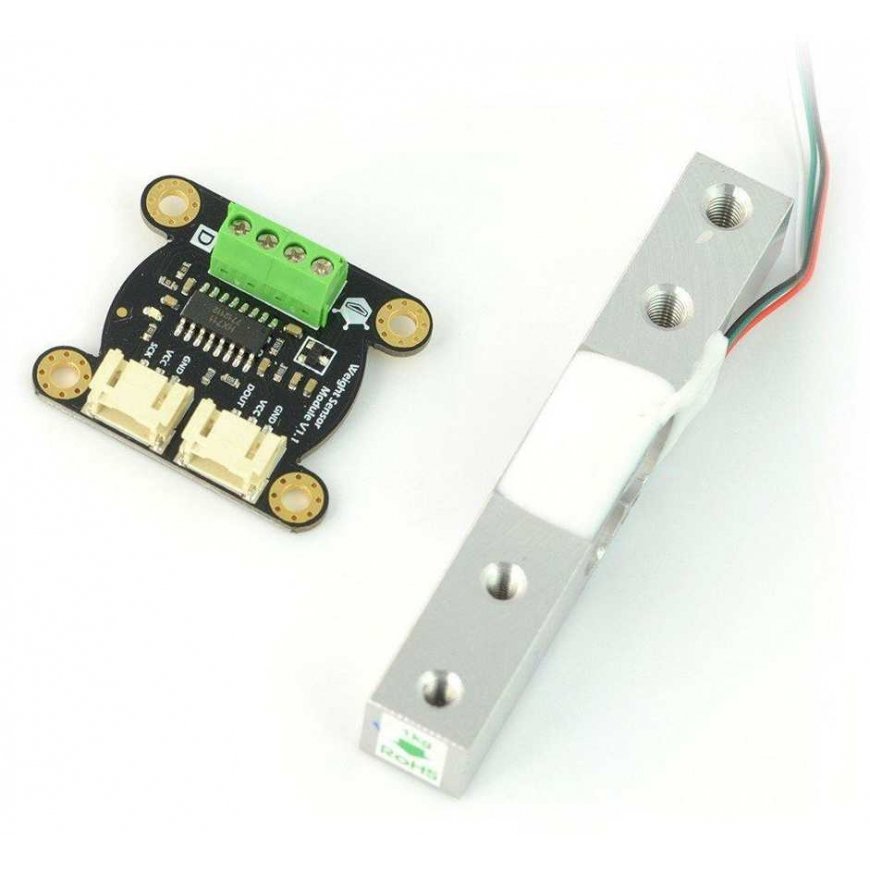

DFRobot Gravity, digital pressure sensor 1kg (10N)
30.02 €
3687533 AN-11280
5903351243193
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The Arduino pressure sensor works up to 1 kg. It is based on the HX711, it has a 24-bit analog-to-digital converter for direct connection of weighing and control applications to the Strain Sensor. The supply voltage of the converter is from 2.6 V to 5.5 V.
Specifications:

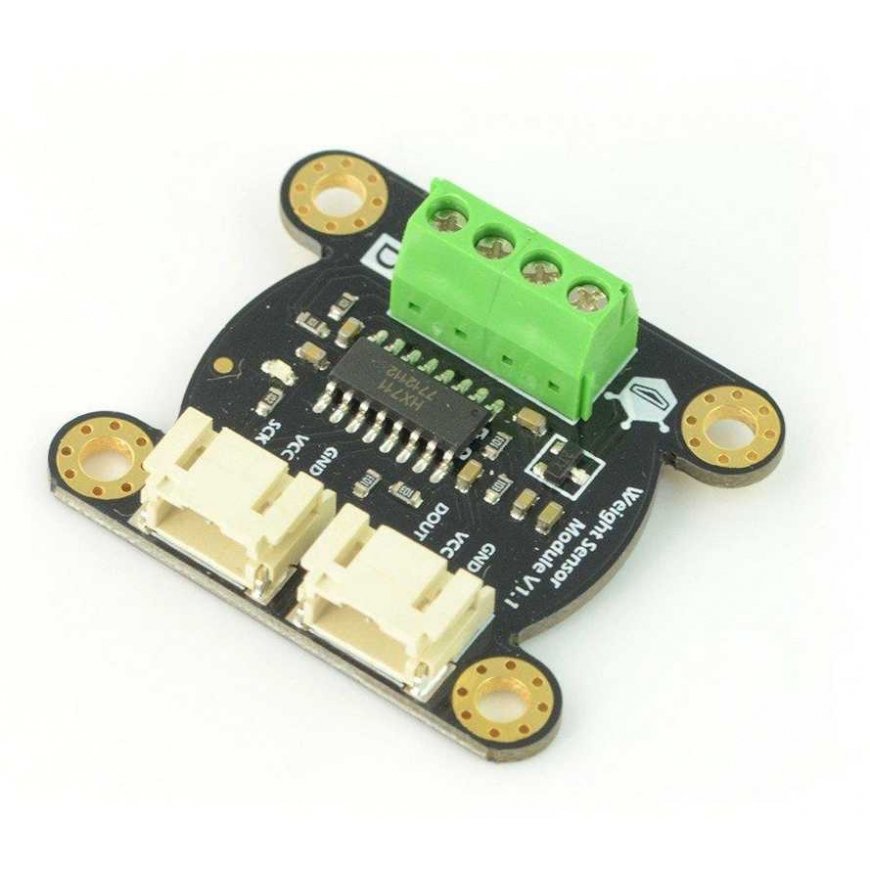

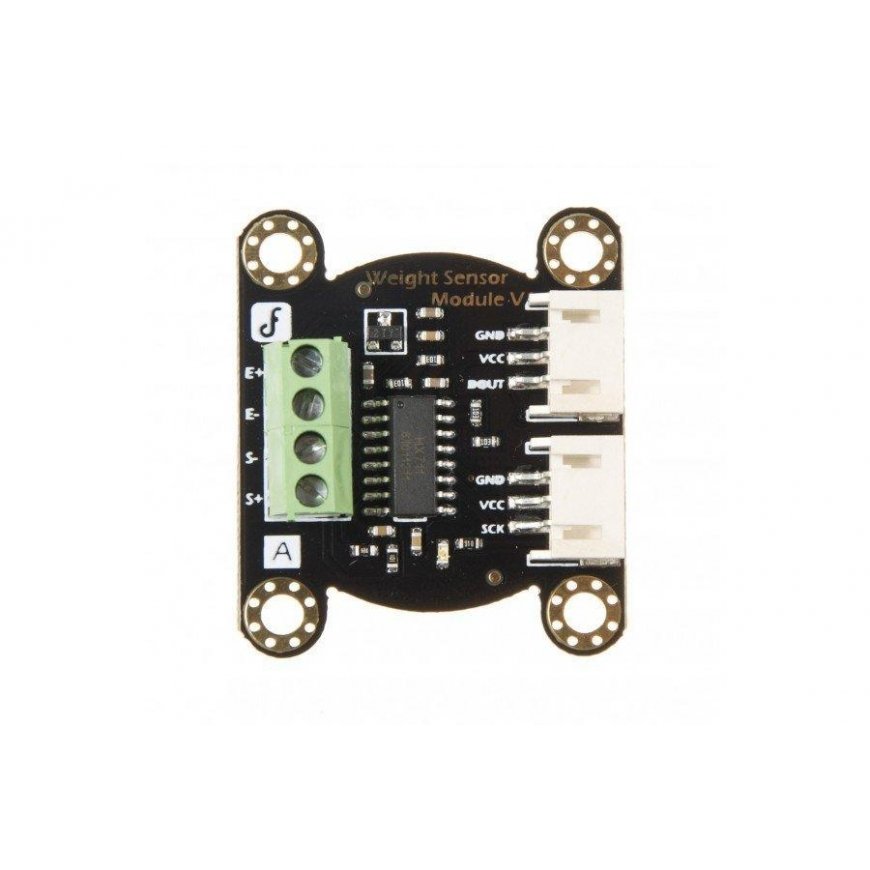

- Analog-to-digital converter:
- supply voltage: 2.6 to 5.5 V
- system: HX711
- two input channels
- active low PGA noise floor with selectable gain 32,64 and 128
- cell voltage regulator and ADC analog power supply
- the oscillator does not require any external elements
- Restarting
- simple digital control and serial interface: control via pins, no programming required
- select data range: 10 SPS or 80 SPS
- operating temperature: -40 °C to 85 °C
- Tension sensor:
- operating voltage from 5 V to 15 V
- measuring range: 1 kg (approx. 10 N)
- output frequency: 1 mV/V
- zero offset: 0.05/0.03% F.S
- zero offset temperature: 0.05 / 0.03% F. S / 10 °C
- zero output: ±0.1 mV/V
- input impedance: 1055 Ω ± 15 Ω
- output impedance: 1000 Ω ± 15 Ω
- overload: 200% F.S
- output: analog
- dimensions: 38 x 33 mm

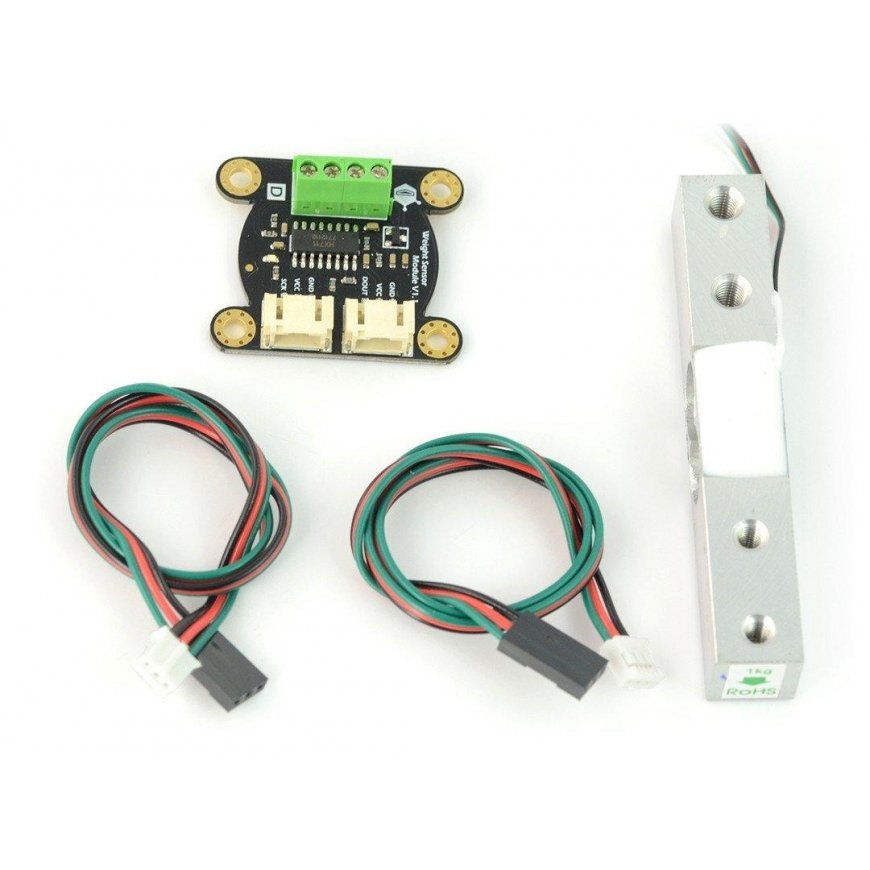

Included:
- 1x Tension sensor
- 1x Analog-to-digital converter
- 2x Gravity cable
