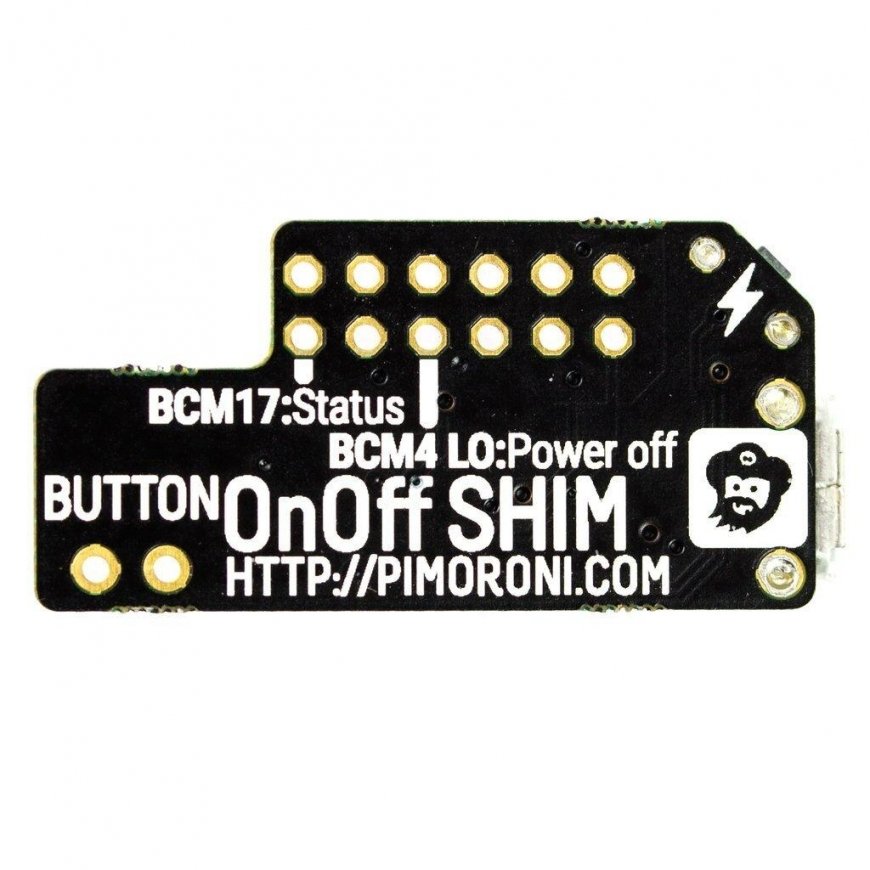

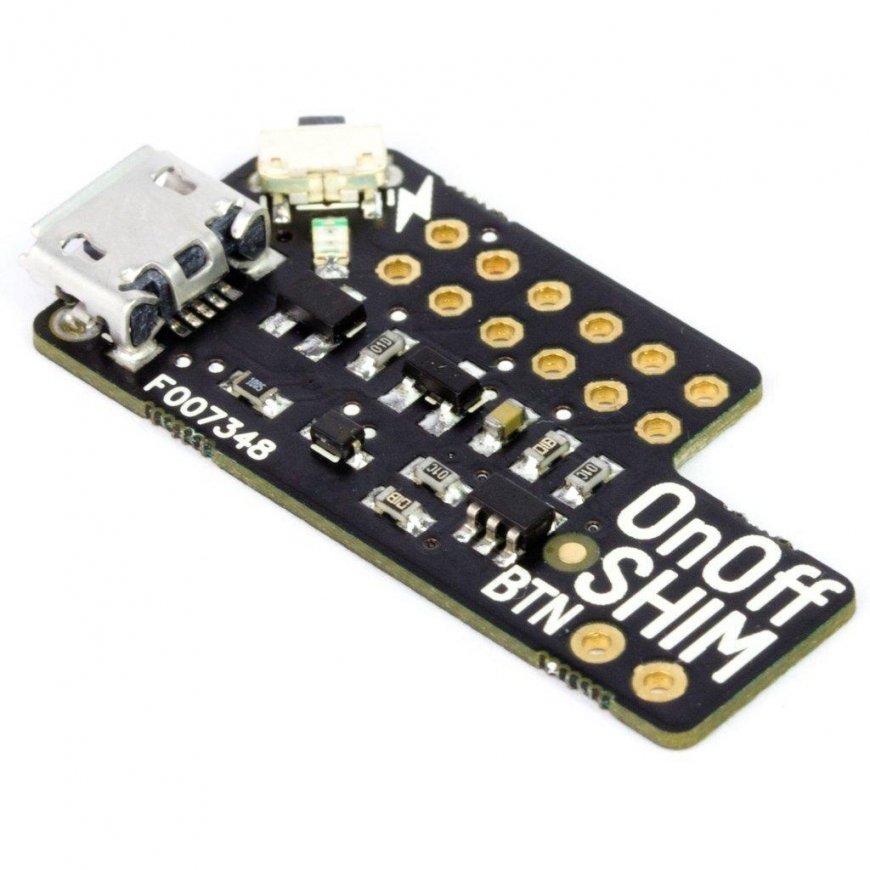

Pimoroni OnOff SHIM, on/off switch, Raspberry Pi accessory
21.74 €
3598588 AN-10633
0704256800864
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

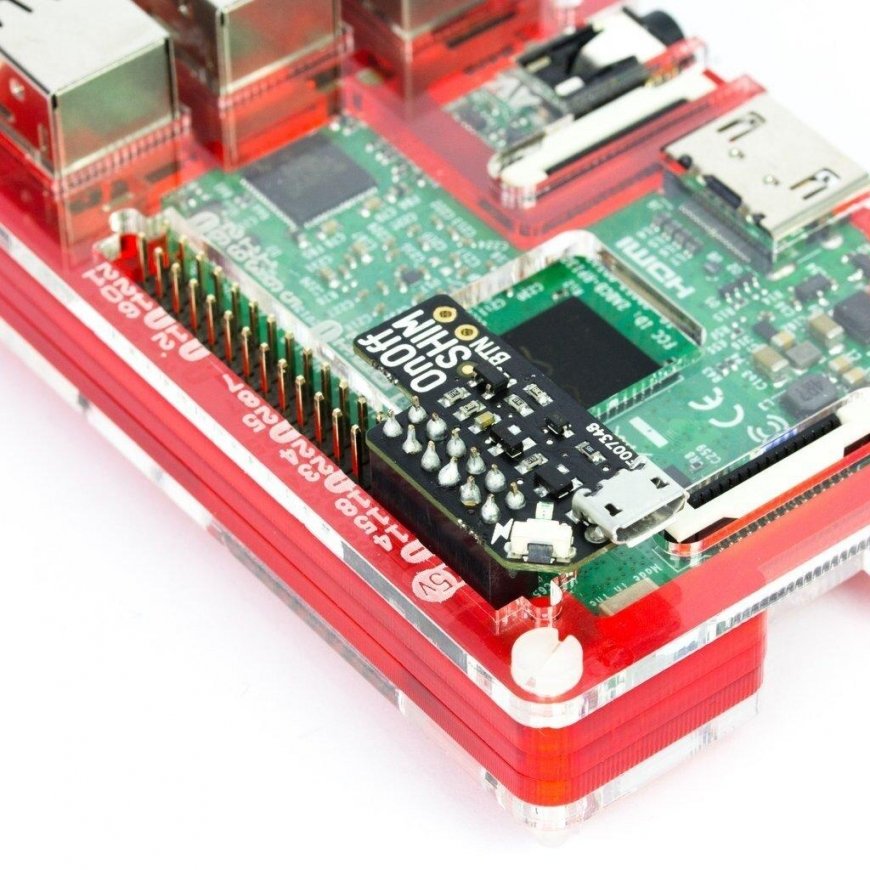

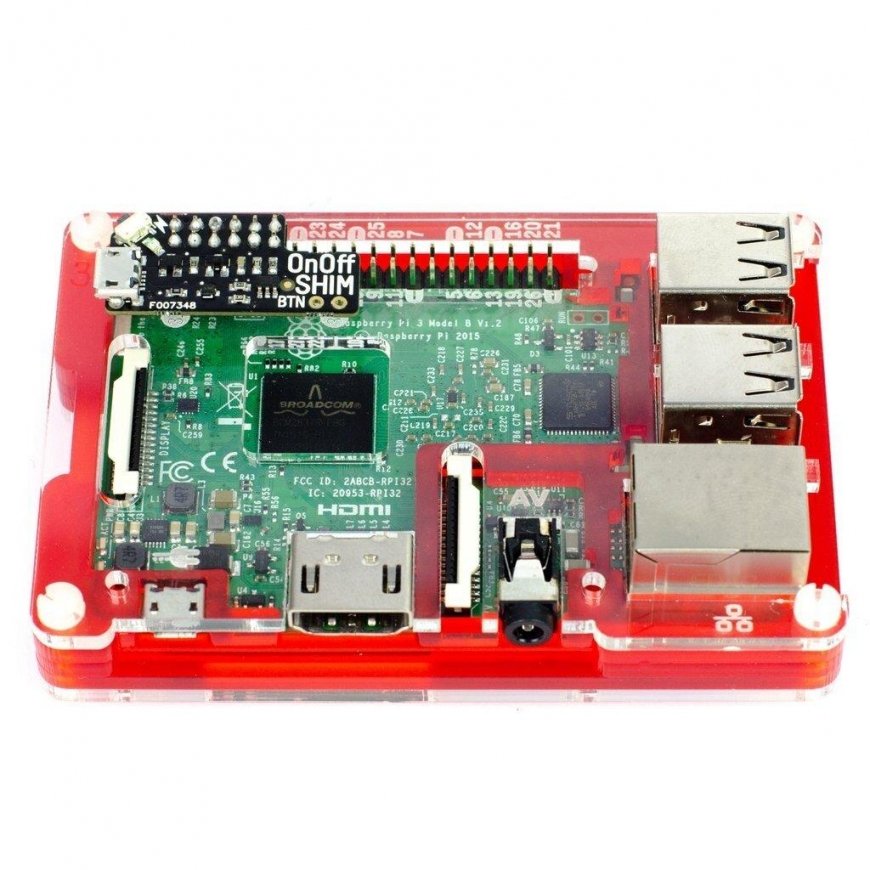

OnOff SHIM is a Raspberry Pi add-on that mounts on the GPIO pins. By disconnecting power from the add-on's microUSB port and pressing the button, the minicomputer will start working. After installing the software, you can press the button again to turn off the device and completely disconnect power from the Raspberry Pi.
Main features:
- Ultra-small SHIM board format
- Board thickness: 0.8 mm

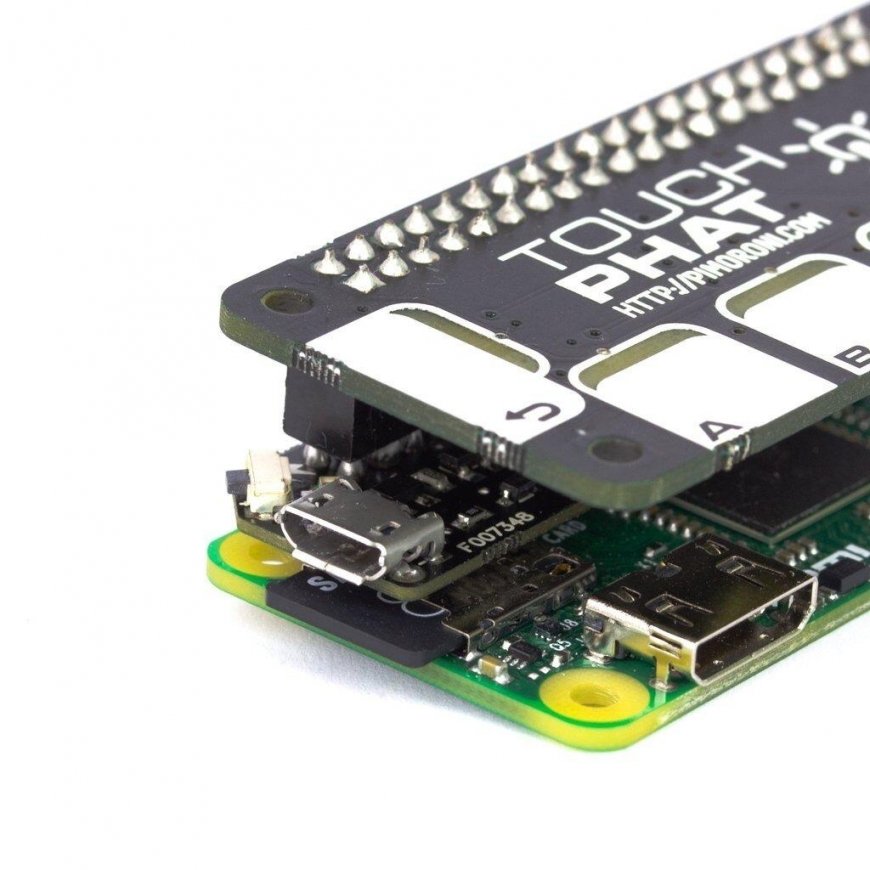

- It can be used with HAT and pHAT add-ons
- MicroUSB connector for power supply
- Red LED - indicator
- Optional pin for additional button
- It supports current up to 2.5 A
- Soldering required
- The kit includes: adapter and 2x 6-pin gold pin strip
- Manufacturer-made software does not work with Raspbian Wheezy
Links:
Manufacturer's page
