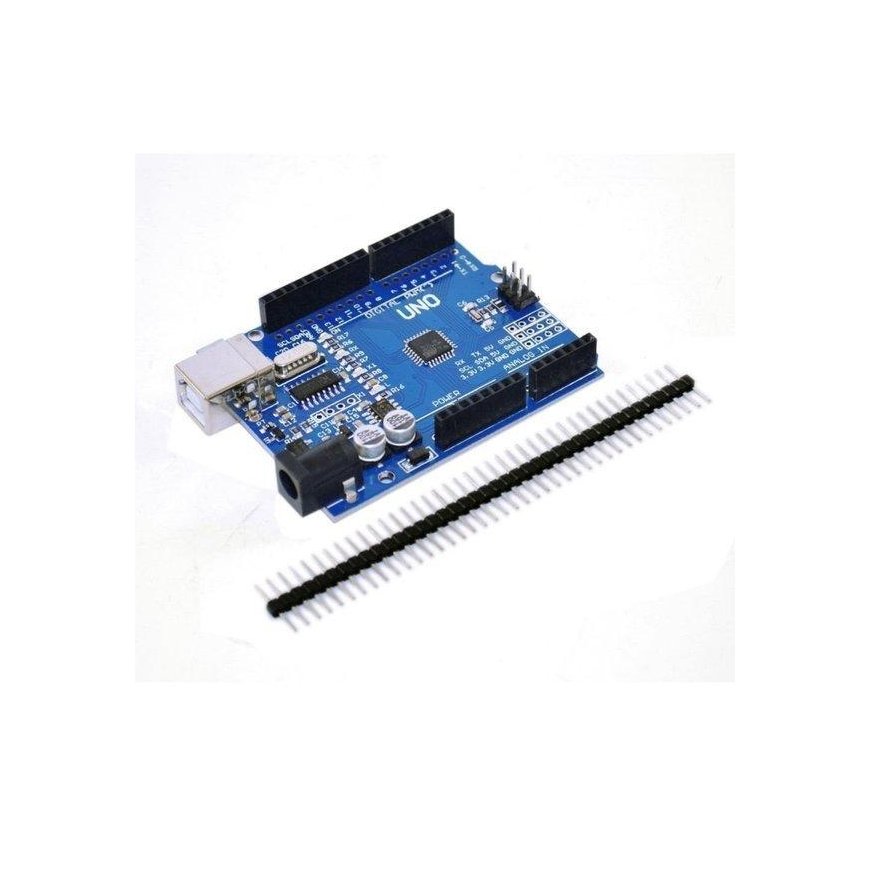

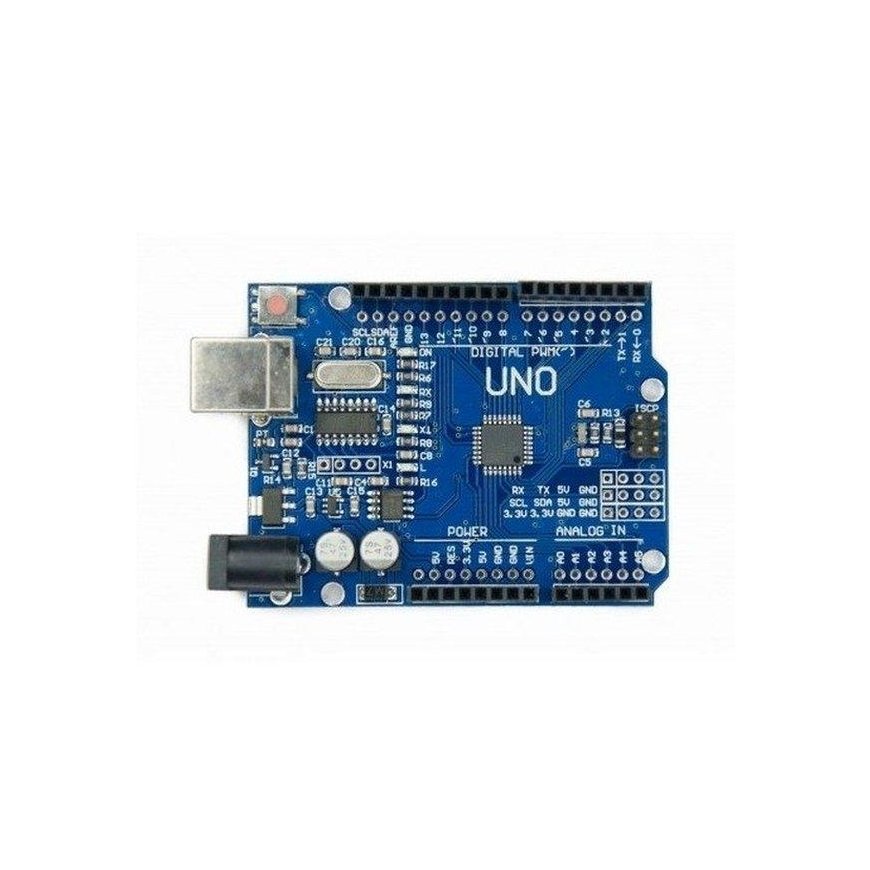

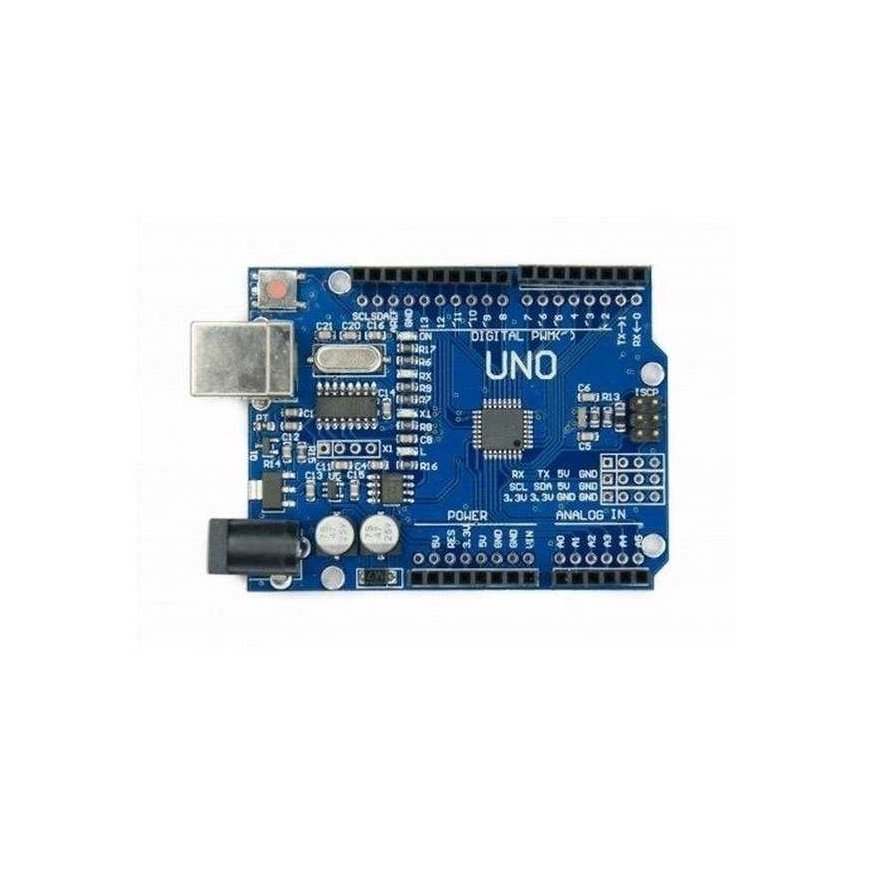

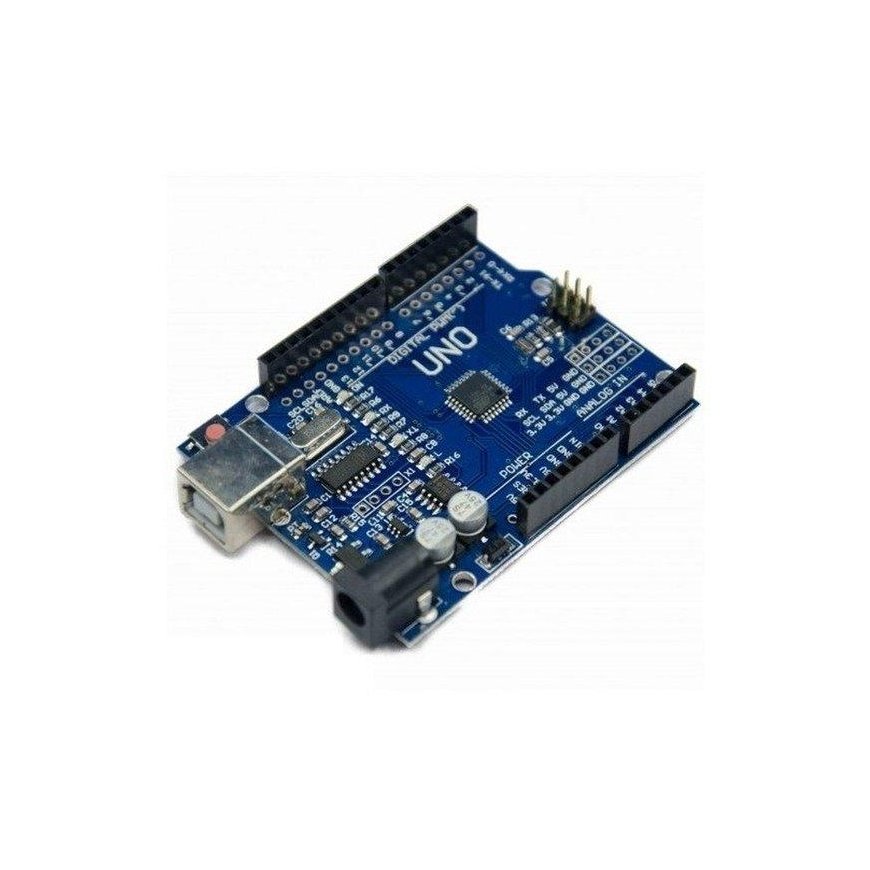

UNO R3 CH340 Atmel ATMega328 16MHz - compatible with Arduino UNO
3581868 ABC-6233
4772164000771
Piegāde 8-12 d.d.
Viss par produktu
The proposed UNO R3 Atmel is a fully compatible clone of one of the most popular modules on the market, the Arduino Uno. This microcontroller provides excellent application possibilities in many microprocessor projects. UNO is an ideal solution for those who are just starting out in the world of microcontrollers and electronics. UNO has digital inputs / outputs 6 PWM outputs and 6 analog inputs. In addition, it supports SPI or I2C for communication with a wide range of sensors, displays and other devices and Arduino. The board also has parallel holes for all pins, so you can solder wires or GOLDPIN, which are included in the kit. Arduino has a voltage stabilizer and a separate DC input, so you can power it with voltage from a power supply up to 12 V. This solution makes it easy to turn on the microcontroller and perform programmed actions anywhere. This Arduino has a built-in CH340 programmer, which requires an additional driver. The module is fully compatible with Arduino UNO, meaning it can be programmed using the Arduino IDE environment, using the available libraries.
The module has:
- ATmega328 microcontroller 16MHz
- 14 digital inputs/outputs,
- 6 PWM channels - e.g. for servo/motor control, e.g. SG-90 Servo TowerPro SG-90 - 9 g - 1.8 kg/cm
- 6 analog inputs - 10 bits
- popular communication interfaces
- USB connector (controller on CH340 chip)
- DC power socket
- Reboot button
- outputs for connecting the AVR programmer.
- To run DFRduino, connect the system to your computer using a USB cable and select the Arduino Uno board in the Arduino IDE environment.
- The module is mostly compatible with Duemilan and Diecimil shields.
- The module comes standard with the BLINK LED 13 program and bootloader
Technical specification:
- Supply voltage: 7 V to 12 V DC PIN: VIN
- Fully compatible with Arduino Uno Rev3
- Microcontroller: ATmega328 - operating voltage 5V
- USB control chip: CH340
- Maximum clock frequency: 16 MHz
- SRAM memory: 2kB
- Flash memory: 32 KB (5 KB reserved for boot cache)
- EEPROM memory: 1 kB
- IN-OUT 14 inputs including 6 PWM
- current efficiency of one 40 mA PIN
- Number of analog inputs: 6 (A/C converter channels)
- Serial interfaces: UART, SPI, I2C
- External interrupts
- Connector: USB socket
- Soldered IPT connector
- Dimensions: 75 x 54 x 15 mm
- PIN spacing 2.54 mm (can be mounted on contact boards)
