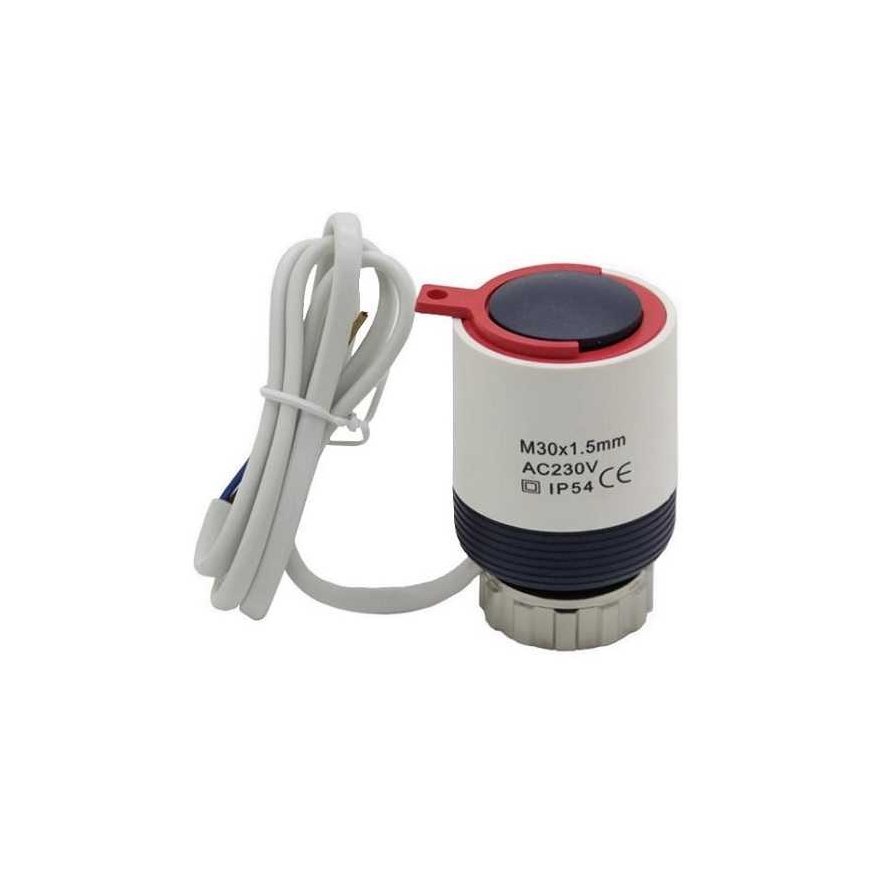

BEOK Thermal actuator, NC, 230V AC
20.13 €
2706934 HT260096
9990000260096
Piegāde 2-4 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Thermal actuator, NC, 230VFeatures:
The electric thermal drive is designed to control the heat distribution system of the heating equipment. It receives commands from automation devices (such as room thermostats or a controller) and regulates the distribution of water flow according to the set parameters. With the help of the thermal drive, it is possible to precisely control the room temperature and energy consumption.
The state of the thermal actuator is NC (Normally Closed). It is not suitable for use in a system heated by a solid fuel boiler.
The actuator works with any type of programmable or non-programmable room thermostats.
Simple installation, the thermal actuator is connected to the collector with an M30 thread.
Energy consumption is only 2W.
Technical data:
Purpose: water heating system.
Operating type of thermal actuator: NC (normally closed).
Operating voltage: AC 230V, 50/60Hz.
Initial current: 50mA.
Actuation time: up to 180s (valve off-on).
Power consumption: 2W.
Power: 100N (± 10%).
Installation: connected to the collector.
Thread: M30x1.5mm.
Cable length: 80cm.
Operating temperature: -20°C~ +50°C.
Operating humidity: 5%~95%RH (non-condensing).
Safety class: IP54.
Dimensions: 40 x 40 x 68 mm.
Color: white.
Certificates: CE EN60730.
Warranty: 24 months
