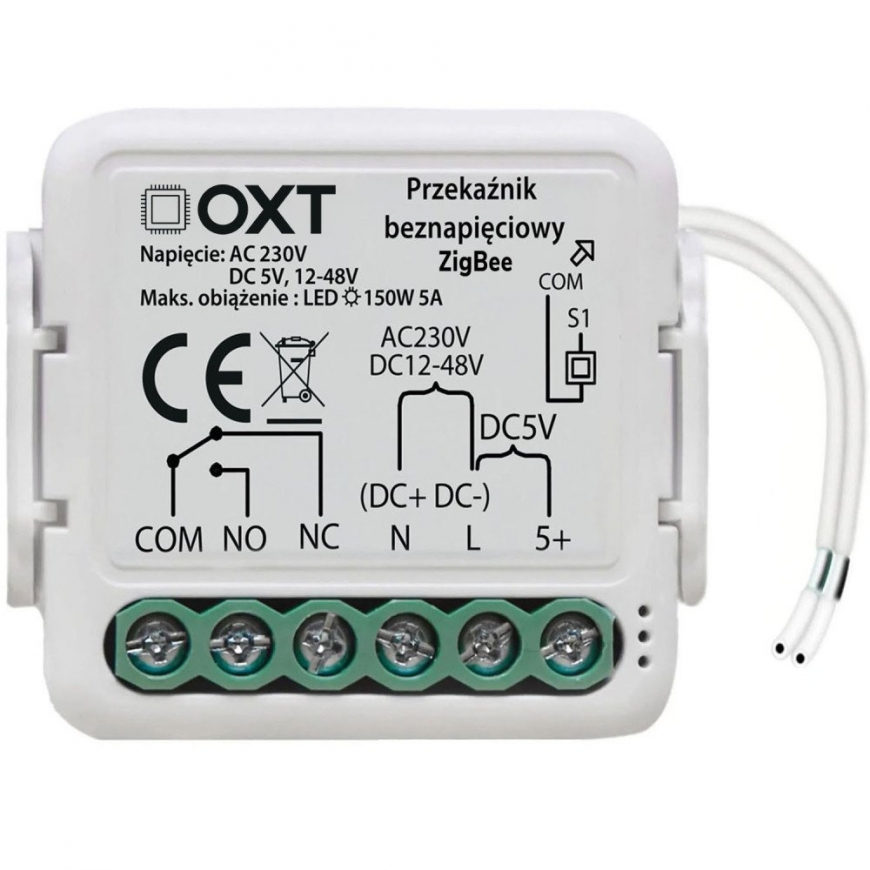

OXT Mini Module | Dry Contact Relay

12-48 V DC | 230 V AC | ZigBee | TUYA

▶️ Compact, versatile controller with a dry contact interface.

✅ Universal power supply: 12–48V DC, 230V AC, or 5V DC.

✅ Controls lights, gates, garages, actuators, heating systems, and more.

✅ Full automation via TUYA app. Control according to any chosen parameters.

▶️ Control & App

✅ TUYA Smart | Smart Life App:remote control from anywhere in the world

✅Operating modes:monostable, bistable, or bistable with button synchronization

✅Power loss behavior:turn on, turn off, or remember status

✅Scenarios:create advanced rules in the app

✅Automations:based on weather, time, sunrise/sunset, or other events

✅Timers:set relay activation times

✅Schedules:automatic device activation at selected times

▶️ Communication & Compatibility

✅ZigBee:stable and energy-efficient smart home connection

ℹ️ ZigBee Gateway required for operation and app communication

✅Voice Control:compatible with Amazon Alexa and Google Assistant (for supported devices)

▶️ Applications

✅Control:lights, gates, actuators, computers, access control, heating systems, and other 230V devices

✅Compatibility:works with any electrical device within maximum power limits

▶️ Power & Construction

✅Power supply:AC 230V, DC 12-48V, or DC 5V

✅Relay ports:

• NC (Normally Closed)
• COM (Common)
• NO (Normally Open)

✅Dimensions:compact, fits in standard flush-mounted boxes behind switches

ℹ️ Wiring Diagram

• For230V ACconnection, connect theblue wire(neutral) toNport, andbrown wire(live) toLport
• For12-48V DCconnection, connect thered "+" wiretoNport, andblack "-" wiretoLport
• For5V DCconnection, connect thered "+" wireto5+port, andblack "-" wiretoLport

ℹ️ Specifications:

• App:TUYA Smart / Smart Life
• Communication:ZigBee 3.0
• Power supply:AC 230V, DC 12-48V, DC 5V
• Required gateway:Yes (TUYA / ZigBee 3.0)
• Frequency:50/60 Hz
• Max load current:5A
• Max power LED:150W

Easy installation in standard modern flush-mounted boxes.

ℹ️ Package Includes:

• OXT Mini dry contact relay module 12-48V DC 230V ZigBee TUYA
• Mounting clip
• User manual

Product code: T250DC
