Monochrome graphic OLED display 0.96" 128x64 px, I2C / SPI, Adafruit 326
39.88 €
Kuumakse alates 1,93 €
3694879 AN-02624
5904422353902
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

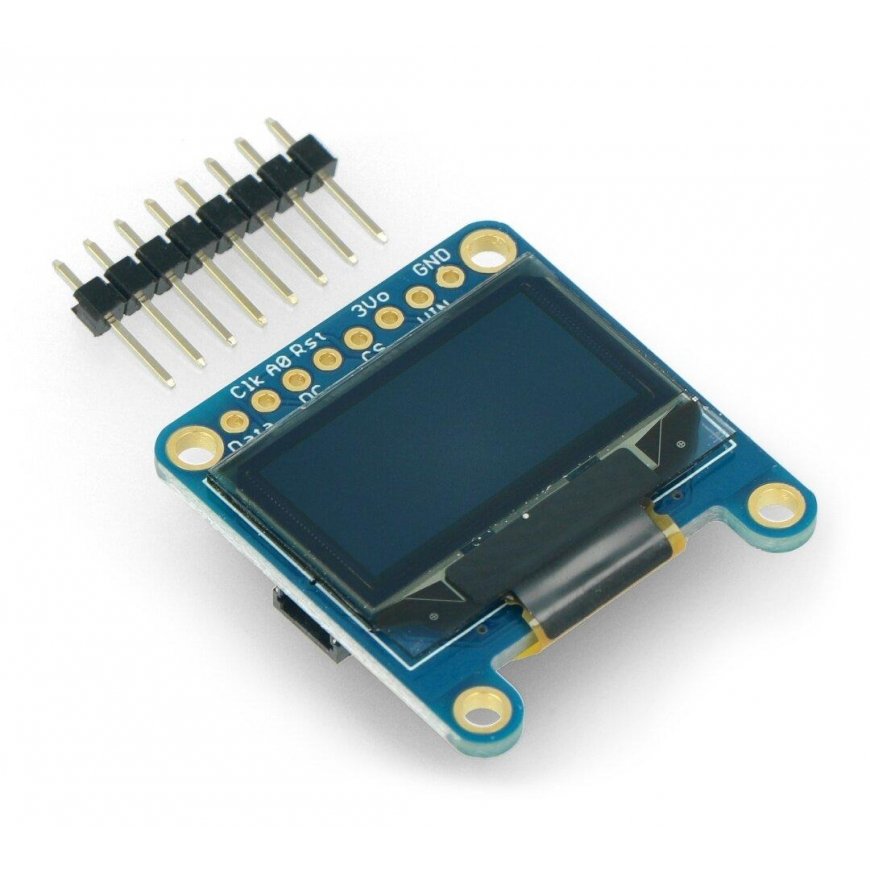

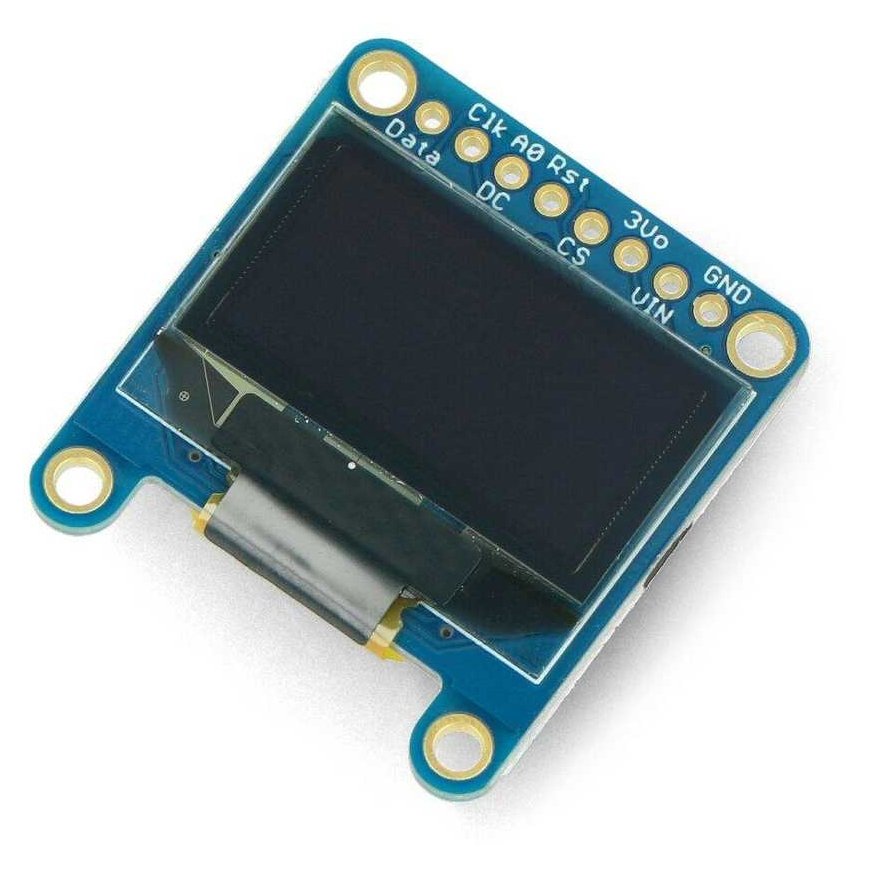

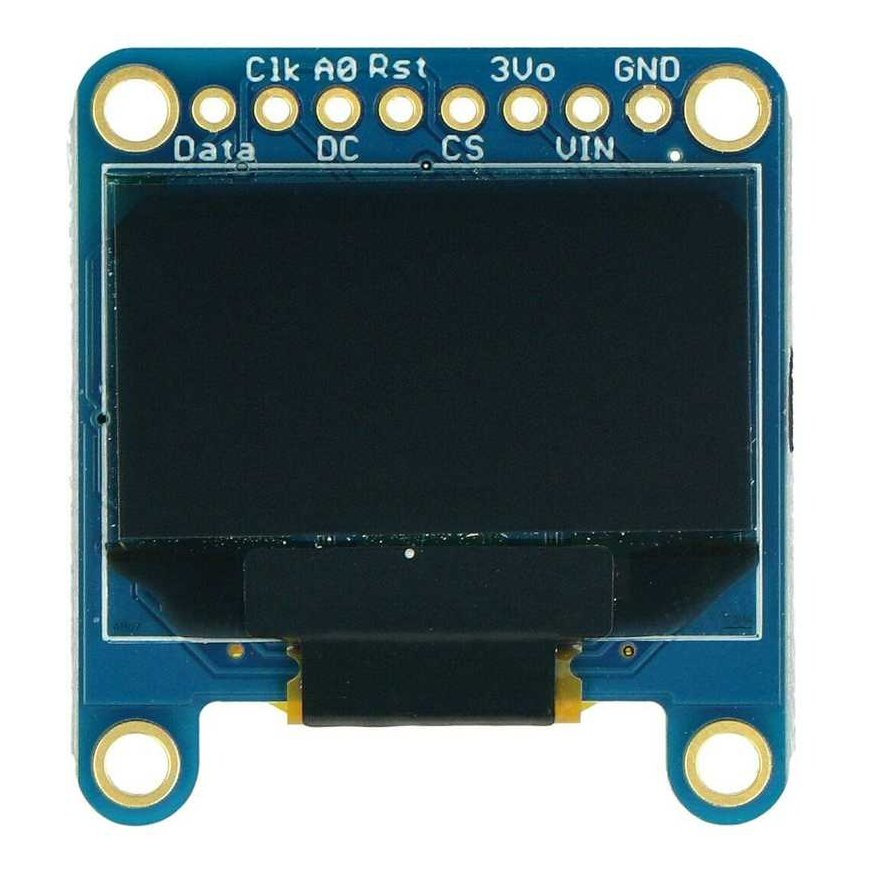

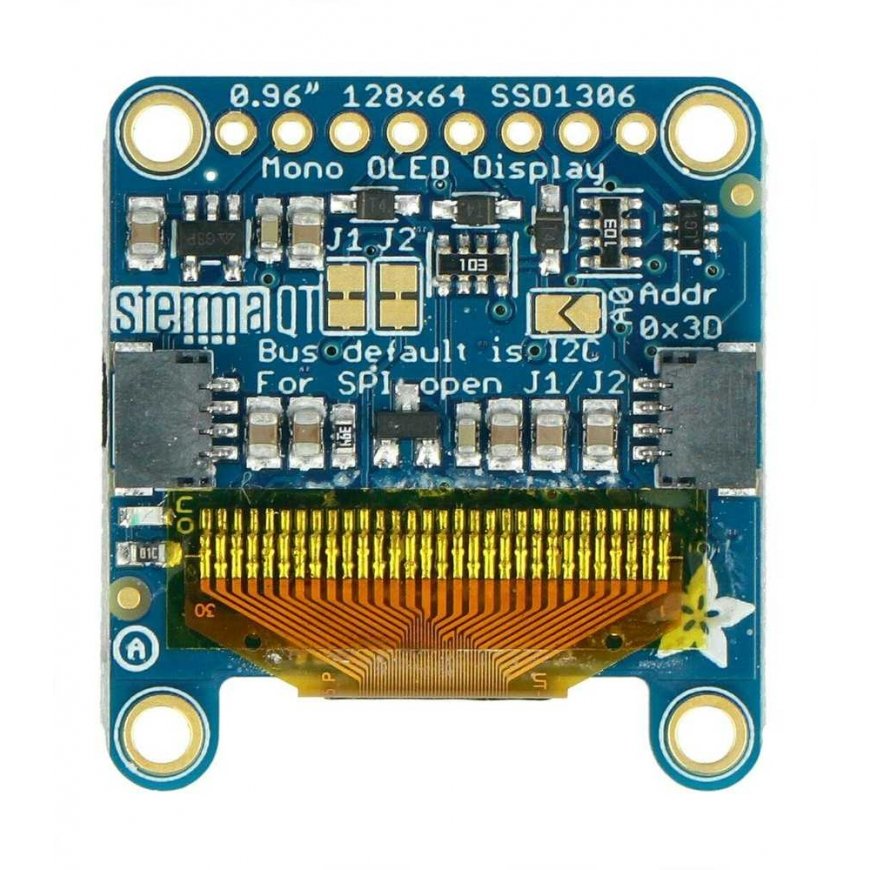

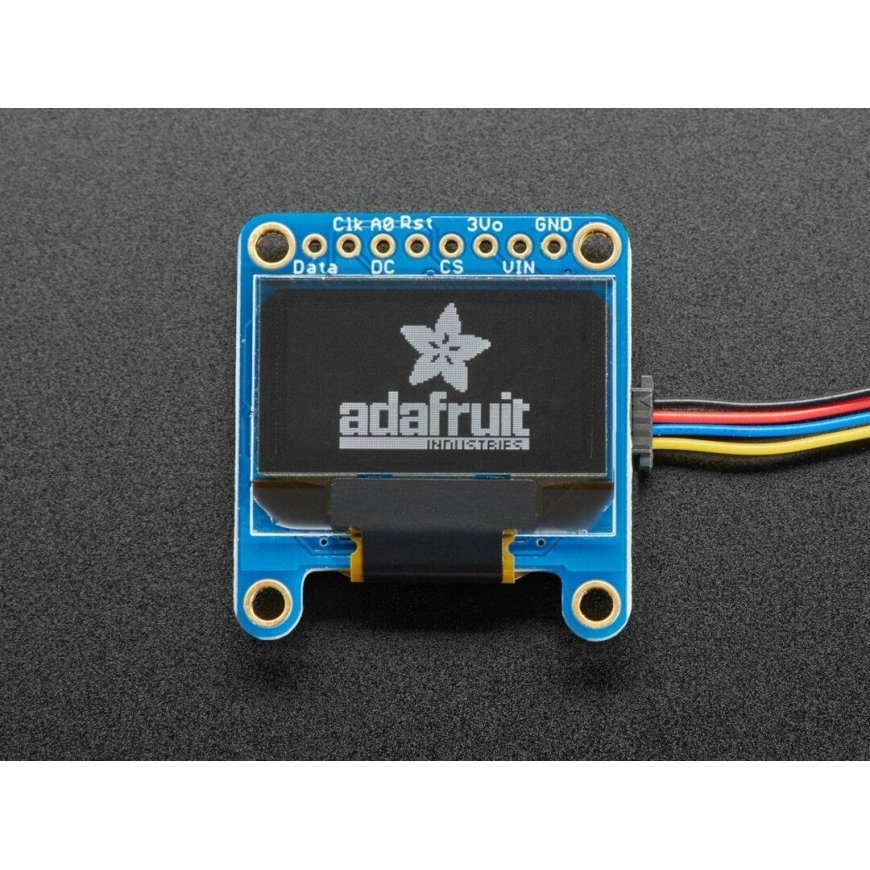

Mini OLED display with a resolution of 128x64 px, diagonal 0.96". Powered by 3.3 V. Operates with 3.3 V and 5 V, supports connection via SPI bus or I2C. With high contrast, the control system supplies each of the white dots separately and lights up with its own light.
Specifications:
- Power supply voltage: from 3.0 V to 5.0 V
- Interface: I2C or SPI
- I2C bus address: selectable: 0x3C - 0x3D
- Connectors: holes for gold pin connectors - 2.54 mm (included)
- Dimensions: 38 x 29 mm
- Weight: 8.5 g
