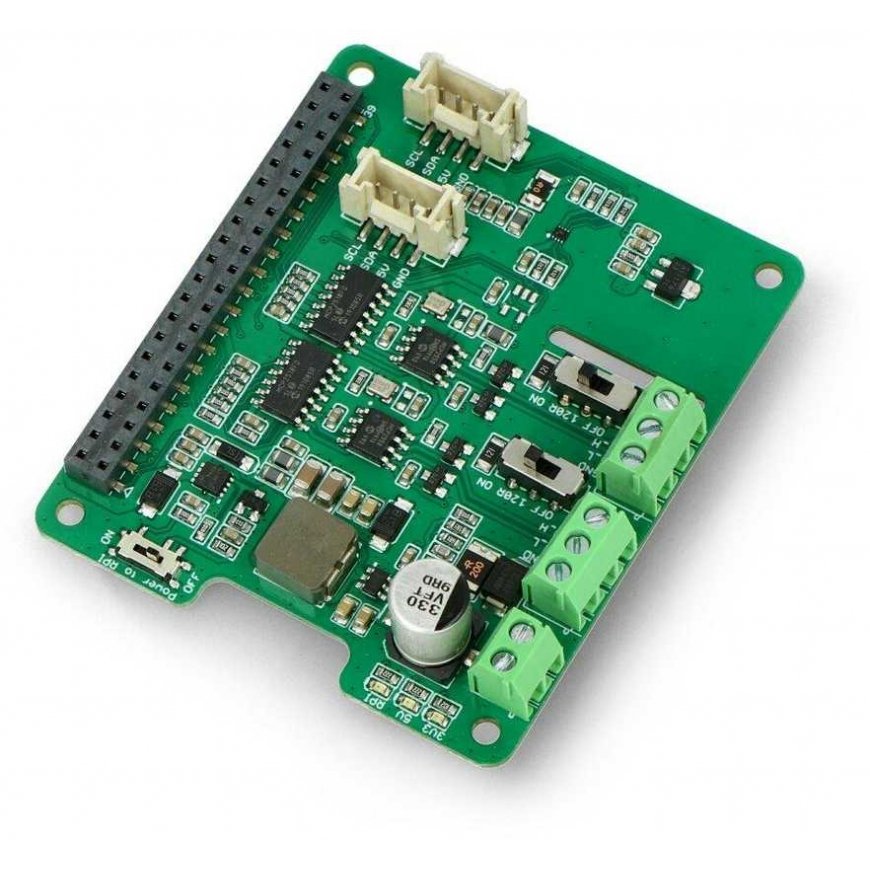

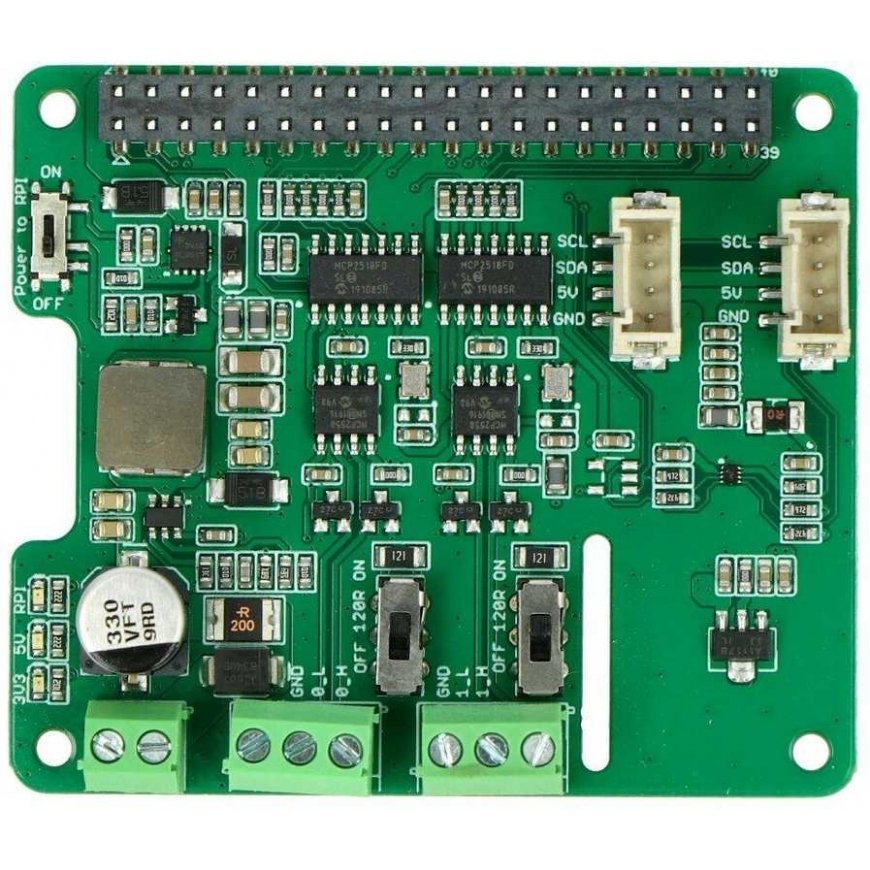

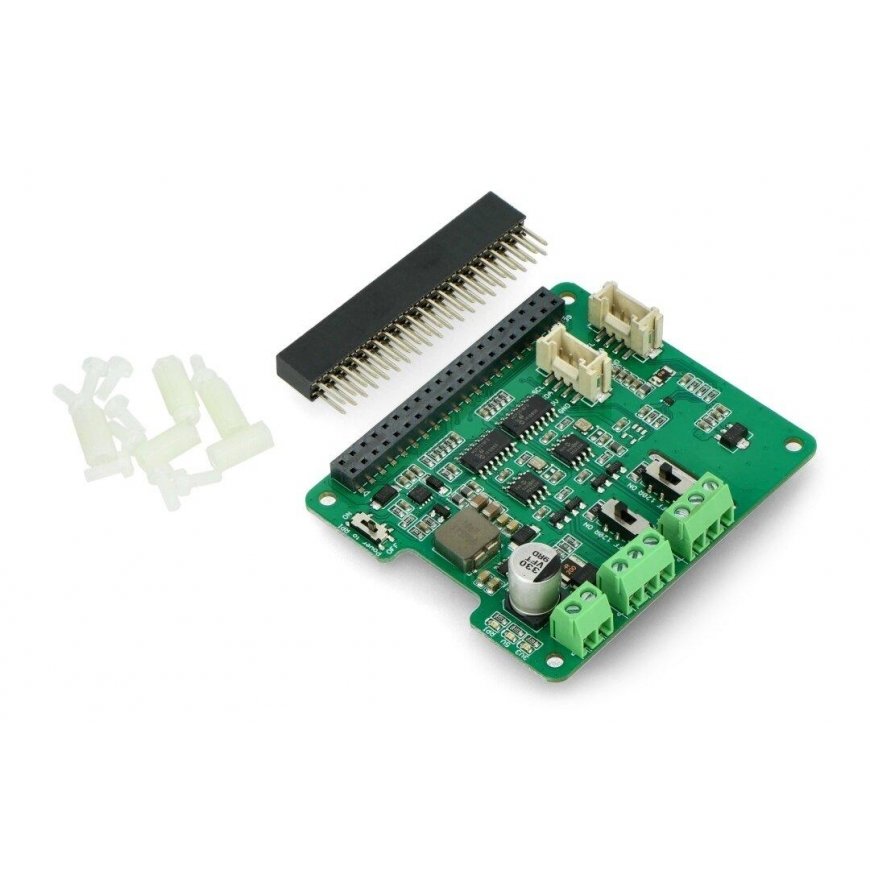

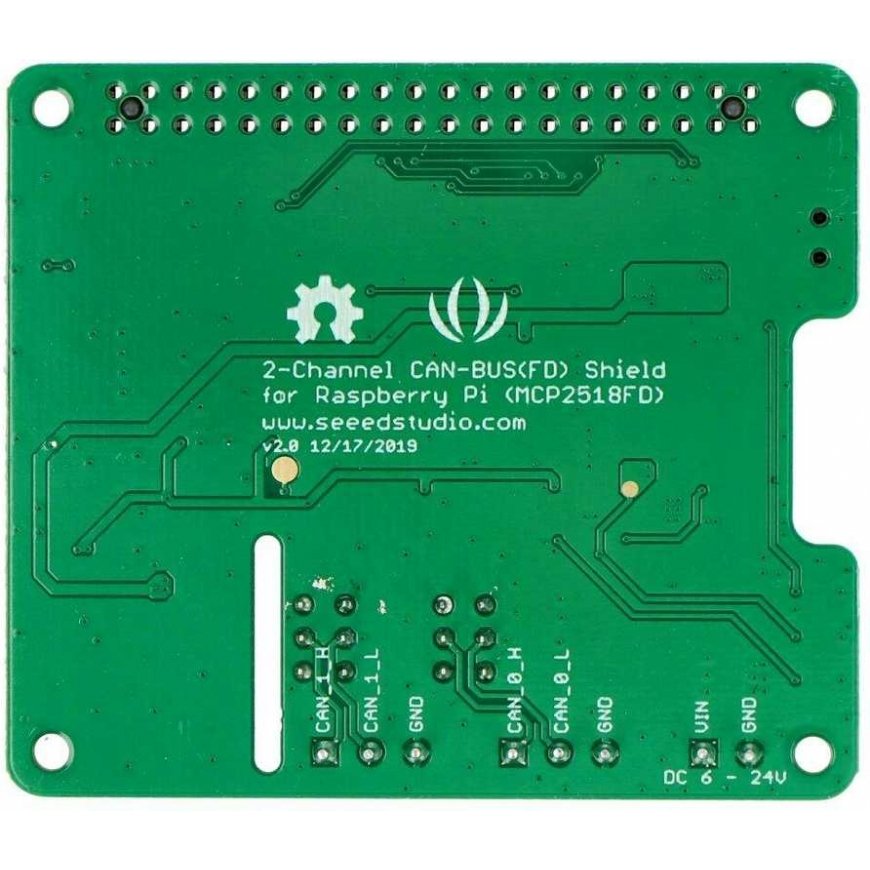

Seeed Studio Two-channel CAN BUS extension for Raspberry Pi
3693633 AN-17684
5904422328429
Tarneaeg 11-18 t.p.
Kõik toote kohta
Seeedstudio add-on for Raspberry Pi mini computers. Supports the CAN FD interface, which has a transmission speed of up to 8 Mbps, making it a faster and more efficient version of the traditional CAN interface. The add-on is based on the MCP2517 controller and MCP2557 transceiver. The device uses the SPI interface to interact with the mini computer. The add-on can be powered using Raspberry Pi GPIO pins or through screw terminals, using a constant voltage from 12 V to 24 V. The board also includes Grove connectors, 120 Ω resistors, and switches to control their operation.
Key features:
- Supports CAN FD
- Data transmission speed up to 8 Mb/s
- Two Grove connectors
- The entire set can be powered with a constant voltage from 12 V to 24 V using screw terminals
- Integrated 120 Ω resistor with the ability to turn it on and off at any time

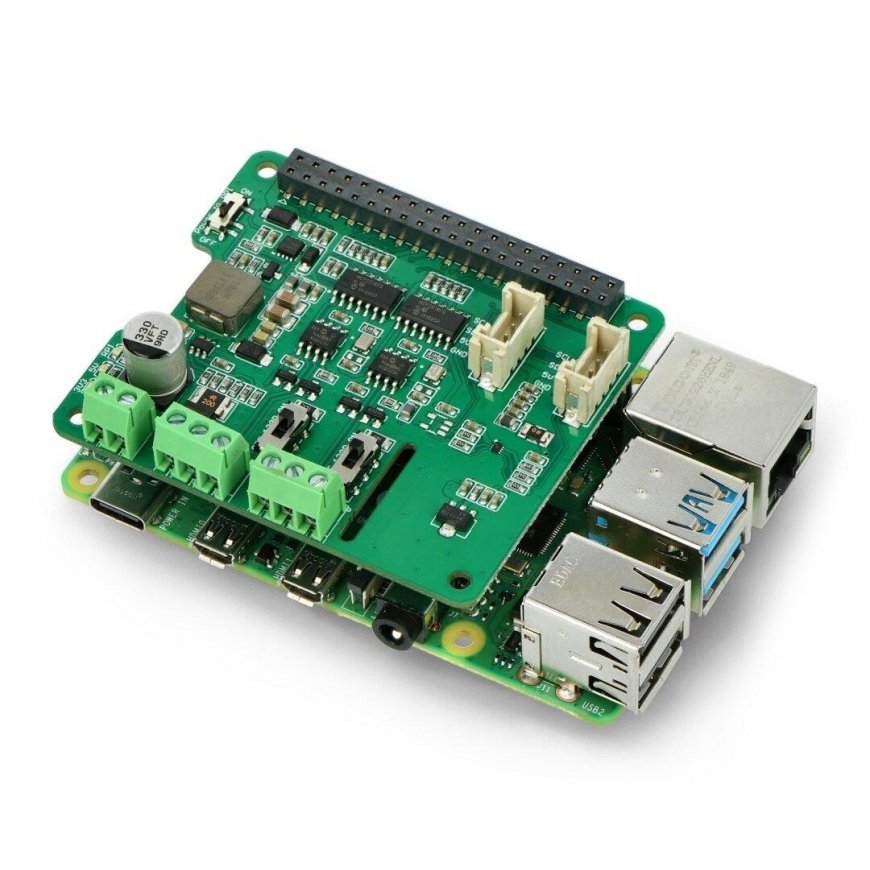

- Fully compatible with Raspberry Pi GPIO connectors
- Power supply voltage:
- 5 V via Raspberry GPIO
- 12–24 V DC via screw terminals
- Number of channels: 2
- Controller: MCP2517
- Transceiver: MCP2557FD
- Communication interface: SPI
