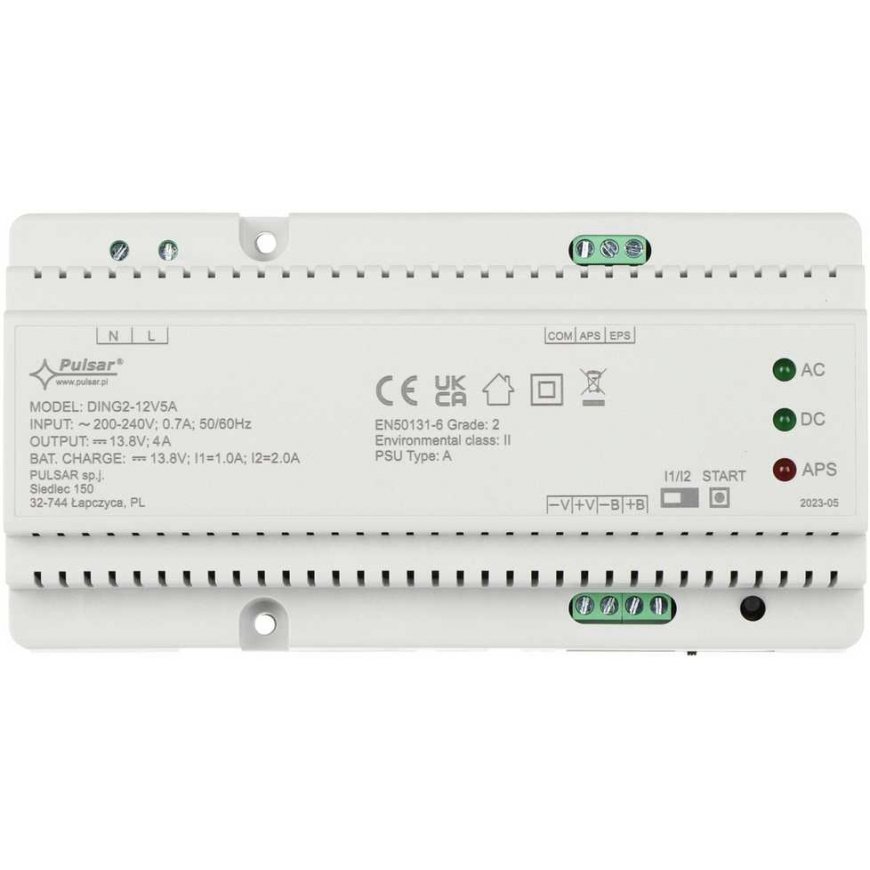

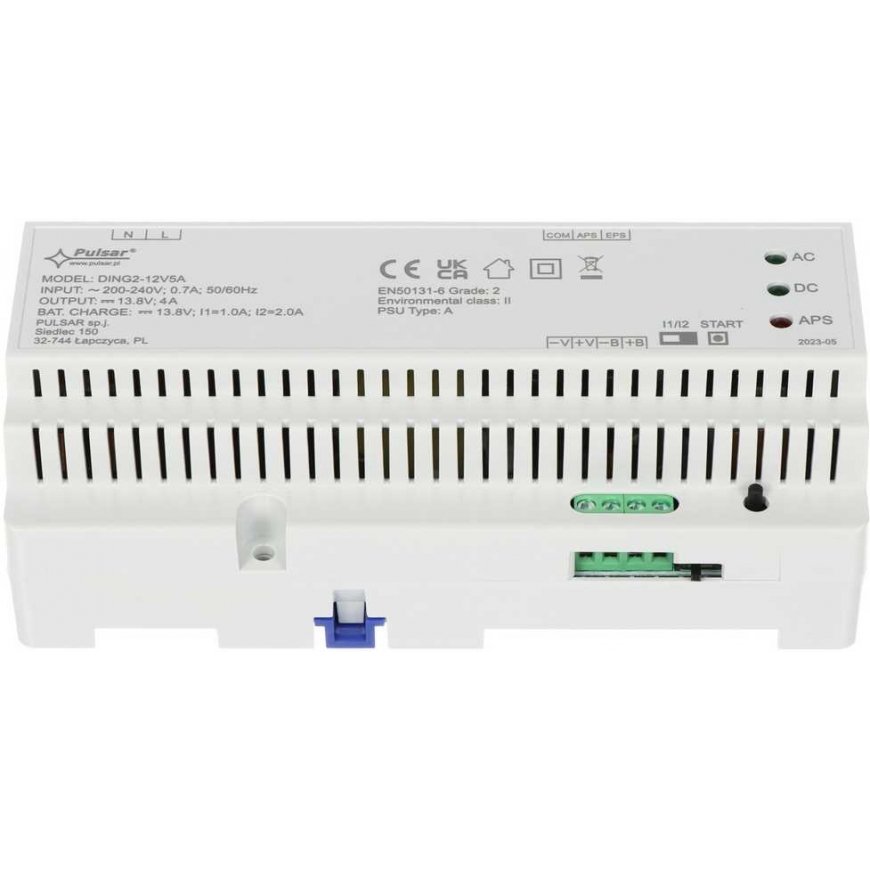

BUFFERED SWITCHING POWER ADAPTER DING2-12V5A PULSAR
49.00 €
Kuumakse alates 2,16 €
3691857 DING2-12V5A
5902135322895
Tarneaeg 11-15 t.p.
Kauba vastu huvi?
Kõik toote kohta
The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, manipulators, intercoms and other devices that are part of the alarm system.
The buffer power supply has been designed in accordance with the requirements of the EN50131-6:2017 standard (Intruder and Intrusion Alarm Systems) and the EN60839-11:2013 standard (Access Control) level 1, 2 and environmental class II.
| Power supply type : | Impulse |
| Input voltage : | 200 ... 240 V AC |
| Output voltage : | 13.8V DC |
| Maximum output current (total) : | 5 A |
| Power : | 69 W |
| Battery charging current : | 1 A / 2 A (adjustable by switch) |
| Number of outputs : | 1 pc. |
| Efficiency : | ≤ 90% |
| Protective measures : | From short circuit From overloads From surges From surges Battery output protection against short circuit and reverse connection Protection against deep battery discharge |
| Adapter operation control : | Mains power presence signaling - AC Output voltage presence alarm - DC Battery emergency signaling - APS EPS FLT input - signals AC power failure, OC type, APS FLT output - Battery failure signaling, OC type "Cold start" function Dynamic battery testing Battery conductivity check Battery voltage check Battery power and maintenance control. |
| Fitting type : | Plastic, DIN, TS-35 rail mounting |
| Weight : | 0.4 kg |
| Dimensions : | 176 x 91 x 60 mm, 10 units |
| Manufacturer / Brand : | PULSAR |
| Warranty : | 2 years |
