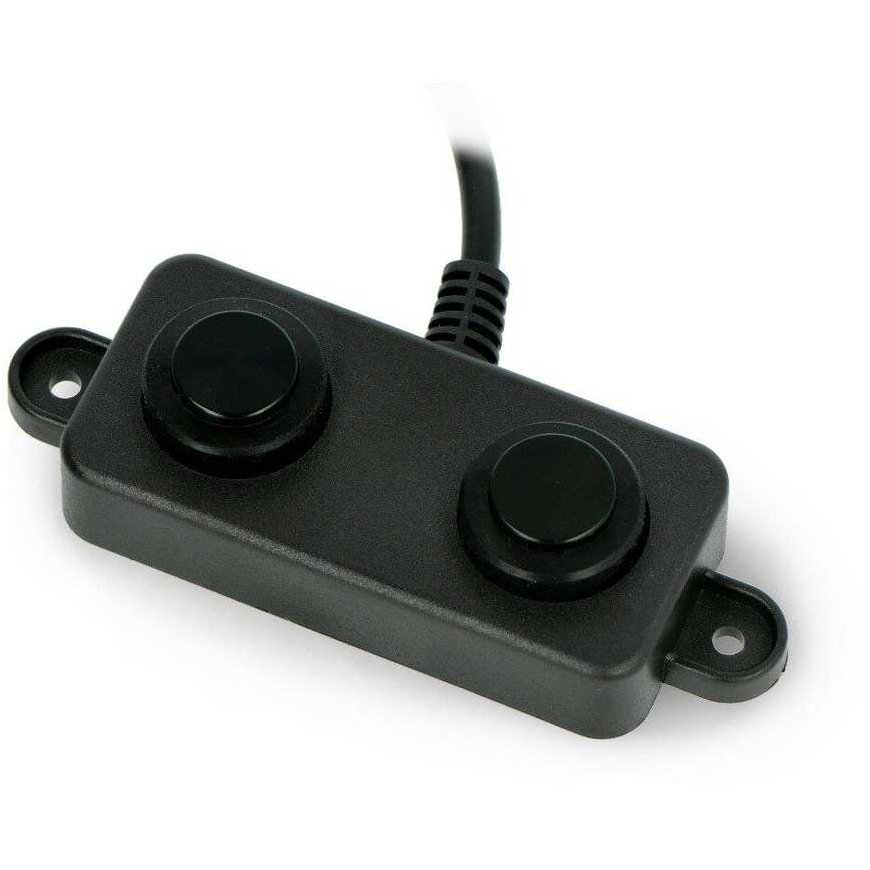

DFRobot SEN0311 A02YYUW ultrasonic distance sensor 3-450 cm, waterproof
39.00 €
Kuumakse alates 1,90 €
3691422 AN-15717
5904422377984
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Ultrasonic distance sensor that measures distance over time between sending and receiving a pulse. The sensor measures distances from 3 cm to 450 cm. Communicates via serial UART interface. The module is powered from 3.3 V to 5 V. The sensor is enclosed in a waterproof housing that has an IP67 protection class.
Specifications:
- Operating voltage: 3.3V to 5V
- Average current consumption: 8 mA
- Dead zone: 3 cm
- Measurement range: from 3 cm to 450 cm
- Communication: UART
- Response time: 100ms
- Operating temperature: -15 °C to 60 °C
- Storage temperature: -25°C to 80°C
- Measuring angle: 60°
- Leakage class: IP67

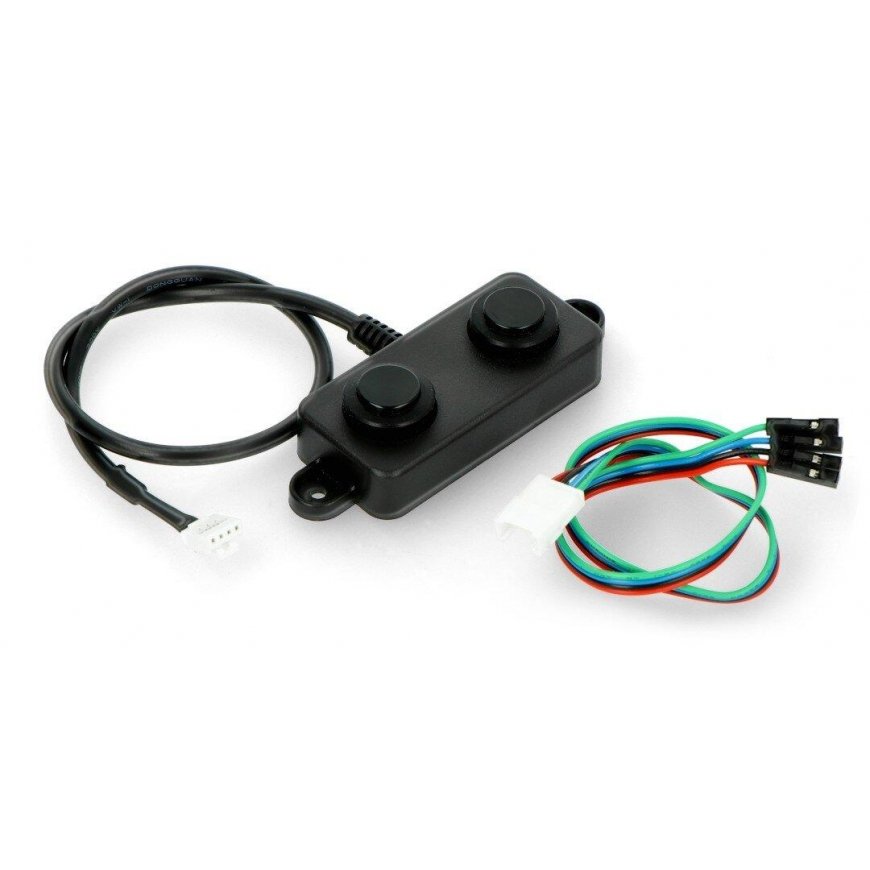

Included:
- PH2.0-4P connector x1
