Pico Quad Expander, 2x20 GPIO pin quad expander for Raspberry Pi Pico, Waveshare 19361
22.61 €
3688157 AN-19037
5904422371692
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

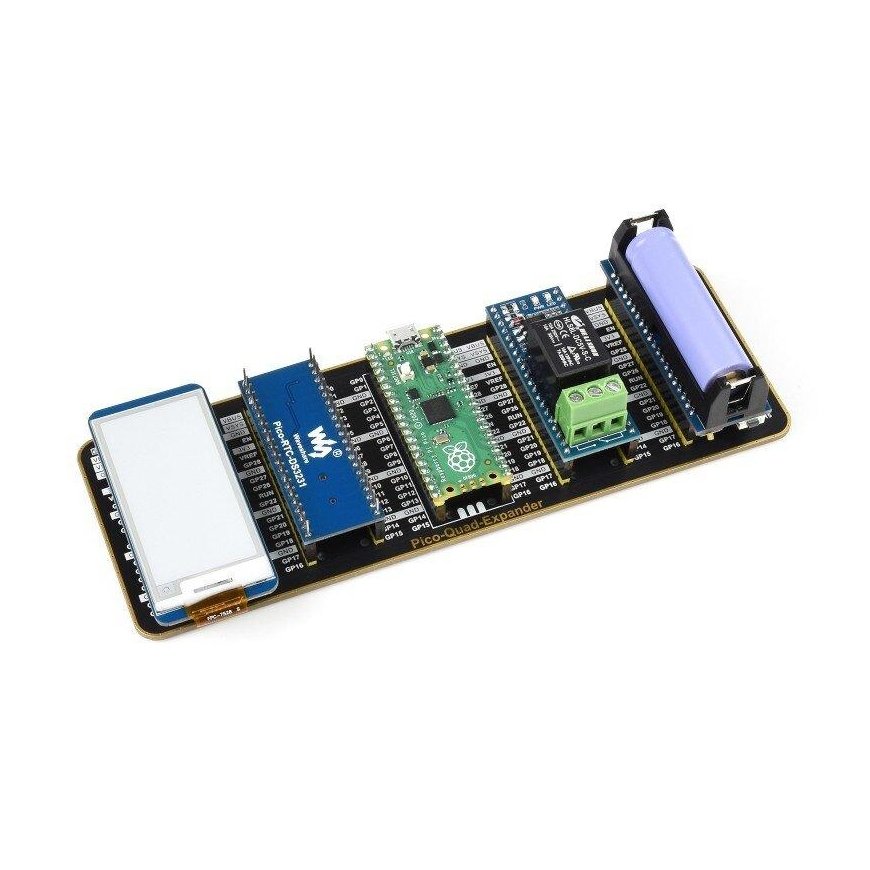

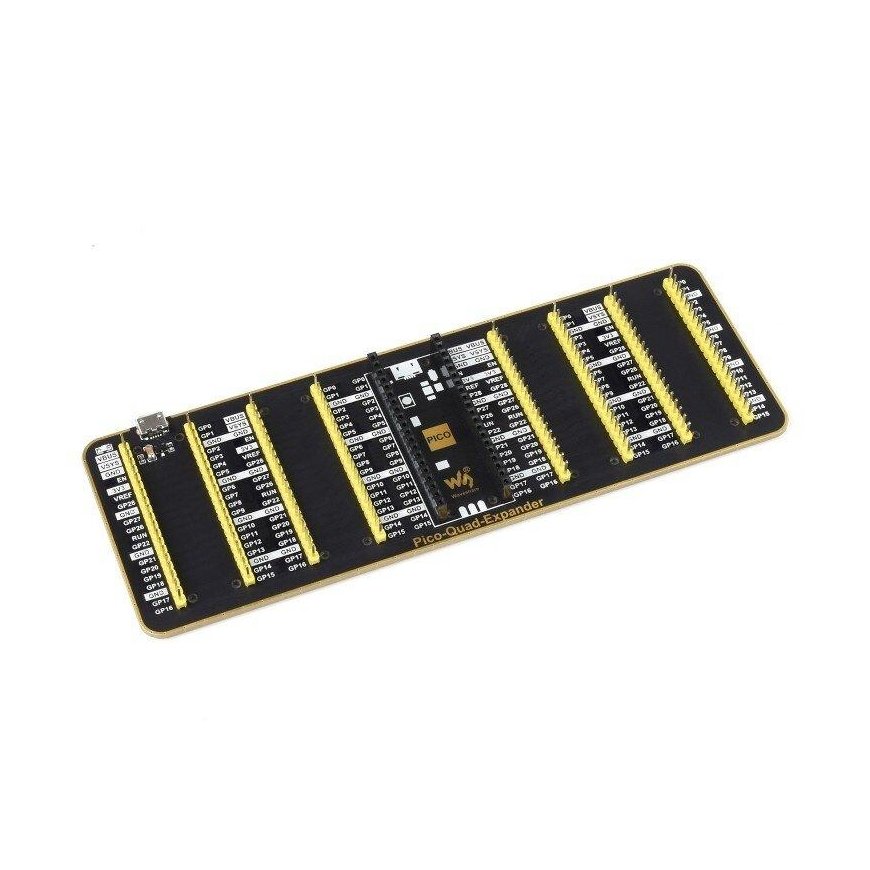

The Pico Quad Expander pin expansion board from Waveshare is another useful board for expanding the functionality of the Raspberry Pi Pico. It has four fields with pins for additional peripherals and one field for the main module - the Pico version of the Raspberry Pi. Individual pins are described in detail, which improves the connection process and reduces the likelihood of errors. The expansion does not require additional soldering.
Main features:
- Standard connectors allow you to connect the Raspberry Pi Pico directly (with soldered plug connectors) or connect it using connection cables
- The expansion board has space for four 2x20 pin modules, allowing you to use more Raspberry Pi Pico expansions in your project
- The available USB power connector powers the modules

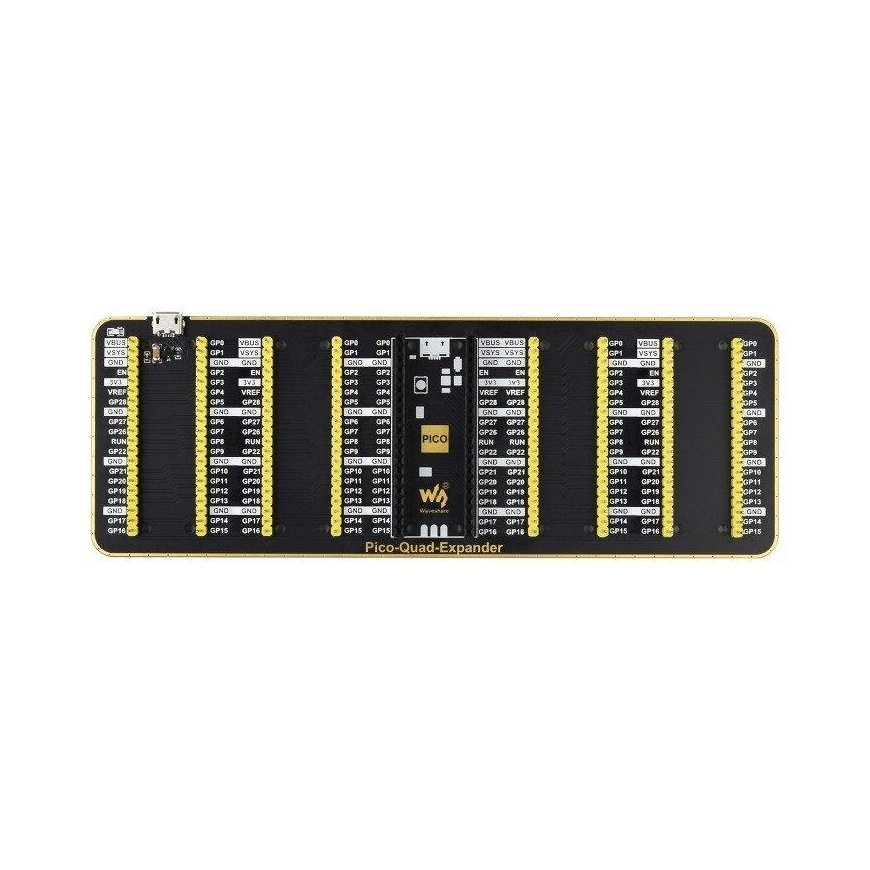

- Detailed wiring description and color-coded parts
- Type: Pin expansion
- Compatible with Raspberry Pi Pico
- Connectors:
- for peripherals: 4 connectors with plug pins for connecting overlays or add-ons with connection cables
- on Raspberry Pi Pico: 1 connector with a socket for connecting Raspberry Pi Pico with soldered connections
- No soldering required
- External dimensions: 177 x 62 mm
