Oem Sharp GP2Y0D810Z0F digital 10cm rangefinder
19.43 €
3685883 AN-09841
5904422305116
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

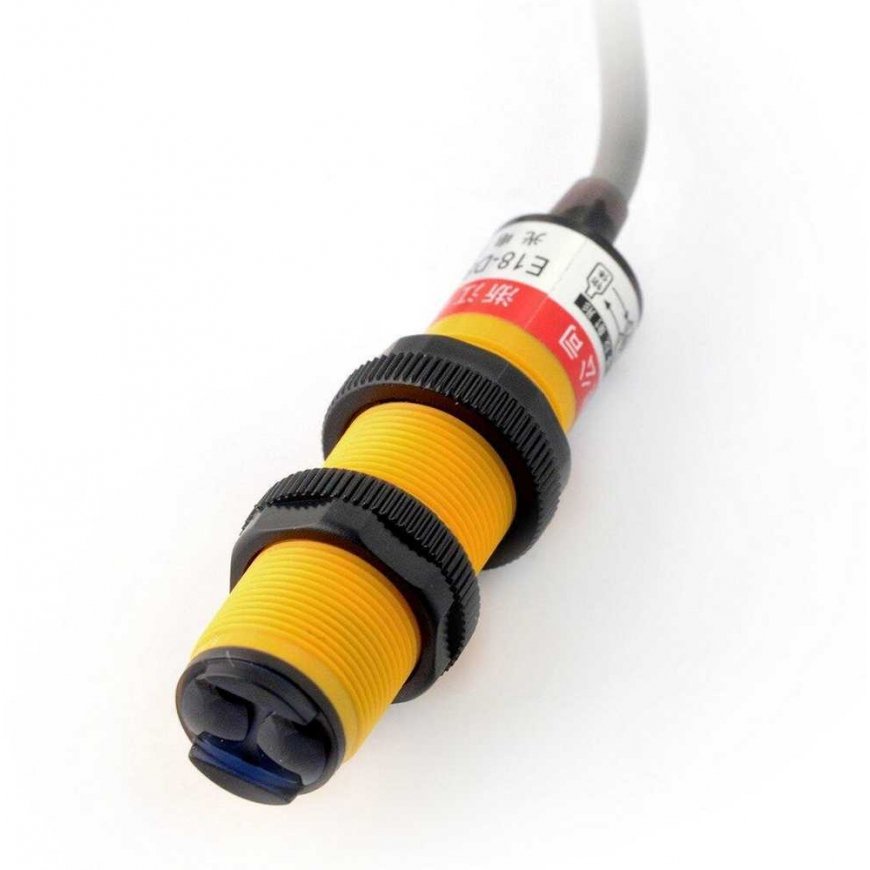

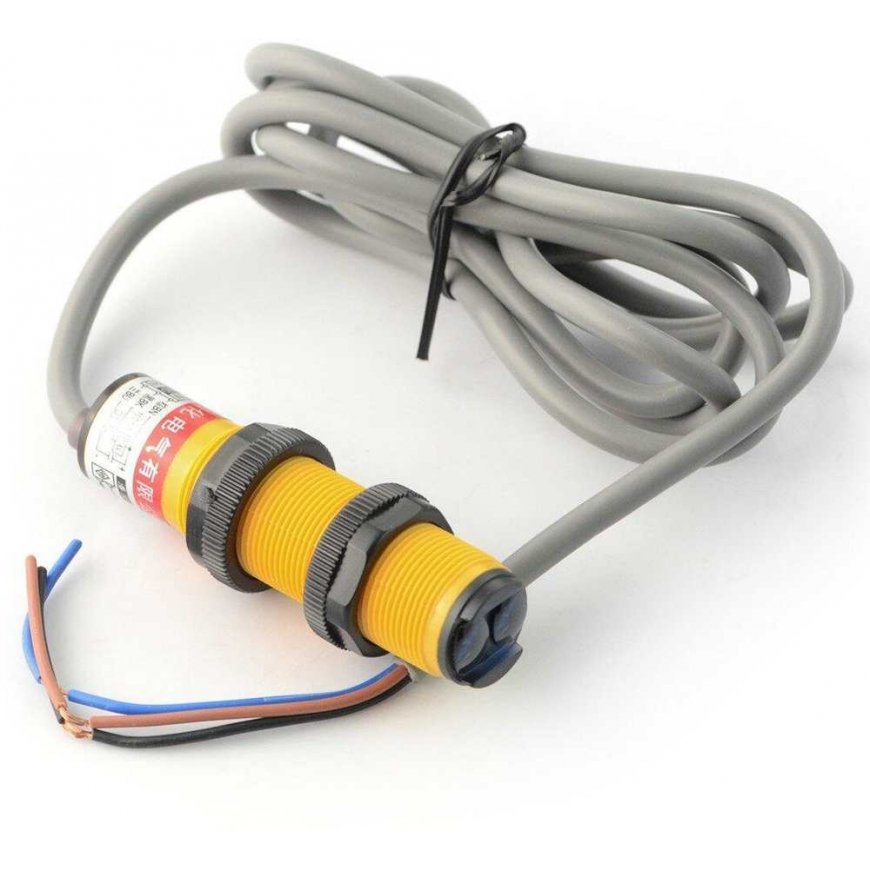

Adjustable digital distance sensor with 50 cm cable and nuts for easy mounting. The measuring range is from 3 to 80 cm, set via a knob. Powered by 5 V.
Specifications:
- Supply voltage: 5V
- Current consumption: below 100 mA
- Adjustable measuring range: from 3 to 80 cm
- Range adjustment knob - multi-turn potentiometer
- Output signal: digital (low state in case of object detection, high state otherwise)
- LED indicating object detection
- Response time: less than 2ms
- Reverse polarity protection
- Operating temperature: -25 °C to +55 °C
- Diameter: 18 mm
- Sensor length: 68 mm
