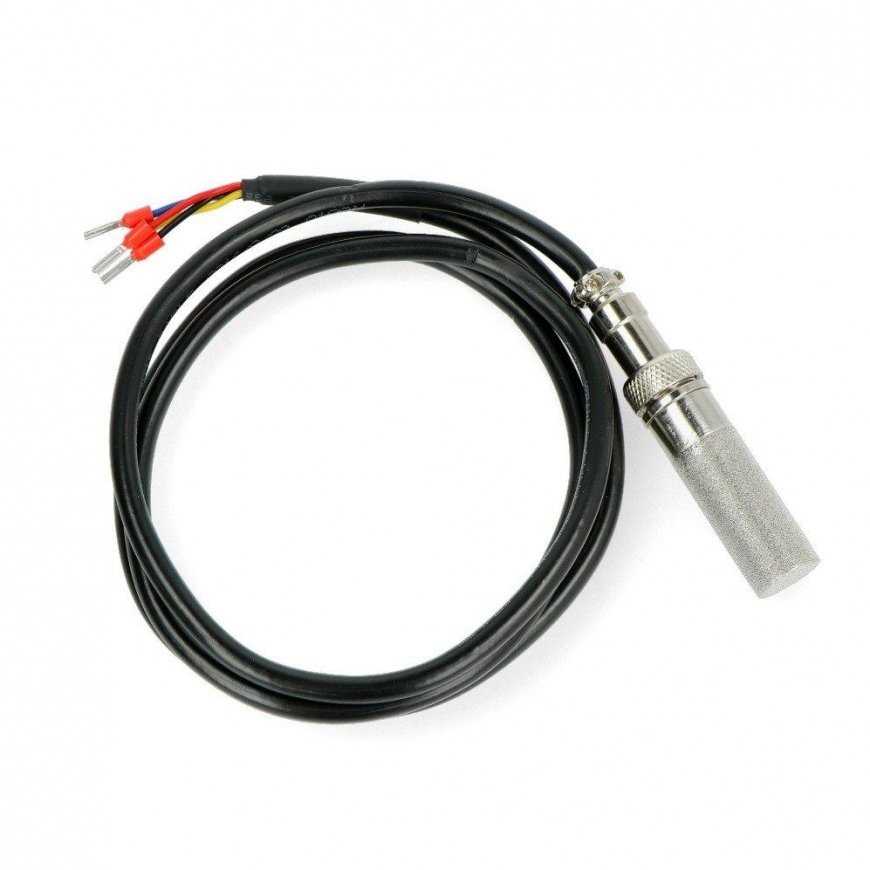

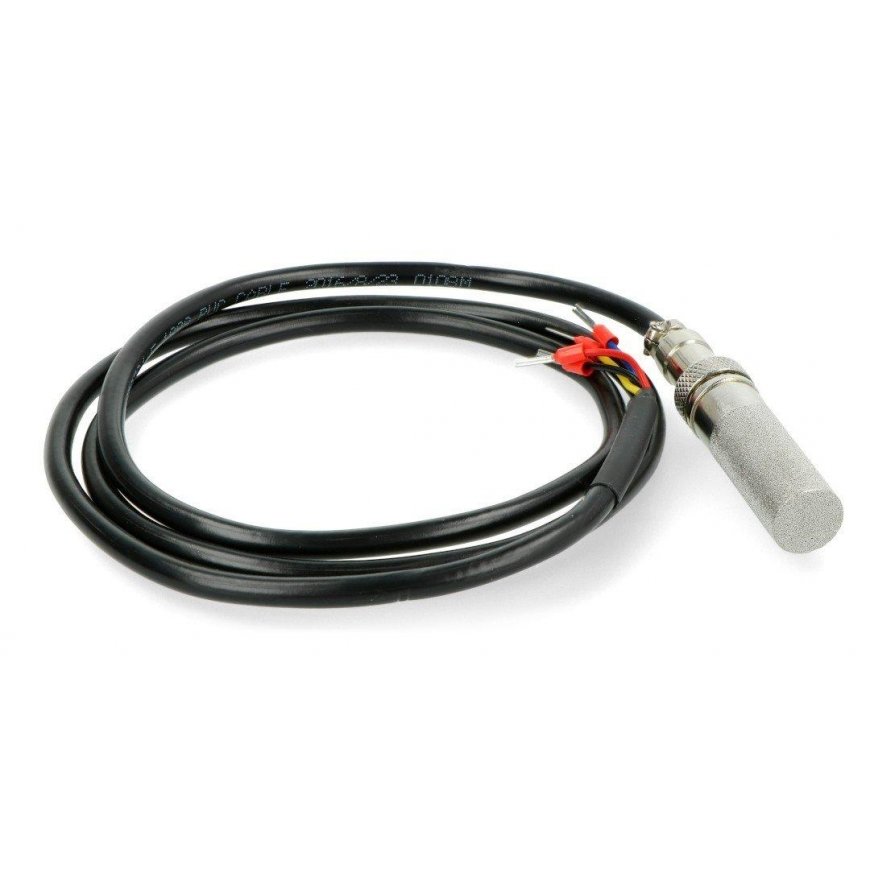

SHT-30 mesh-protected, weatherproof temperature/humidity sensor, 1m, Adafruit 4099
49.00 €
Kuumakse alates 2,16 €
3685698 AN-14969
5904422322816
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The SHT-30 temperature and humidity sensor is equipped with a weatherproof metal mesh and a 1 m long cable. The temperature measurement range is from -40 °C to 125 °C, the accuracy is 0.5 °C, and the humidity from 0 to 100% RH, the accuracy is 2%. The SHT-30 is supplied with a voltage of 3 V to 5 V. It interacts with the microcontroller via the I2C bus.
Specifications:
- Supply voltage: 3 V to 5 V
- Grid
- Temperature
- Measurement range: -40 °C to 125 °C
- Accuracy: 0.5 °C
- Humidity
- Measurement range: 0% to 100%
- Accuracy: 0.2% RH
- Interface: I2C
- Outputs: 4 wires
- Brown: VCC - 3 C to 5 V
- Black: GND - ground
- Yellow: SDA - Data line
- Blue: SCL - clock line
- Sensor dimensions: 50 x 14 x 14 mm
- Cable length: 1 m
