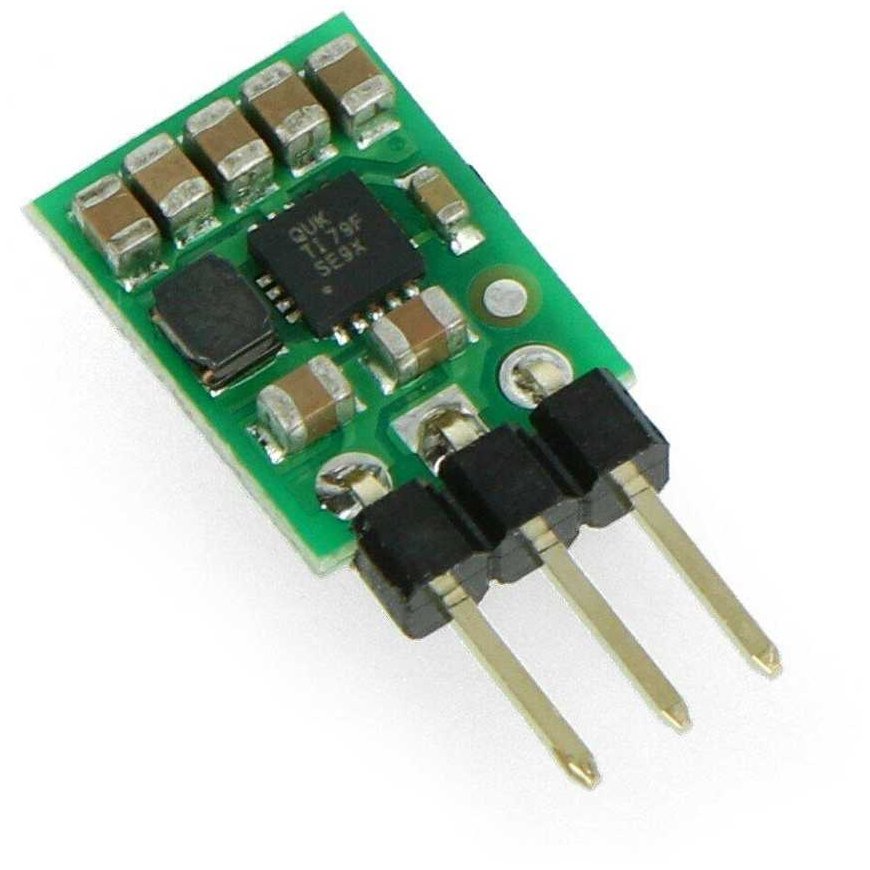

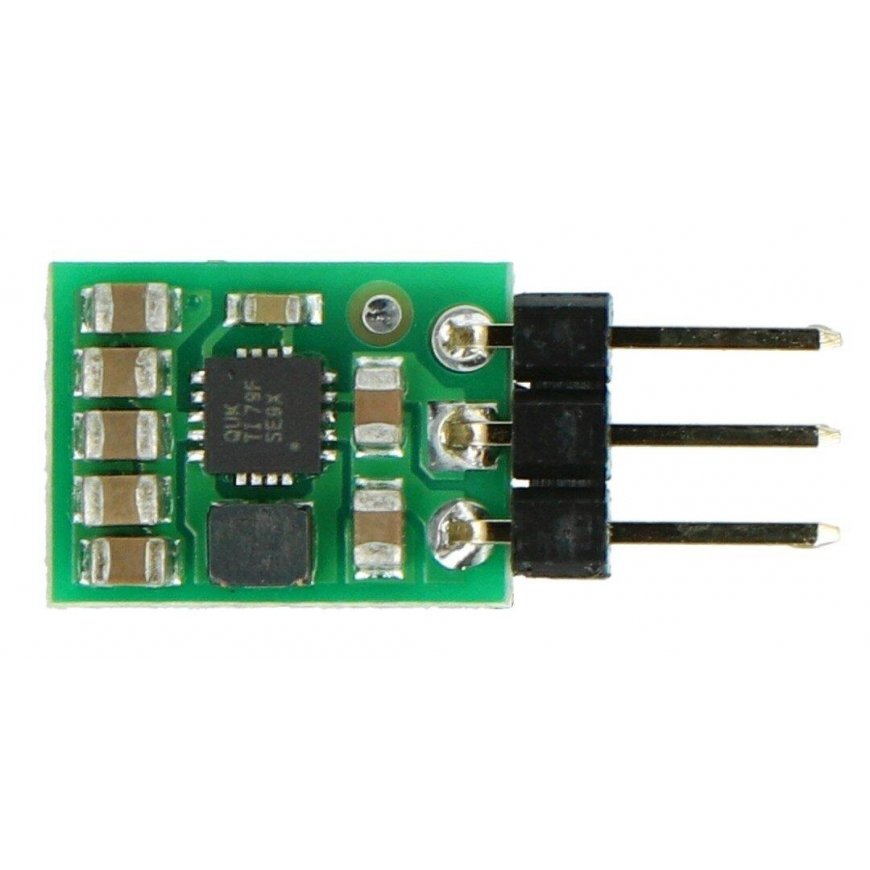

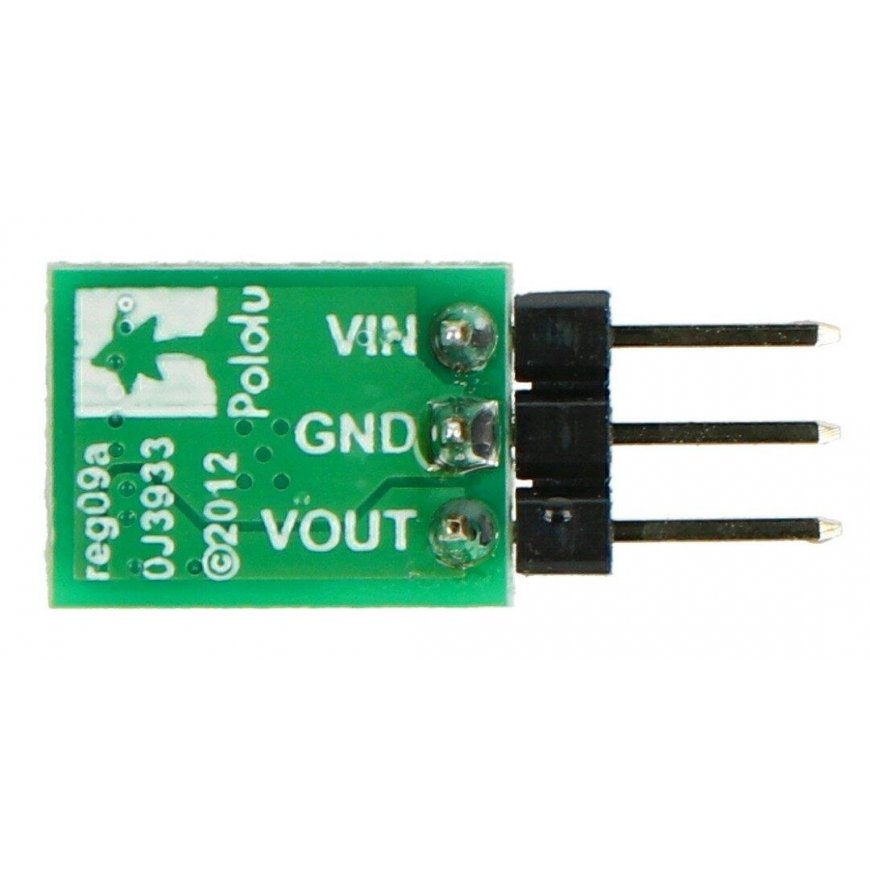

Pololu Step-Up/Step-Down voltage regulator S7V7F5, 5V 1A, soldered connections
3684516 AN-16153
5904422303679
Tarneaeg 11-18 t.p.
Kõik toote kohta
A small pulse converter module with a voltage range of 2.7 V to 11.8 V. The output voltage is set to 5 V, the maximum output current is 1 A. The module dimensions are 9 x 12 x 3 mm. The inverter is used to power circuits operating at a voltage of 5 V. The system has a wide input voltage range, making it ideal for designs using batteries. The use of S7V7F5 ensures the stability of the power supply throughout the entire battery discharge cycle. To increase reliability, the module has short-circuit protection and an automatic power-off circuit when the permissible operating temperature is exceeded. The module has soldered gold pin connectors.
Specifications:
- Input voltage: 2.7V to 11.8V
- Maximum output current:
- 1 A (step-down)
- 0.5 A (step-up)
- Output voltage: 5V
- Temperature protection

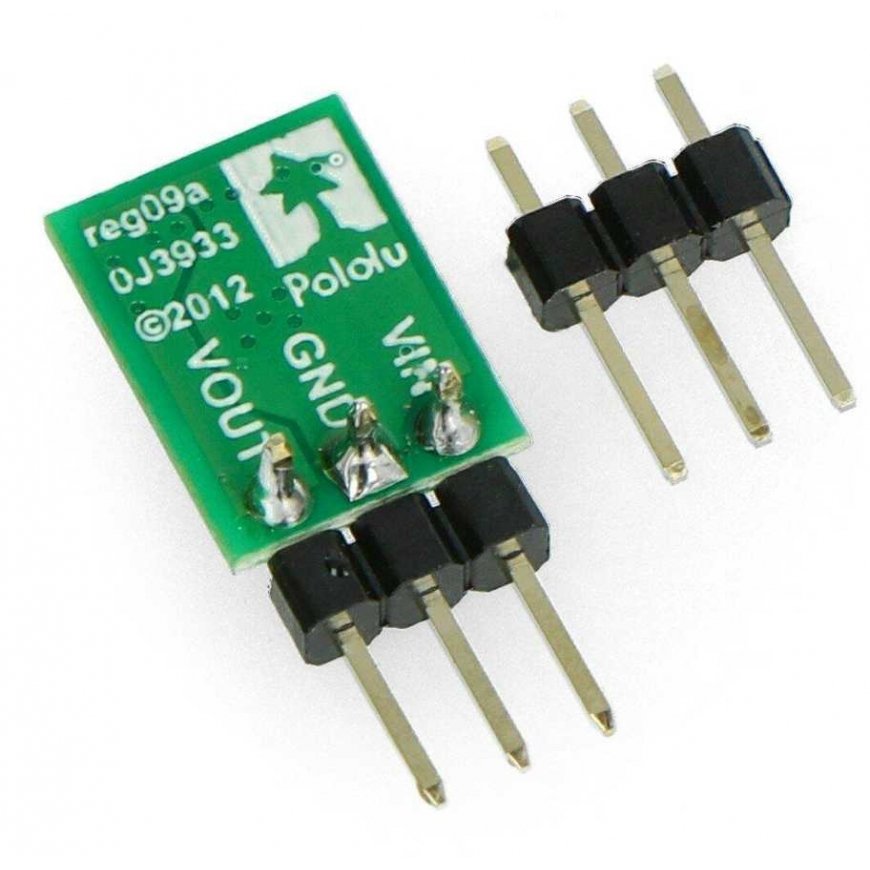

- Soldering gold pin connectors
- Dimensions: 9 x 12 x 3 mm
- Weight: 0.5 g (without connectors)
