Oem LCD display 2x16 characters blue + I2C LCM1602 converter
20.73 €
3681343 AN-02351
5904422309244
Tarneaeg 8-12 t.p.
Kauba vastu huvi?
Kõik toote kohta

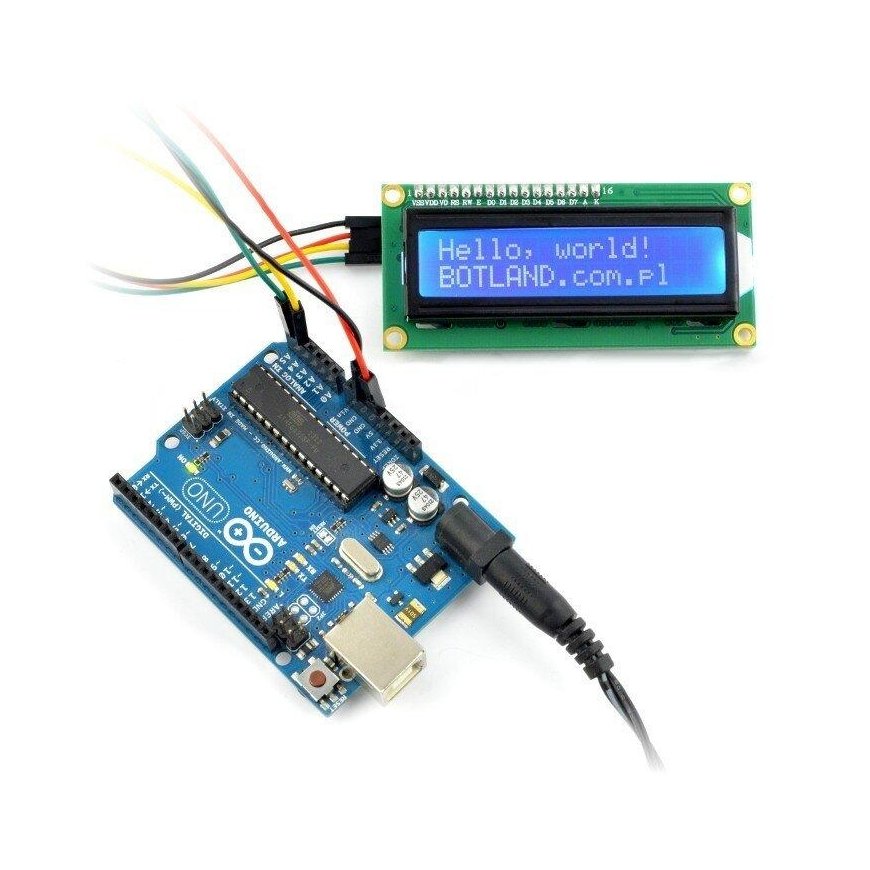

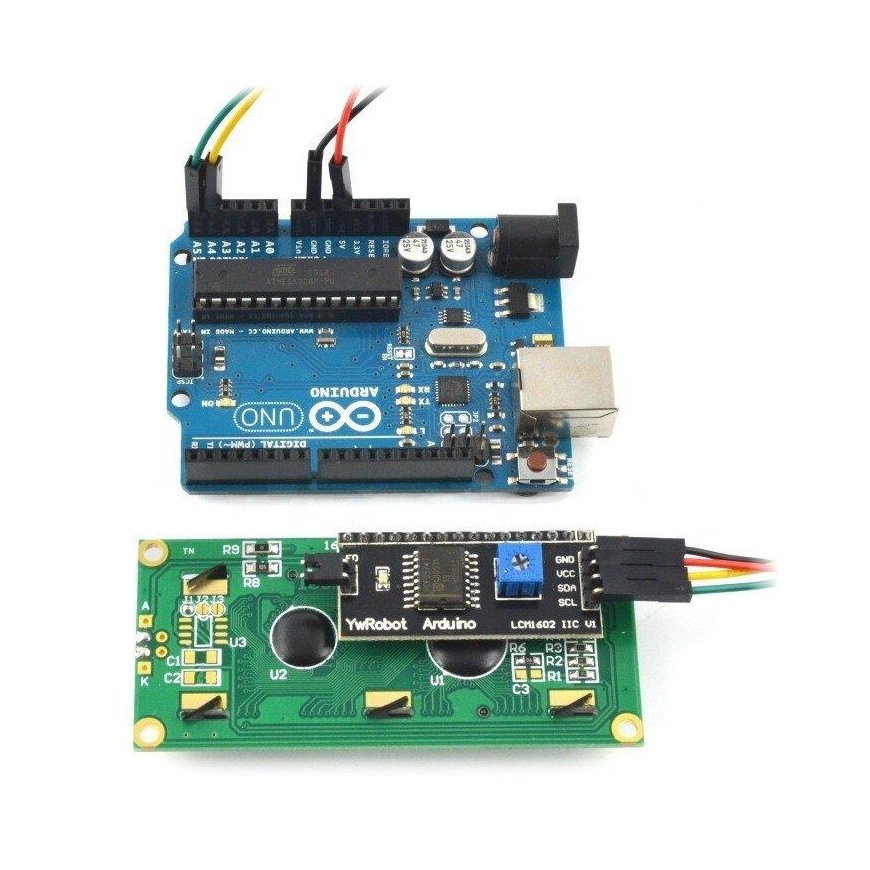

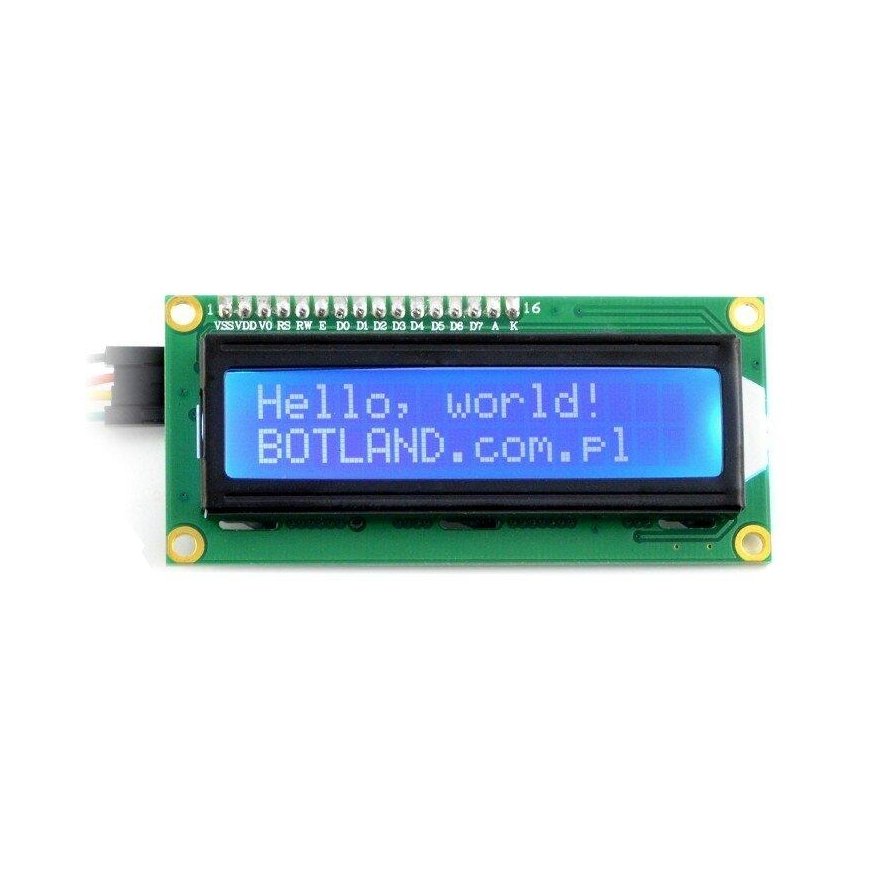

A popular alphanumeric LCD display powered by 5 V. It can display 32 characters in two rows by sixteen columns. The kit includes a soldered I2C converter for using the display with only two lines - SDA and SCL. Through the bus, from the Arduino level, it is possible to control the displayed text and backlight, turning them on or off at any time. The board also has a potentiometer for adjusting the contrast.Specifications:
- LCD display 2x16 characters
- Character color: white
- Backlight: blue
- Module size: 80 x 36 mm
- Mark sizes: 2.45 x 5.00 mm

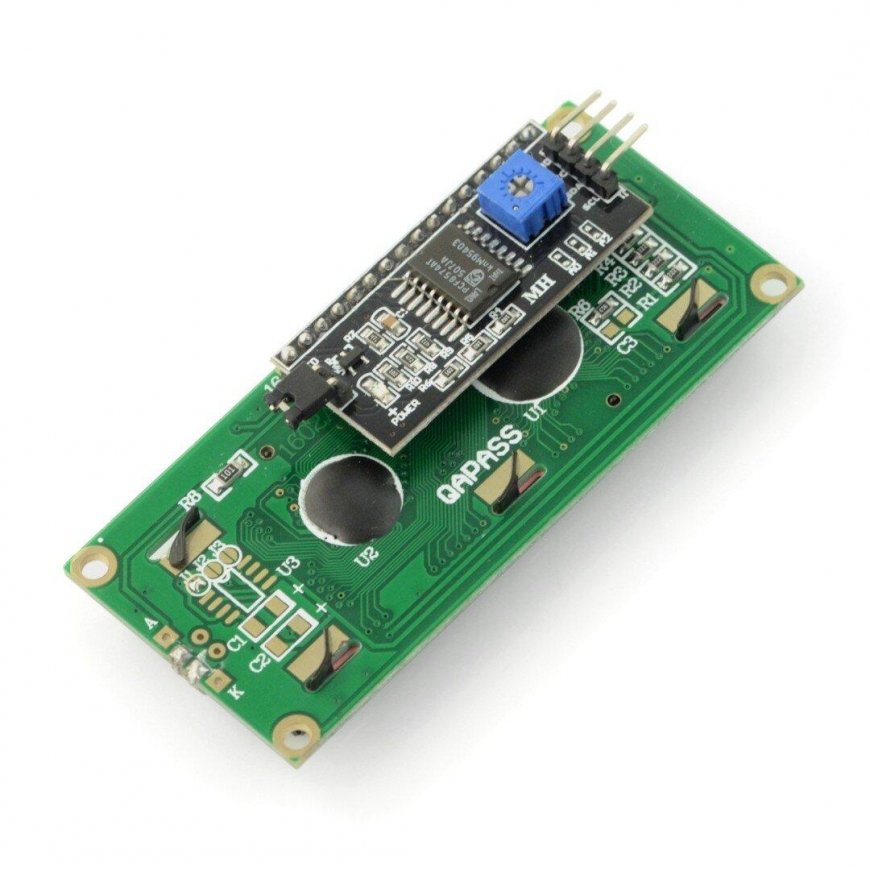

- I2C bus converter
- Missing resistors pulling up the I2C bus line (included with Arduino)

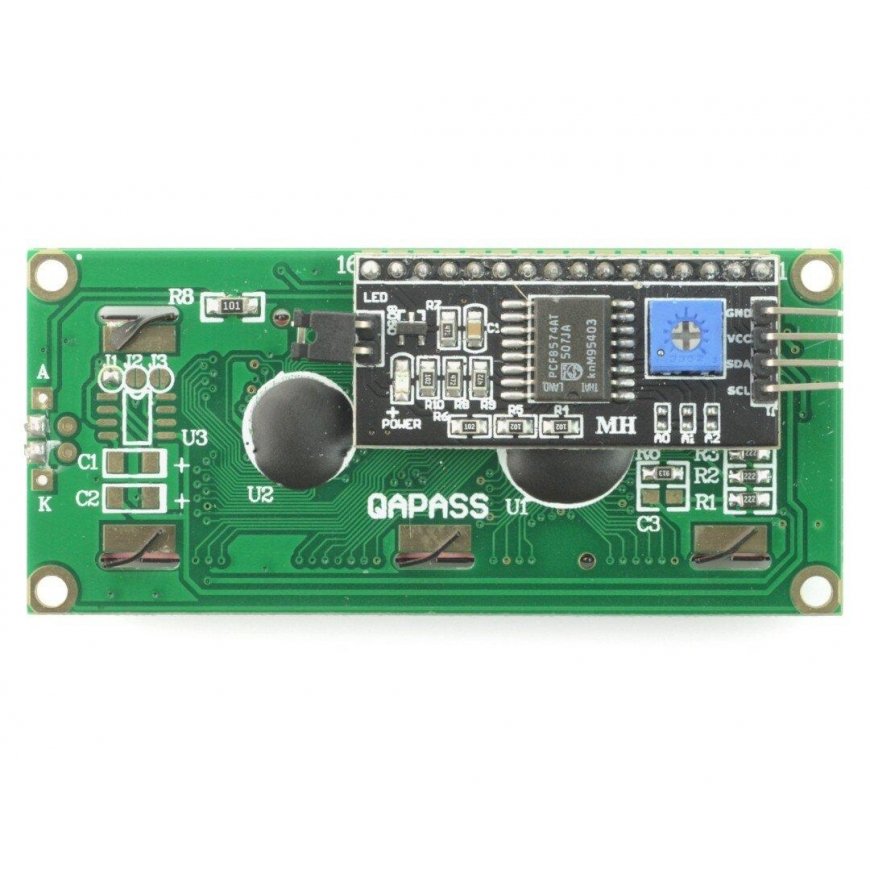

- Converter based on PCF8574 system
- Soldered potentiometer for contrast adjustment
- Ability to control lighting via I2C bus
