Arduino Pro Mini 328 Module, 5V / 16MHz, SparkFun DEV-11113
29.77 €
3678286 AN-01595
5903351240673
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

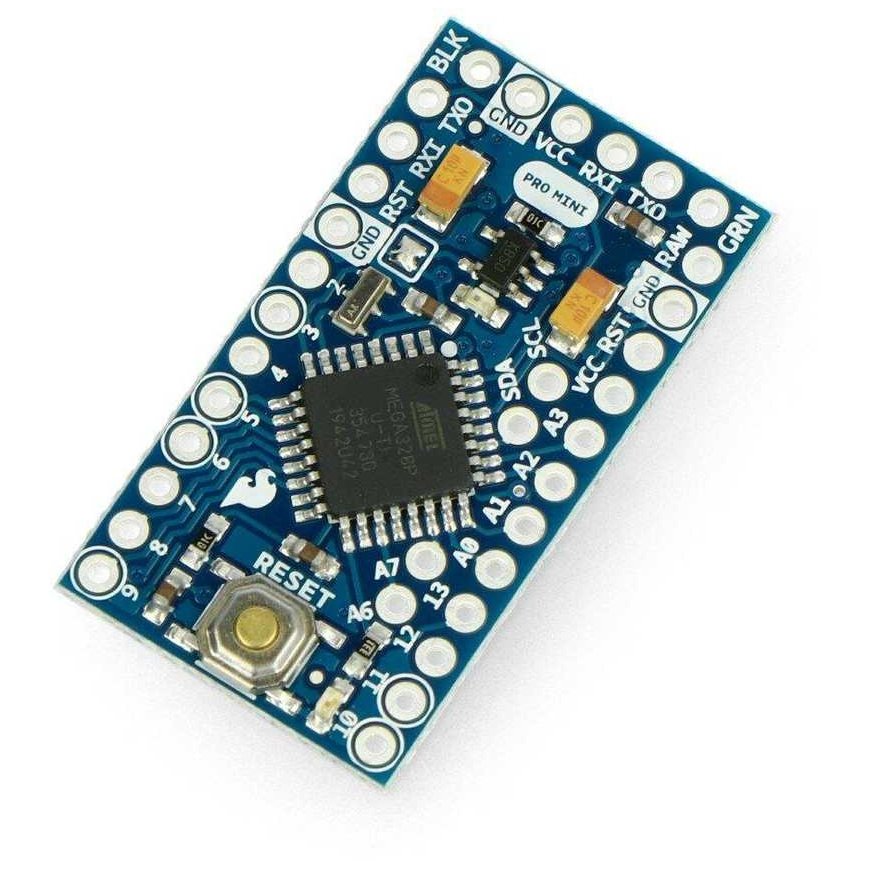

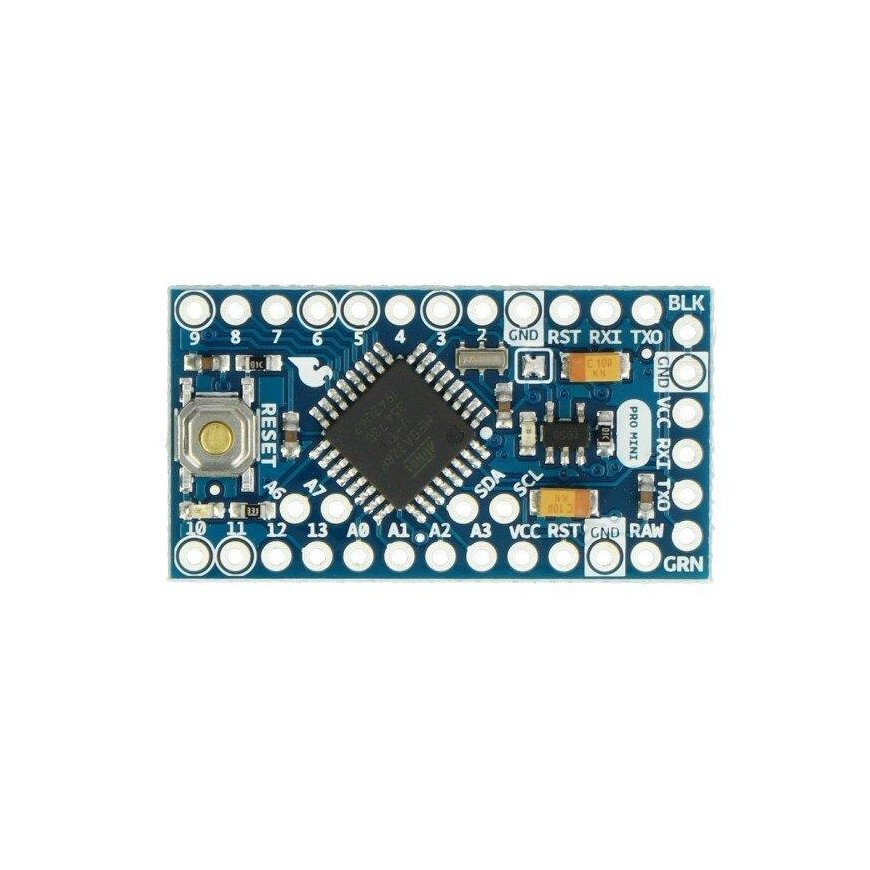

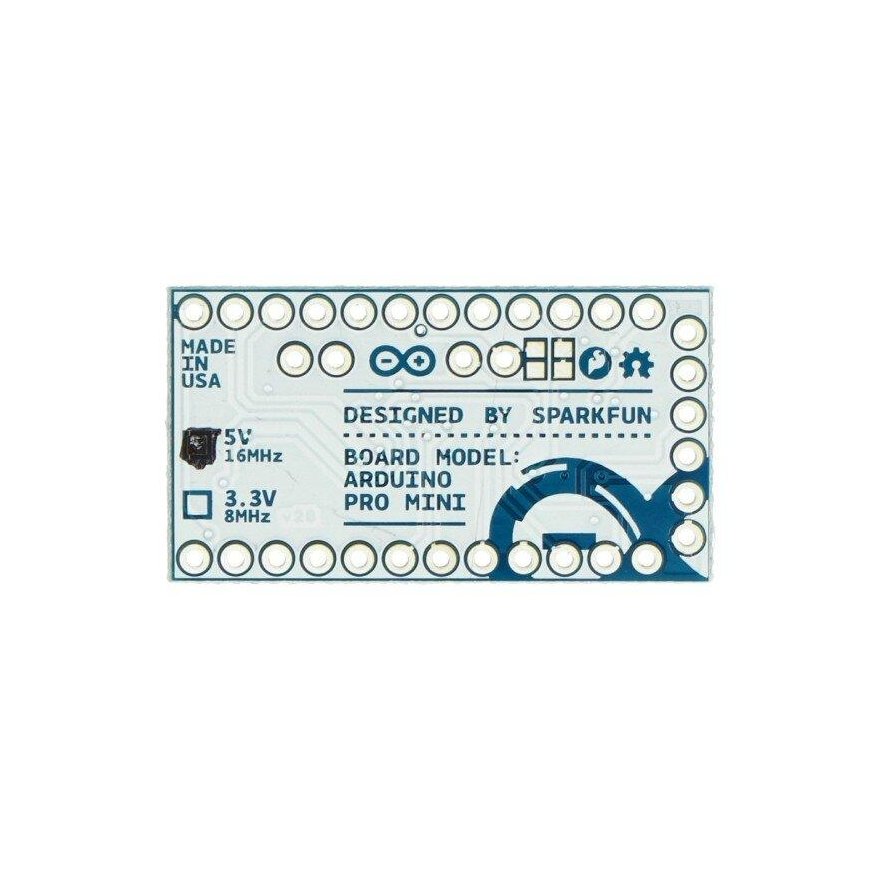

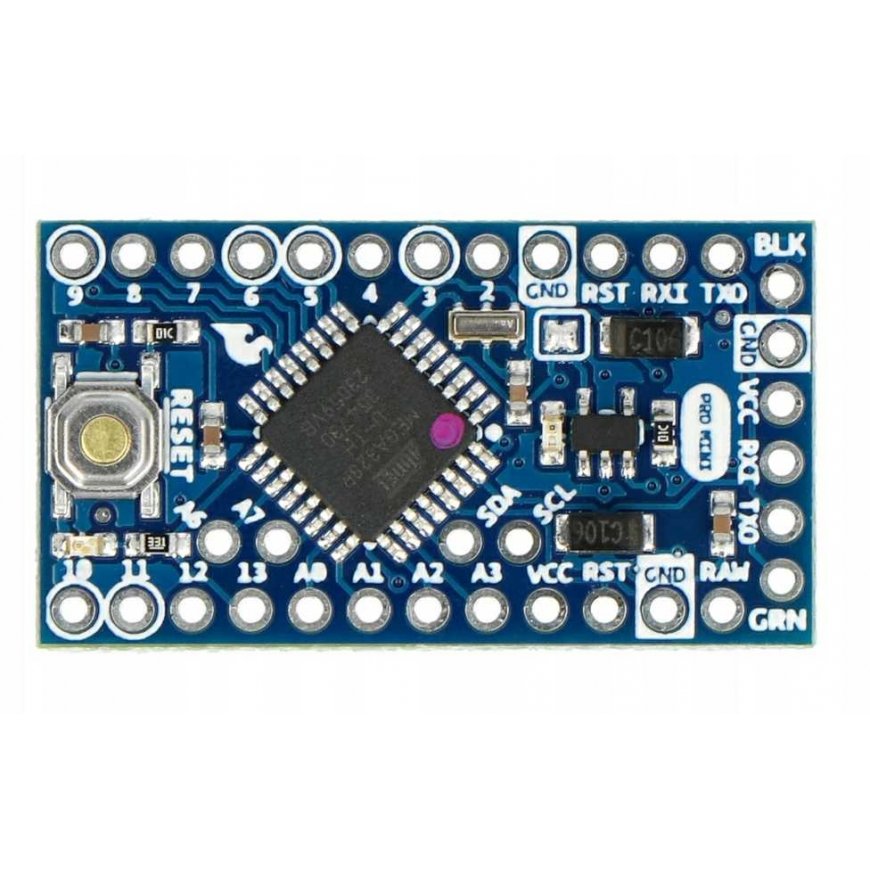

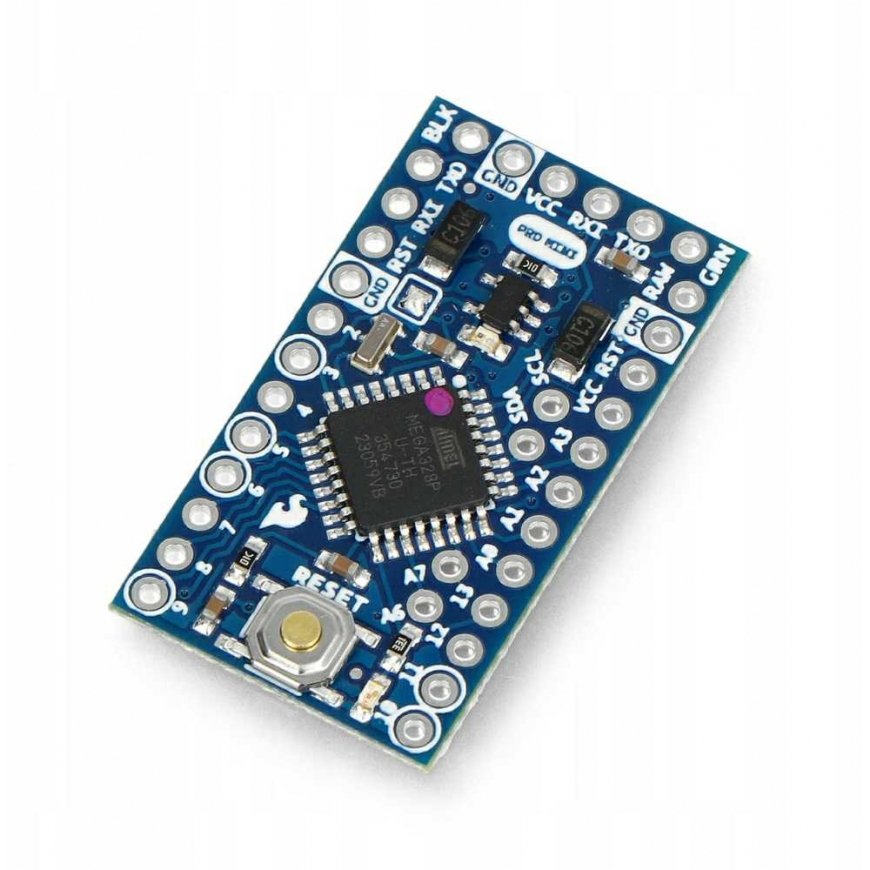

Arduino Pro Mini is based on the popular Uno module. The board features an ATmega328 microcontroller with 14 digital input/output pins, 6 of which can be used as PWM outputs (e.g. for motor control), and 8 analog inputs. The system operates at a 16 MHz clock frequency, operates at 5 V, and has 32 KB of memory and 2 KB of SRAM.
Specifications:
- Supply voltage: 5 V to 12 V
- Microcontroller: ATmega328
- Maximum clock frequency: 16 MHz
- SRAM: 2KB
- Memory: 32 KB (5 KB is reserved for the bootloader)
- EEPROM: 1 KB
- I/O pins: 14
- PWM channels: 6
- Number of analog inputs: 8
- Serial interfaces: UART, SPI, I2C
- External interrupts
- Overcurrent protection
- The module is made on laminate, 0.8 mm thick
- Weight - less than 2 g
- Dimensions: 33 x 18 mm
