Solarix wall cabinet SENSA 12U 400mm, metal doors, RAL 7035 SENSA-12U-64-21-G
3677314 83000084L
8595684710151
Toodet pole enam laos
Kõik toote kohta
Solarix SENSA-12U-64-21-G

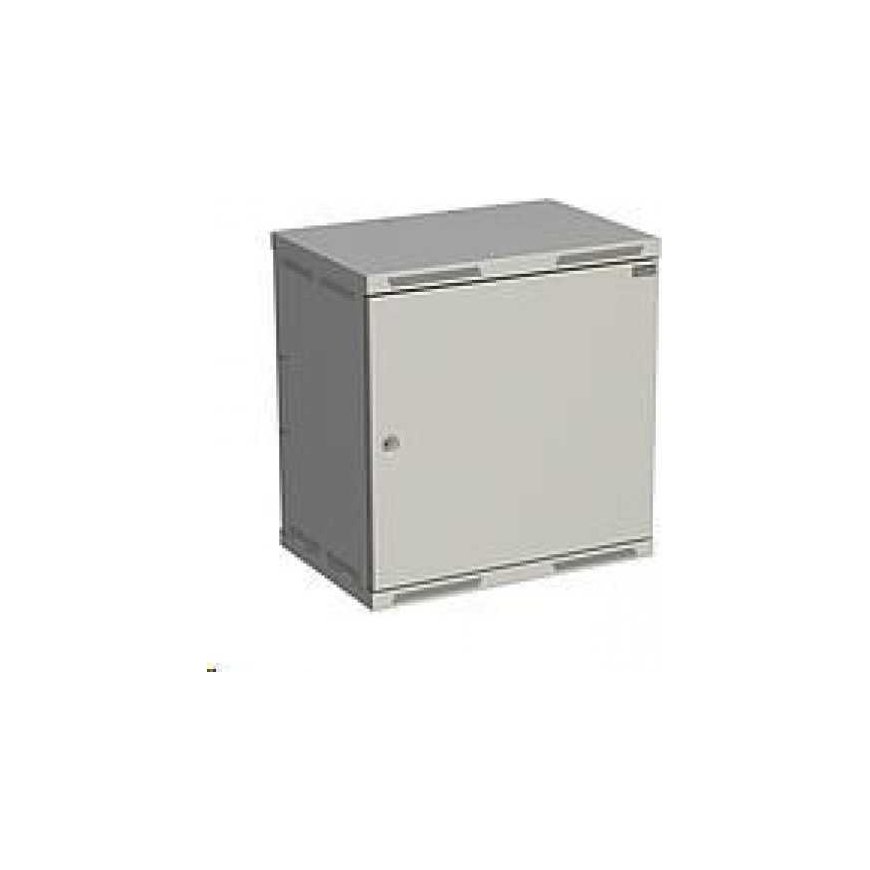

SENSA 12U wall-mounted riveted cabinet with sheet metal doors, depth 400 mm
The riveted wall-mounted data cabinet SENSA is a distribution panel, the production of which was focused on reliability and favorable price. The upper and lower covers of the cabinet are perforated for easy ventilation of the internal equipment. Cable entry is handled through knockouts located in the ceiling, bottom, sides of the cabinet and also at its back. The door has a lock with two keys and hidden hinges.
Technical parameters:
| Height | 12U |
| Height | 621 mm |
| Width | 600mm |
| Depth | 400mm |
| Mass | 22 kg |
| Color | RAL 7035 |
Variants in production
Height: 6, 9, 12, 15, 18 U, 21 U
Width: 600 mm
Depth: 400, 500, 600 mm
Construction:
sheet thickness 1.3 mm, support rails 1.5 mm galvanized
Lifting capacity:
standard 45 kg (uniform load)
IP protection:
IP20 standard
Color design:
powder paint RAL 7035 gray shade
Doors:
made of sheet metal or with safety glass (EN 12150-1)
Standard configuration
- 1 pair of sliding 19" vertical rails (another pair on request)
- 1 door with lock and hidden curtains
- perforations in the upper and lower parts of the body for easy ventilation
- prepared steps for laying cables in the form of knockouts in the ceiling, bottom and sides of the cabinet.
The cabinet is attached to the wall through the holes in the back wall of the cabinet.
Accessories
A wide range of accessories can be ordered for the cabinet, such as opening panels, binding panels and many others, including special accessories according to the customer's request.
