Digital distance sensor 130cm PWM, Pololu 4071
39.00 €
Kuumakse alates 1,90 €
3677047 AN-19809
5904422349066
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

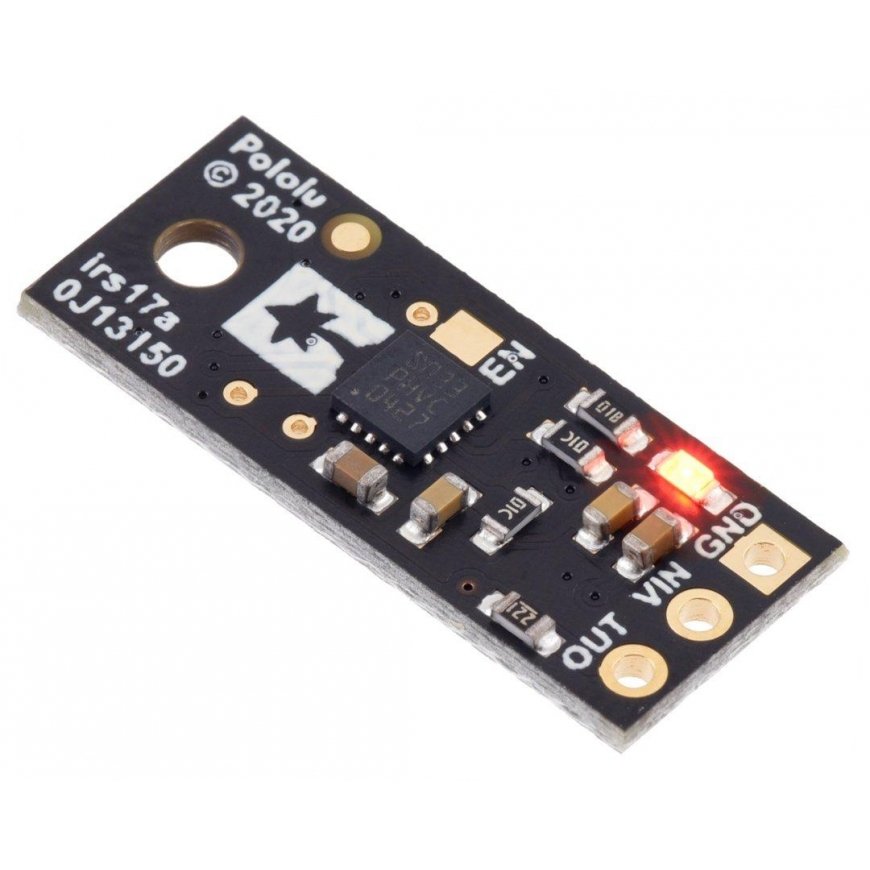

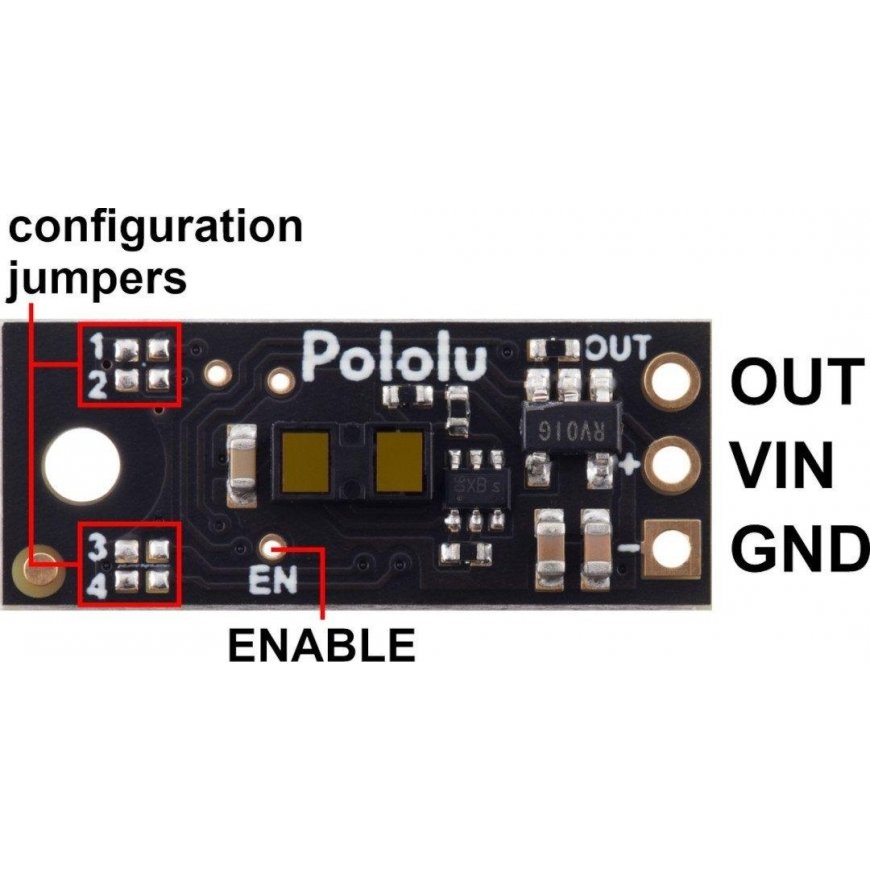

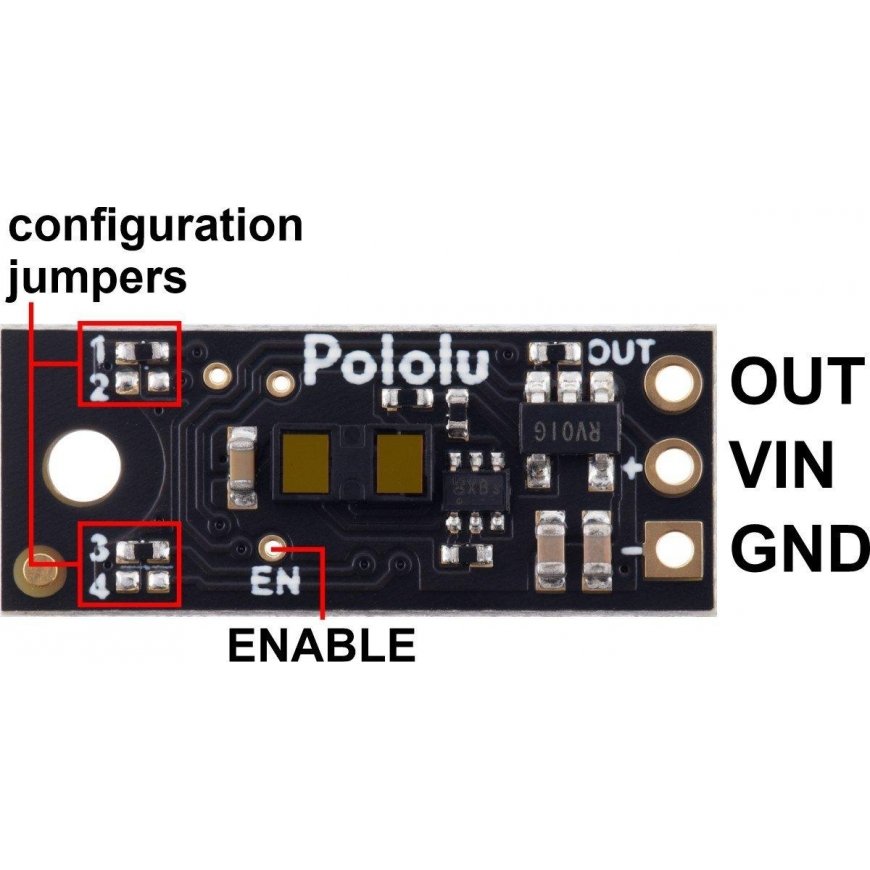

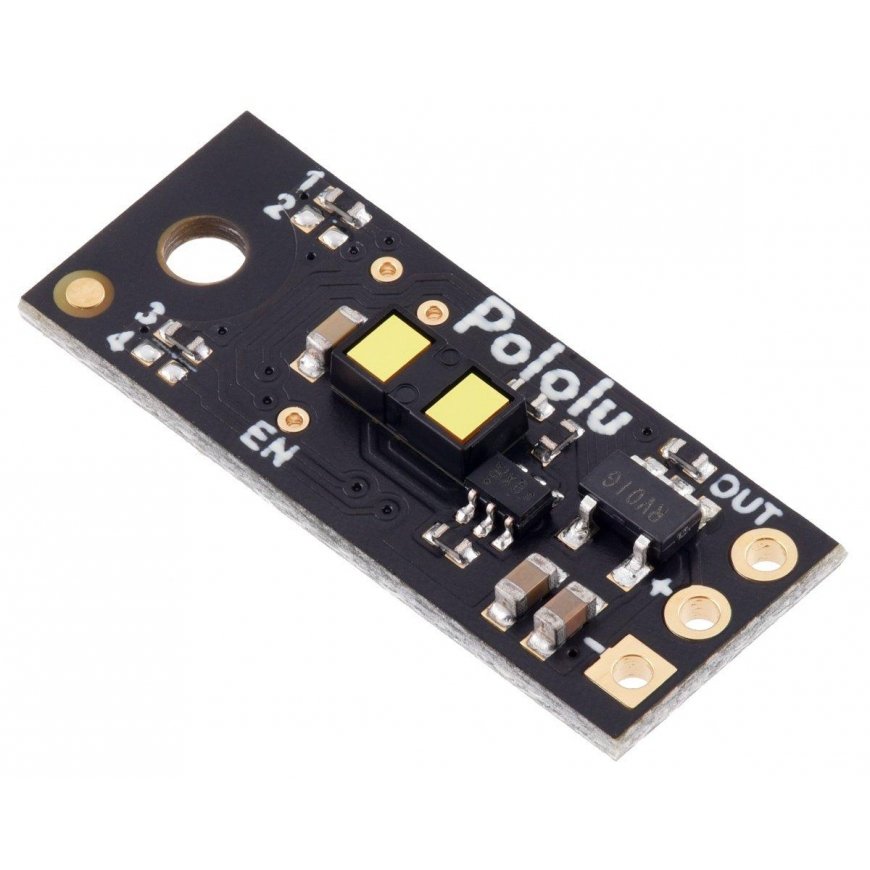

Distance sensor board based on Lidar technology. The sensor detects objects up to 130 cm and is powered from 3 V to 5.5 V. It has one digital PWM output, the signal of which is similar to a servo control signal. A digital pin of the microcontroller can be used to measure the pulse duration of each level, which encodes the measured distance. Short-range Lidar technology is used to precisely measure the time it takes for the emitted eye-safe infrared light pulses to reach the nearest object and be reflected back. While the sensor is operating, it continuously measures the distance and encodes the ranges as large pulse widths, which the microcontroller can synchronize using a single digital input. The maximum range of 130 cm is only achieved with high reflectivity under good environmental conditions. An object with lower reflectivity or poor environmental conditions reduces the maximum range.Specifications:
- Supply voltage: 3 V to 5.5 V
- Current consumption: 30 mA (typical) on, 0.4 mA off
- Maximum range: 130 cm
- Minimum range: up to 1 mm
- Minimum refresh rate: 100-110 Hz (10-9 ms period)
- Field of View (FOV): typically 15°, may vary depending on object reflectivity and environmental conditions
- Output type: PWM

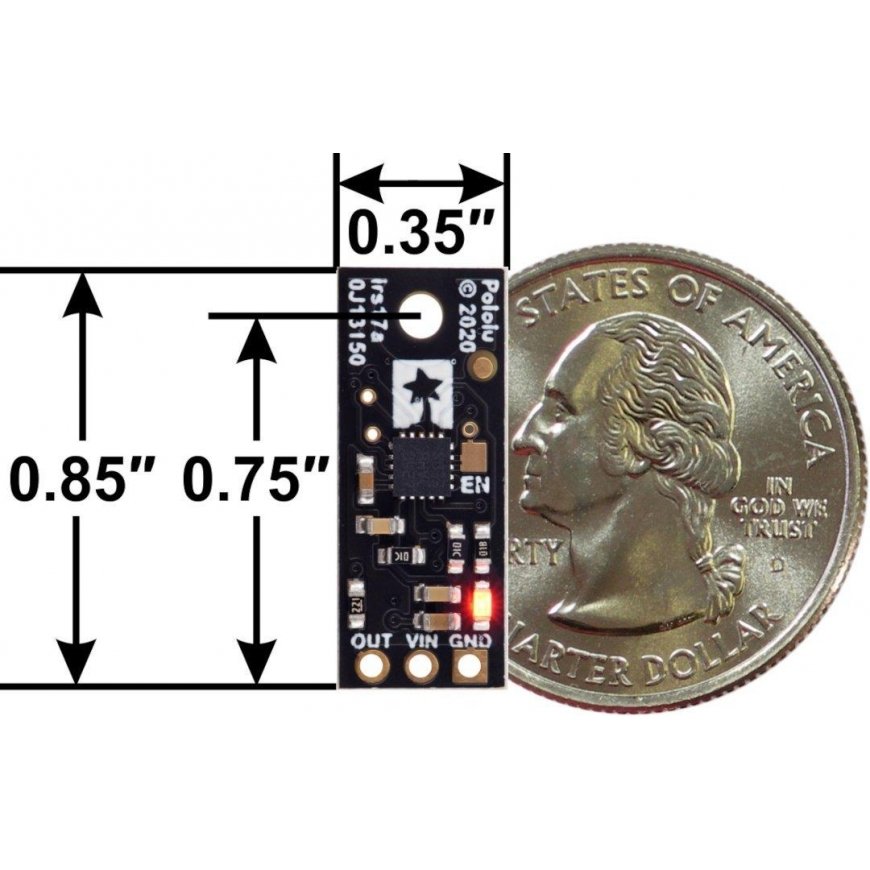

- Dimensions: 21.6 x 8.9 x 3.5 mm
- Weight: 0.4 g
