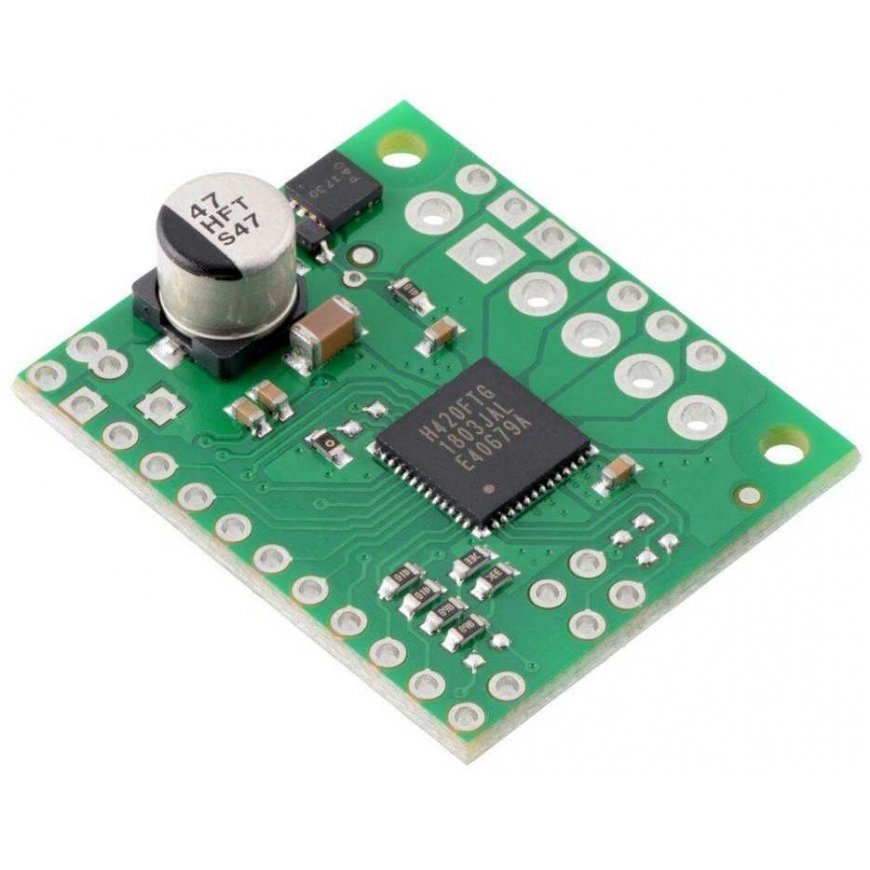

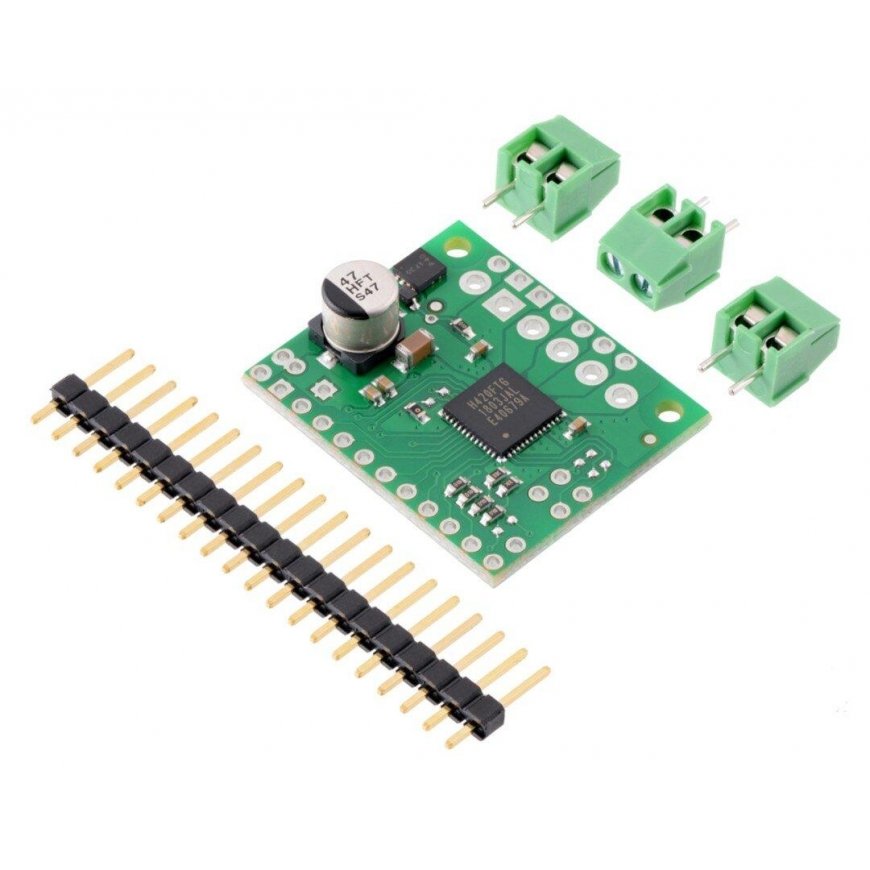

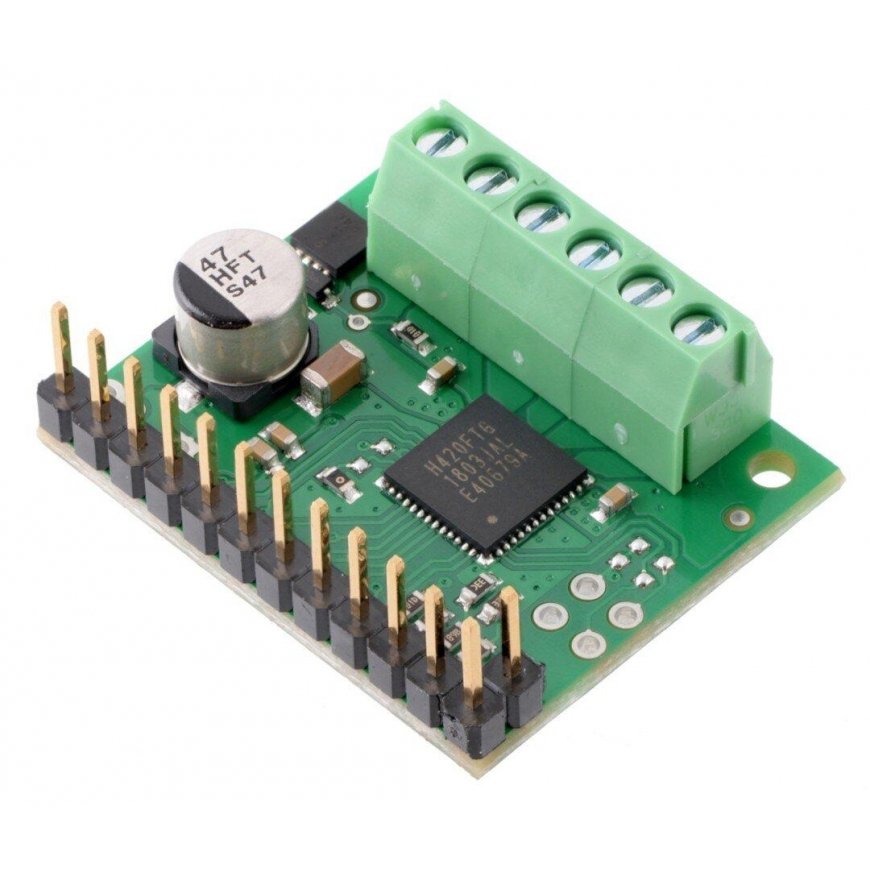

TB67H420FTG dual/single motor controller, Pololu 2999
24.34 €
3675651 AN-12057
5904422318444
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

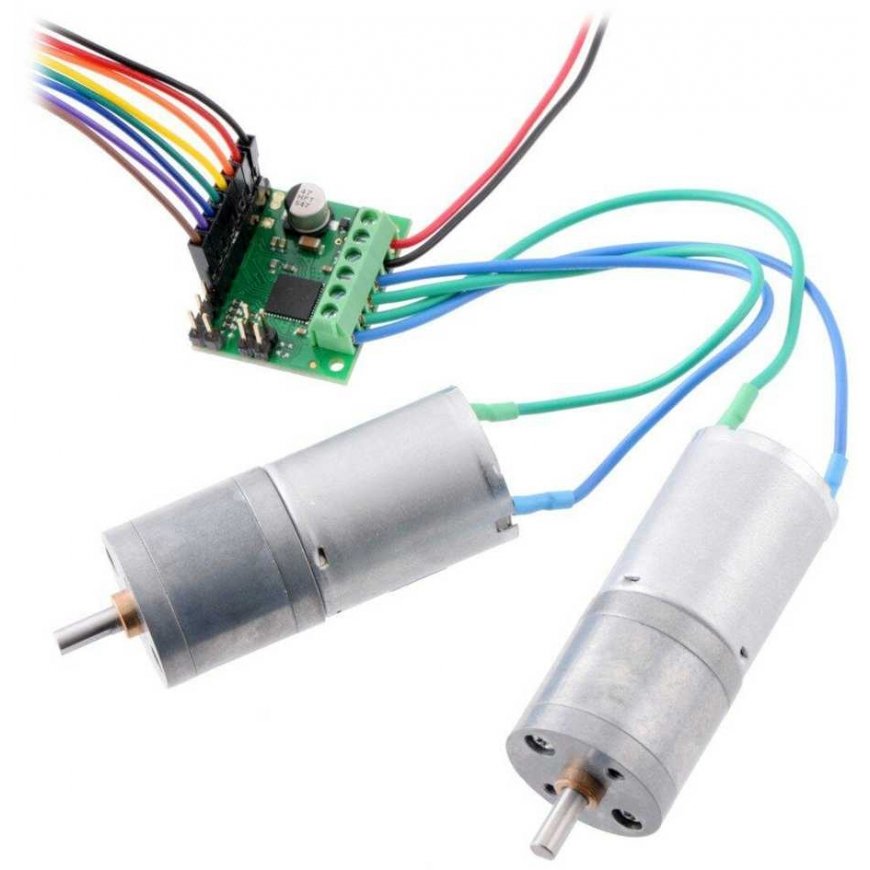

The module based on the TB67H420FTG chip allows you to control up to two DC motors. The motor can be supplied with a voltage of 10 V to 47 V at a constant current of up to 1.7 A, and instantaneous (for a few seconds) up to 4.5 A.
Specifications:
- Single/dual channel motor controller
- Motor supply voltage: 10 to 47 V
- Output current:
- 1.7 A (4.5 A instantaneous) in dual channel mode
- 3.4 A (9 A instantaneous) in single channel mode
- Configurable current limits - 4.5 A (dual-channel mode) and 9 A (single-channel mode), can be limited by additional resistors and voltage sources
- No additional logic power supply required. Inputs are compatible with 3V and 5V voltages
- Protection against undervoltage, short circuit and overheating
- Protects against reverse supply voltage polarity up to 40 V

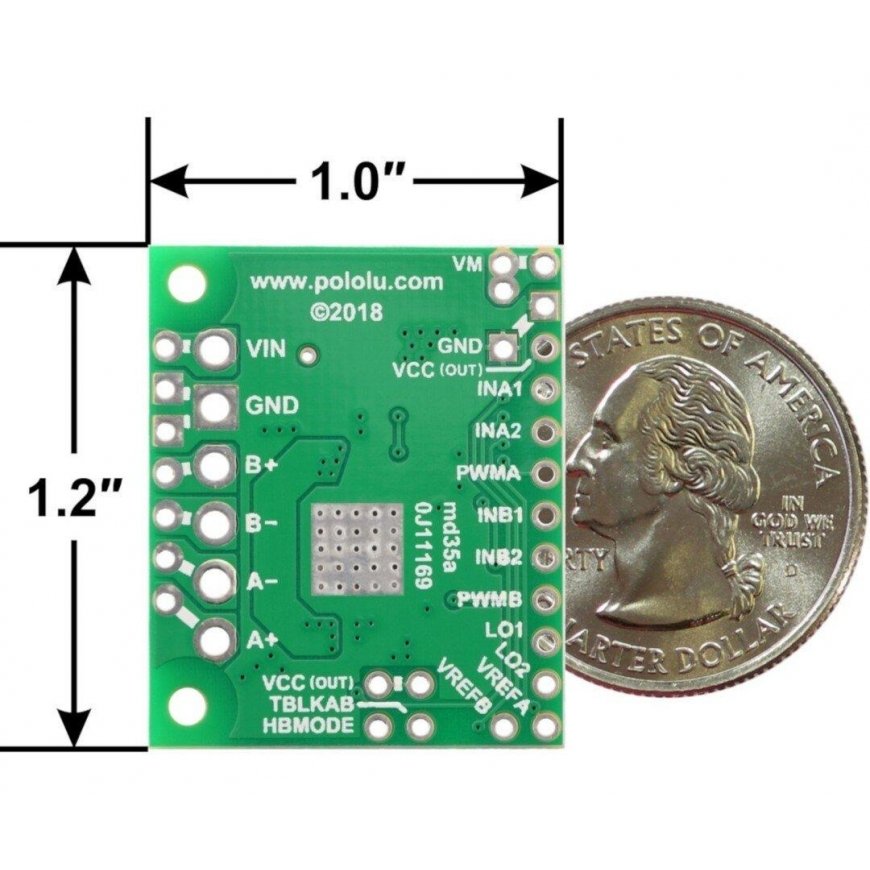

- Dimensions: 25.4 x 30.5 mm
Links:
Manufacturer's page
