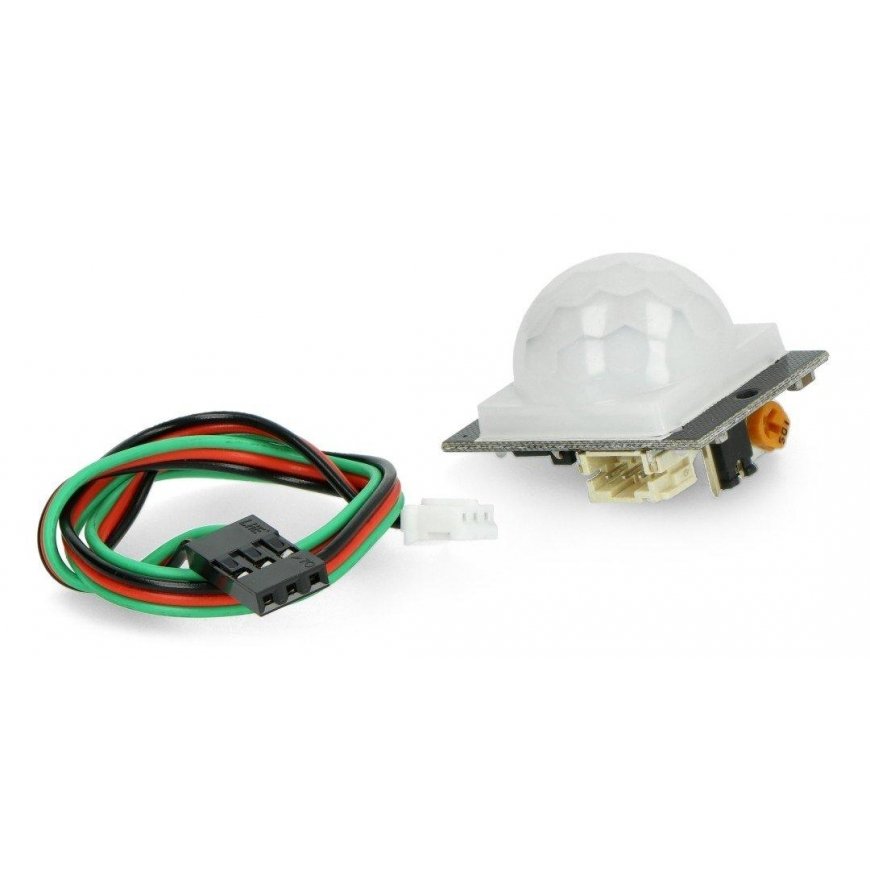

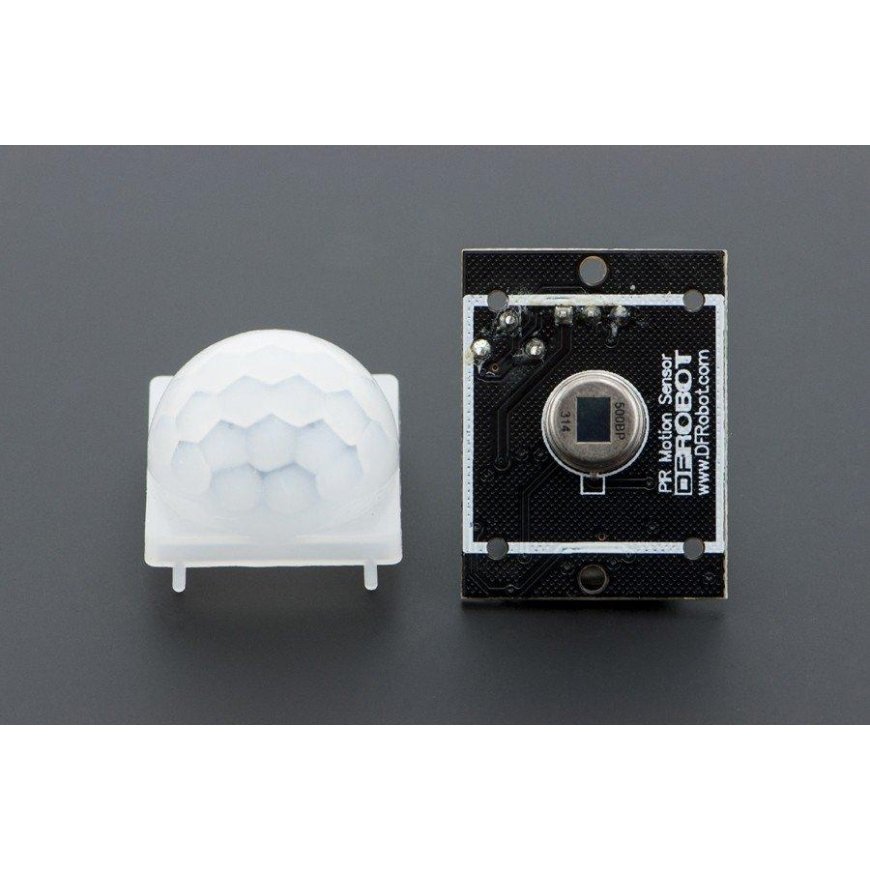

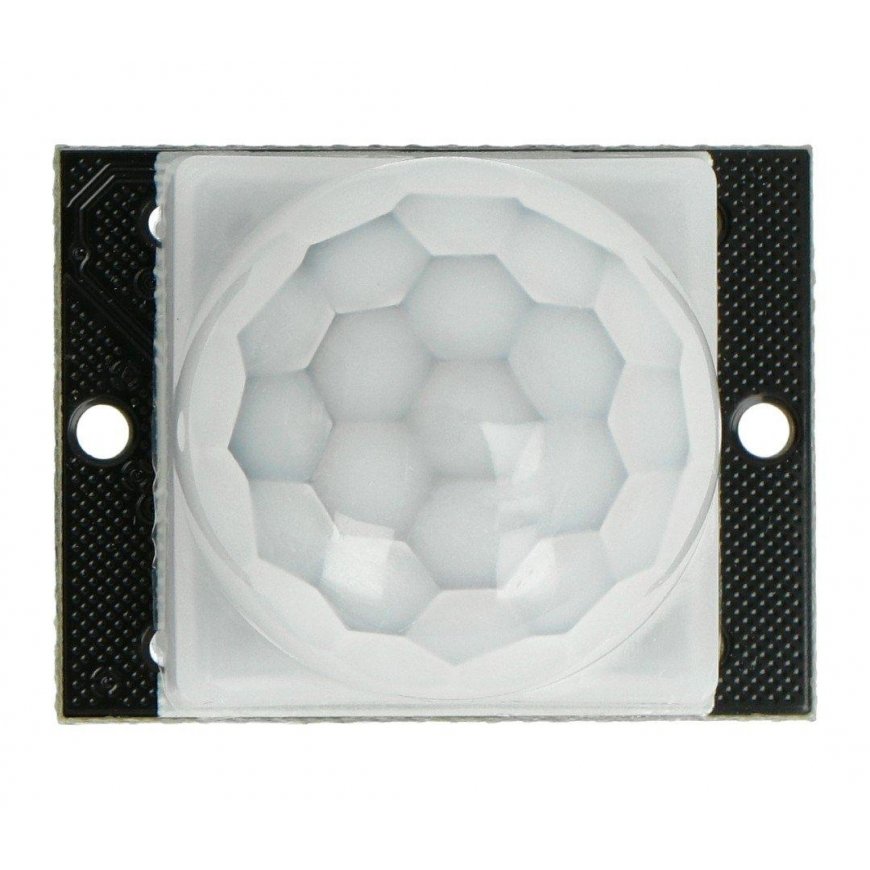

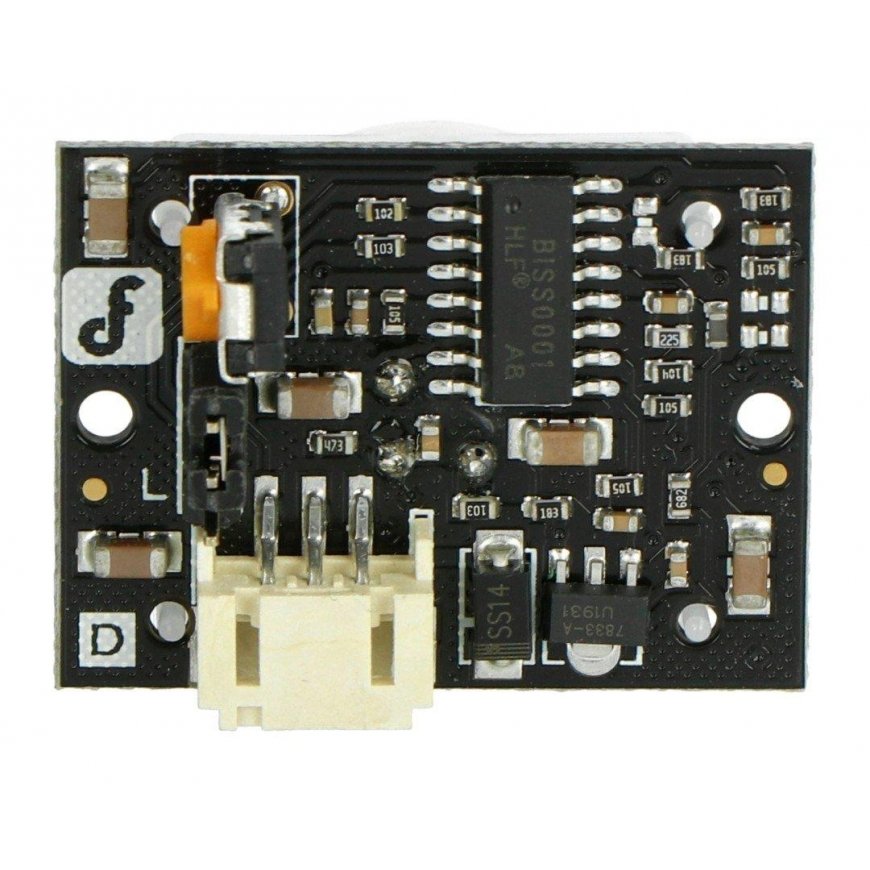

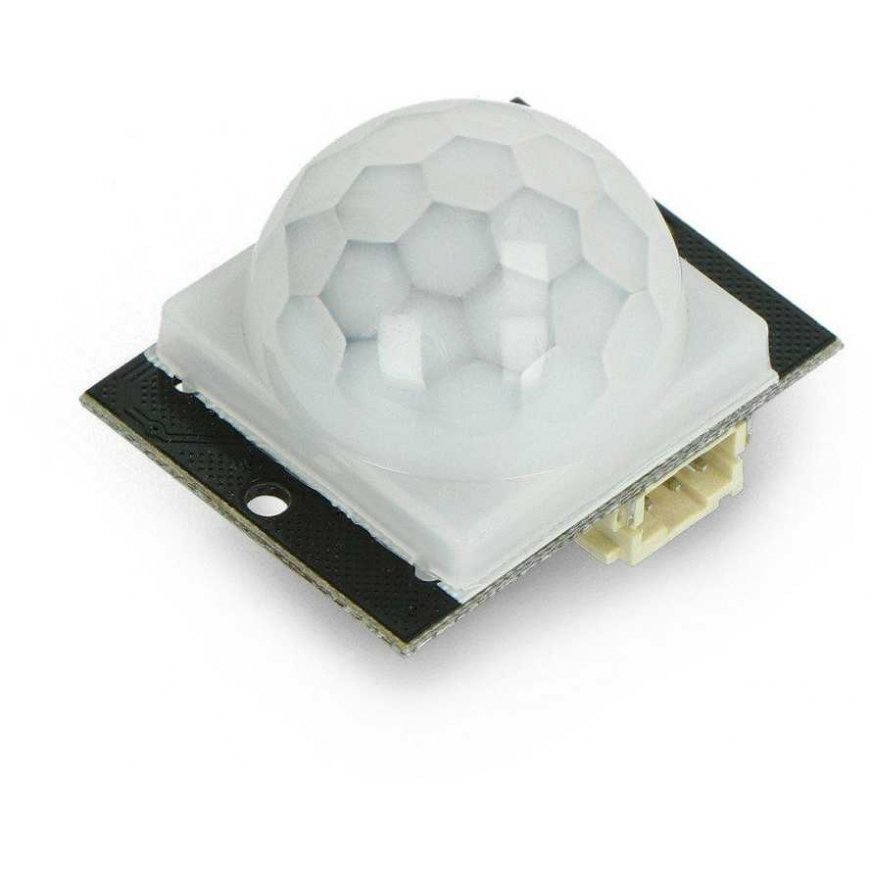

Dfrobot Gravity: Digital Infrared Motion Sensor
3674526 AN-10173
5903351243216
Tarneaeg 11-18 t.p.
Kõik toote kohta
The sensor, PIR type, can detect movement. Used to detect objects in rooms, alarm and lighting systems. The sensor is supplied with a voltage of 3.3 to 5 V. When connecting, you need to wait 1-2 seconds for the sensor to take a picture of the room. If after this time something moves in the sensor area, the alarm pin will be low. The sensor uses IR for detection, which is warm. The sensor can be used to control lighting, if something is in the sensor range, the light will be turned on, if nothing is done, the light will be turned off. The sensor is easy to connect due to the Gravity connector.
Specifications:
- Sensor type: digital
- Supply voltage: 3 V to 5 V
- Current: 50 uA
- Operating temperature: 0℃ to 70℃
- Output level (high): 4 V
- Output level (low): 0.4 V
- Detection angle: 110°
- Detection distance: 7 m
- Dimensions: 38 x 36 mm
- Weight: 25 g
- Connection: Gravity - cable included
Links:
Manufacturer's page
Manual
