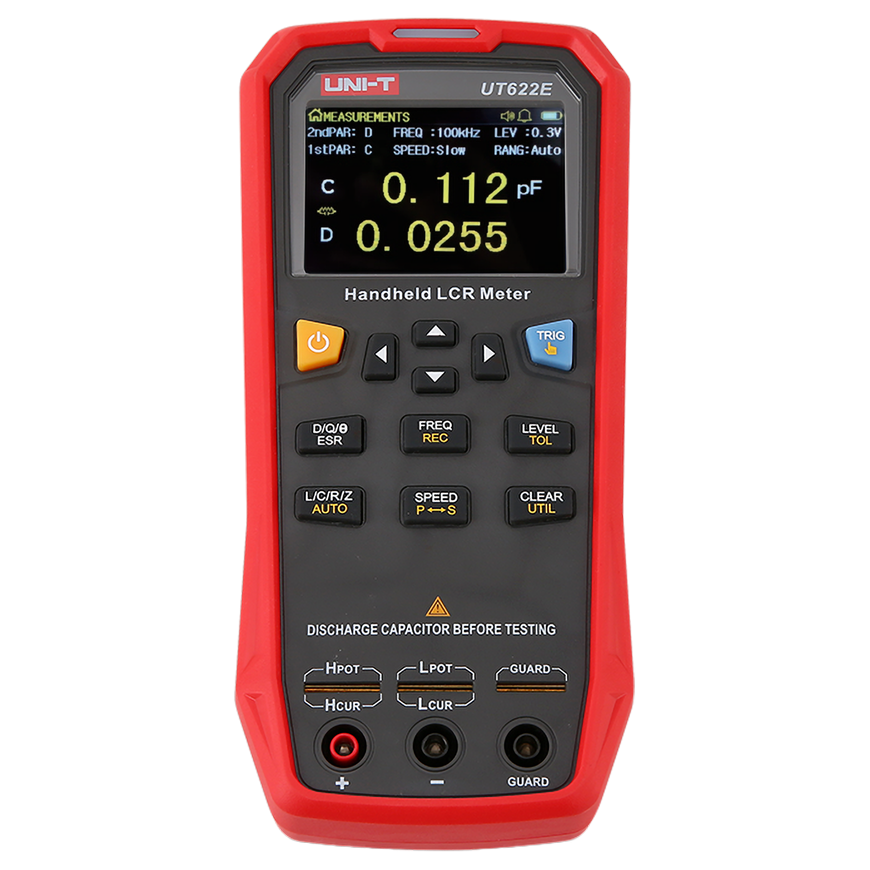

Unit Uni-T UT622E meter
368.60 €
Kuumakse alates 10,39 €
3673194 MIE0503
5901890114172
Tarneaeg 9-13 t.p.
Kauba vastu huvi?
Kõik toote kohta
-----------MAIN PARAMETERS
------------
Test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
Test levels: 0.1 Vrms, 0.3 Vrms, 1 Vrms
Output impedance: 100 ohms
Measurement parameters: main (L/C/R/Z/DCR), additional (D/Q/ESR)
Test speed: 20/5/2 per second
DCR test speed: 20/5/2 per second
Tolerance range: 1%~20%
Modes: parallel/serial
Connection socket: miniUSB
Maximum reading: 99999
Minimum resolution: 0.0001
Maximum accuracy: 0.10%
------------
MEASUREMENT RANGES
------------
L: 0.00 µH ~ 99.999 H
C: 0.00pF ~ 99.999mF
Z/R: 0.000 ? ~9.9999 million
ESR: 0.000? ~999.99?
D: 0.0000 ~ 9.9999
Q: 0.000 ~ 99999
?: -179.9° ~ 179.9°
------------
GENERAL FEATURES
------------
Power supply: battery 3.7 V / 1800 mAh / charging 5 V / 1 A
Display: 2.8 inch TFT LCD 320 x 240
Weight: 420 g
Dimensions: 93 x 192 x 44 mm
