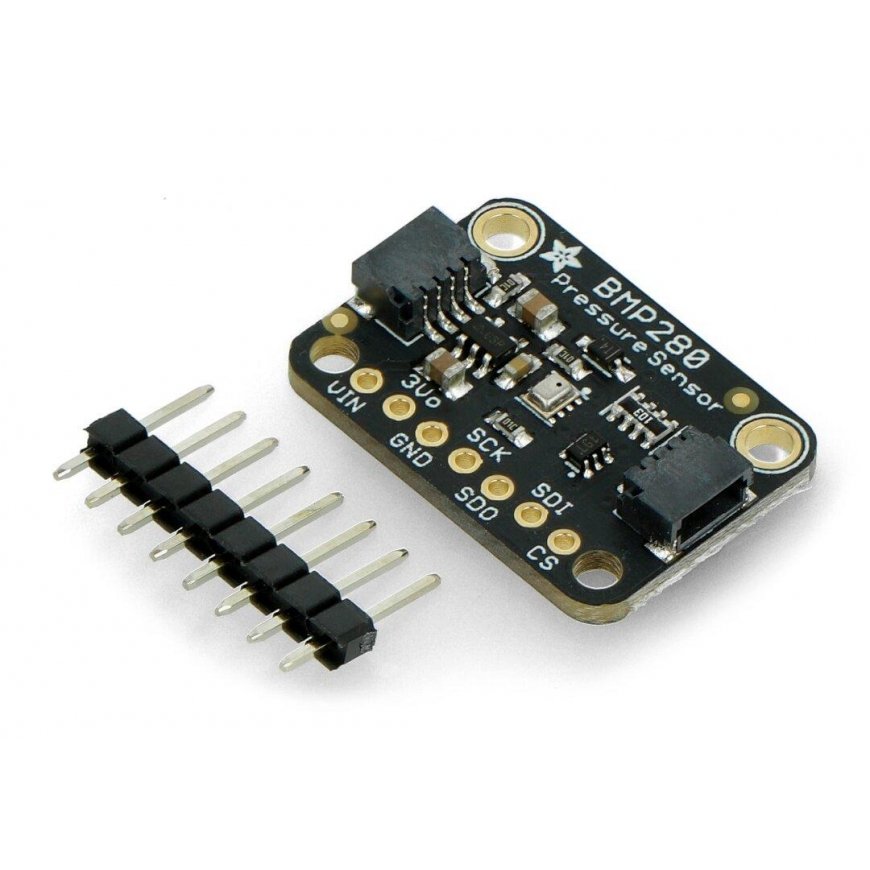

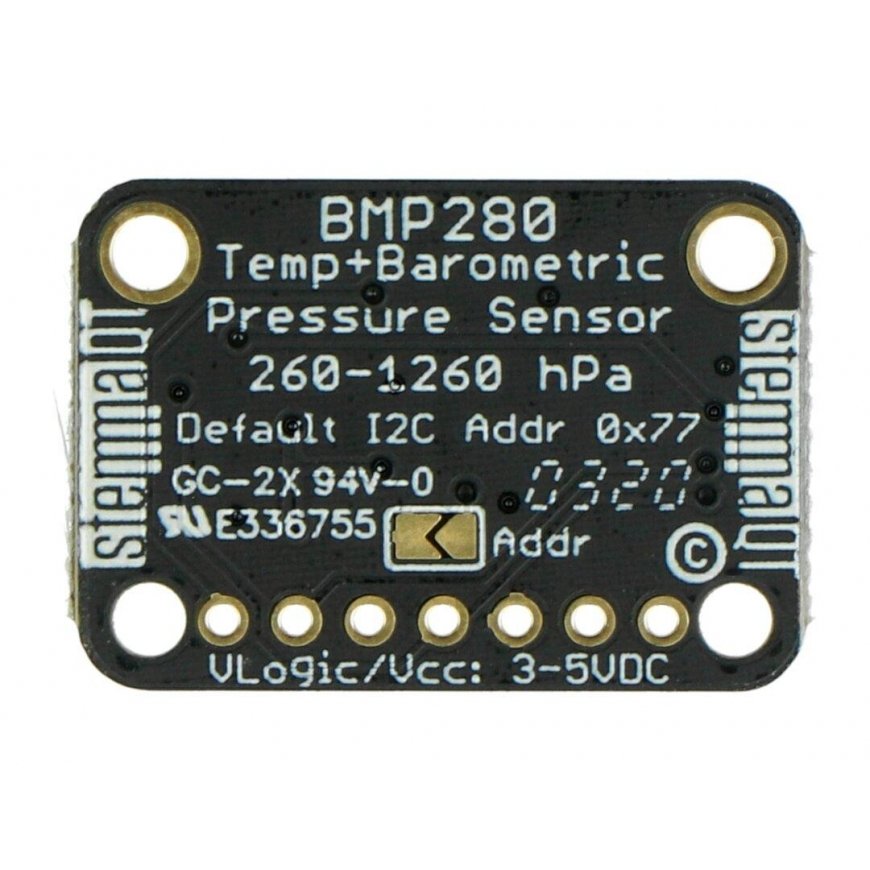

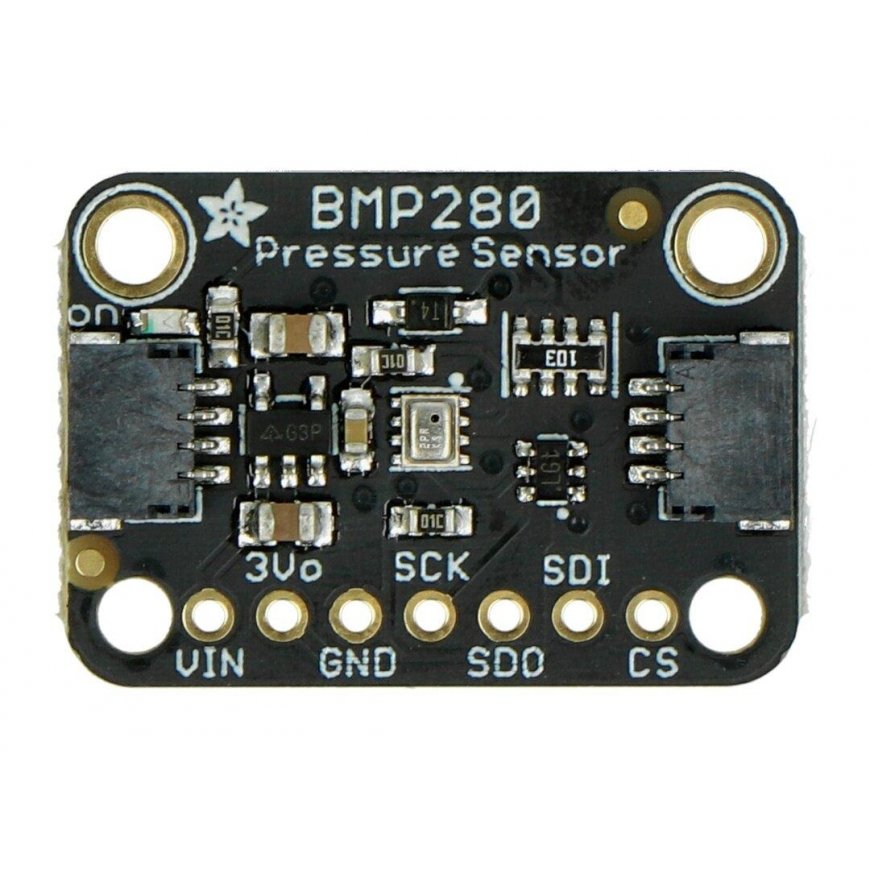

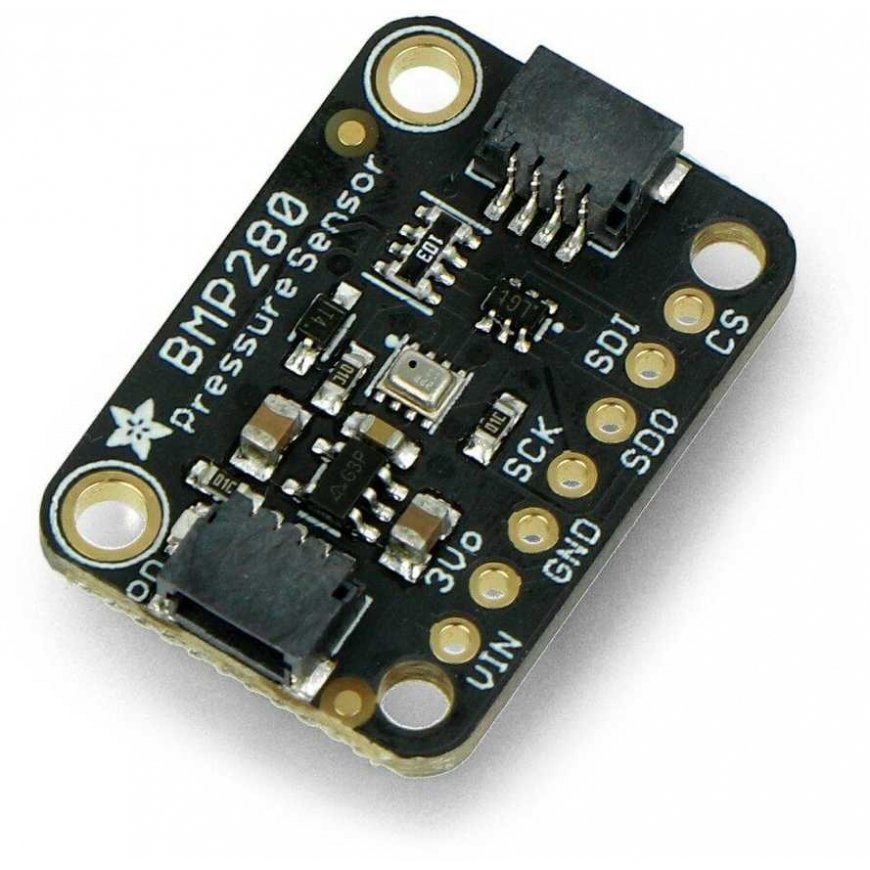

BMP280, digital barometer, pressure sensor 110kPa I2C / SPI 3-5V, STEMMA QT, Adafruit 2651
29.00 €
3672946 AN-04631
5904422366780
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The Bosch module with a digital barometer allows you to measure pressure from 300 to 1100 hPa with an accuracy of 1 hPa. The system is based on piezoresistive technology, which ensures high accuracy and measurement stability. The sensor operates with a voltage range of 3 V to 5 V. The board also has STEMMA QT / Qwiic connectors for easy connection. For proper operation, it is enough to connect the power and I2C bus lines: SDA data and SCL clock.
Specifications:
- Supply voltage: 3.0 to 5.0 V
- Module dimensions: from 19.2 x 17.9 x 2.9 mm
- Two 3 mm diameter mounting holes
- Built-in thermometer
- Measurement range: 300 to 1100 hPa
- Accuracy: ±1 hPa
Links:
Manufacturer's page
Manual
