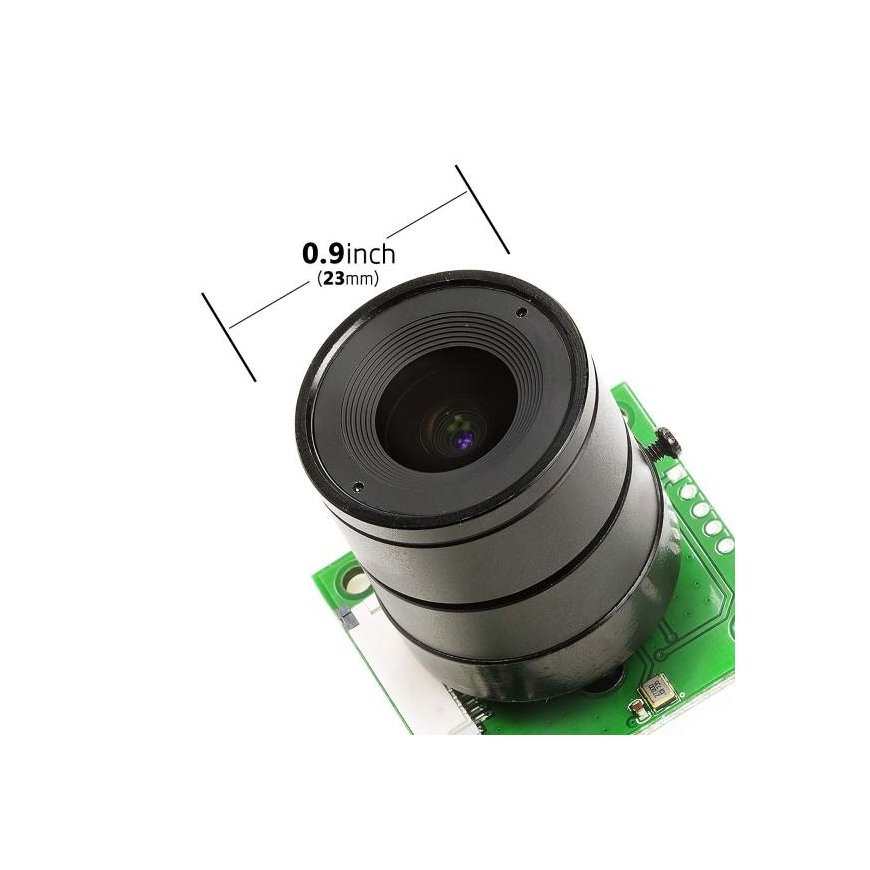

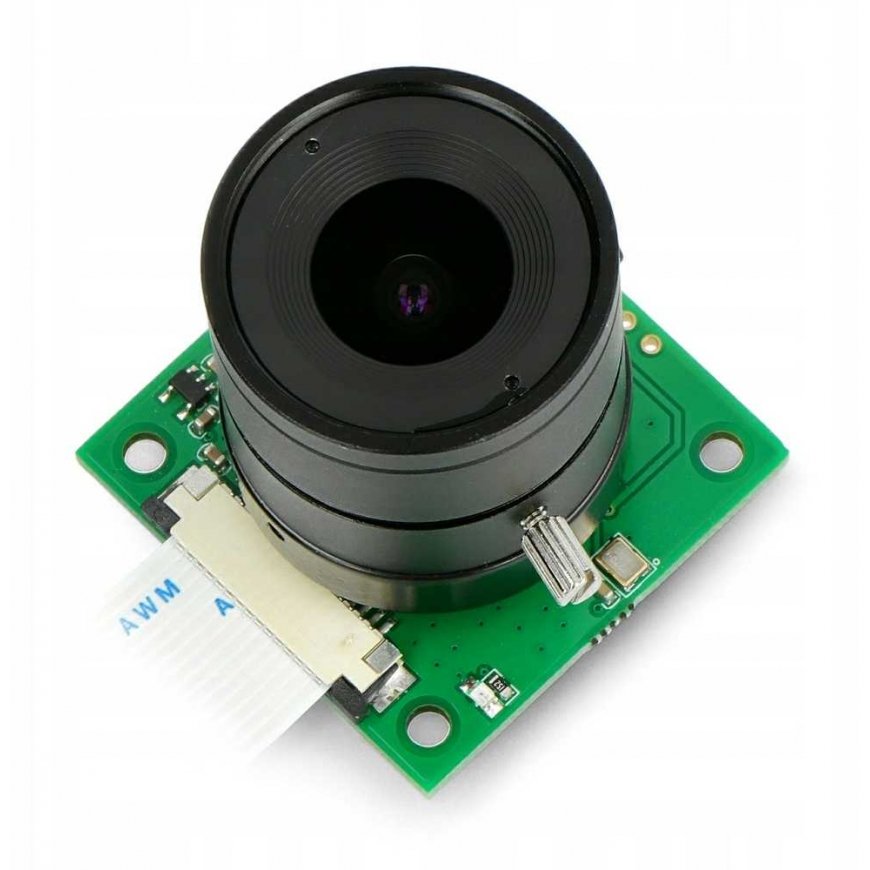

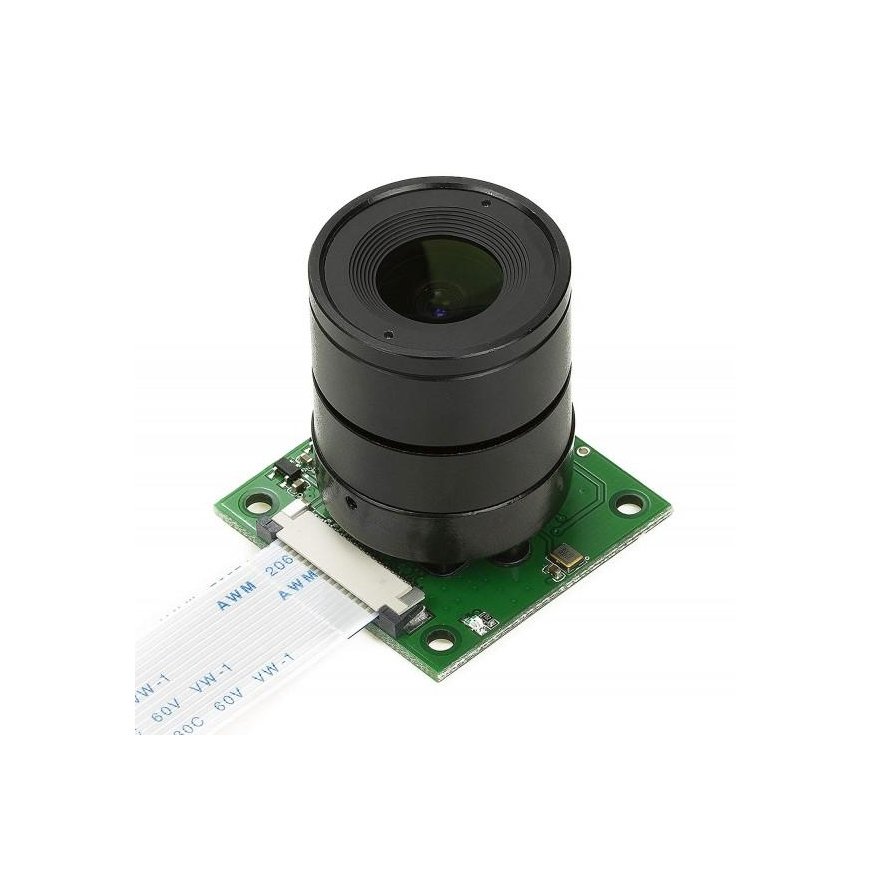

Raspberry Pi Camera ArduCam OV5647 5Mpx with lens LS-2718 CS mount
3665885 AN-06628
5904422375157
Toodet pole enam laos
Kõik toote kohta

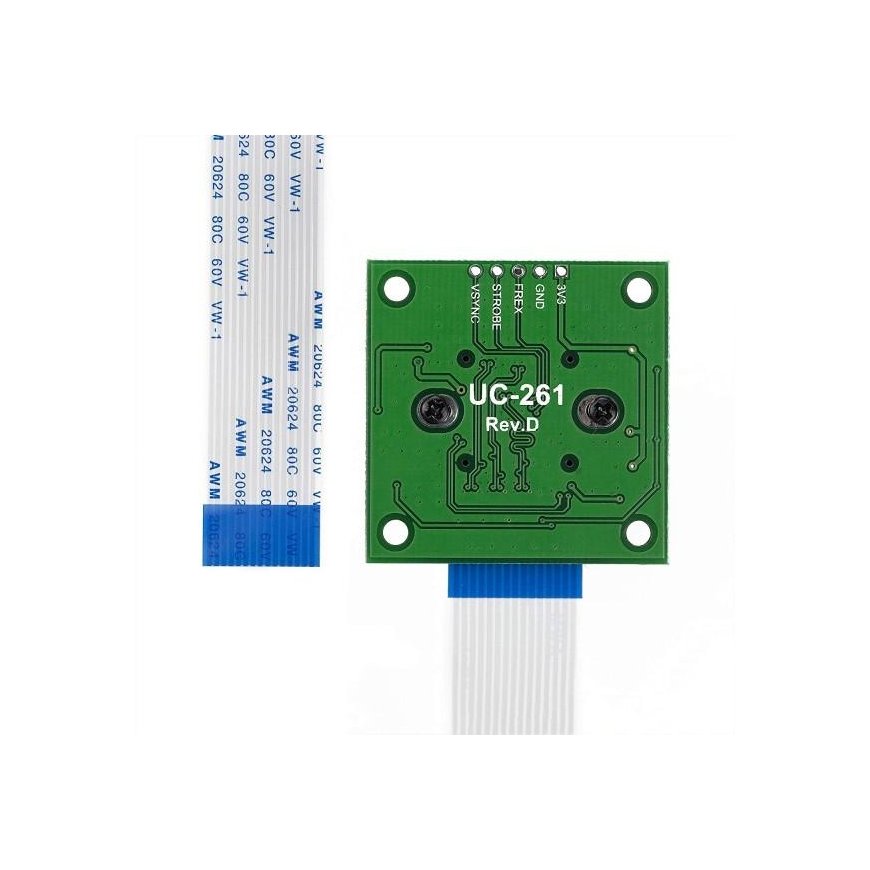

Arducam 5MP OV5647 camera with interchangeable CS type lens. The camera module also sends FREX and STROBE signals, so it can take pictures from multiple cameras at the same time. It uses a 5 MP Omnivision OV5647 sensor, controlled light exposure, white balance and irradiance detection. The module uses the CSI bus, so the data transfer rate is extremely high. This allows you to record video in 1080p 30 frames per second, 720p30 and 640x480p30 formats, or take photos with a resolution of 2592 × 1944 pixels.
Application:
● Home security surveillance camera
● Motion detection
Technical data:
● Lens used: LS-2717CS, can be replaced

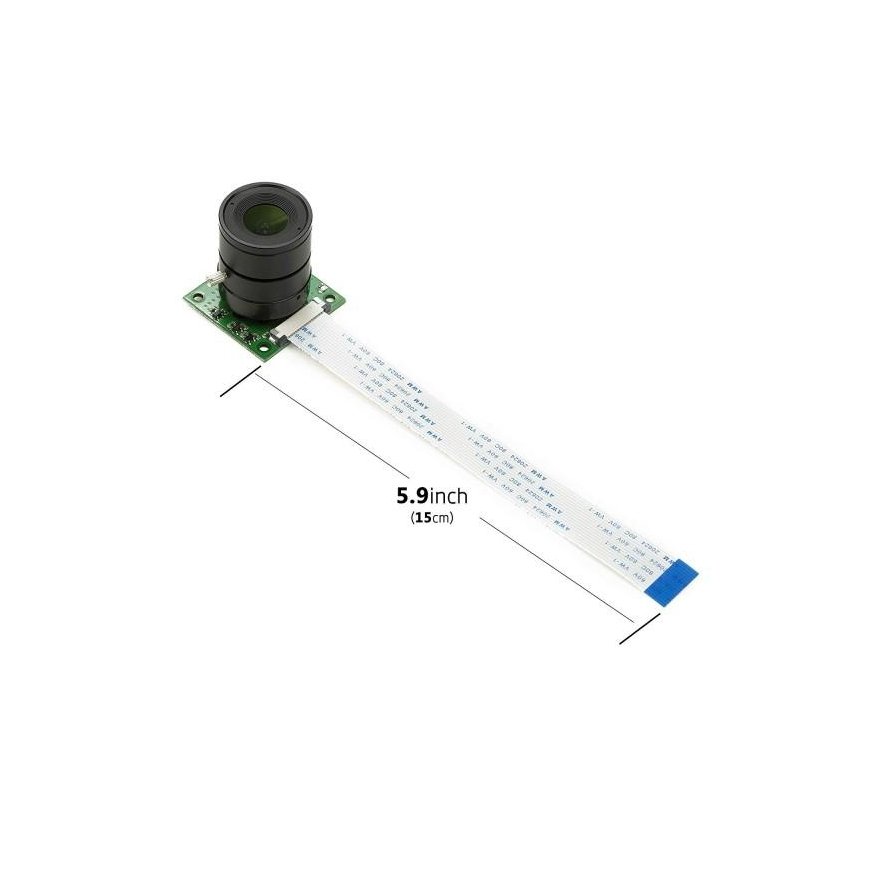

● 15cm cable
● Photos: up to 2592 × 1944 pixel resolution
● Size: 36 x 36 mm
● Pixel size: 1.4 µm X 1.4 µm
● Sensor size: 3.76 × 2.74 mm
● Video formats: 1080p30, 720p30 and 640x480p30
● Variable depth of focus
● Supports Raspberry Pi Model A, B, B+, model 2, Raspberry Pi 4/3/3b+ models.
● Integrated IR filter
Links:
● User manual
