Adafruit Trinket - Microcontroller 5V
22.61 €
3665382 AN-02626
5904422373412
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

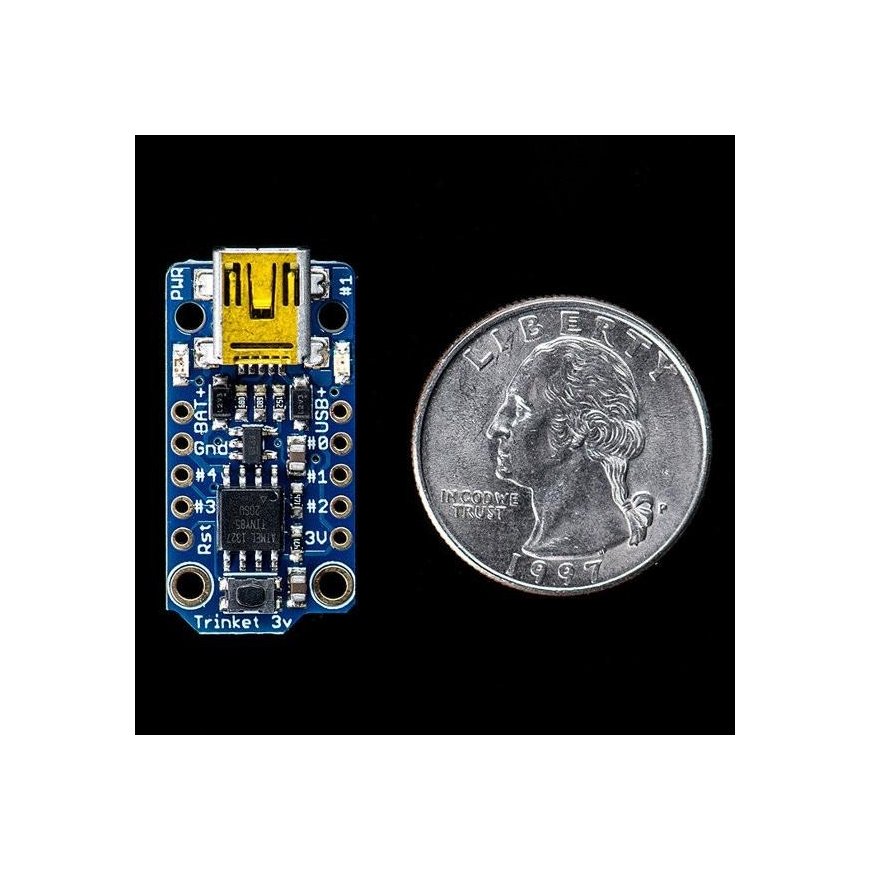

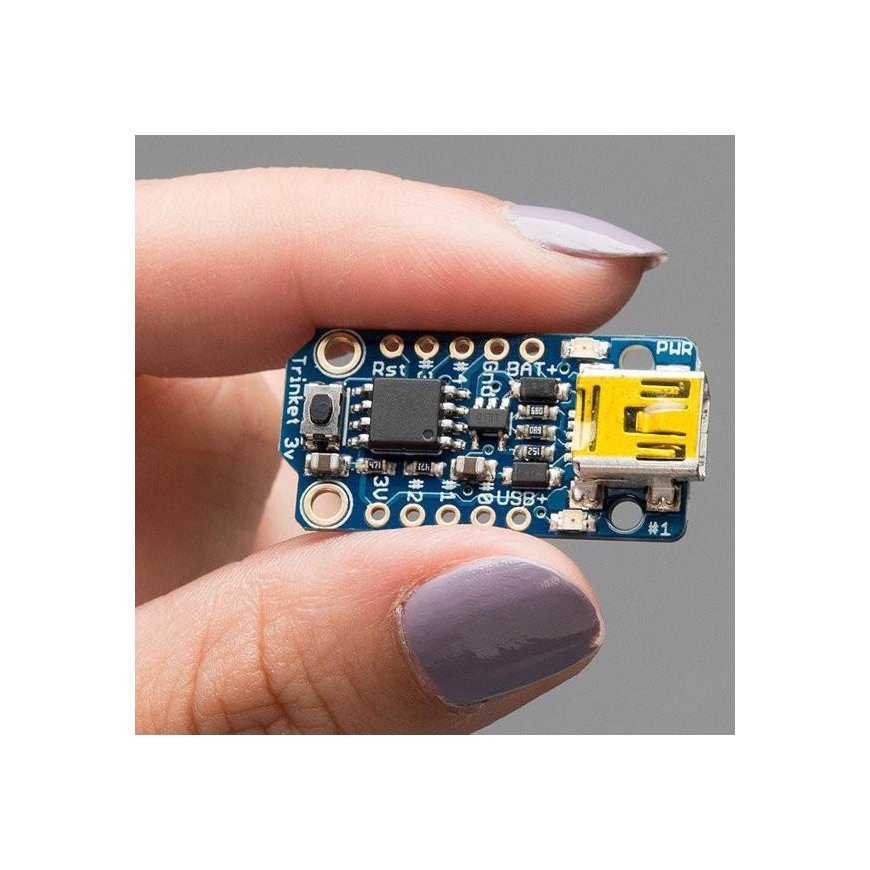

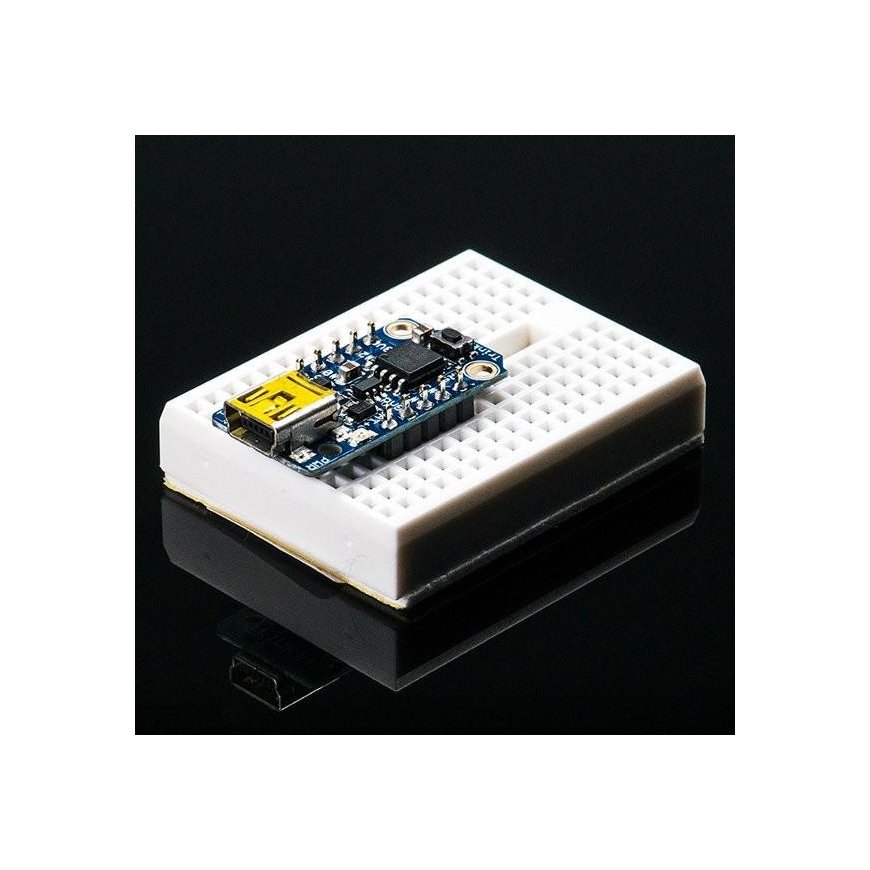

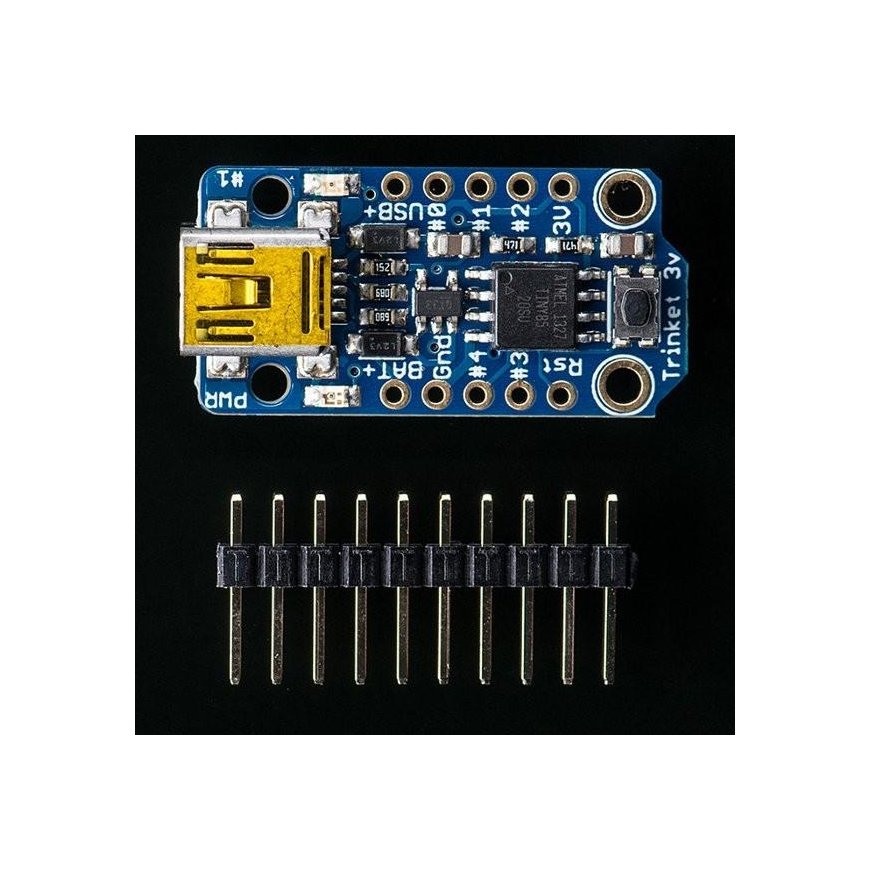

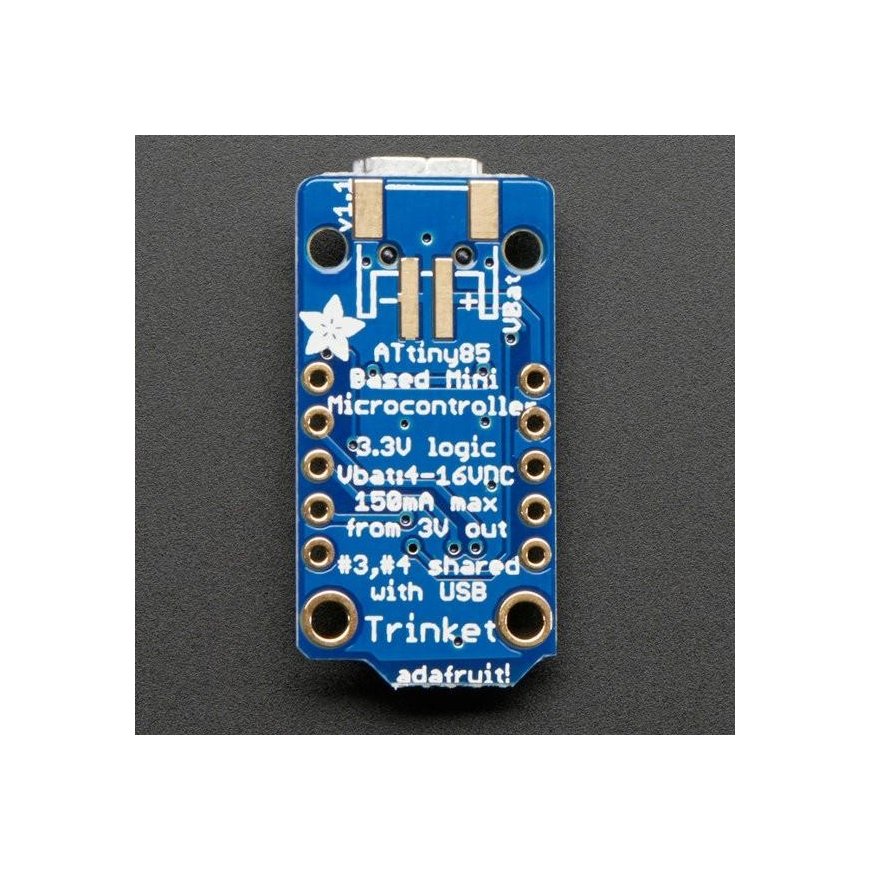

Adafruit's Trinket microcontroller. Using the ATTINY85 microprocessor, this 8-bit microprocessor module is similar to the popular Arduino, and uses the same chip from the same manufacturer, but is specifically designed to be an extremely small form factor and low-cost alternative to the Arduino Mini.Technical data and features:
- 8K flash, 512-bit RAM, 512-bit EEPROM memory.
- 8-16 MHz operating frequency
- Power supply: 5V DC via USB or up to 16V DC
- Logic signal voltage: 5V, up to 150mA supply current
- 5 input/output connectors, of which 3 channels are analog inputs
- Microprocessor: ATTINY85
- Dimensions: 31x15 mm
Note: The microcontroller can be controlled by many C programming interfaces, to control it with the Arduino IDE, you need to install an additional extension (add-on). However, it does not have a serial communication module. It is recommended to use a USB 2.0 port.
References and application:
- Connection layout
- Video review
