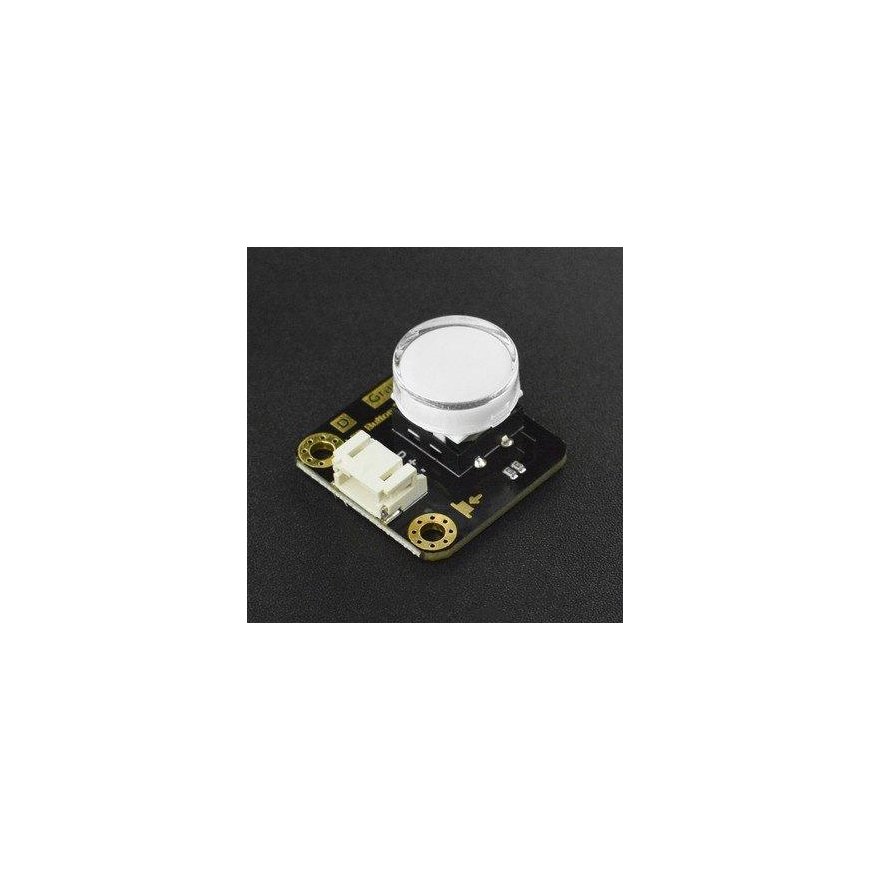

Gravity - LED button - red - DFRobot DFR0785-R
20.71 €
3664109 AN-20077
5904422349875
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

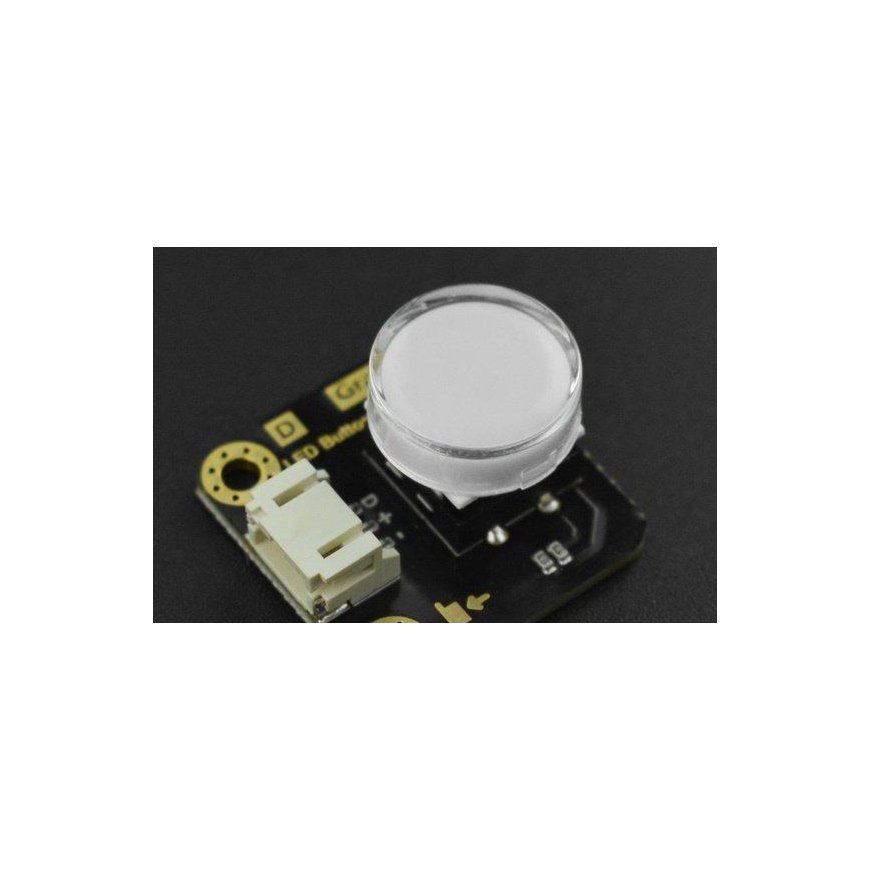

A module with a round button. Equipped with lighting, which is responsible for the built-in LED located under the transparent overlay. When pressed, the LED lights up red. Gravity - LED button can be used e.g. with micro:bit from BBC or Arduino. The button is of the monostable type. This means that when the button is pressed, the module outputs a high state and the LED lights up. When the button is released, the module outputs a low signal and the LED goes out. Switches of this type can be part of the design of illuminated keyboards or music playback panels.Specifications:
- Operating voltage range: 3.3V to 5V (3.3V recommended)
- Output signal type: digital
- Button type: monostable (self-locking)
- Connector: Gravity standard (PH2.0-3P)
- Backlight: LED
- Backlight color: red
- Button shape: round
- Supported programming environments: Arduino, Mind+, MakeCode
- Module dimensions: 27 x 26.5 mm

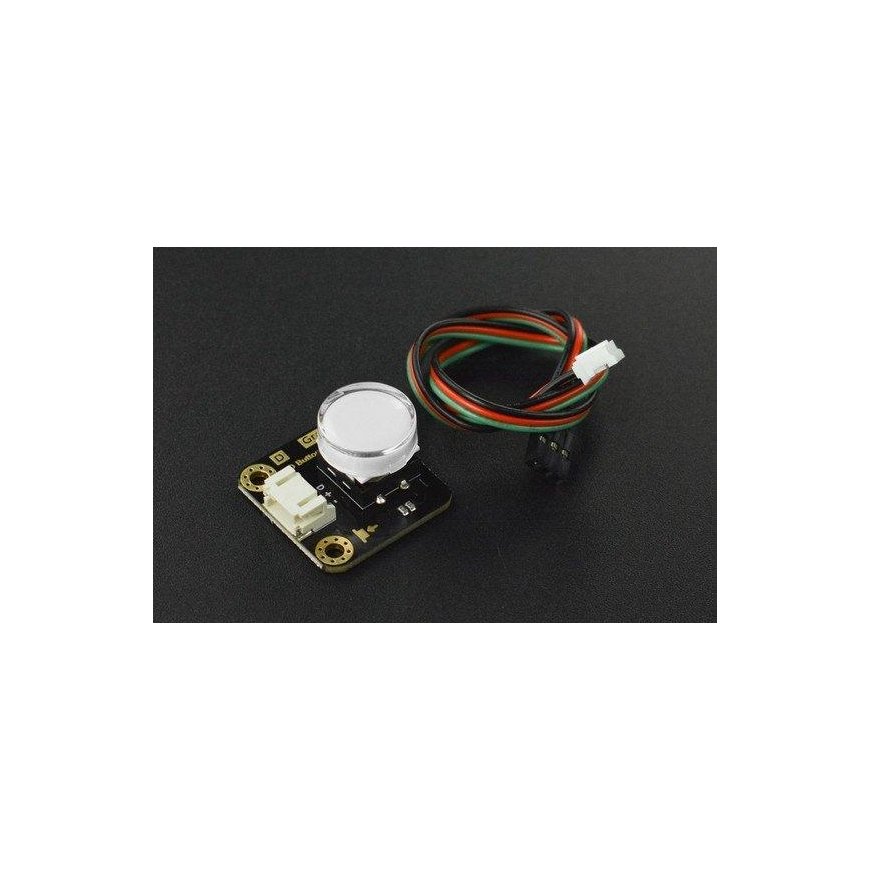

- Gravity - LED button - red LED illuminated button
- Dedicated connection cable - digital
