Programmer USB AVR Pololu v2.1, microUSB 3.3V/5V, Pololu 3172
30.85 €
3663727 AN-11452
5904422303860
Tarneaeg 8-15 t.p.
Kauba vastu huvi?
Kõik toote kohta

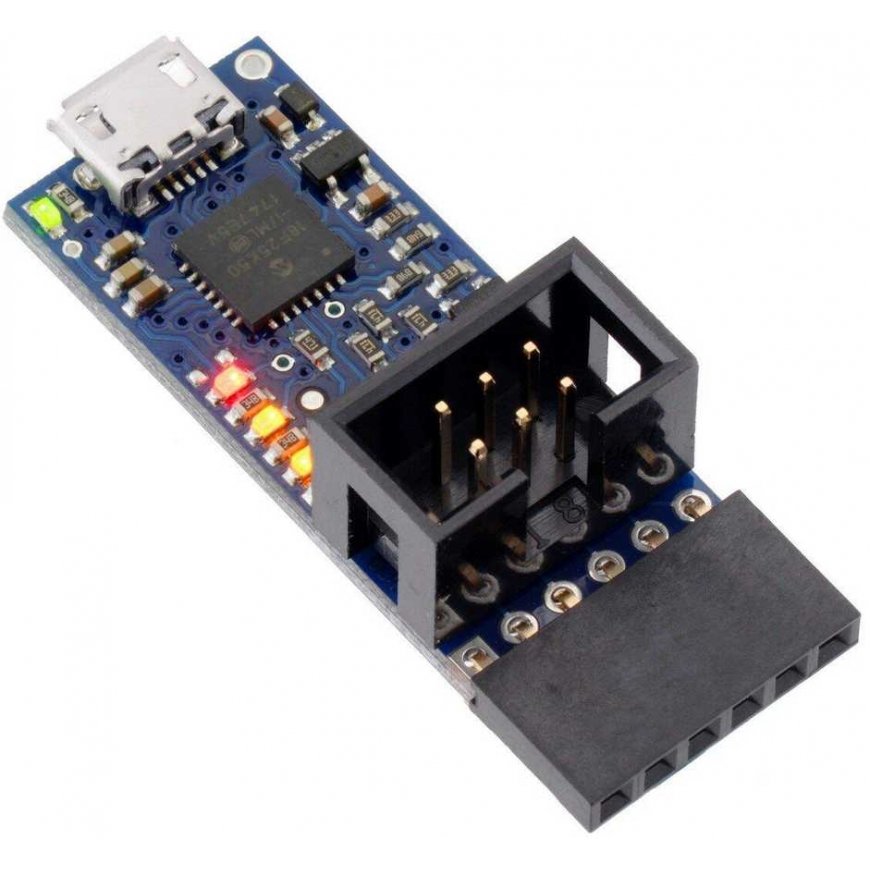

Pololu programmer is compatible with the popular STK500. It can be used to program AVR microcontrollers via a microUSB cable. Version 2 has two connectors KANDA 2x3 pins and a 6-pin strip of gold pins for the socket. It operates at 5 V and 3.3 V, has a built-in USB to TTL converter (RX, TX) and a delayed output of 100 kHz.
Main features:
- The programmer connects to the computer via microUSB (microUSB cable is not included, it can be purchased separately)
- The device is compatible with the popular STK500 programmer, visible in the system as a virtual COM port
- There are controllers for Windows operating systems, MAC OS and Linux
- Supports popular AVT development environments including Atmel Studio, AVRDUDE, and Arduino IDE
- Operates at 3.3 V and 5 V, value selected in automatic mode
- Has a built-in USB to TTL converter (RX, TX) and 100 kHz output
- The I/O pins are provided with 470 resistors
- The device has two types of connectors:
- KANDA 6 pins
- strip - gold pin socket, pitch 2.54 mm, 6 pins

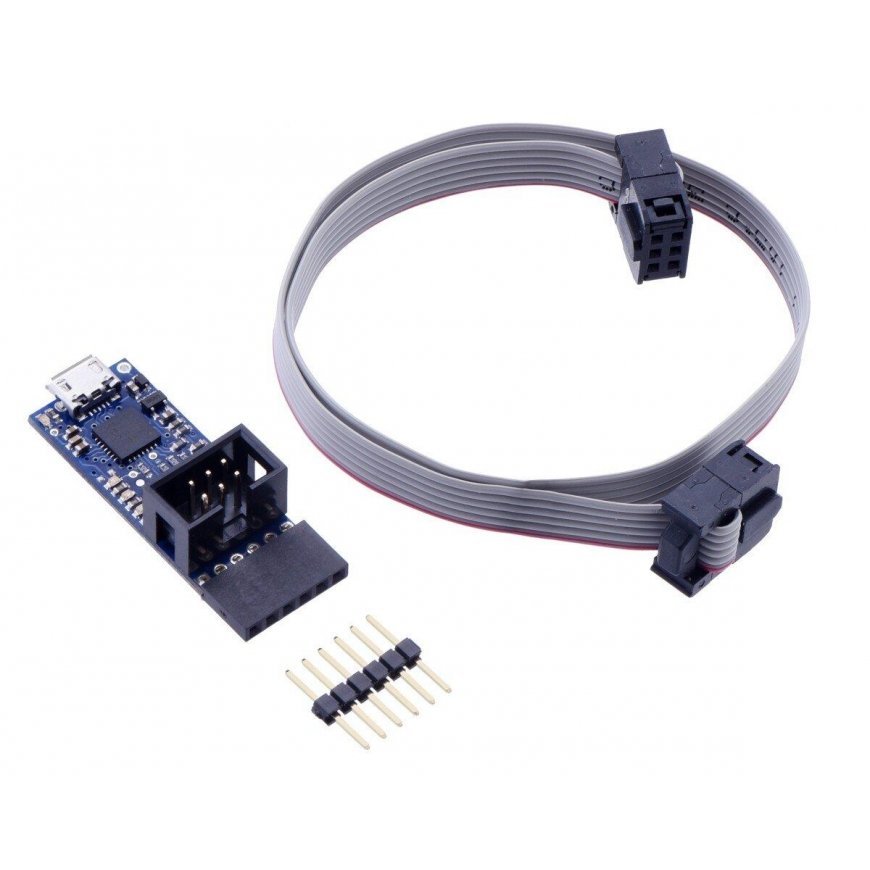

Included:
- Programmer compatible with STK500
- Ribbon cable with 2x3 pin connector
Links:
Manufacturer's page
Manual
