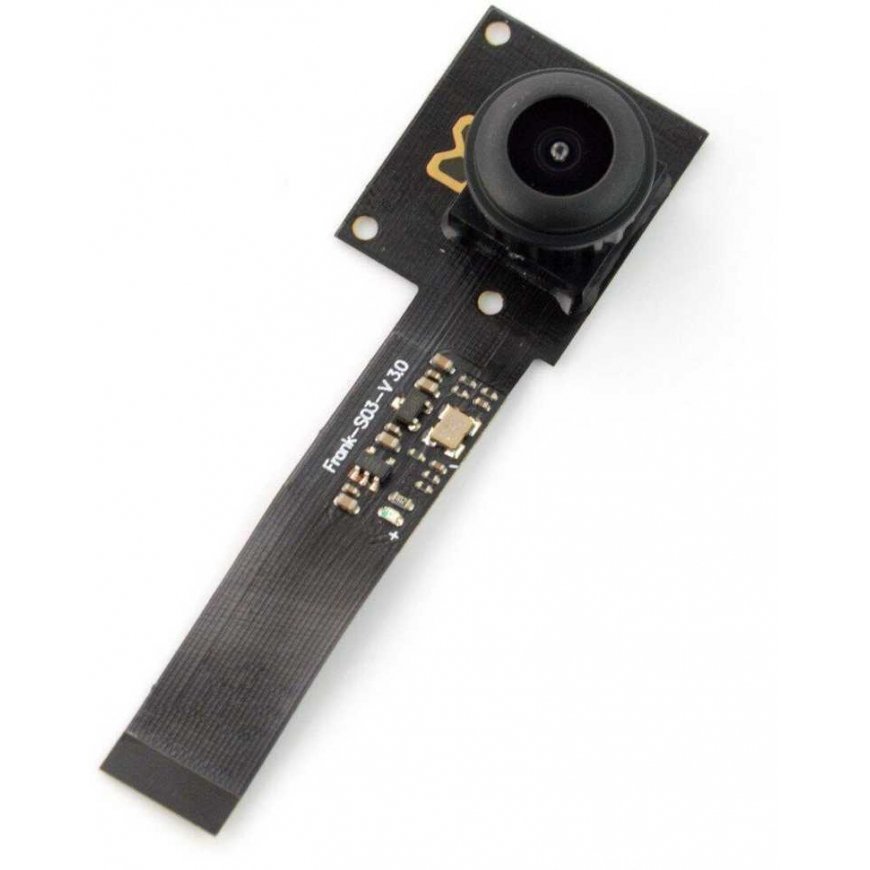

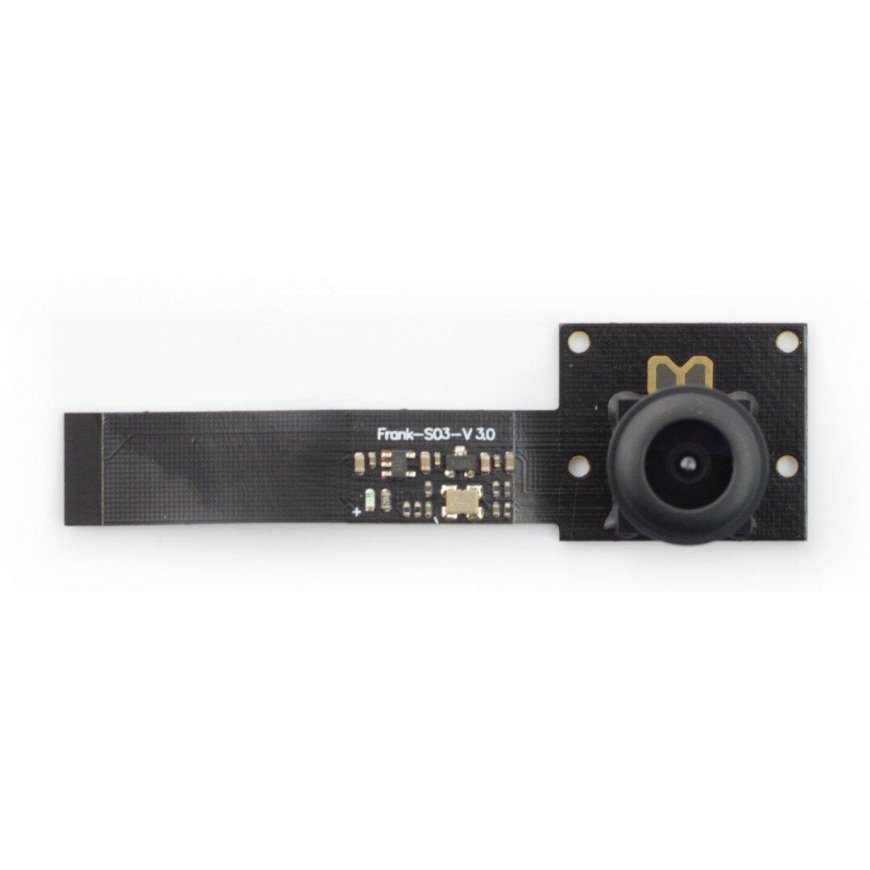

Odseven Camera ZeroCam OV5647 5MPx - fisheye 170° - for Raspberry Pi Zero
29.00 €
3661189 AN-12756
5904422320010
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The module with the camera is compatible with Raspberry Pi Zero v1.3. The device has a matrix OV5647, which has a resolution of 5 Mpx 2592x1944px, supports HD 1080p at 30 K/s. The camera has a fisheye lens with an angle of 170° and the ability to focus. Raspberry Pi has hardware support for this camera due to the fact that the device does not use processor resources.
Specifications:
- Camera compatible with Raspberry Pi Zero
- Matrix: 5 MPx
- Sensor: OV5647
- CCD size: 1/4"
- AVDD: 2.7V to 3.3V
- DVDD: from 1.45 to 1.8”
- DOVDD: 1.7V to 3.3V
- Lens structure: 4P (650 nm)
- EFL: 3.52
- FNO: 2.8
- Output format: RAW, YUV or RGB
- Aperture (F): 2.9, 3.60 mm
- Viewing angle: 170°
- Resolution: 1080p/30fps / 720p/60fps / 480p/90K/s
- Dimensions: 75 x 22 mm
