Camera HD B OV5647 5Mpx, with focus adjustment for Raspberry Pi, Waveshare 8193
29.00 €
3660987 AN-04471
5903351247726
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

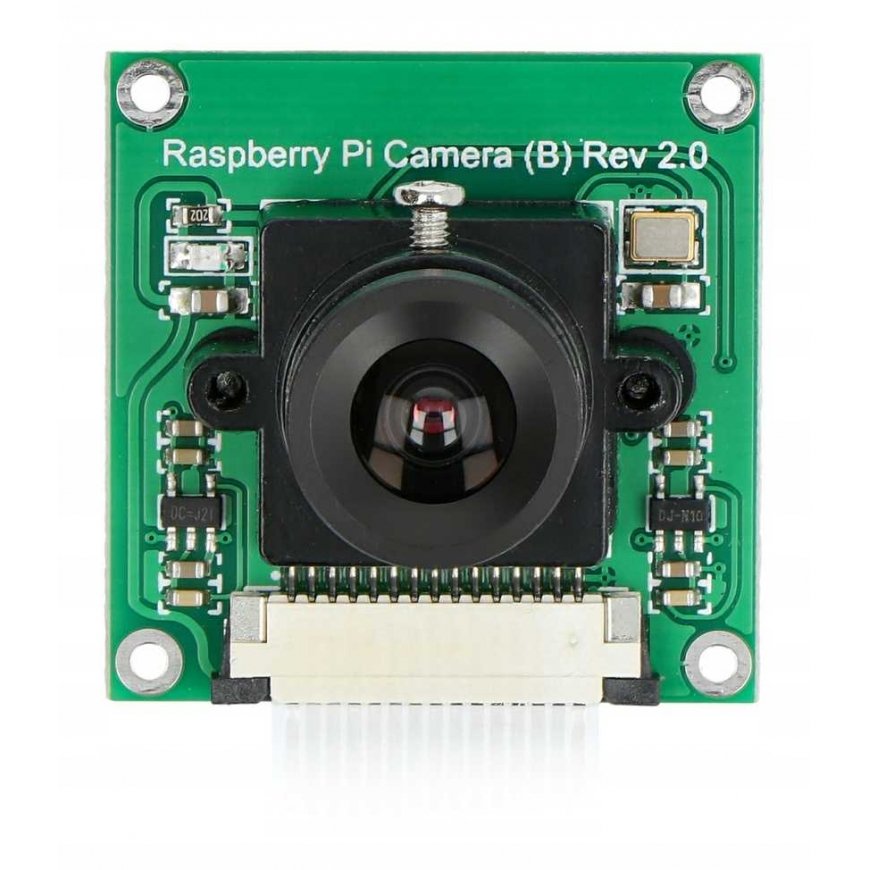

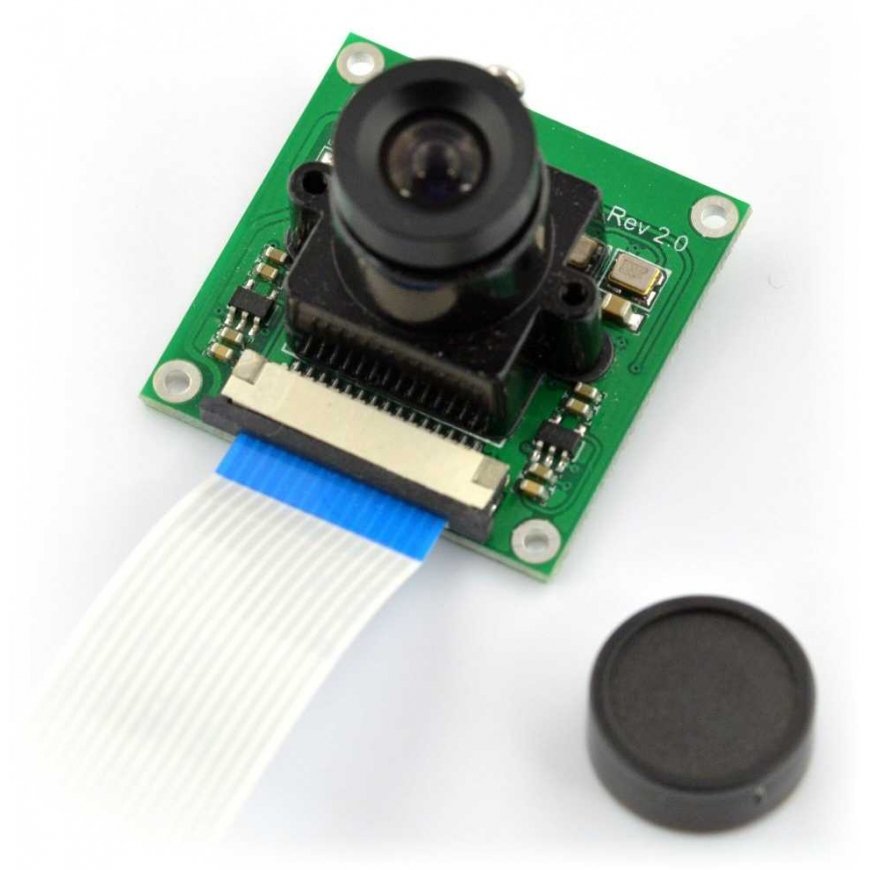

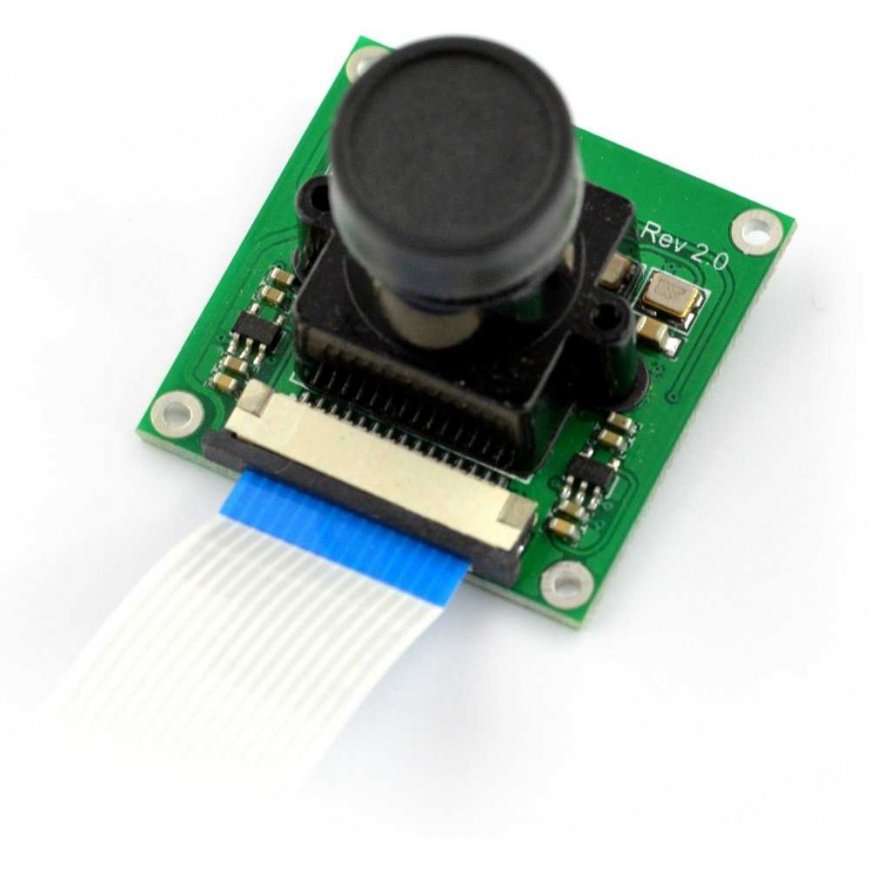

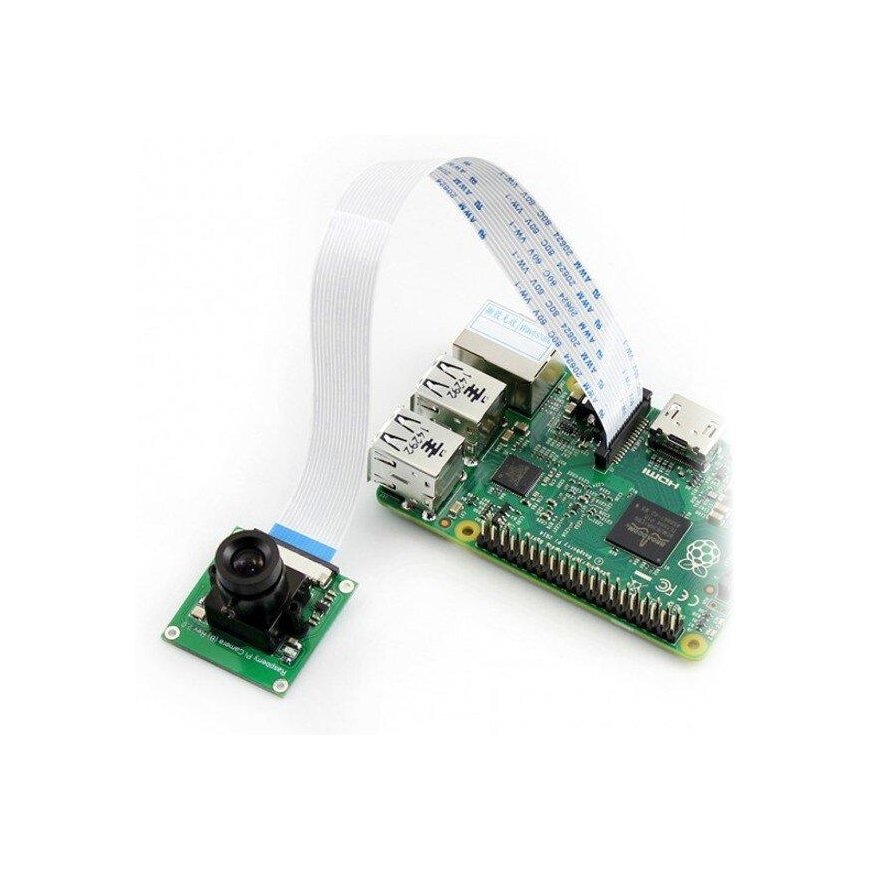

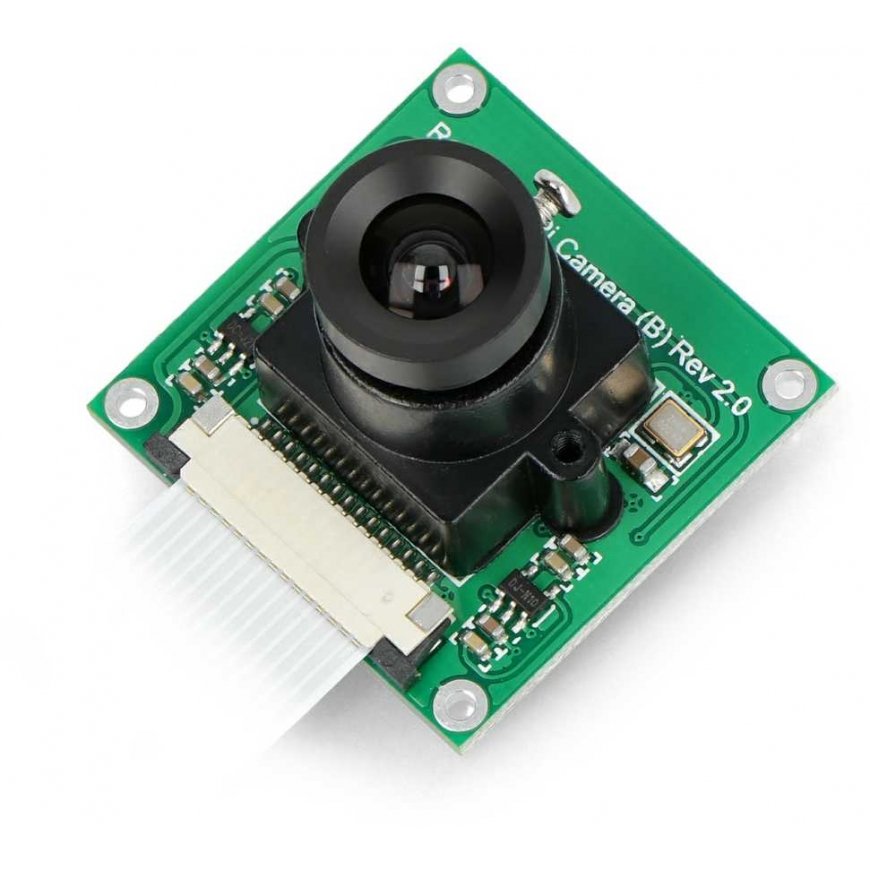

Camera module with adjustable focus, connected to a special connector of the Raspberry Pi minicomputer, 3, 2, B+, A+ and older A and B versions. The device matrix is 1/4" with a resolution of 5 Mpx, supports HD 1080p mode. Raspberry Pi supports the hardware of this camera, so the device does not use processor resources.
Specifications:
- The camera is compatible with Raspberry Pi, 3, 2, B+, A+ and older versions A and B
- Matrix: 5 MPx
- Sensor: OV5647
- Matrix CCD: 1/4"
- Viewing angle - diagonal: 75.7°
- Aperture: 2.0
- Focal length: 6 mm
- Ability to adjust the focus (adjustable focus)
- Has 4 mounting holes
- Dimensions: 32 x 32 mm
Included:
- Camera 5 MPx
- Ribbon for connecting to Raspberry Pi
- Mounting screw
Links:
Manufacturer's page
Manual
