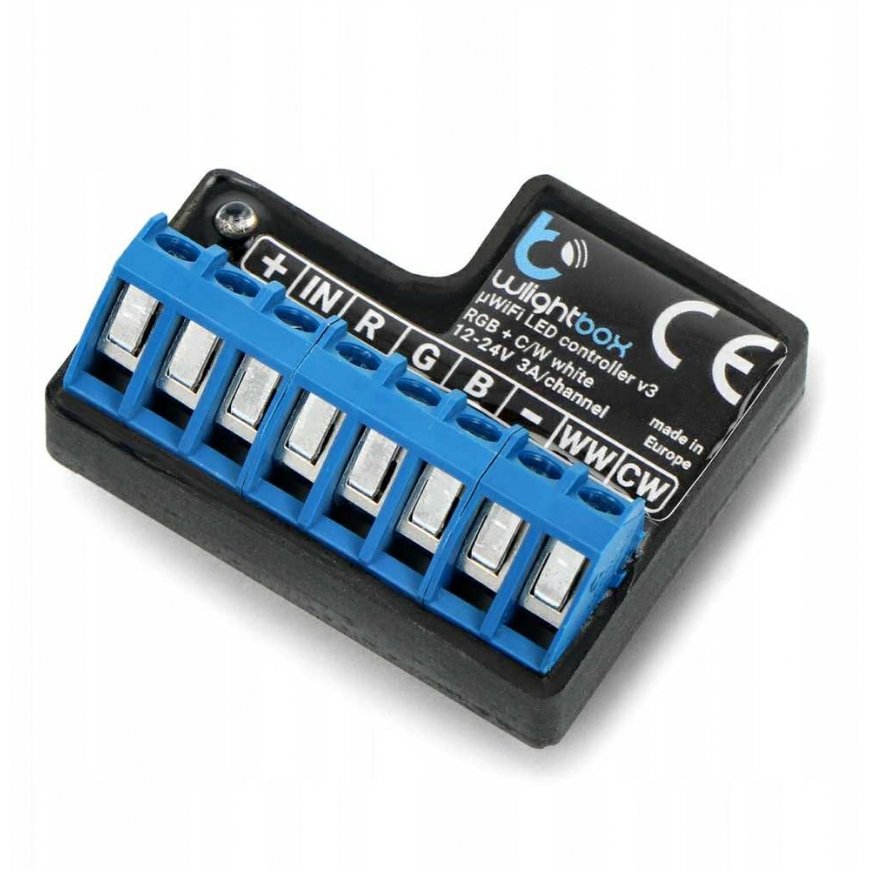

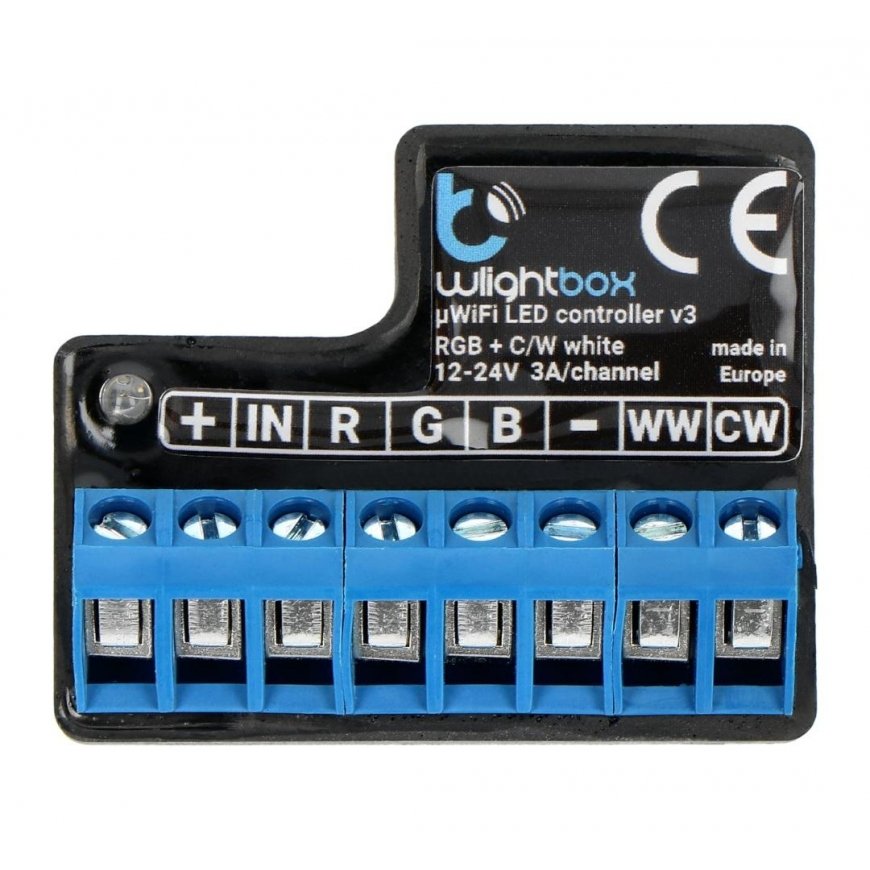

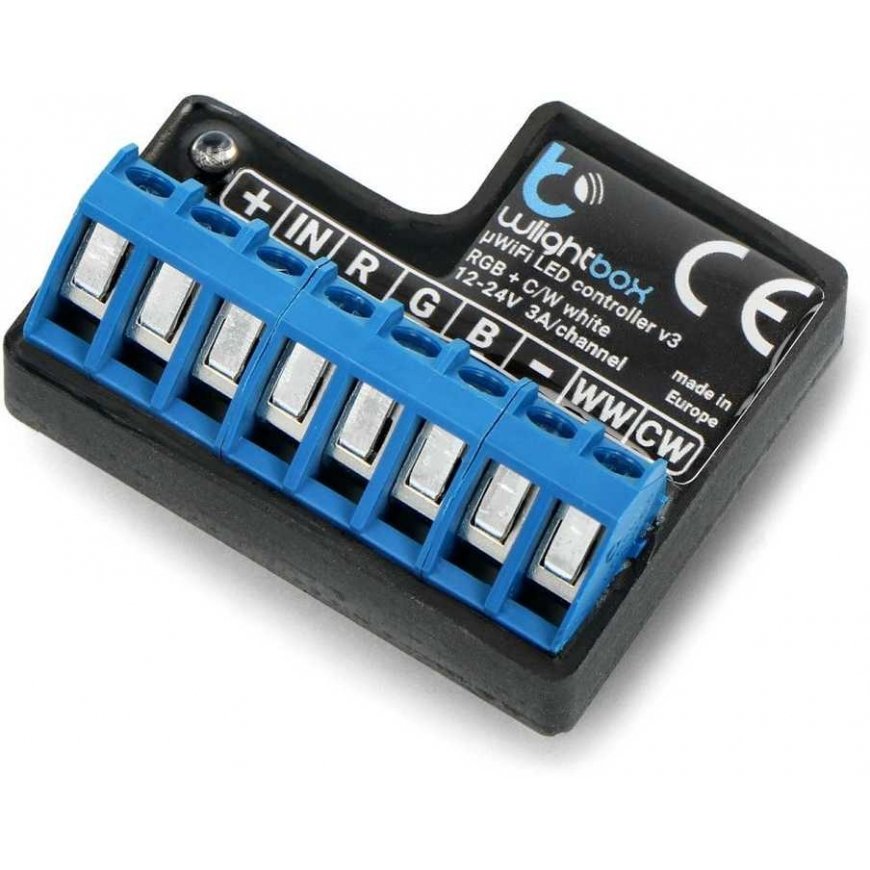

BleBox wLightBox v3 - LED controller RGBW WiFi - Android / iOS app
69.01 €
Kuumakse alates 2,68 €
3656715 AN-22779
5901685800464
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
WiFi controller for colored LED strips allows you to control RGB / RGBW lighting using a smartphone. BleBox wLightBox v3 can operate in the following modes: RGB, RGBW, RGBBCCT, CCT, 2xCCT, 5xMONO. The module supports 12 V and 24 V voltages and a maximum current of 15 A (3 A/channel). Thanks to the integrated WiFi system, it is possible to control directly (the controller broadcasts its WiFi network), locally or remotely from anywhere in the world (the controller is connected to the home WiFi network). A special wBox application allows you to control many devices simultaneously (using groups and scenes). A motion sensor operating at 12 V / 24 V voltage and a physical button can be connected to the device. The controller can be integrated with voice assistants such as Google Home and Amazon Alexa, and it is also ready to be integrated into the home automation system - Home Assistant. Specifications:
- Supply voltage: 12-24 V DC
- Power consumption: Less than 1 W
- Maximum current: 15 A (3 A/channel)
- Number of outputs: 5
- Maximum load: 360 W
- Output type: open drain, PWM, ground controlled
- Color mode: RGB / RGBW / RGB or W / RGBBCCT / CCT / 2x CCT / 5x MONO
- Number of inputs: 1
- Supported buttons: monostable without backlight
- Input type: low voltage, logic, pushbutton, shorted to GND
- Installation method: in the electrical installation box, under the button, in the device housing
- Protections: reverse polarity, ESD
- Communication standard: µWiFi, WiFi compatible, 802.11g
- Transmission type: two-way with confirmation, encrypted
- Transmission frequency: 2.4 GHz
- API: open (technical.belbox.eu)
- Connection type: direct connection (as an access point), WiFi connection via a standard router, connection with access from anywhere in the world (only Internet access required)
- Compatible devices and systems: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices that support HTML5
- Housing: made of halogen-free polyurethane, self-extinguishing, thermal class B (130 °C)
- IP class: IP20
- Dimensions: 43 x 37 x 22 mm
