Gravity - 3-axis magnetometer - BMM150 - I2C - DFRobot SEN0529
23.42 €
3653918 AN-22276
6959420922833
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

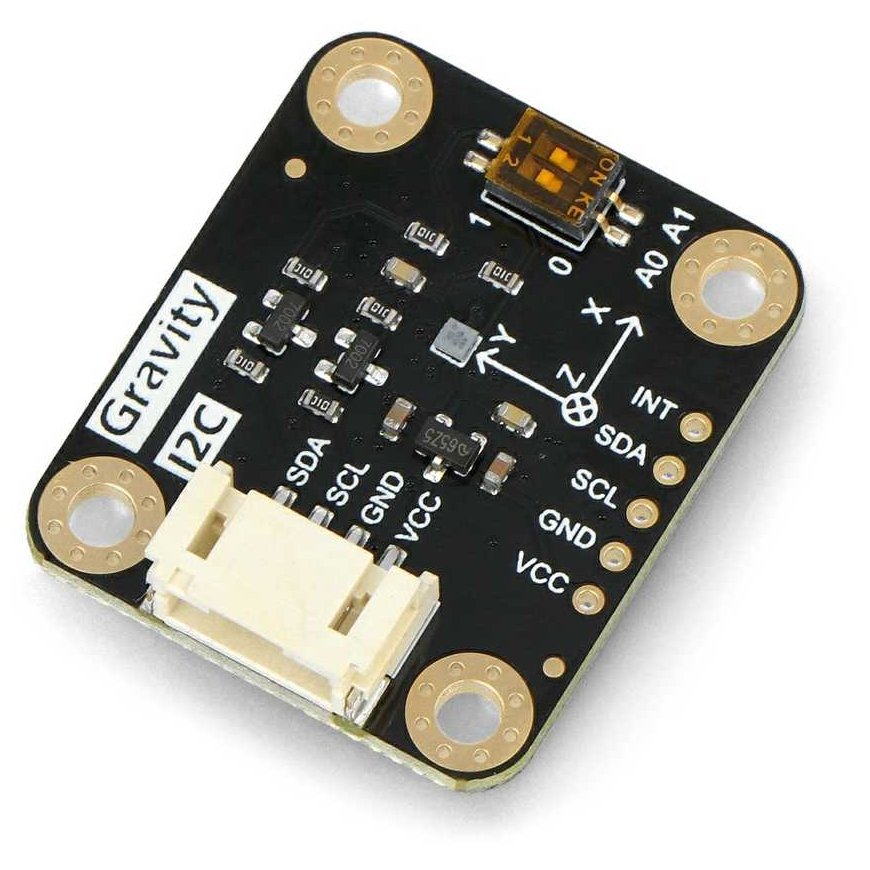

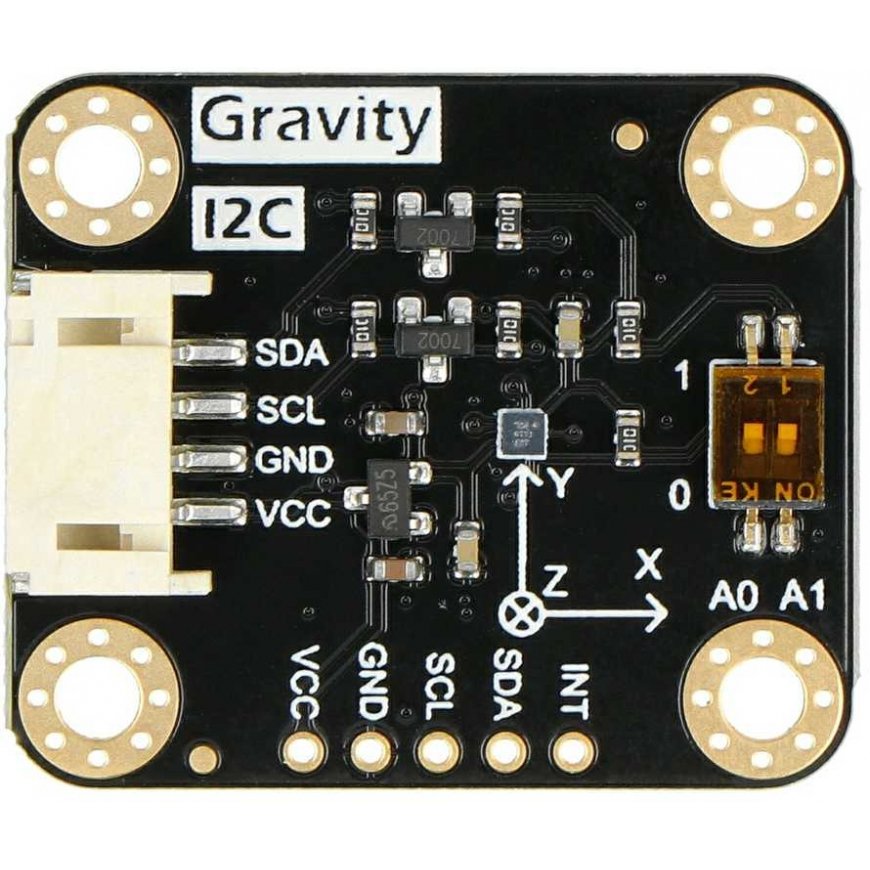

DFRobot three-axis magnetometer with Bosh BMM150 system, based on FlipCore technology. The module allows you to measure the magnetic field in three perpendicular directions ± 1300 uT (in the X and Y axes) and ± 2500 uT (in the Z axis), the measurement resolution is 0.3 uT. The module provides information about the absolute orientation, while maintaining high accuracy and precision of measurements. The board has a Gravity connector, which allows you to quickly connect elements. The sensor uses the I2C bus to communicate with connected devices. It also has a 2-bit DIP switch that allows you to configure the I2C address (4 addresses are possible). The module with the BMM150 system is used in areas such as robot navigation and positioning, electric compass, electric map. Specifications:
- Supply voltage: 3.3 V to 5 V DC
- Measurement range: ± 1300 uT (X, Y axes), ± 2500 uT (Z axis)
- Measurement resolution: 0.3 uT
- Accuracy: 30 uT
- Zero-B offset: ±40 uT / ±2 uT (software optimized)
- Nonlinearity: < 1% FS
- Magnetometer heading accuracy: horizontal component of the geomagnetic field 30 uT, ± 2.5°
- Communication interface: I2C bus

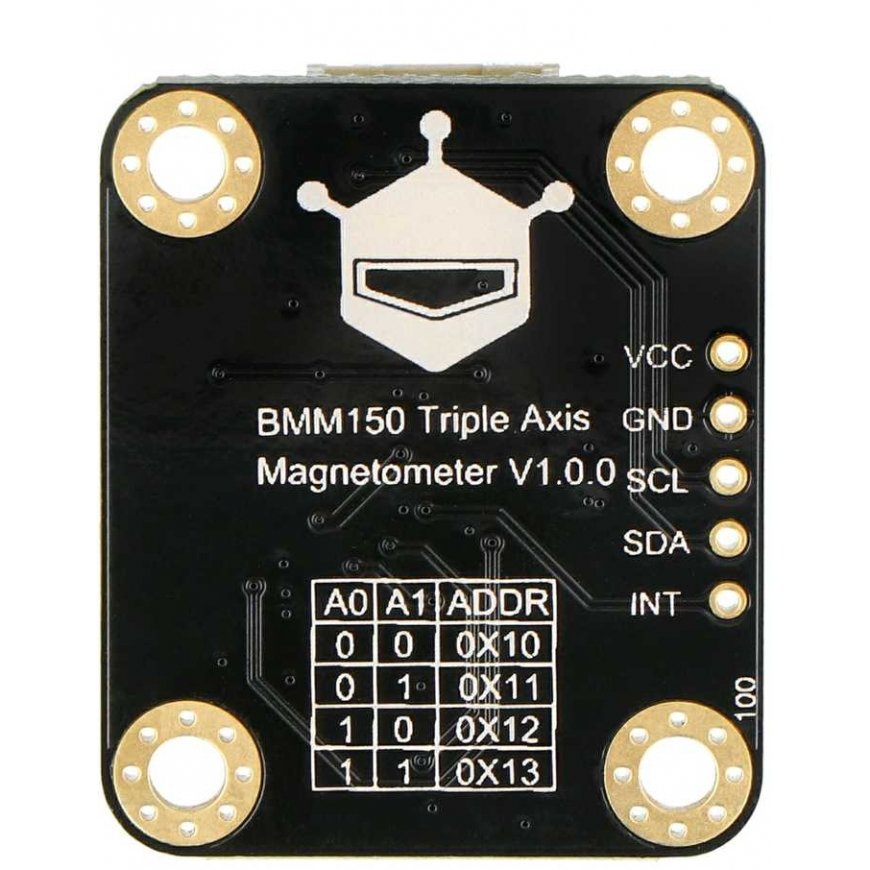

- I2C bus address: configurable from 0x10 to 0x13
- Current consumption: 1.7 mA at 10 Hz
- Start-up time: 3 ms
- Module dimensions: 32 x 27 x 7.2 mm

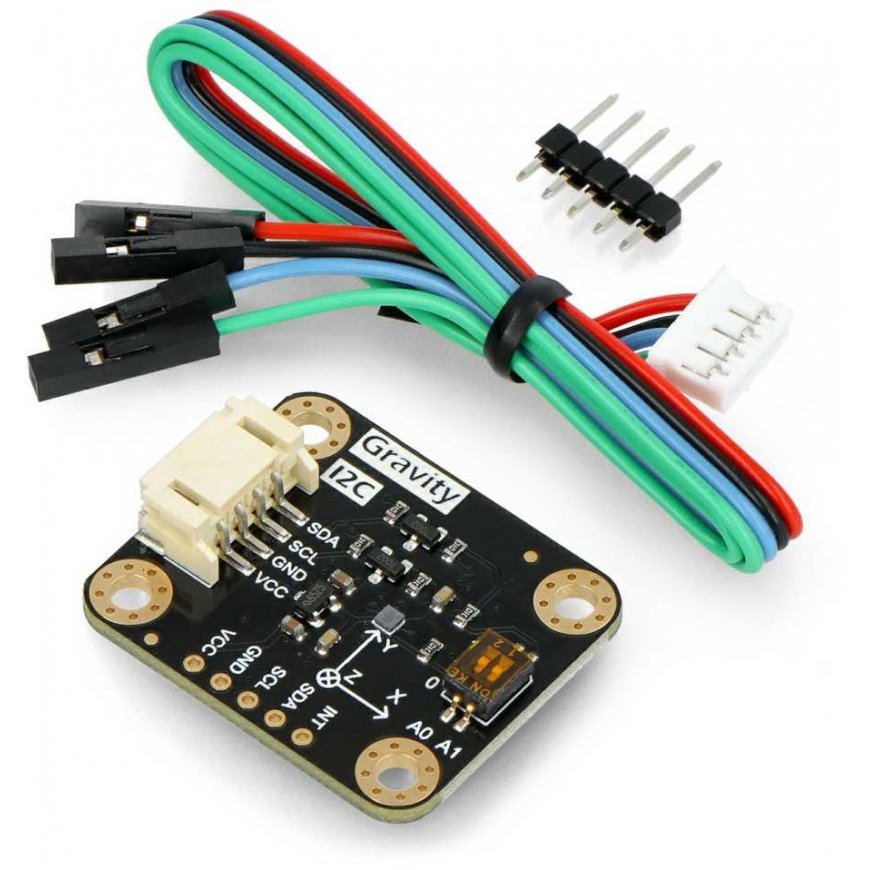

Included:
- Gravity - 3-axis magnetometer - BMM150 - I2C - 1 pc
- Gold pin strip 1x5 - pitch 2.54 mm - 1 pc.
- Connecting cable with Gravity connector - 1 pc.
