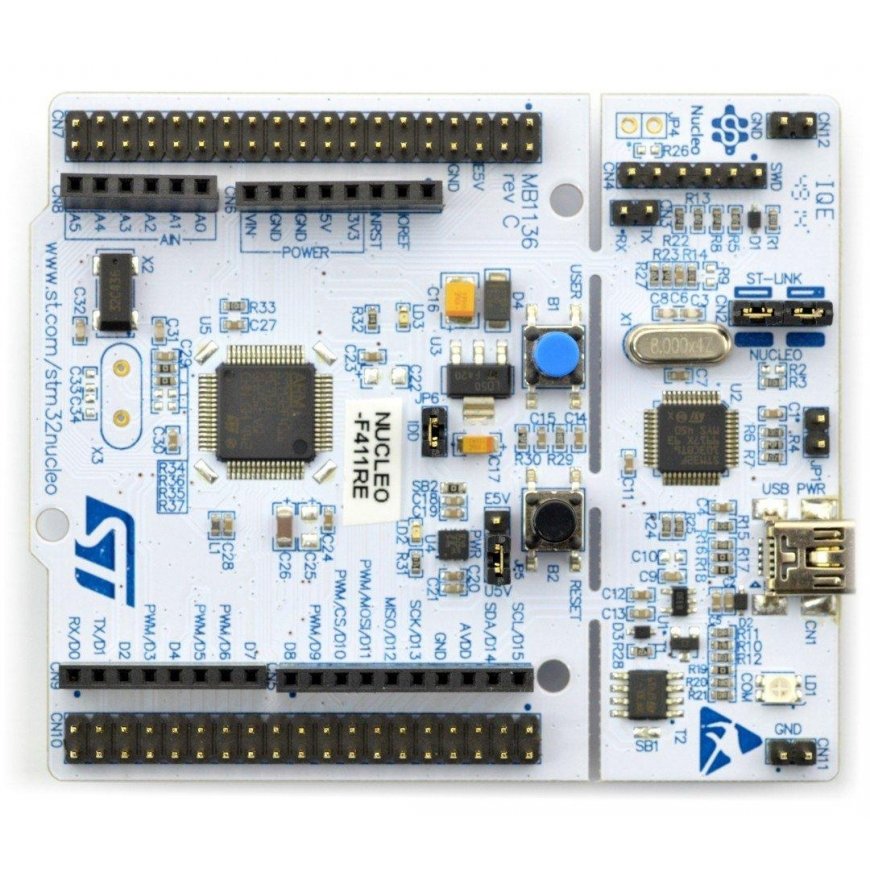

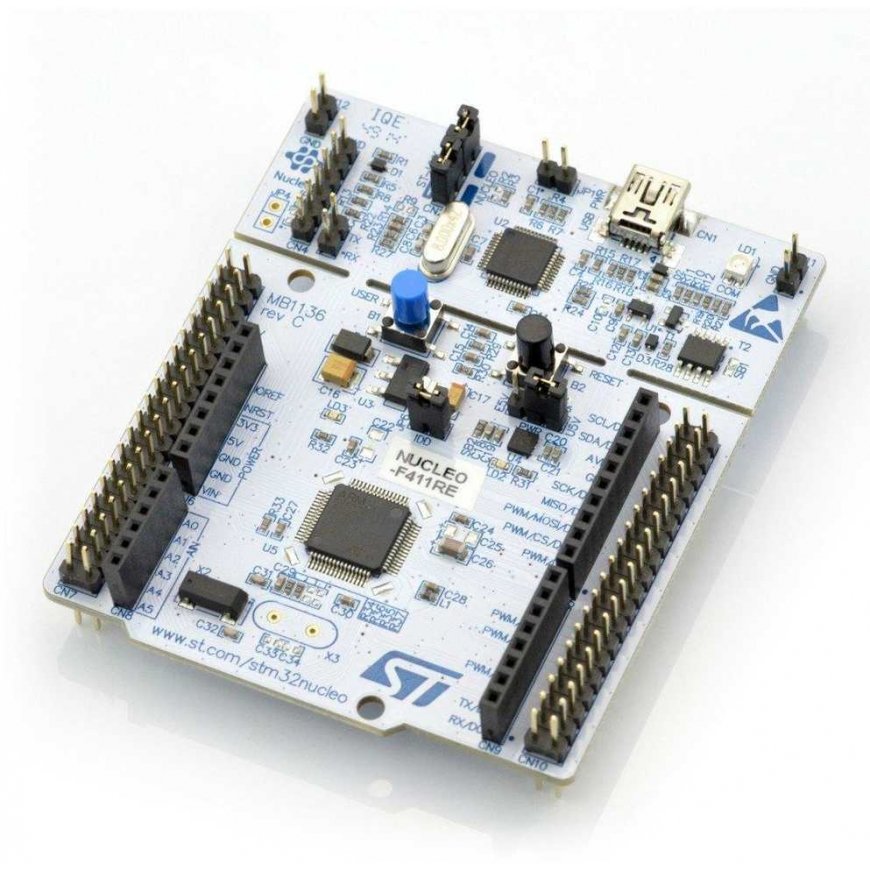

Stmicroelectronics STM32 NUCLEO-F411RE module - STM32F411RE ARM Cortex M4
40.26 €
Kuumakse alates 1,94 €
3652040 AN-03363
5904422331764
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Module with 32-bit microcontroller with ARM Cortex M4, 100 MHz, 512 KB Flash, 128 KB SRAM. Nucleo is compatible with the mbed platform, has connectors for connecting an Arduino board.Specifications:
- Microcontroller: STM32F411RET6
- Core: ARM Cortex M4 32-bit
- Clock frequency: 100 MHz
- Flash memory: 512 KB
- SRAM: 128KB
- Analog-to-digital converter: 12-bit, 16 channels
- Number of timers: 10
- Number of programmable inputs/outputs: 50
- Interfaces: 3x I2C, 3x USART, 5x SPI, USB 2.0 full speed
- Two types of connections:
- Set-top box connectors compatible with Arduino Uno Rev3
- Standard pins STMicroelectronics Morpho provides access to microcontroller pins
- The module is compatible with the mbed system (mbed.org)
- The ST-Link/V2 debugger is placed on the board with the ability to work as a standalone device with SWD output
- Possibility of power supply via USB connection
- Three LEDs are embedded:
- 1 x for power supply voltage indication
- 1 x connector for indication
- 1 x at the user's disposal
- Two buttons:
- 1 x RESET
- 1 x at the user's disposal
- Three different interfaces via miniUSB connector (USB re-enumeration):
- Virtual COM port
- Mass storage
- Programming/debug port
- The module supports most popular environments, such as IAR, Keil, and platforms based on the GCC compiler.
