Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W – 2
Soldering station 2in1 Yihua 878D with hot air Hotair 700W – 3
Soldering station 2in1 Yihua 878D with hot air Hotair 700W – 4
Soldering station 2in1 Yihua 878D with hot air Hotair 700W – 5
-1%
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W
Soldering station 2in1 Yihua 878D with hot air Hotair 700W

Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

Soldering station 2in1 Yihua 878D with hot air Hotair 700W

85,73 €
84.74 €
Kuumakse alates 3,08 €
3651749

AN-08220

5908272000221

Tarneaeg 6-11 t.p.

Kauba vastu huvi?
(Lugege teenusetingimusi)

Kõik toote kohta

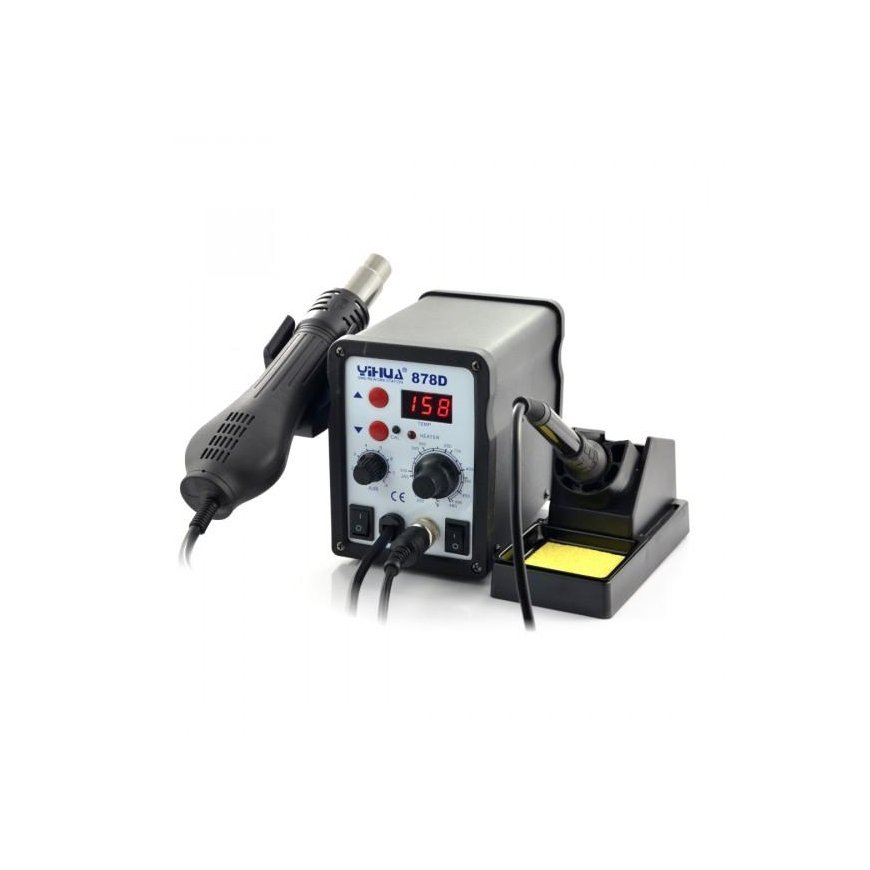

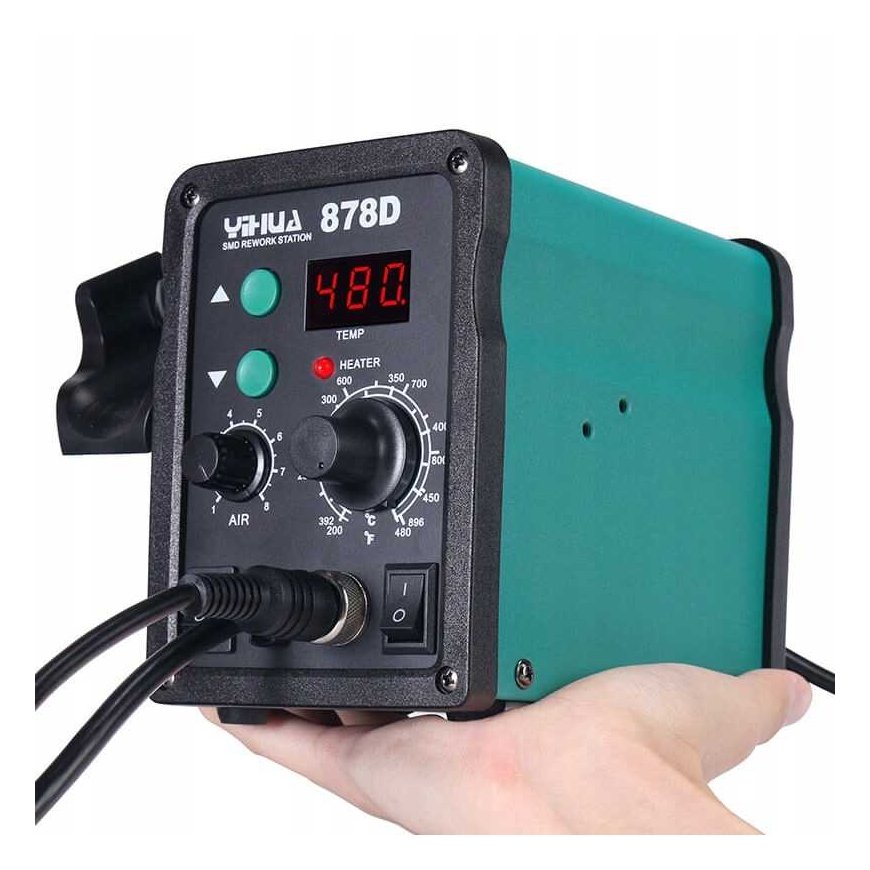

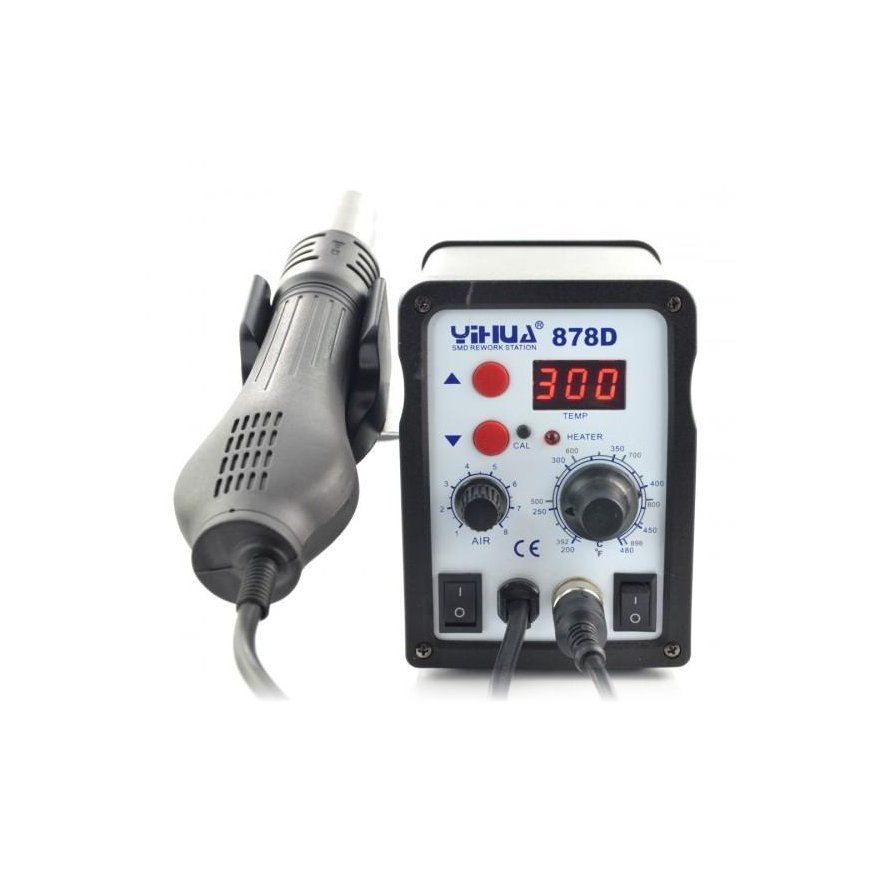

The Yihua 878D soldering iron has an LED display that shows the temperature of the hot air. The temperature of the blowing air can be adjusted using the buttons, and the blowing power is adjusted using the larger knob. The temperature of the soldering iron is set using the smaller knob.
The station has a sensor at the bottom of the hot air flask, thanks to which, when the flask is placed aside, the device cools the heating element for 3-8 minutes, after which it turns off (goes to standby mode). This treatment saves energy, extends the service life and, most importantly, ensures greater safety of work. After reaching the standby state, the station can be completely turned off by pressing a button or turned on by lifting the flask.
The station is used in electronic services for safe soldering of QFP, BGA, SMD, PLCC and other temperature-sensitive components.
soldering-station-2in1-yihua-878d-with-hotplate
Soldering iron tip
  • Nozzle temperature adjustment: from 200°C to 480°C
  • Temperature stability: +/- 2°C
  • Soldering iron power: 50W
soldering-station-2in1-yihua-878d-with-hotplate
Soldering station specifications:
  • Power supply: 230 V / 50 Hz (mains)
  • Power: 700W
  • The station is controlled by a microcontroller, which ensures high operating stability.
  • The device has a standby mode
  • The station has an ergonomic body
Hotair soldering iron
  • Hot air temperature adjustment: from 100°C to 480°C
  • Temperature stability: +/- 1°C
  • LED screen
  • Temperature setting with buttons
  • Smooth air flow adjustment with buttons
  • Air flow: up to 120 liters/min
  • Hot air outlet head size 22mm (fits all PT/Aoyue station nozzles)

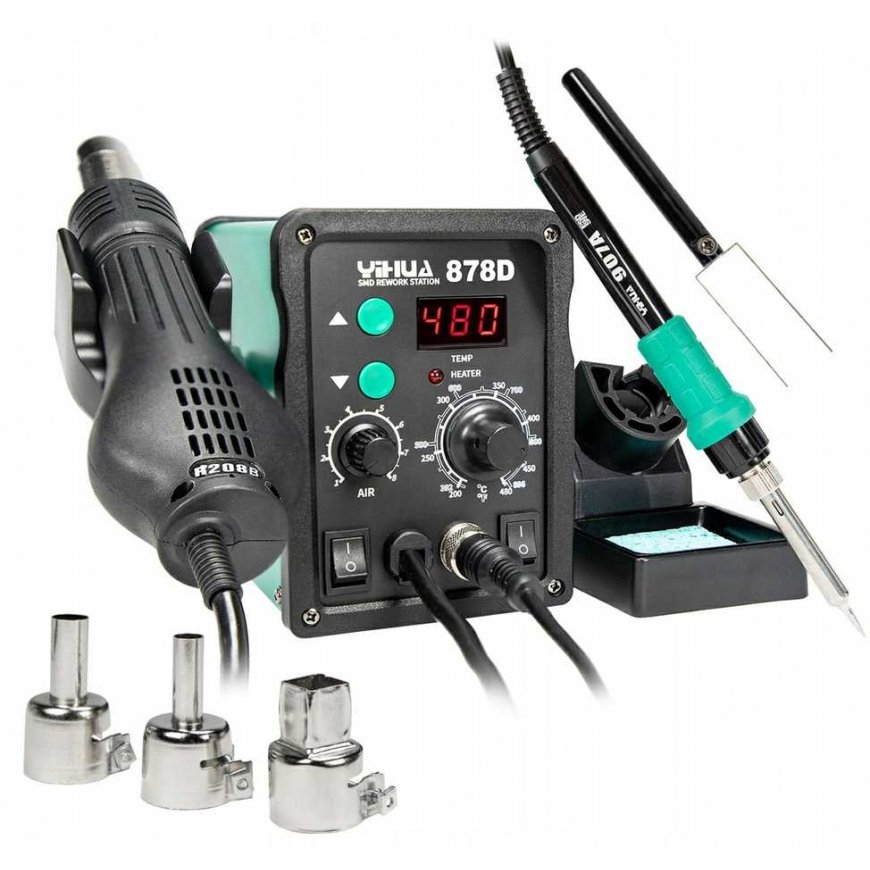

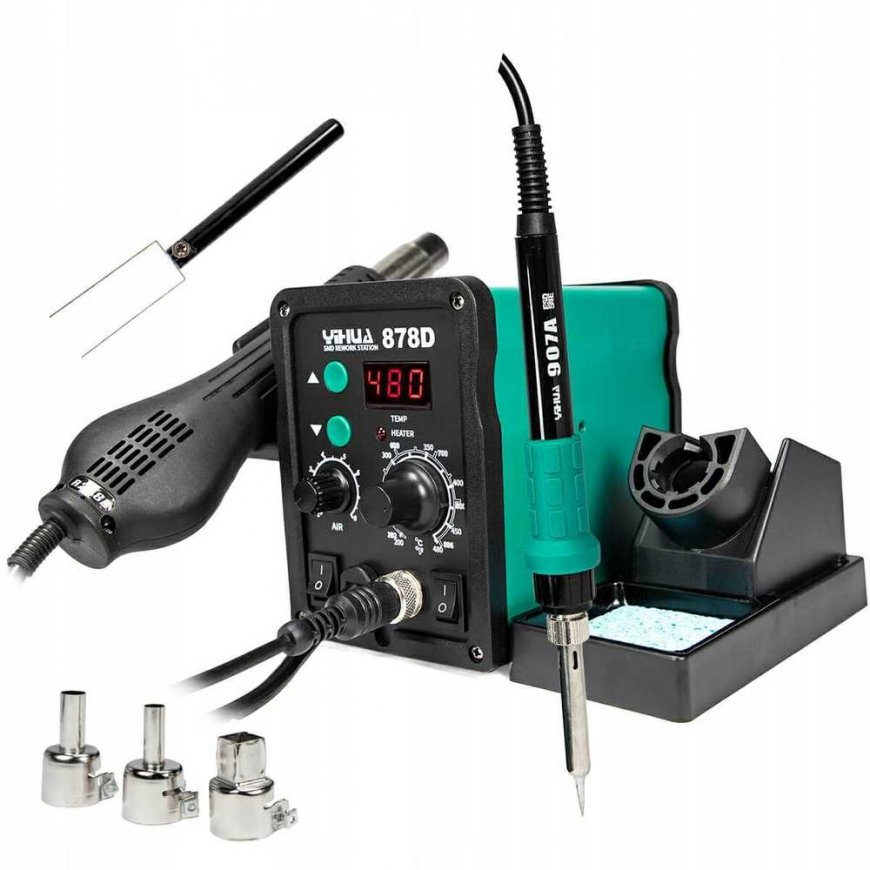

In the kit:
  • Yihua 878D soldering station
  • Hotair stock stand
  • Nozzle set:
  • round nozzle with a diameter of 8 mm
  • round nozzle with a diameter of 9 mm
  • square 12x12mm
  • Flask support with cleaning sponge
  • 907A wide-head assembly with TI point
