DFRobot Gravity VL53L0X, time-of-flight and distance sensor I2C

29.00 €
3650243

AN-11762

5904422317973

Tarneaeg 11-18 t.p.

Kauba vastu huvi?
(Lugege teenusetingimusi)

Kõik toote kohta

Digital distance sensor performs measurements using the time-of-flight method. Operates from 3 to 200 cm, accuracy +/- 3%. Powered by a voltage of 3.3 to 5 V, built-in voltage regulator, communicates via the I2C bus. The module is necessary for the correct operation of the system, passive elements. Gravity pin, designed to connect the module to the cable included in the kit. The time-of-flight method measures the time from the propagation of a pulse by infrared rays to its return to the detector. Depends on the reflection of light from the object.

Specifications:

  • Supply voltage: 3.3V to 5V
  • Operating voltage: 2.8V
  • Measurement range: 3 cm to 200 cm
  • IR transmitter: 960 nm
  • Accuracy: +/- 3%
  • Field of view: 25°
  • Measurement time: <= 30ms
  • Interface: I2C
  • Operating temperature: -20 to 70 °C
  • Dimensions: 20 x 22 mm x 2 mm

Included:

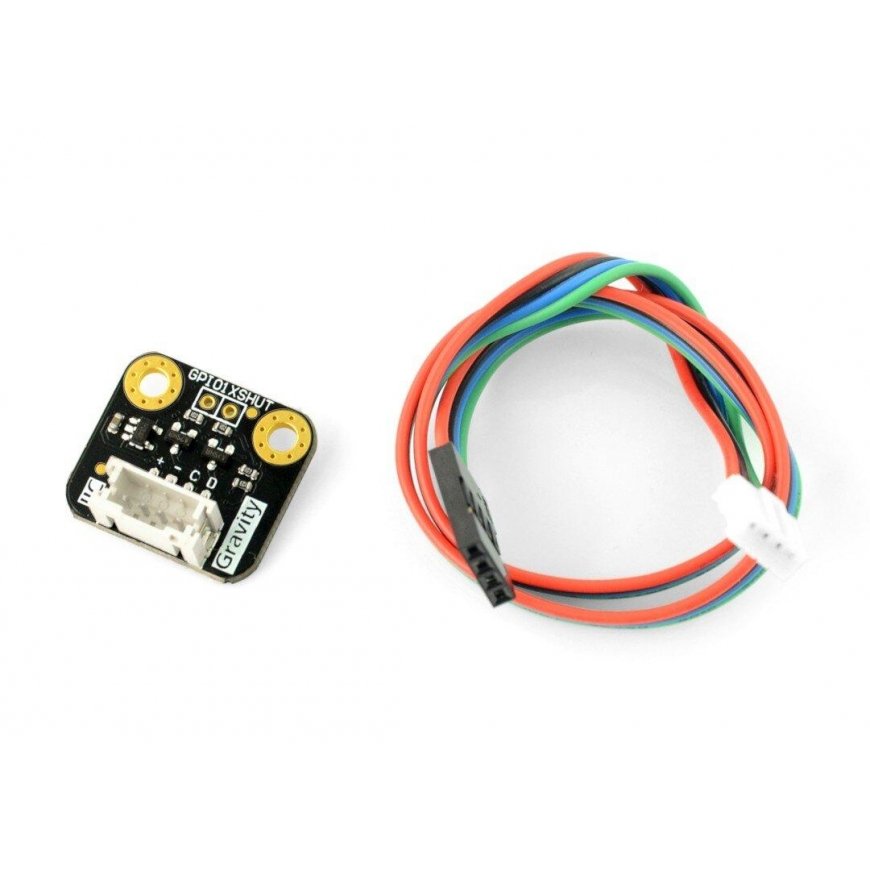

  • Gravity I2C/UART sensor cable (30 cm) x1

Links:
Manufacturer's page
Manual
