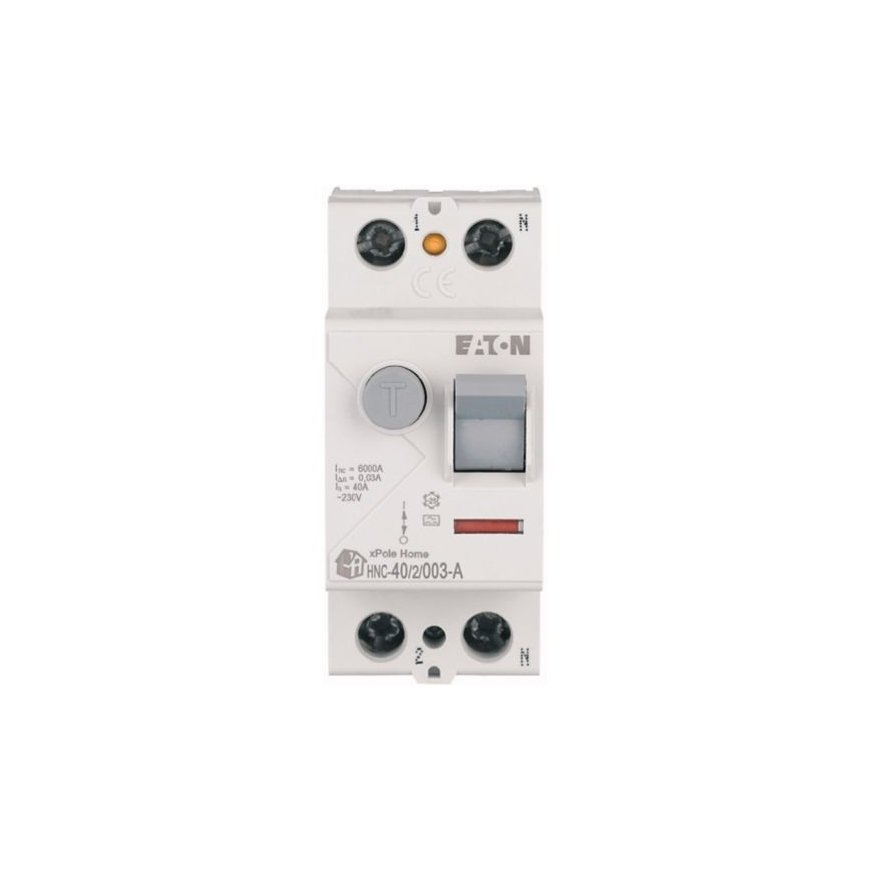

NEW Residual current circuit breaker 40A 2P 30mA type A Degree of protection (IP): IP20 Installation depth [mm]: 45 mm Rated current [A]: 40 A Voltage (V): 230 V Rated voltage [V]: 230 V Rated insulation voltage Ui: 440 V Number of poles: 2 Short-circuit strength (Icw) [kA]: 6 kA Surge withstand current [kA]: 0.25 kA Pollution degree: 2 Width expressed in number of modules: 2 Cross-section of connected single-core cable: 1.5 mm2 Connected multi-core cable: 1.5 mm2 Ambient temperature in operating conditions: - 25 °C Rated impulse withstand voltage Uimp: 4 kV Mounting method: DIN rail Sensitivity: A Selective protection: No Short-time release: No Frequency: 50 Hz With lock: Yes Additional equipment option: Yes Nominal residual current [A]: 0.03 mA Manufacturer: NEW ELECTRIC Manufacturer: NAJAS ELEKTROS Product code: 1586877 EAN: 9010238061866 NEW, Residual current circuit breaker 6kA, 40A/2p/30mA, type A.
