E-paper E-Ink display, 2.66” 296x152px, SPI, black, red, white, for Raspberry Pi Pico, Waveshare 20053
39.00 €
Kuumakse alates 1,90 €
3648383 AN-19724
5904422347307
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

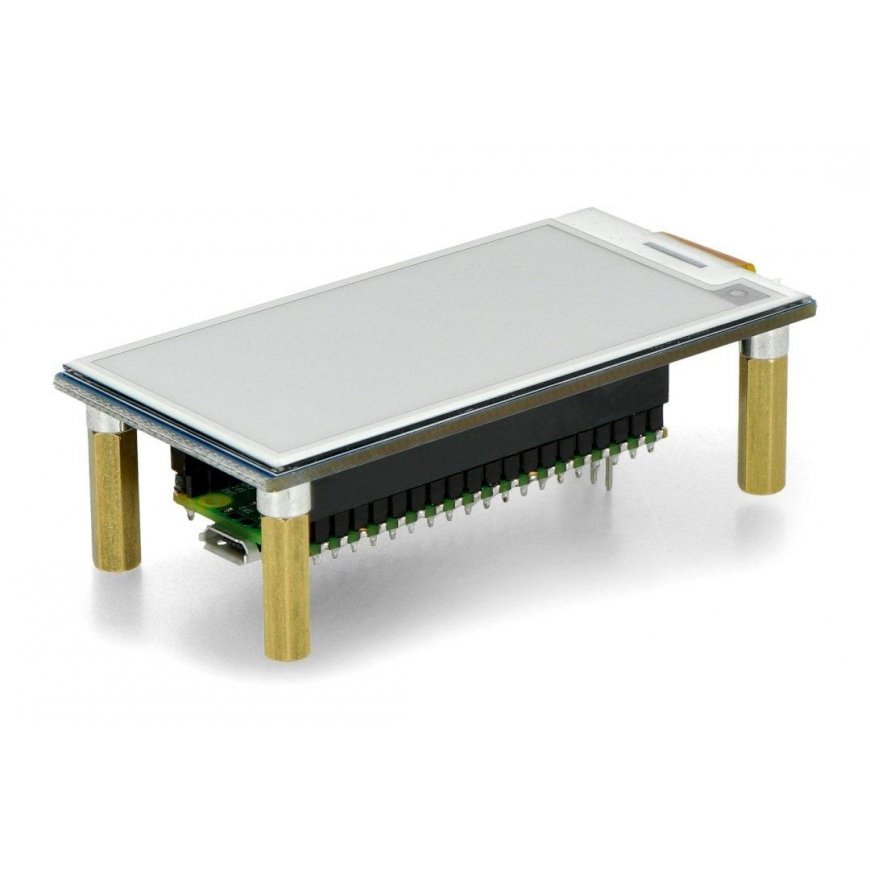

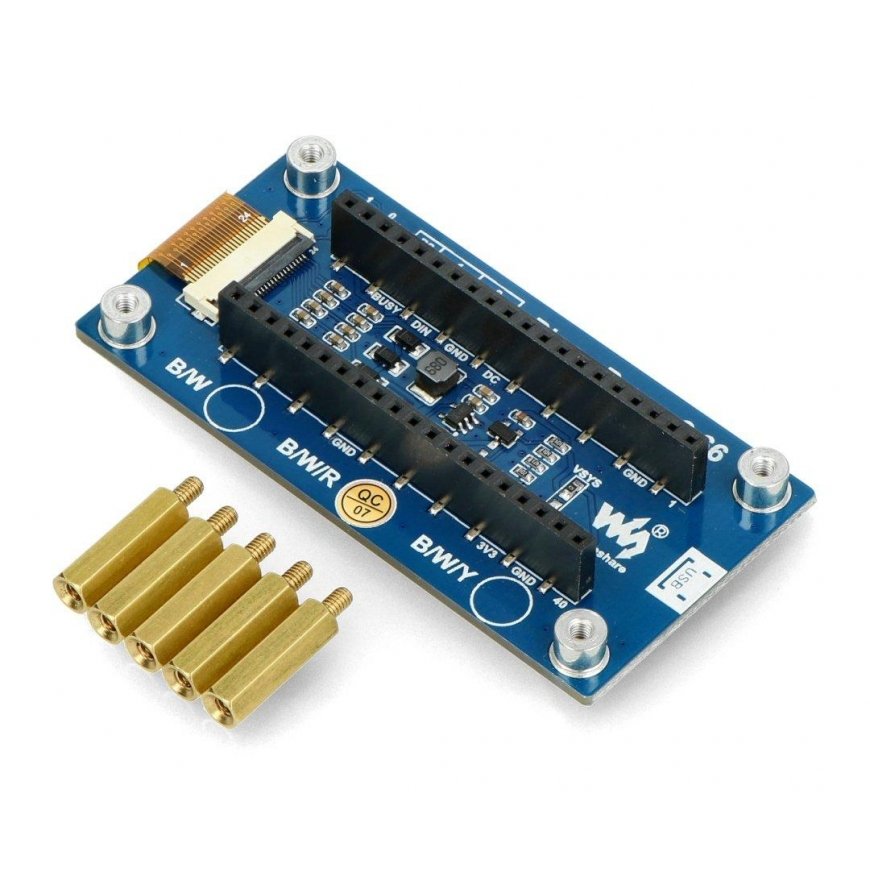

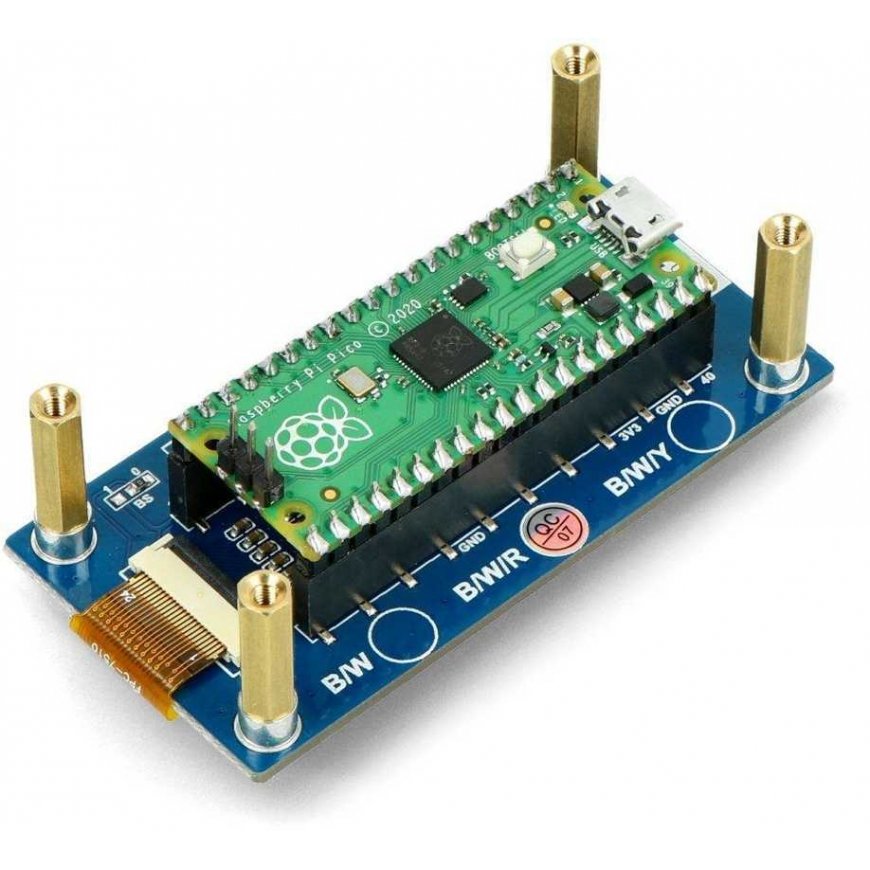

The display was created by Waveshare, based on e-paper technology. Its diagonal is 2.9”, and the resolution is 296x128px. The display works with the Raspberry Pi Pico module. The image is displayed in three colors: black, white and red. Supports communication via the SPI interface. Due to such e-paper technology, the display is suitable for readers of electronic books and electronic magazines.Main features:
- The absence of backlighting keeps the last displayed image for a long time
- Ultra-low power consumption, power is only needed to refresh the screen
- SPI interface
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Screen colors: black, white and red
- Grayscale: 2
- Full refresh time: 15s
- Current consumption when updating: 42.4 mW
- Idle current consumption: up to 0.01 uA
- Viewing angle: up to 170°
- Diagonal: 2.66”
- Resolution: 296x152px
- Pixel size: 0.203 x 0.202 mm
- External dimensions: 74 x 37.5 mm
- Screen dimensions: 60.088 x 30.704 mm
