DFRobot Gravity Lightning Sensor
3645141 AN-13752
5903351243773
Tarneaeg 11-18 t.p.
Kõik toote kohta

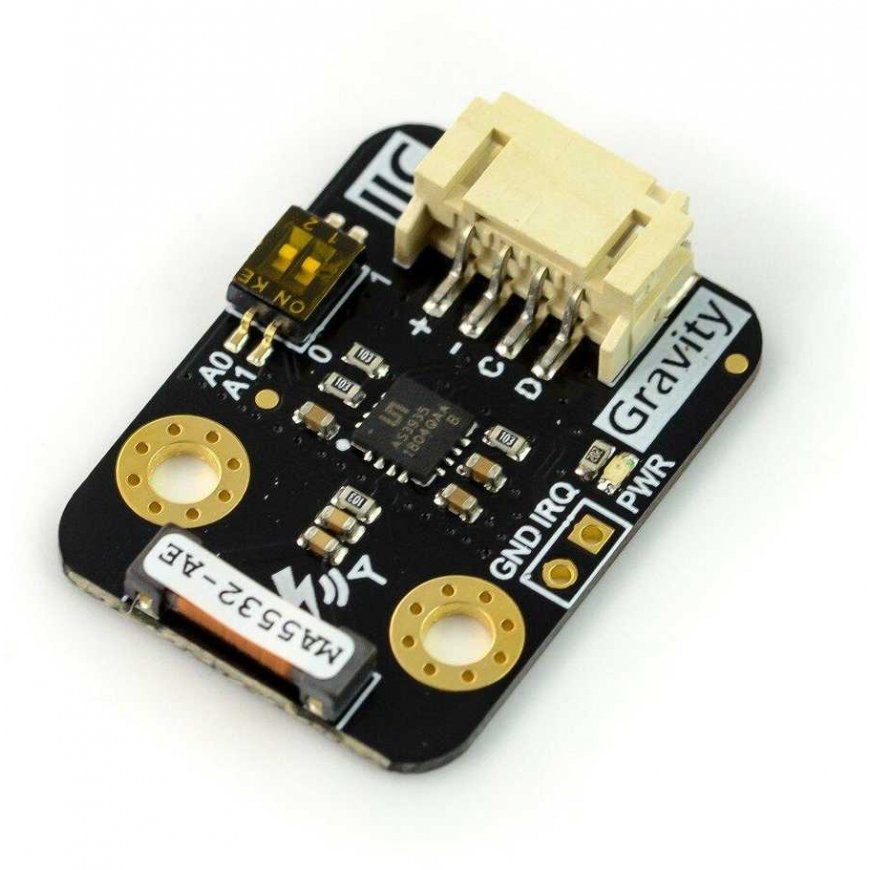

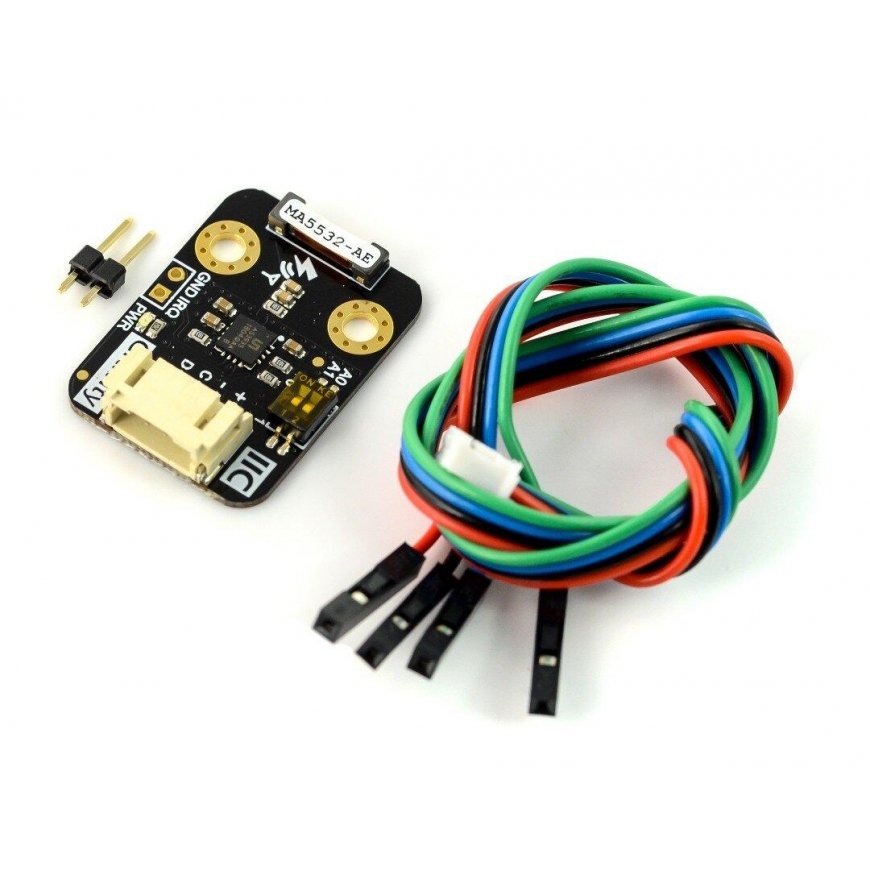

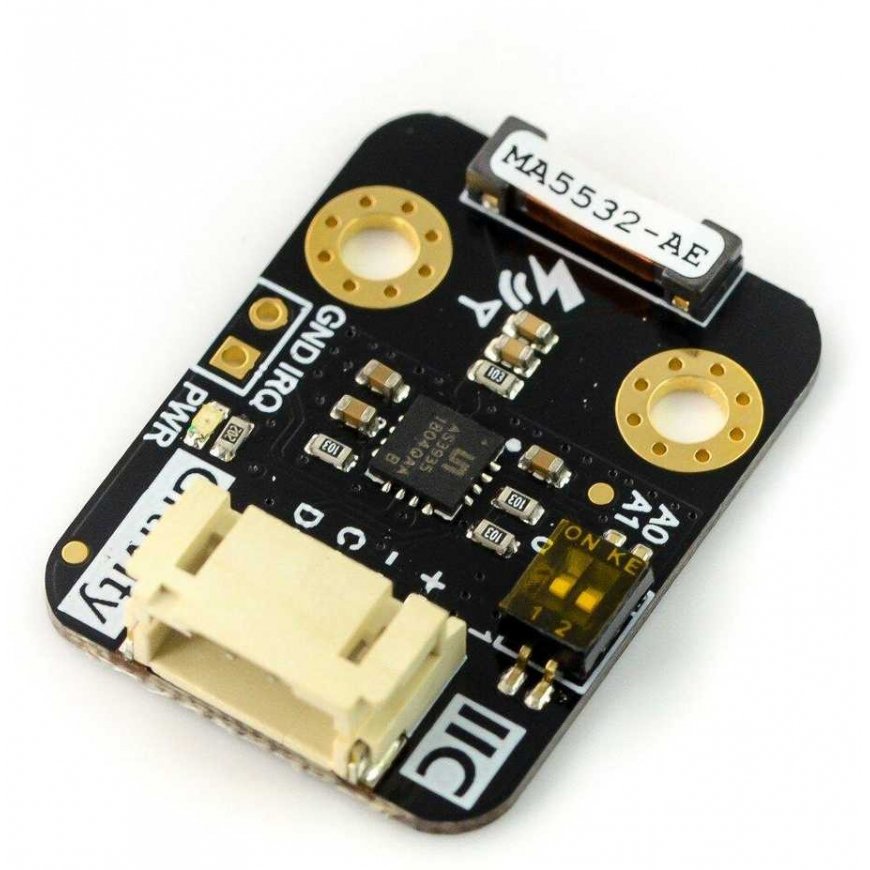

The module is equipped with an AMS AS3935 Franklin system and a special Coilcraft MA5532-AE antenna designed to determine the distance, intensity and frequency of atmospheric emissions at a distance of 40 km.
Due to its small size and wide detection range, the sensor can also be used in smart clothing for people working at heights. The sensor can also be used in smart buildings, which, upon detecting nearby atmospheric discharges, give a command to disconnect electricity from devices sensitive to these effects. The module can also be useful for photographers to detect lightning.
Specifications:
- Input voltage: 3.3V to 5V
- Maximum detection range: 40 km
- Detection range resolution: 1 km to 4 km
- Intensity resolution: 21 bits, 0 to 16777201
- I2C address: 0x03, 0x02, 0x01
- Interface: Gravity
- Dimensions: 30 x 22 mm
