M5Stack Fire IoT Development Kit V2.6 – ESP32-D0WDQ6-V3 IoT Development Kit – M5Stack
88.99 €
Kuumakse alates 3,19 €
3641914 AN-20530
5904422381530
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

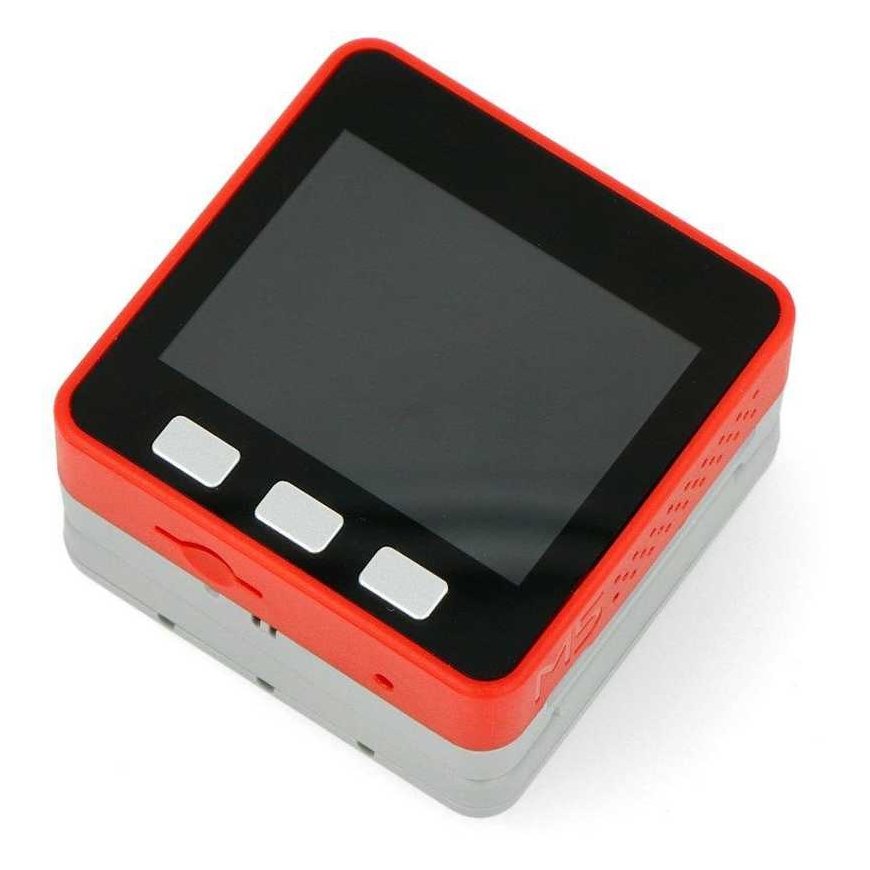

The M5Stack Fire IoT Development Kit V2.6 features a 240 MHz, 600 DMIPS, 520 KB SRAM dual-core Xtensa 32-bit LX6 processor with WiFi and Bluetooth dual-band wireless connectivity. The M5Stack Fire also features a 2” LCD touch screen and 3 service buttons. It features easy access to the M5Stack software and hardware system, as well as connecting modules. The integrated chassis also makes the module applicable to industrial projects, smart building projects, and extensive IoT projects, for data acquisition from external nodes, etc.Main features:
- Equipped with ESP32 chip
- 6MB Flash memory + 8MB PSRAM

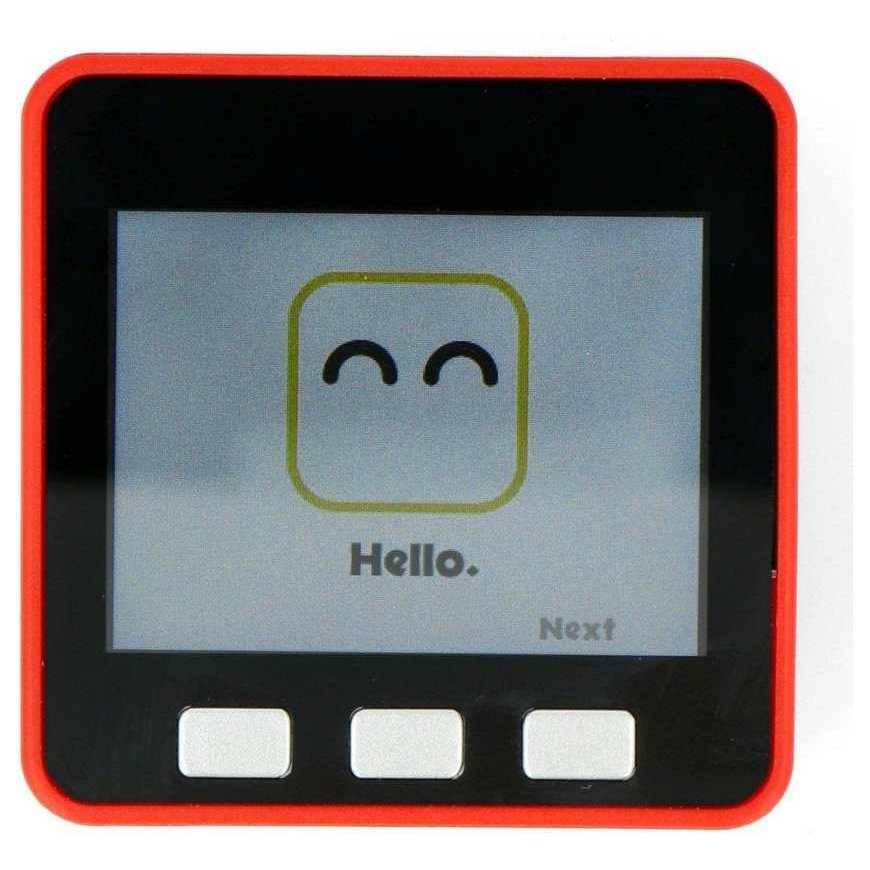

- Equipped with a 2” LCD touch screen, 3 buttons for any purpose
- TF memory card slot
- Compatible with M5Stack modules and extensions that allow you to expand and improve the functionality of the kit

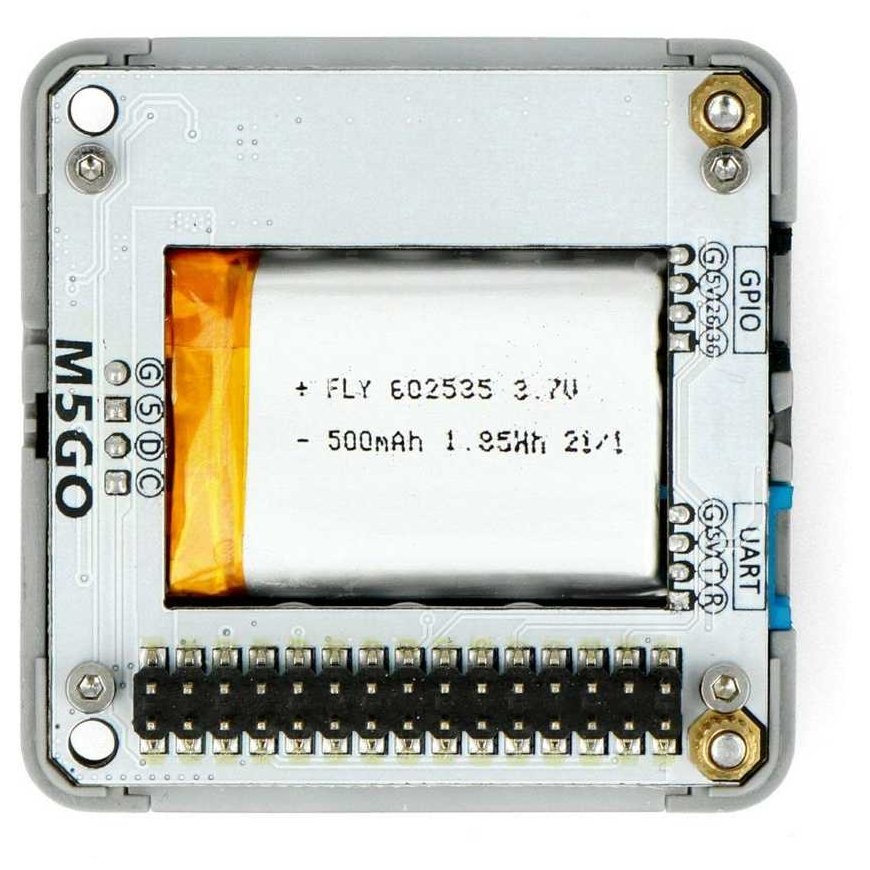

- There is also an M5GO stand with a rechargeable battery, compatible with 8mm LEGO bricks
- Supported with popular development platforms such as Arduino/UIFlow/MicroPython
- Microsoft Azure Authentication Device and FreeRTOS support
- Ensures a strong and consistent wireless connection through the RF circuit
- Integrated chip: ESP32-D0WDQ6-V3
- Processor: Xtensa 32-bit LX6
- Dual-core 240 MHz, 600 DMIPS
- 520KB SRAM
- WiFi and Bluetooth dual-band wireless connection
- Flash memory: 16MB
- PSRAM: 8 MB
- Input voltage: USB port: 5 V / 500 mA
- Interfaces: 1x USB Type-C, 1x POGO, 1x I2C, 1x GPIO, 1x UART
- Buttons: 3x all-purpose buttons
- Screen:
- Type: IPS LCD
- Diagonal: 2”
- Resolution: 320x240px
- Integrated circuit: ILI9342C
- Speaker: 1W-0928
- Microphone: analog, BSE3729
- IMU sensor: 6-axis, MPU6886
- USB chip: CH9102F
- LEDs: 10x SK6812 RGB LEDs
- Antenna: 3D 2.4GHz
- Battery: 500mAh/3.7V
- Operating temperature: 0 °C to 40 °C
- Material: plastic (PC)
- Dimensions: 54 x 54 x 30.5 mm
- Weight: 62.3 g
- M5Stack Fire module
- M5GO stand with battery - for M5Stack Core
- LEGO strip for loading - 2 pcs.
- LEGO connectors - 5 pcs
- Allen wrench
- USB Type-C cable 50 cm long
- User manual
